Sea Sonic
750W Seasonic Connect | 80+ Gold
Pre-Order
€147.99
VAT (19%) included
Description

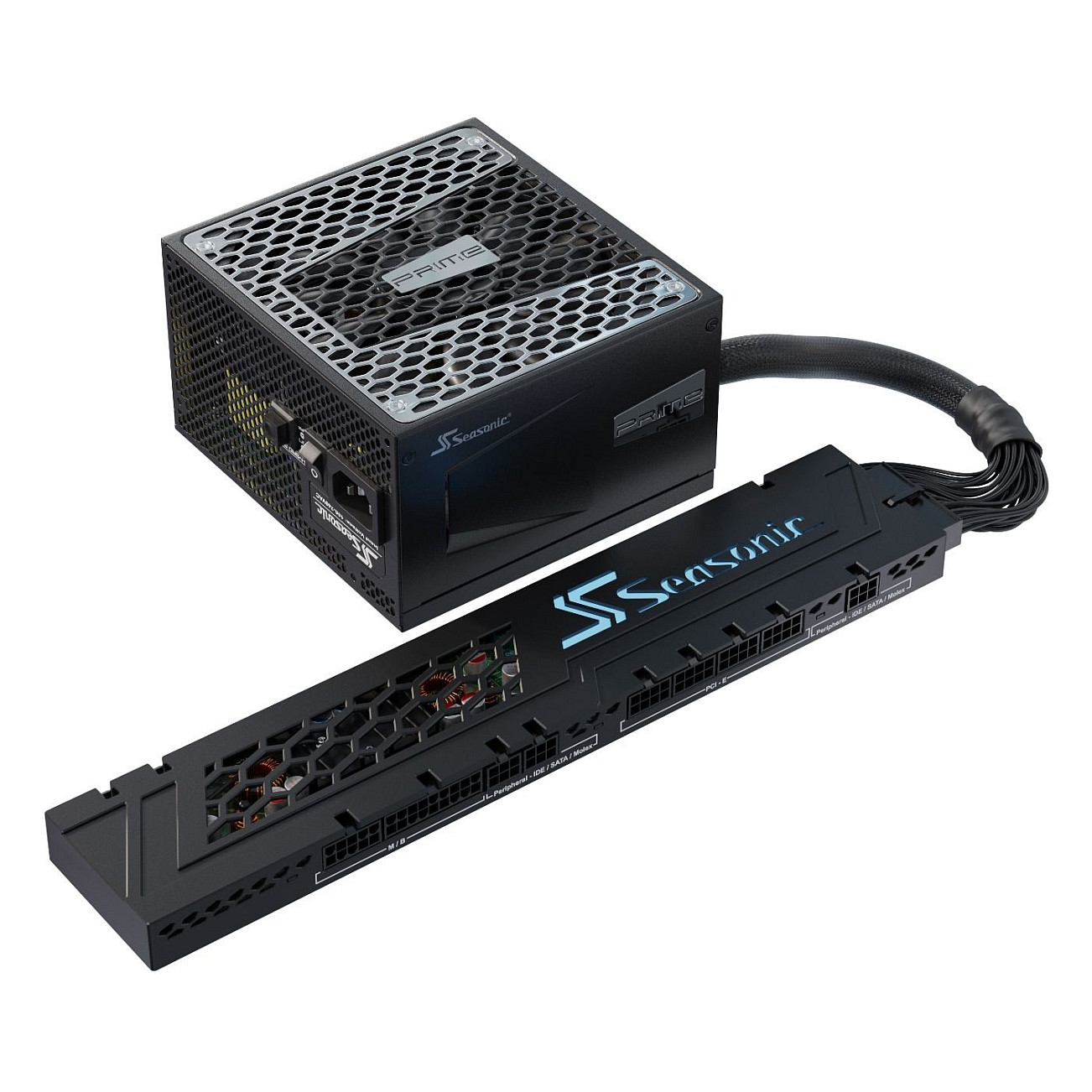

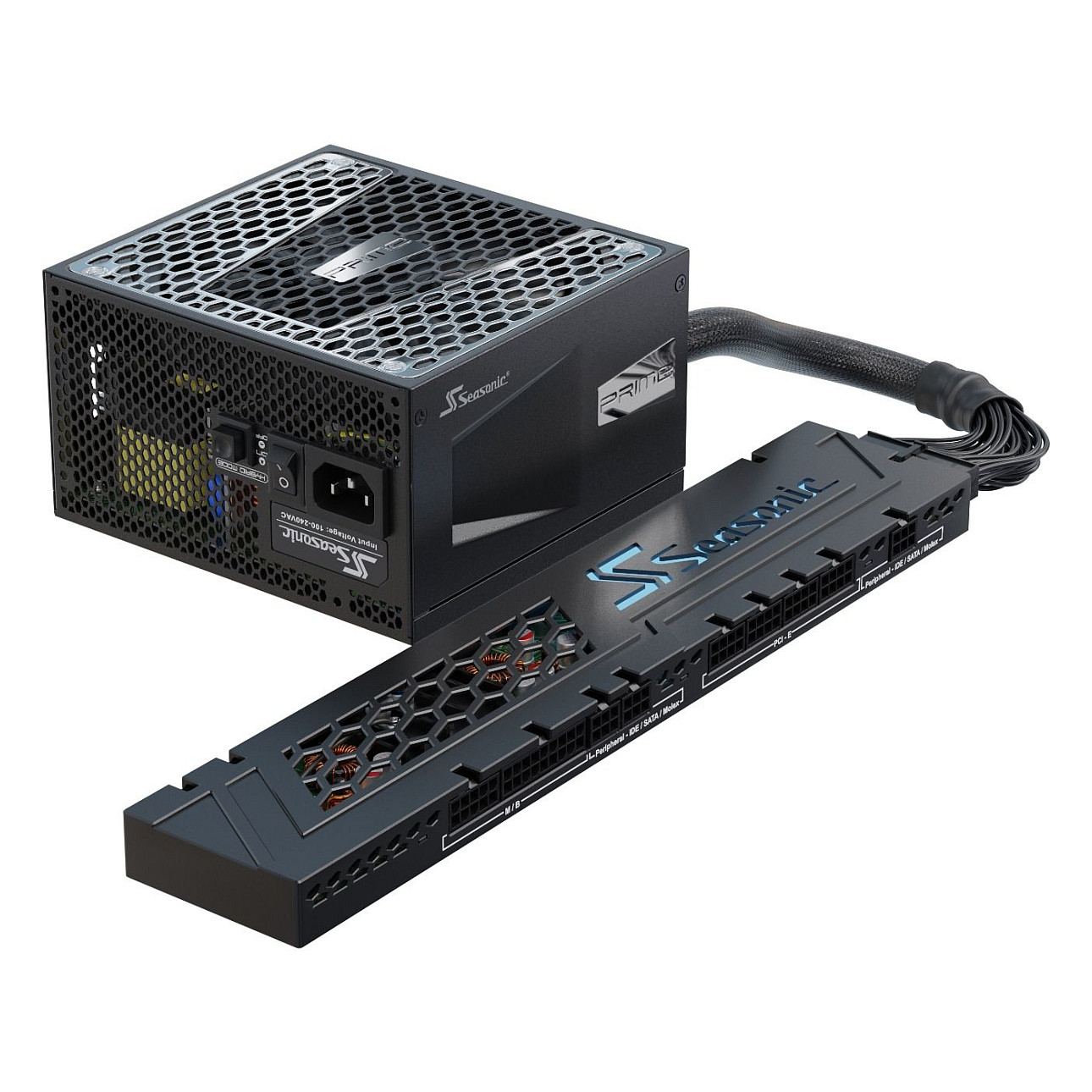

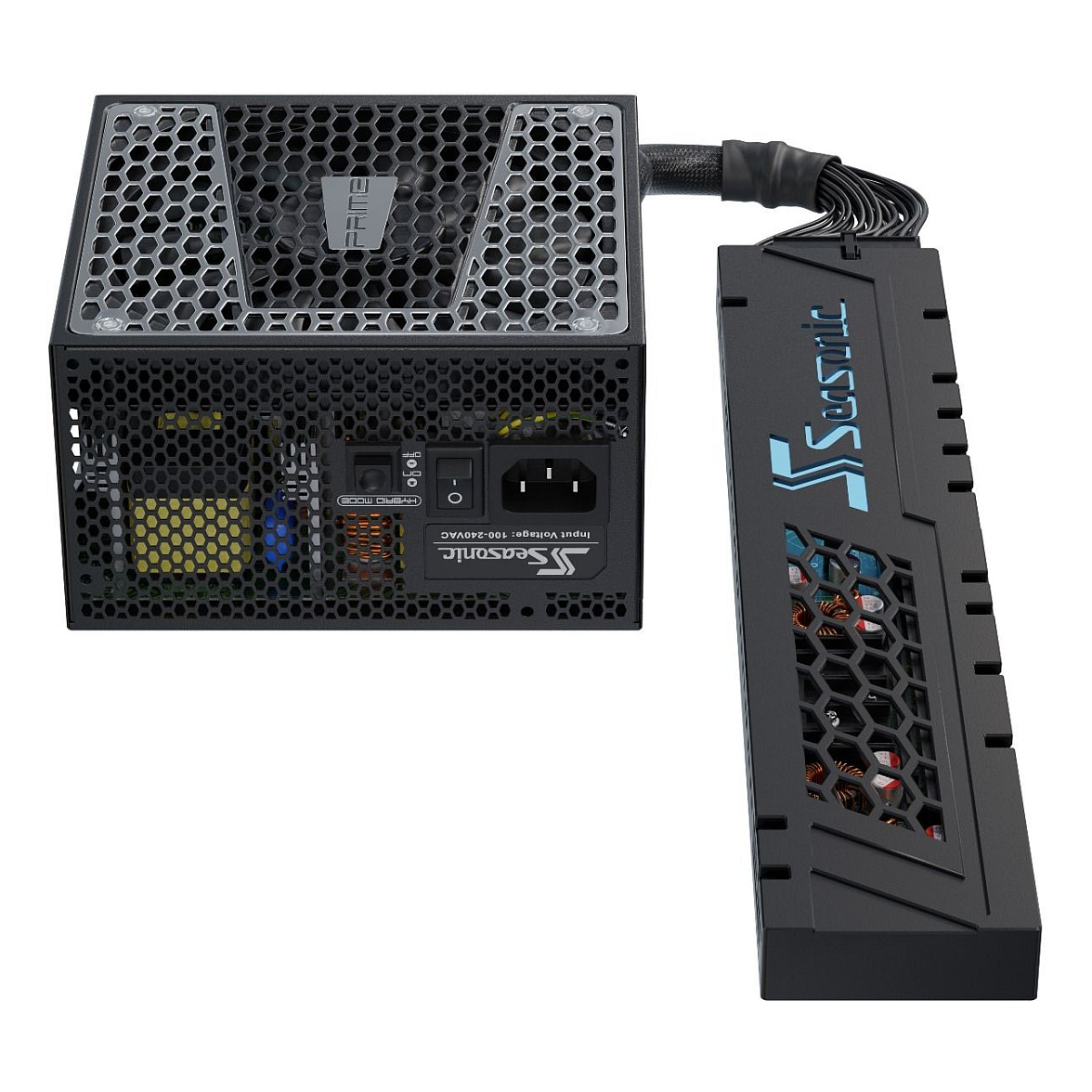

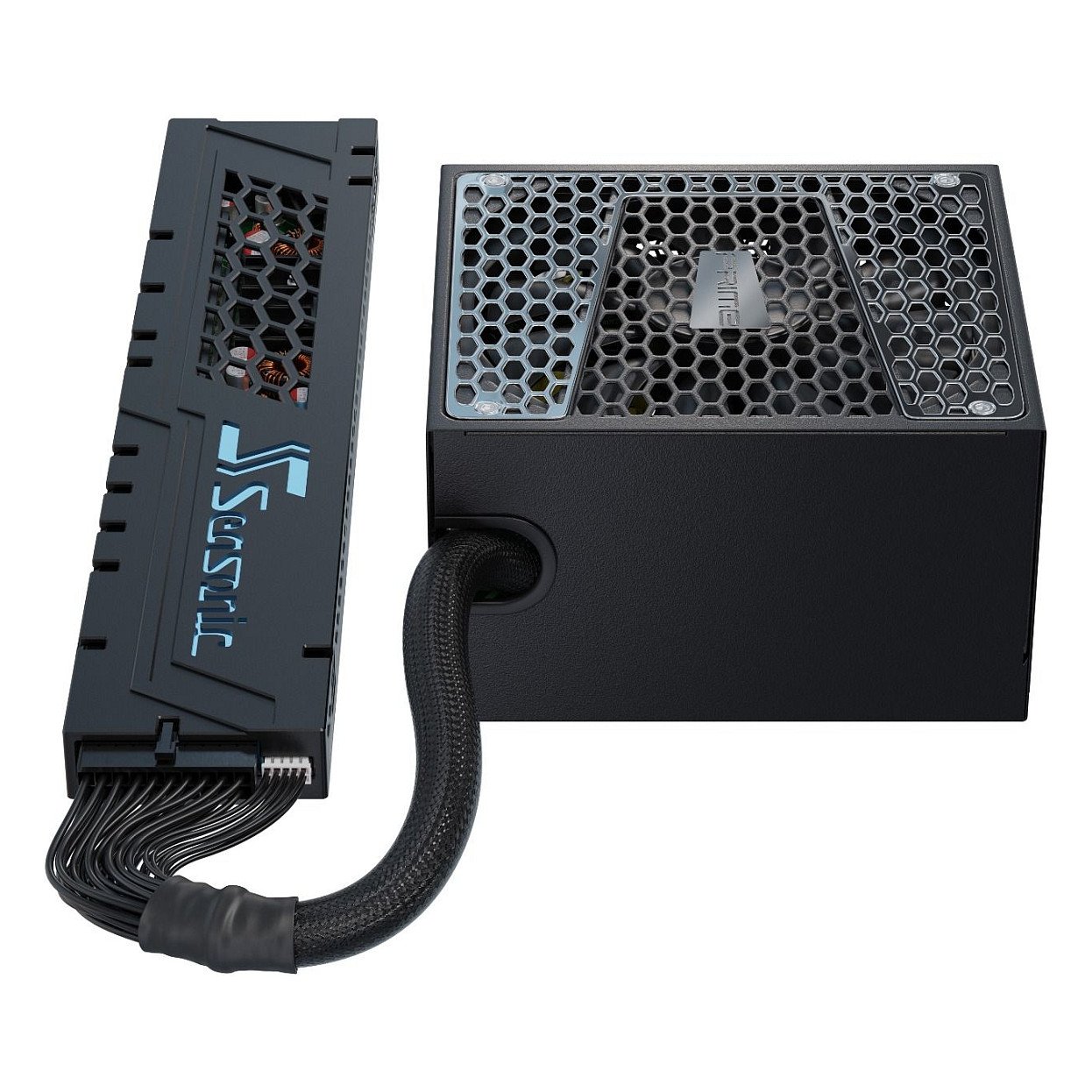

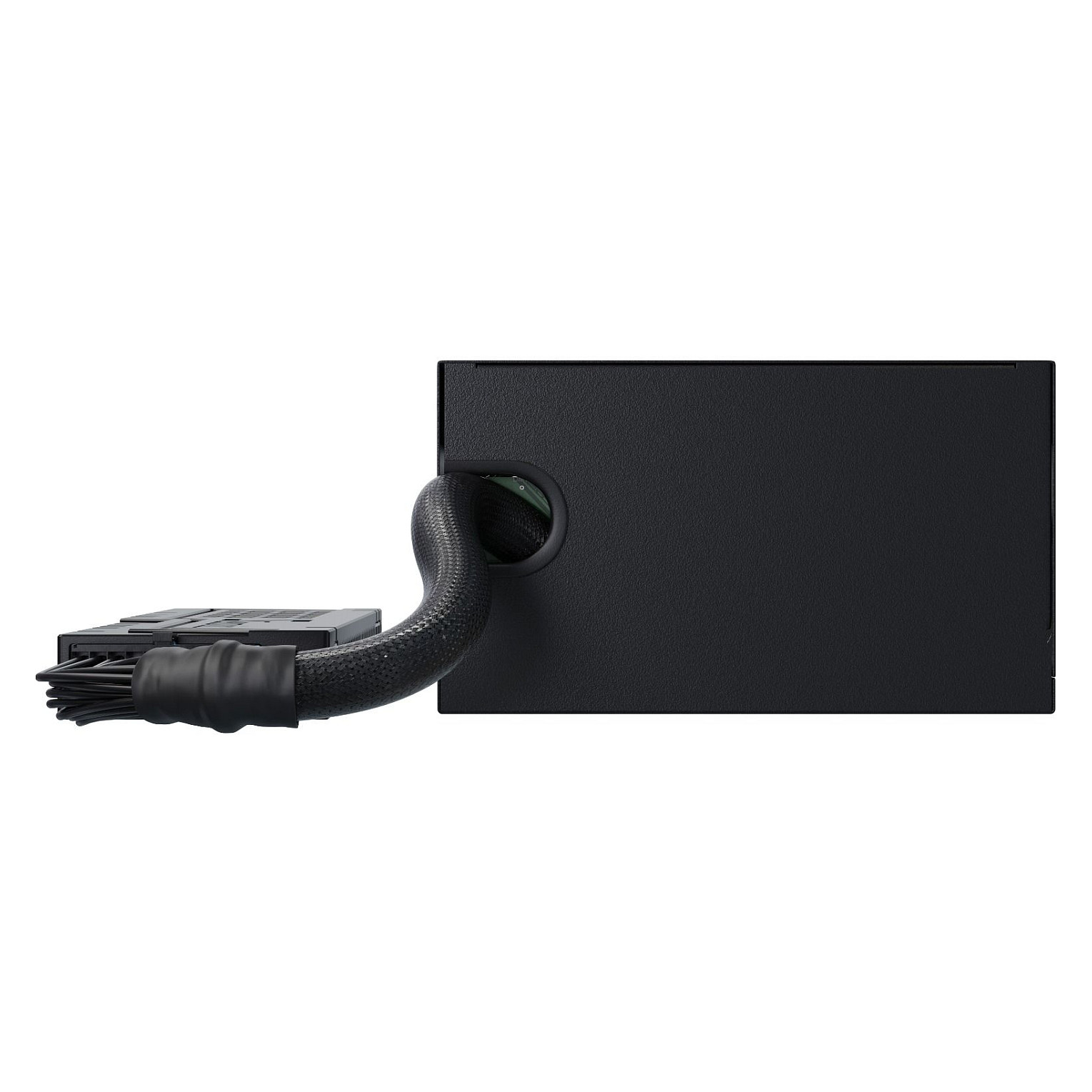

ATX 12 V Fully Modular 80 PLUS Gold Certified PSU: 140 mm (L) x 150 mm (W) x 86 mm (H) CONNECT MODULE: 330 mm (L) x 64 mm (W) x 21 mm (H) Micro Tolerance Load Regulation (0.5 %) Cable-free Connection Design Premium Hybrid Fan Control - Fanless until 40 % load Multi-GPU setup Gold plated connectors
Technical Specifications
SKU
KSSR-750FA
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
5 - 10 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
744 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
20 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
230, 210, 470 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
690 mm
Pci Express Power Connectors (8-Pin)
4
Pci Express Power Cable Length
28 cm
Cpu Power Cable Length
23 cm
Cpu Power Connectors (8-Pin)
2
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
150000 h
Product Colour
Black
Cooling Type
Active
Operating Temperature (T-T)
0 - 50 °C
Operating Relative Humidity (H-H)
15 - 65%
Cables Included
CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Compliance Certificates
RoHS
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
Sustainability Certificates
ENERGY STAR
Harmonized System (Hs) Code
84733020
Number Of Screws
4
