FSP

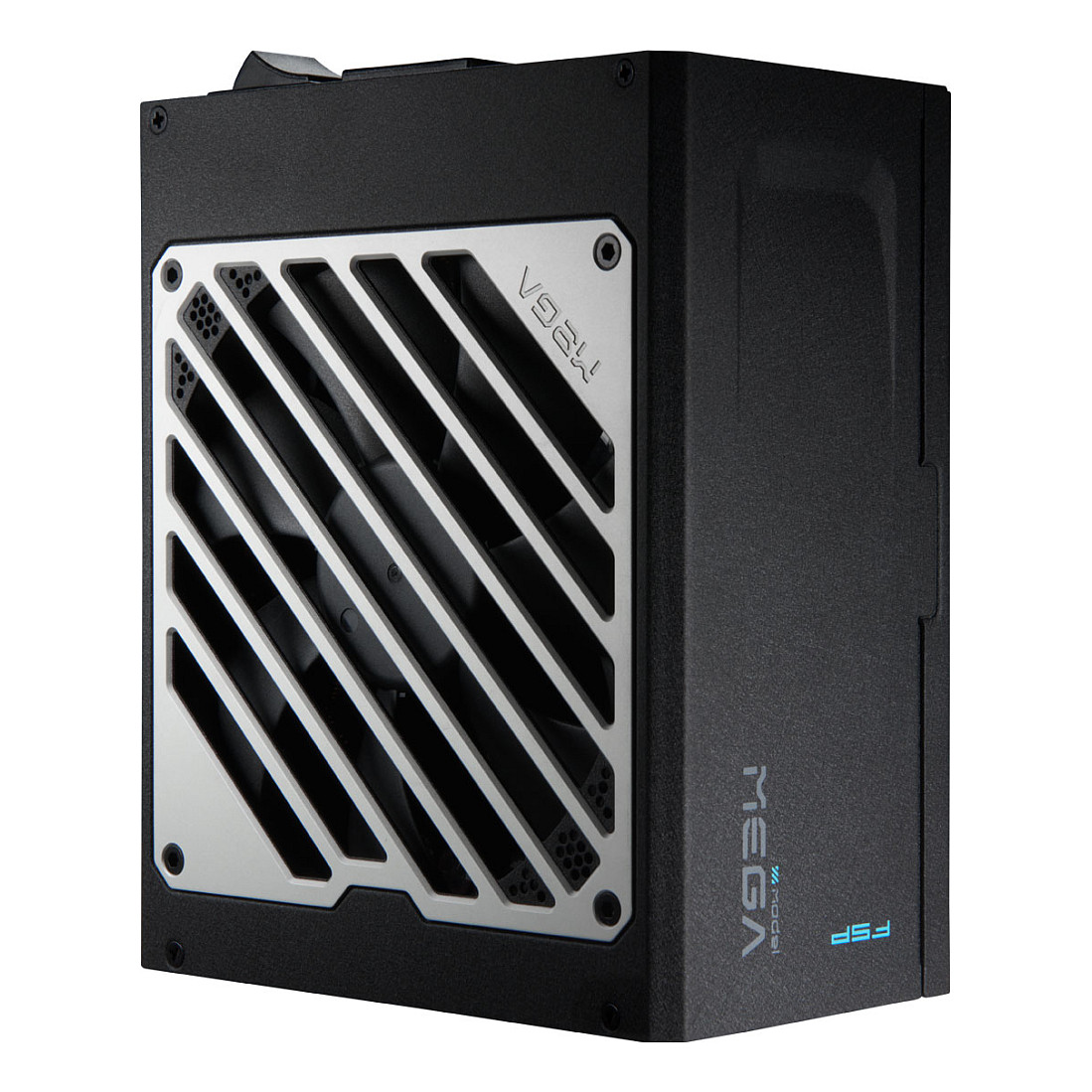

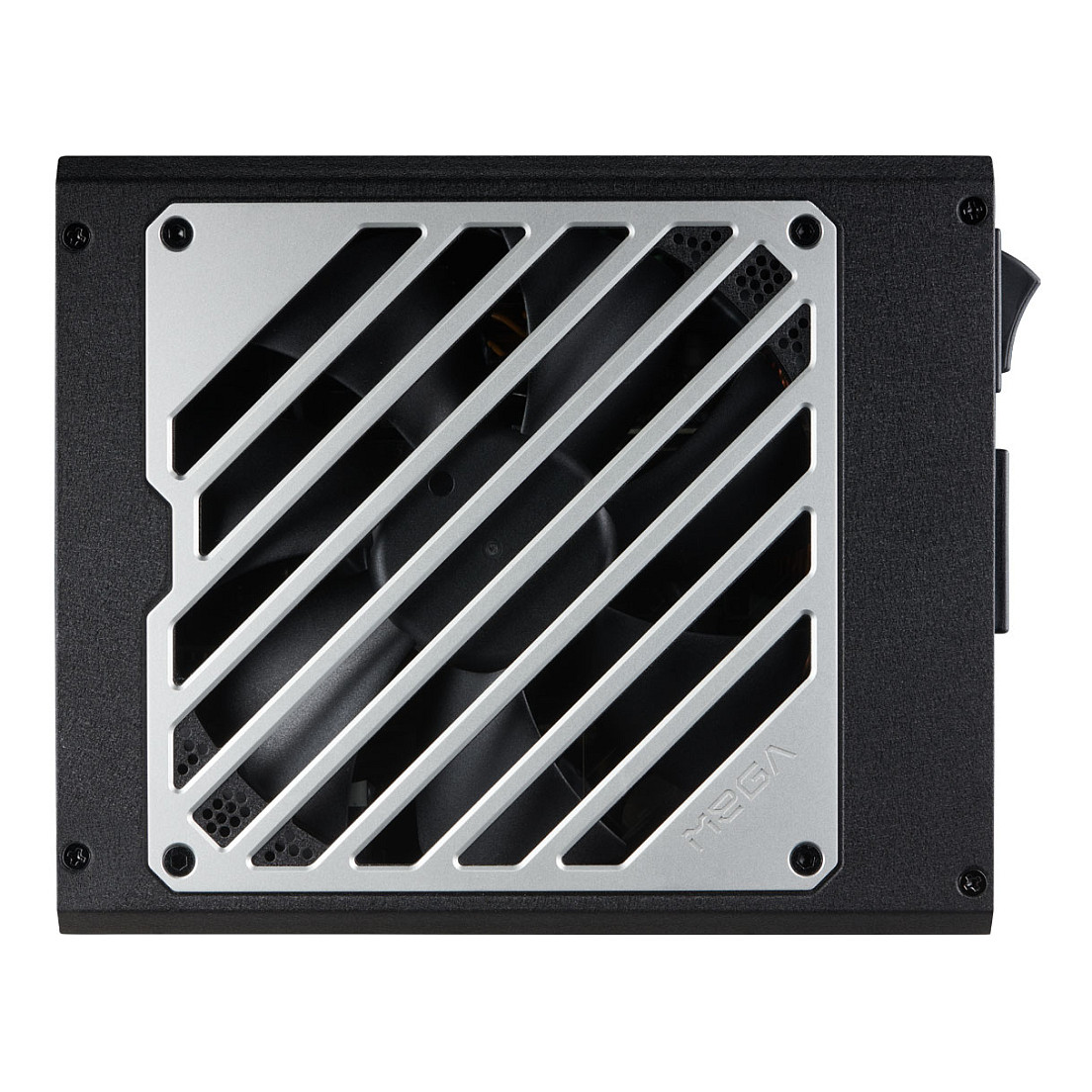

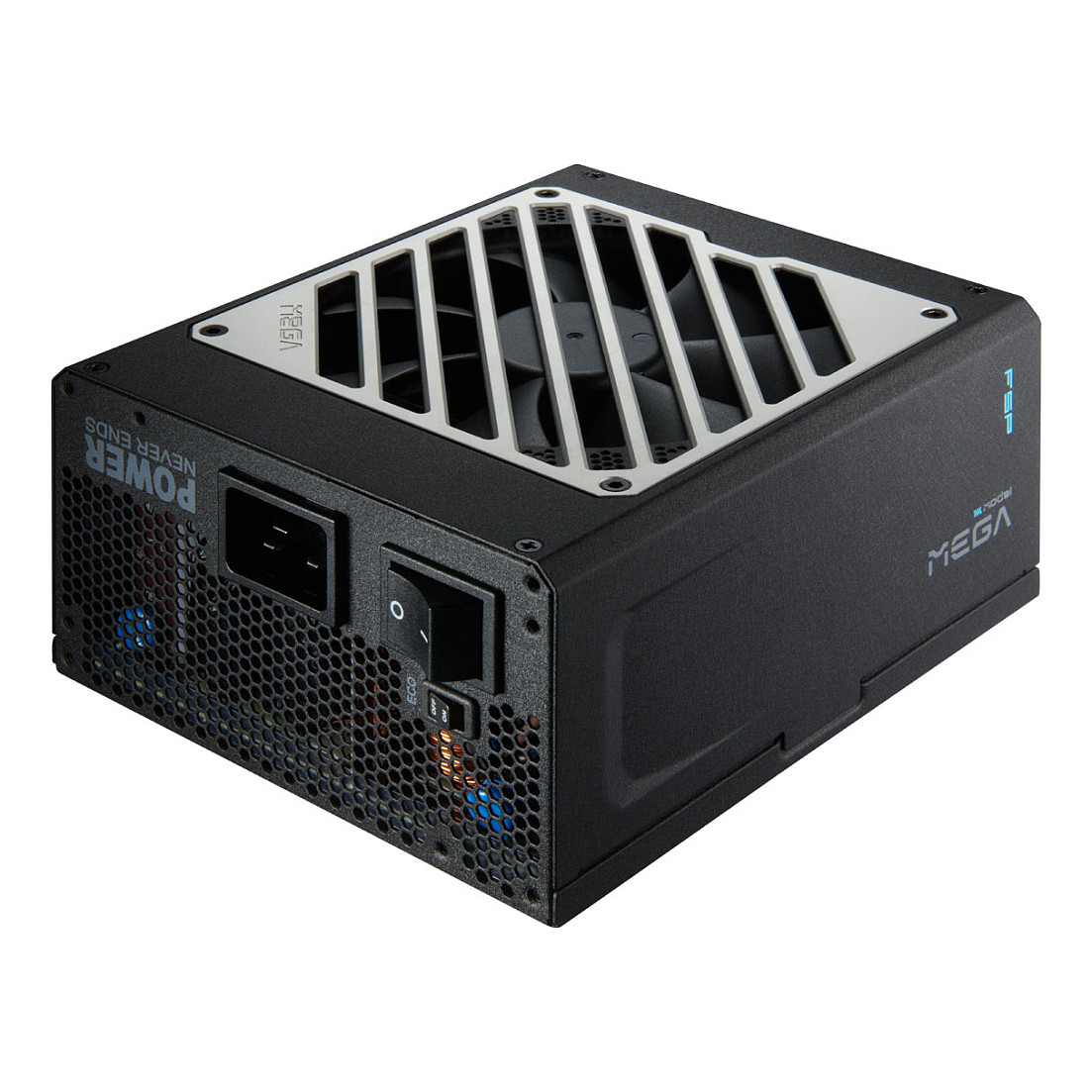

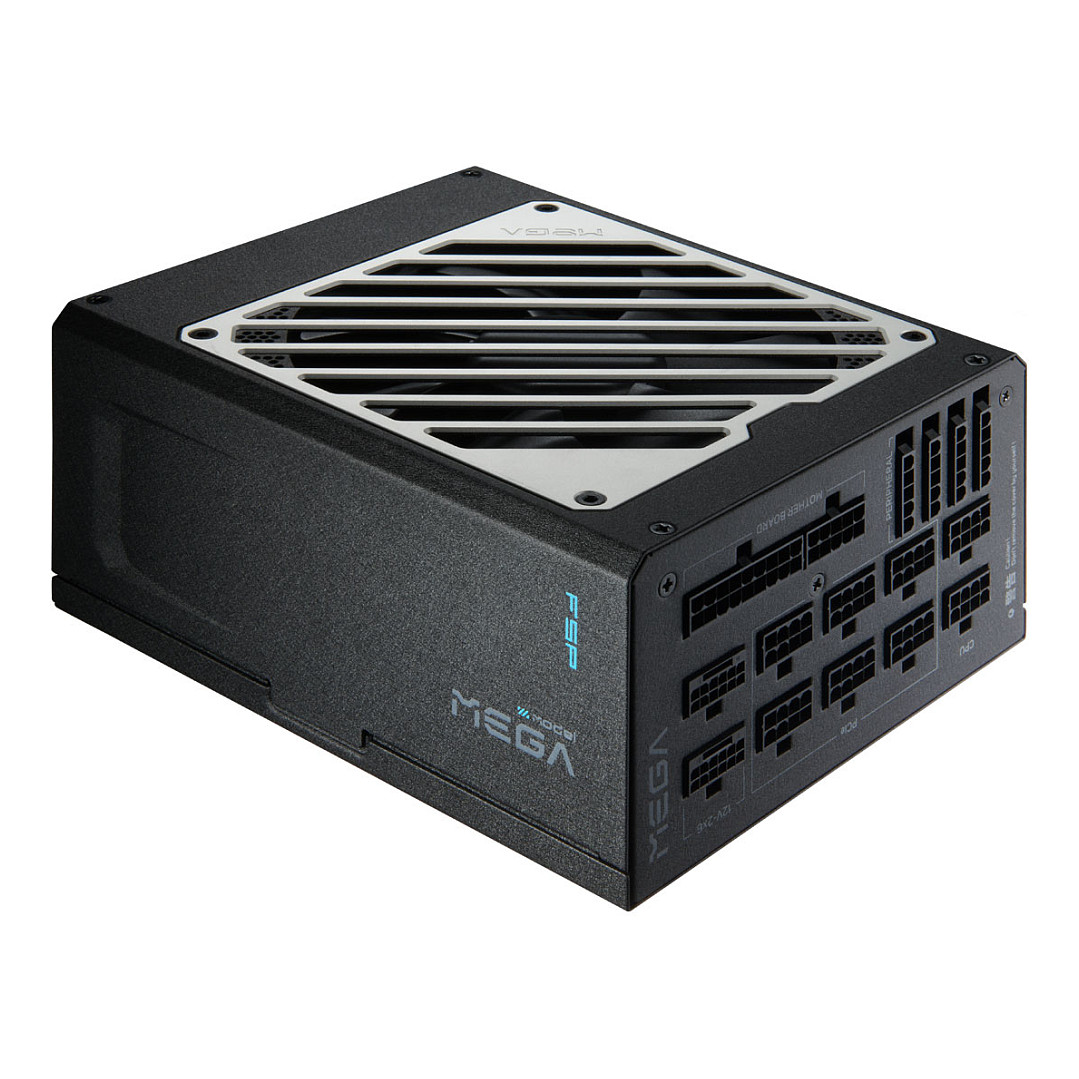

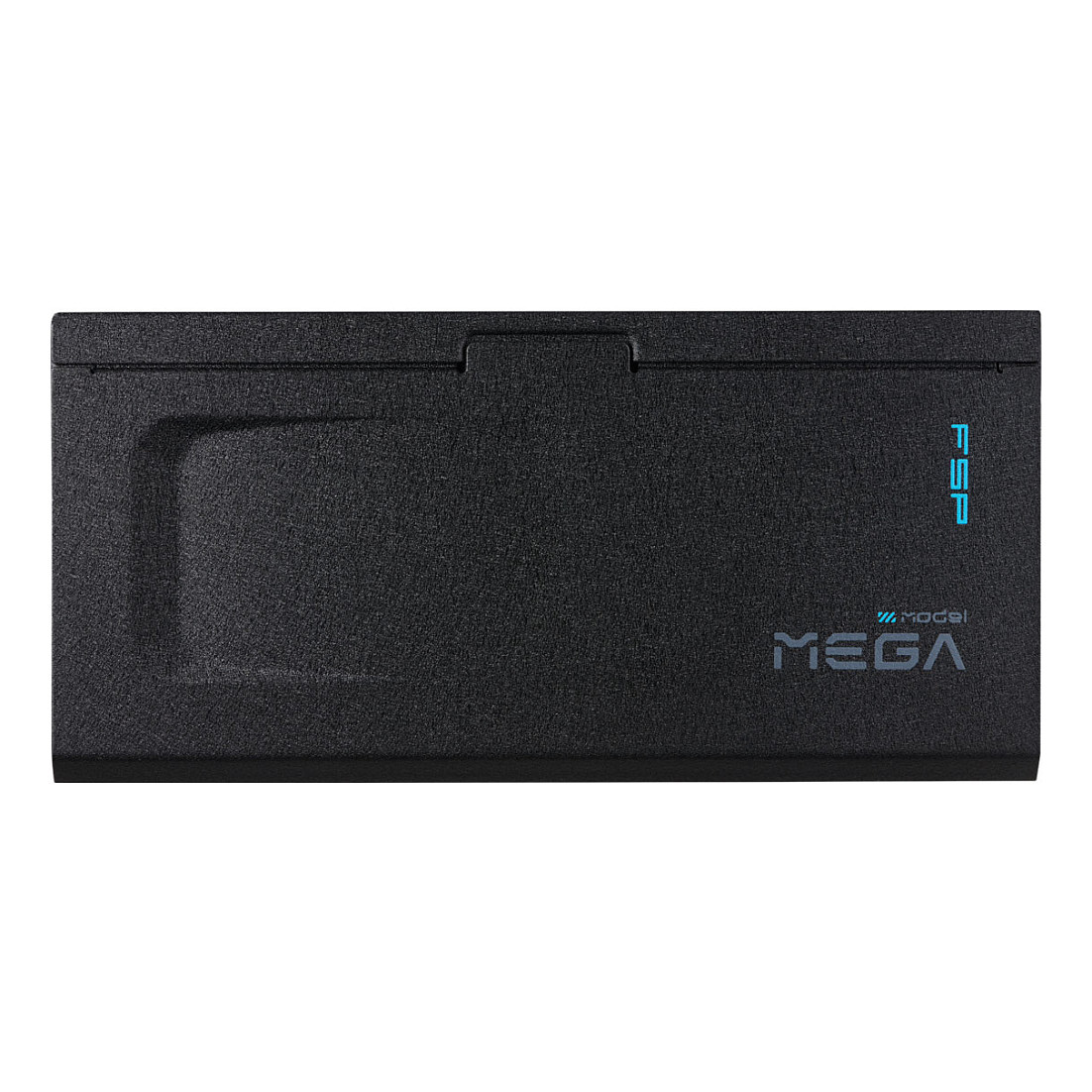

1350W FSP ATX 3.1 80+ Gold
Pre-Order
€424.99
VAT (19%) included
Description
Complies with ATX12V V3.1 & EPS12V V2.92 Efficiency ≧ 94% at typical load 80 PLUS® Titanium certified Supports 2 x native PCIe 12V-2x6 connectors and cables 105°C Japanese bulk capacitor Eco semi-fanless fan control switch Off-Wet, Off-Dust and Off-Stain conformal coating Top-notch topology of full-bridge & LLC converter and synchronous rectifier & DC-DC converters Fully modular with embossed cabling design Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
Technical Specifications
SKU
KPPA13F0201
Total Power
1350 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
8 - 15 A
Power Factor
0.9
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1350 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
20 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
112.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
4 A
Efficiency
94%
Power Protection Features
No load operation, Over current, Over power, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
10
Peripheral (Molex) Power Connectors (4-Pin)
6
Pci Express Power Connectors (6+2 Pin)
6
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Titanium
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Product Colour
Black
Fan Diameter
13.5 cm
Operating Temperature (T-T)
0 - 50 °C
Width
150 mm
Depth
180 mm
Height
86 mm
