MSI

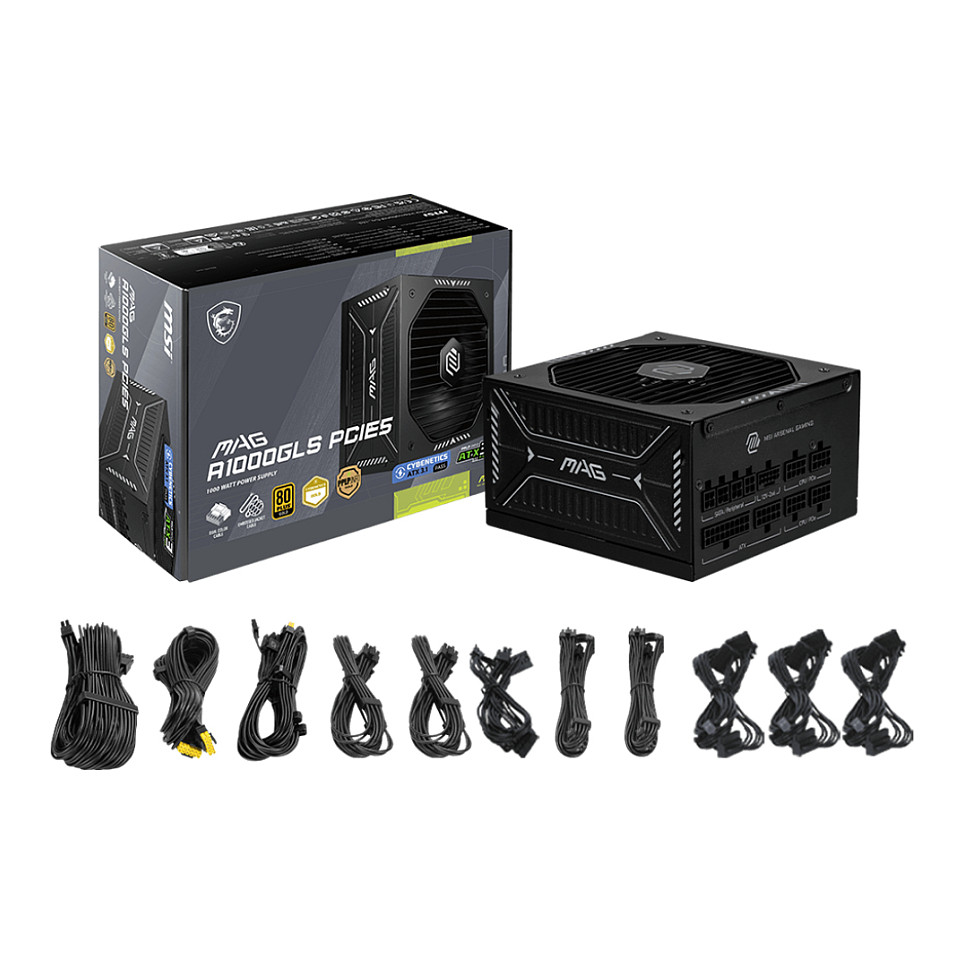

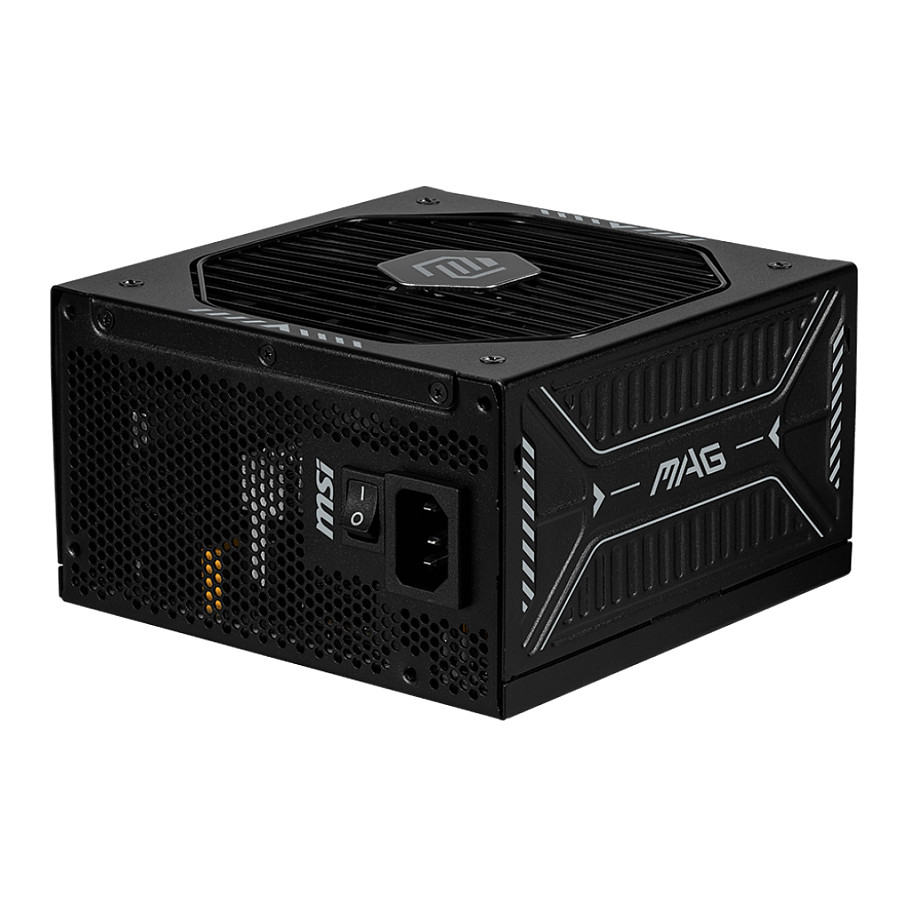

1000W MSI Netzteil MAG A1000GLS PCIE5
Pre-Order
€174.99
VAT (19%) included
Description
Supports Nvidia® GeForce RTXTM 50 series graphics cards Native 12V-2x6 connector Dual-color 12V-2x6 cable 80 PLUS Gold certified Optimized the sound level Main 105oC capacitor Embossed Jacket Cables, the cables are more bending and routing Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Technical Specifications
SKU
K306-7ZPIX11-CE0
Total Power
1000 W
Peak Power
2200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
999.6 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Efficiency
90%
Power Protection Features
No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage

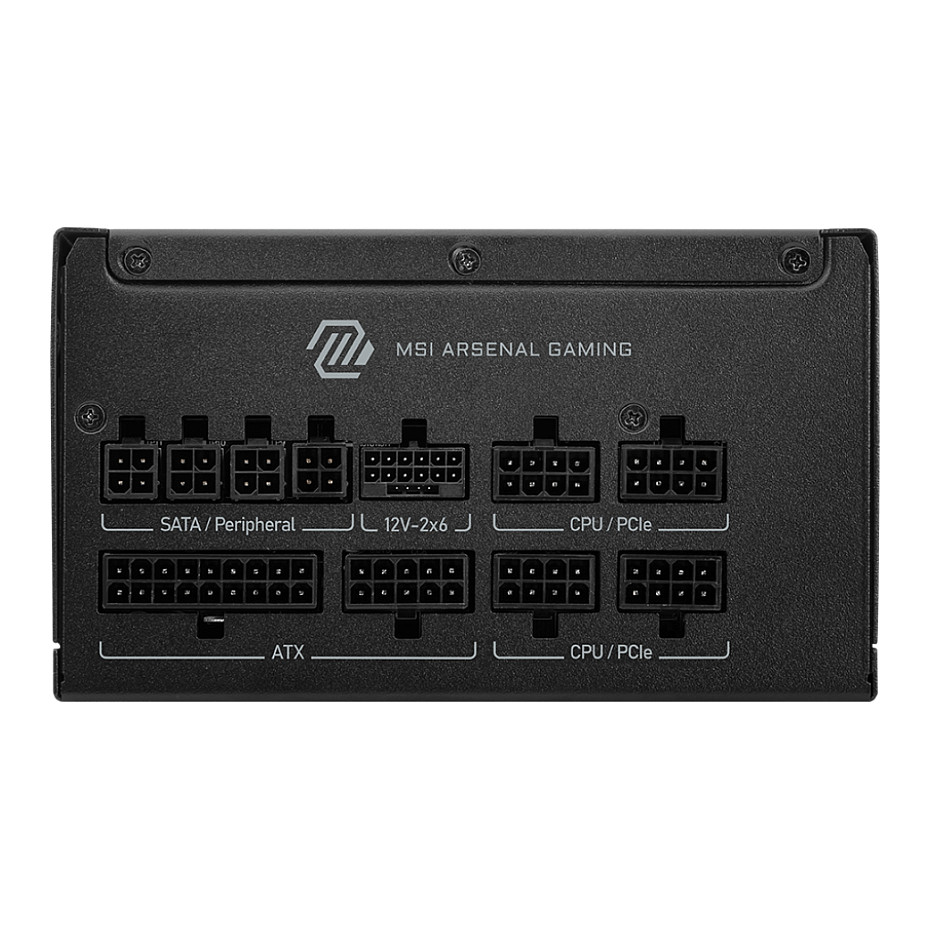

Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
11
Peripheral (Molex) Power Connectors (4-Pin)
4
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Number Of Eps Connectors
2
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Product Colour
Black
Cooling Type
Active

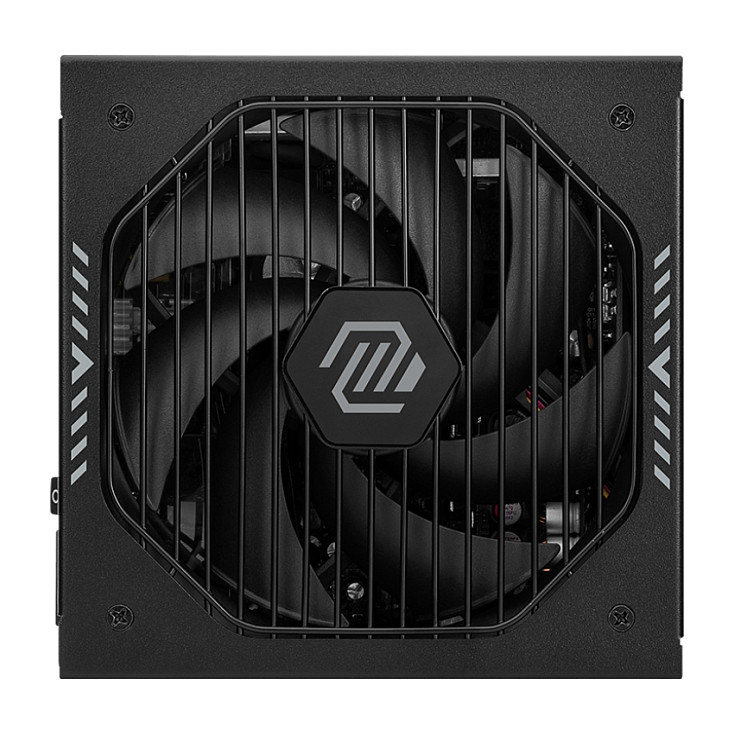

Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Width
150 mm
Depth
150 mm
Height
86 mm
Package Type
Box
