Be Quiet!

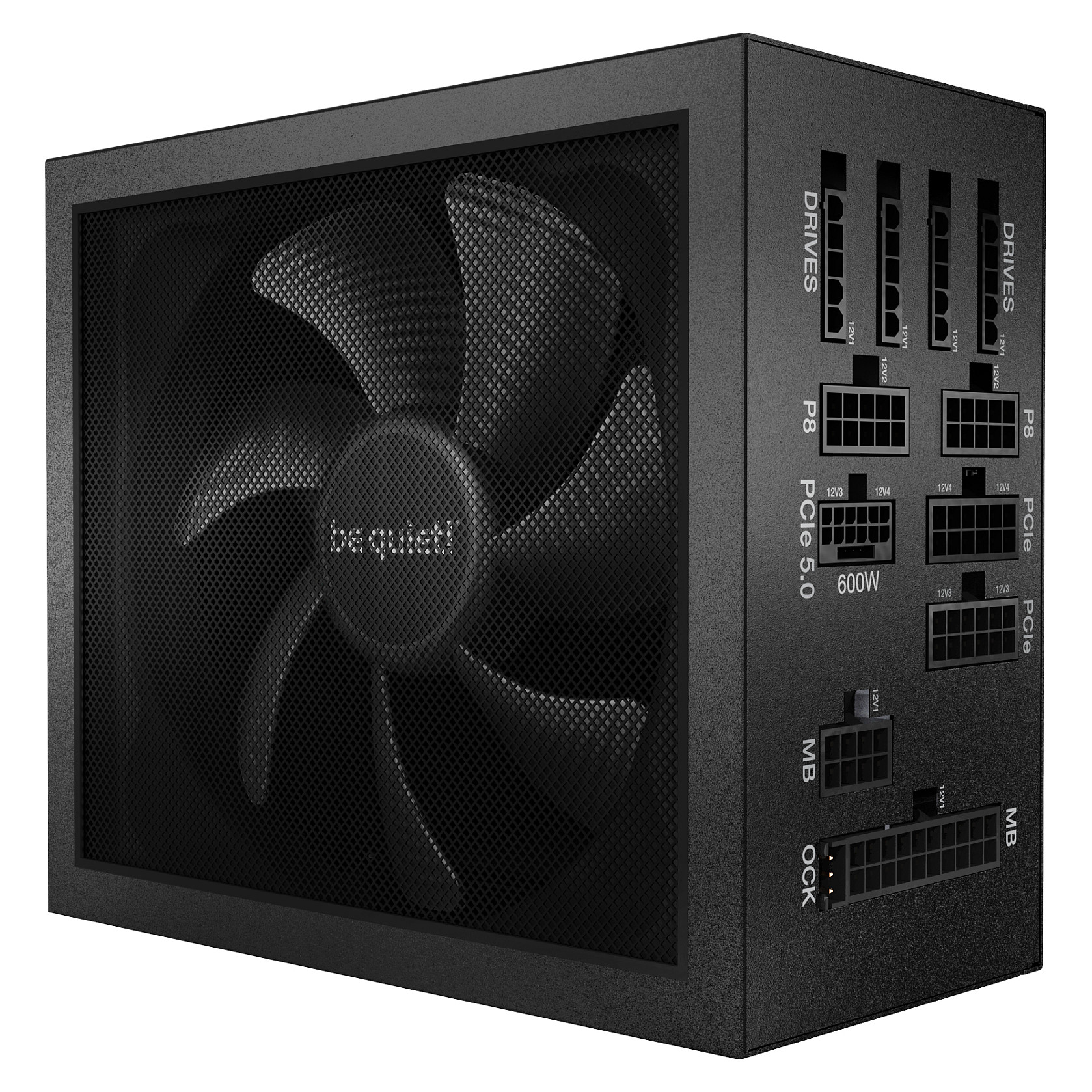

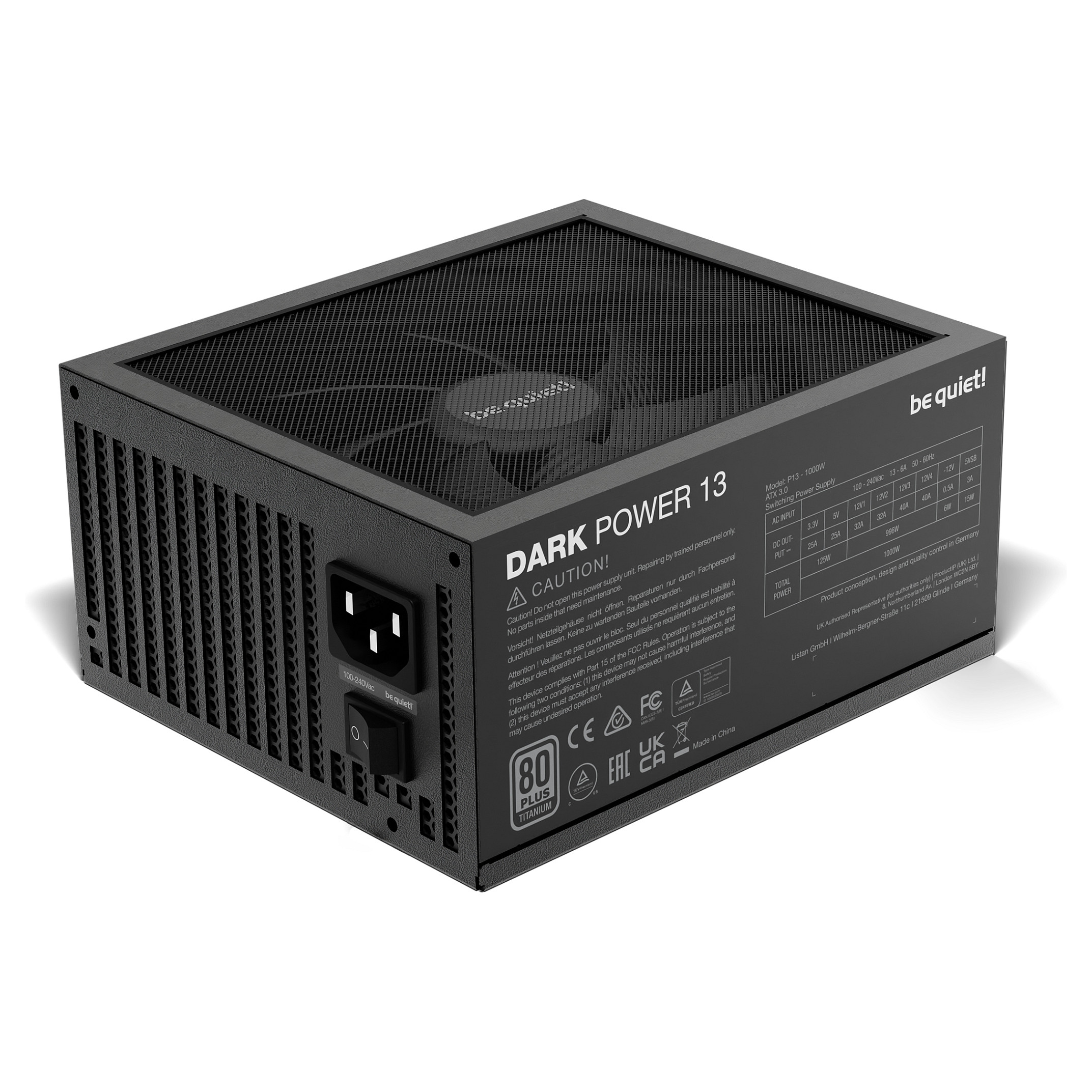

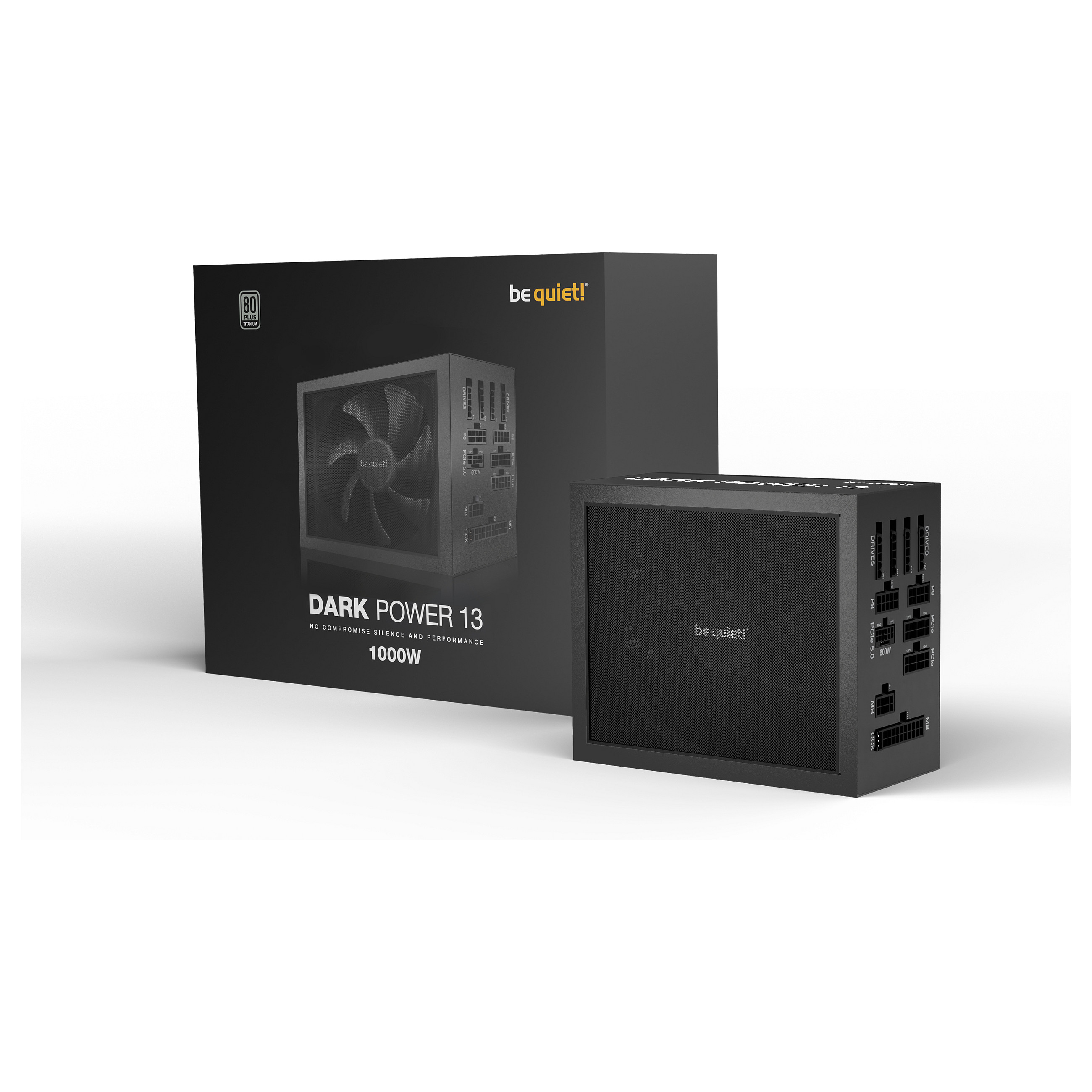

1000W be quiet! DARK POWER 13
Pre-Order
€305.99
VAT (19%) included
Description

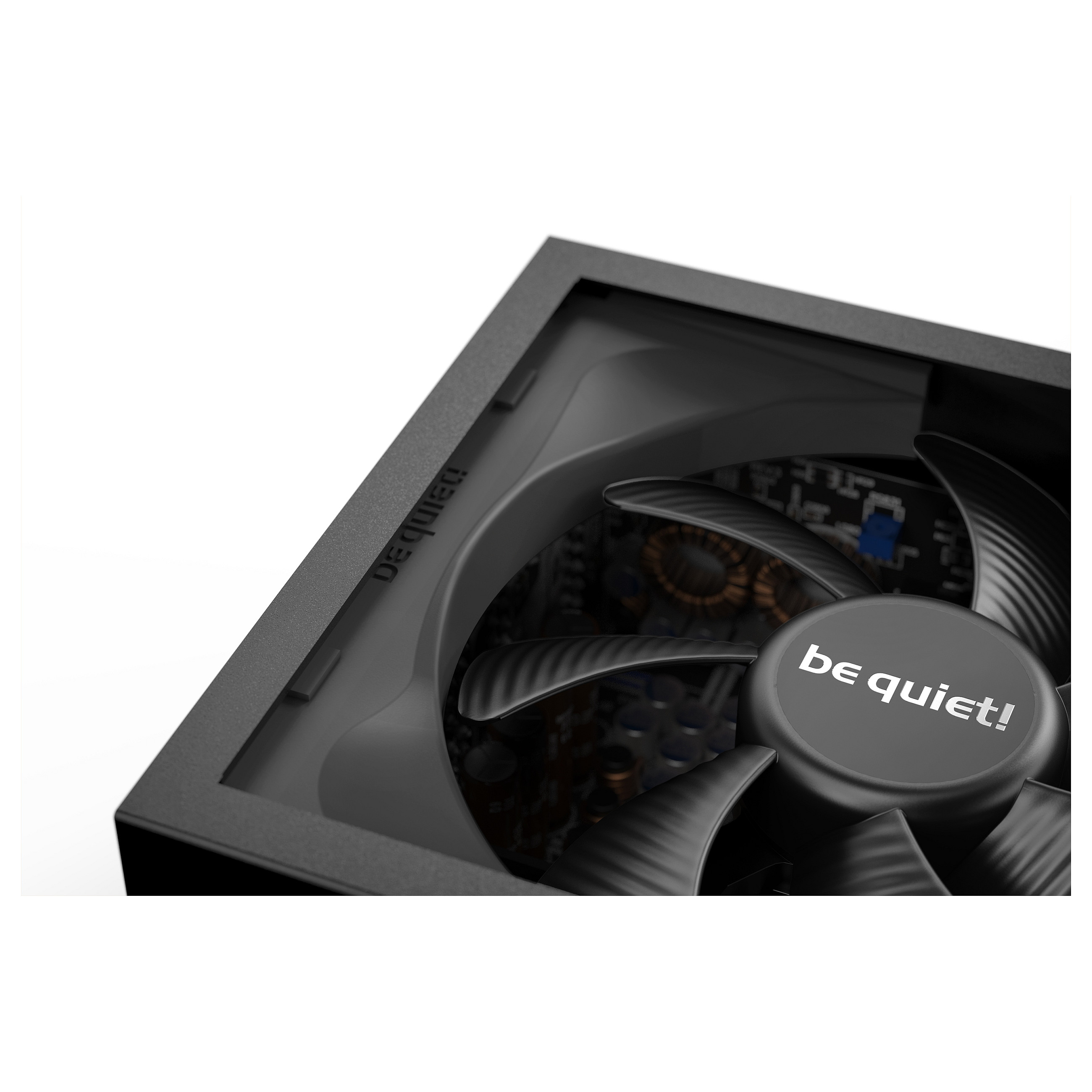

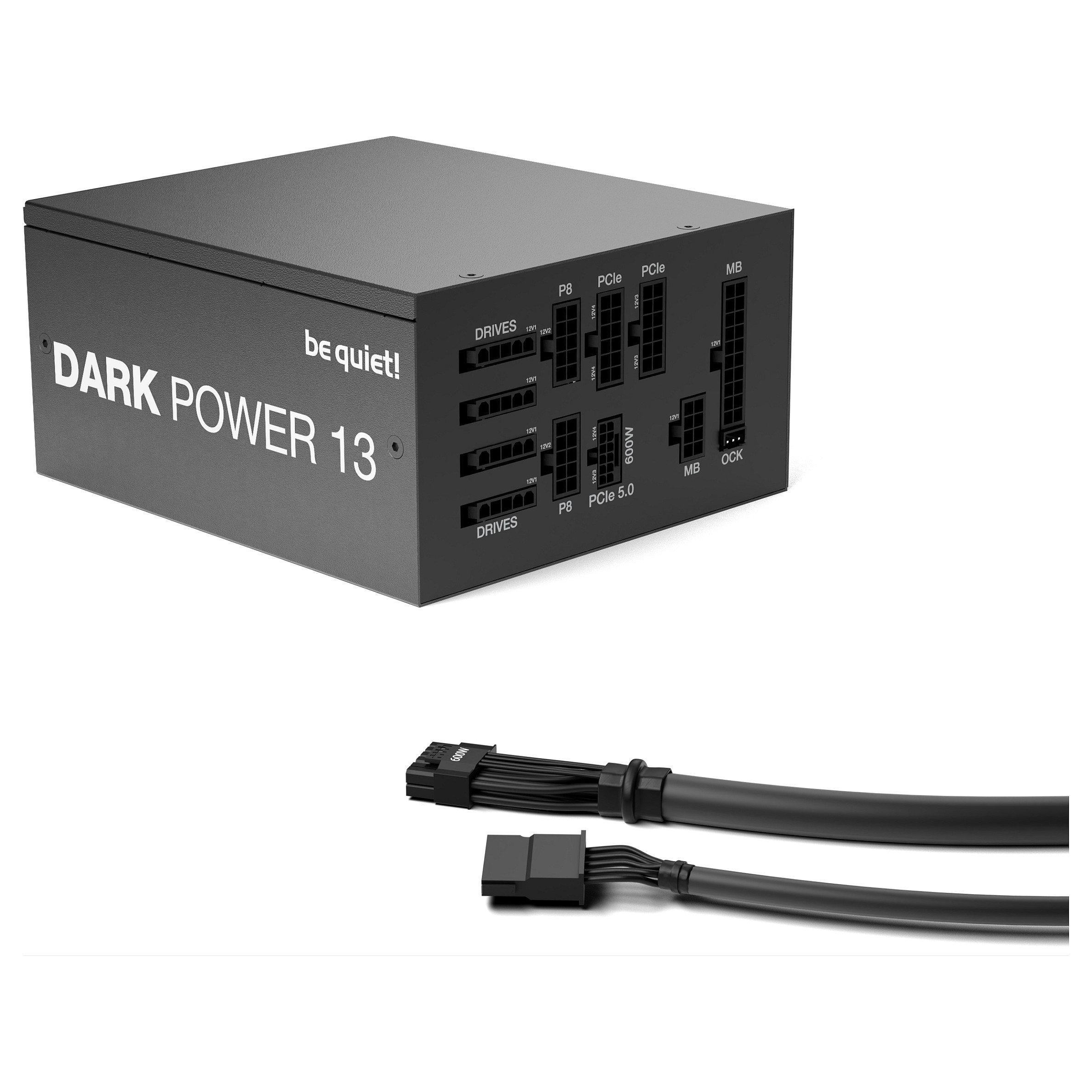

80 PLUS Titanium efficiency (up to 95.2%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector Improved frameless Silent Wings fan for virtually inaudible operation Full-mesh front with funnel shape air inlet upholds the high air circulation abilities Overclocking key switches between four 12V rails and one massive 12V rail Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency Modular cable management for maximum convenience 10-year manufacturer’s warranty
Technical Specifications
SKU
KBN335
Total Power
1000 W
Peak Power
1100 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
13/6 A
Maximum Input Current (@110V)
6 A
Maximum Input Current (@220V)
13 A
Power Factor
3
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
125 W
Combined Power (+12V)
996 W
Combined Power (+5V)
125 W
Combined Power (-12V)
6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
32 A
Max Output Current (+12V2)
32 A
Max Output Current (+12V3)
40 A
Max Output Current (+12V4)
40 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3 A
Hold Time
23.2 ms
Efficiency
93.3%
Power Protection Features
Over current, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
13
Number Of Pata Power Connectors
3
Sata Power Cable Length
1050 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Pci Express Power Connectors (6+2 Pin)
4
Cpu P4 Connector (4-Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Titanium
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.0
Eps Version
2.92
Noise Level
25.8 dB
Bearing Technology
FDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 1800 RPM
Fan Location
Top
Cables Included
DC, SATA
Compliance Certificates
CCC, CE, RoHS, WEEE
Certification
BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Width
150 mm
Depth
86 mm
Height
175 mm
Weight
2.03 kg
Package Width
120 mm
Package Depth
350 mm
Package Height
270 mm
Package Weight
4.48 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP
Shipping (Inner) Case Length
50.4 cm
Shipping (Inner) Case Width
30.5 cm
Shipping (Inner) Case Height
36.8 cm
Pallet Gross Weight (Air)
19.3 kg
Warranty Period
10 year(s)
