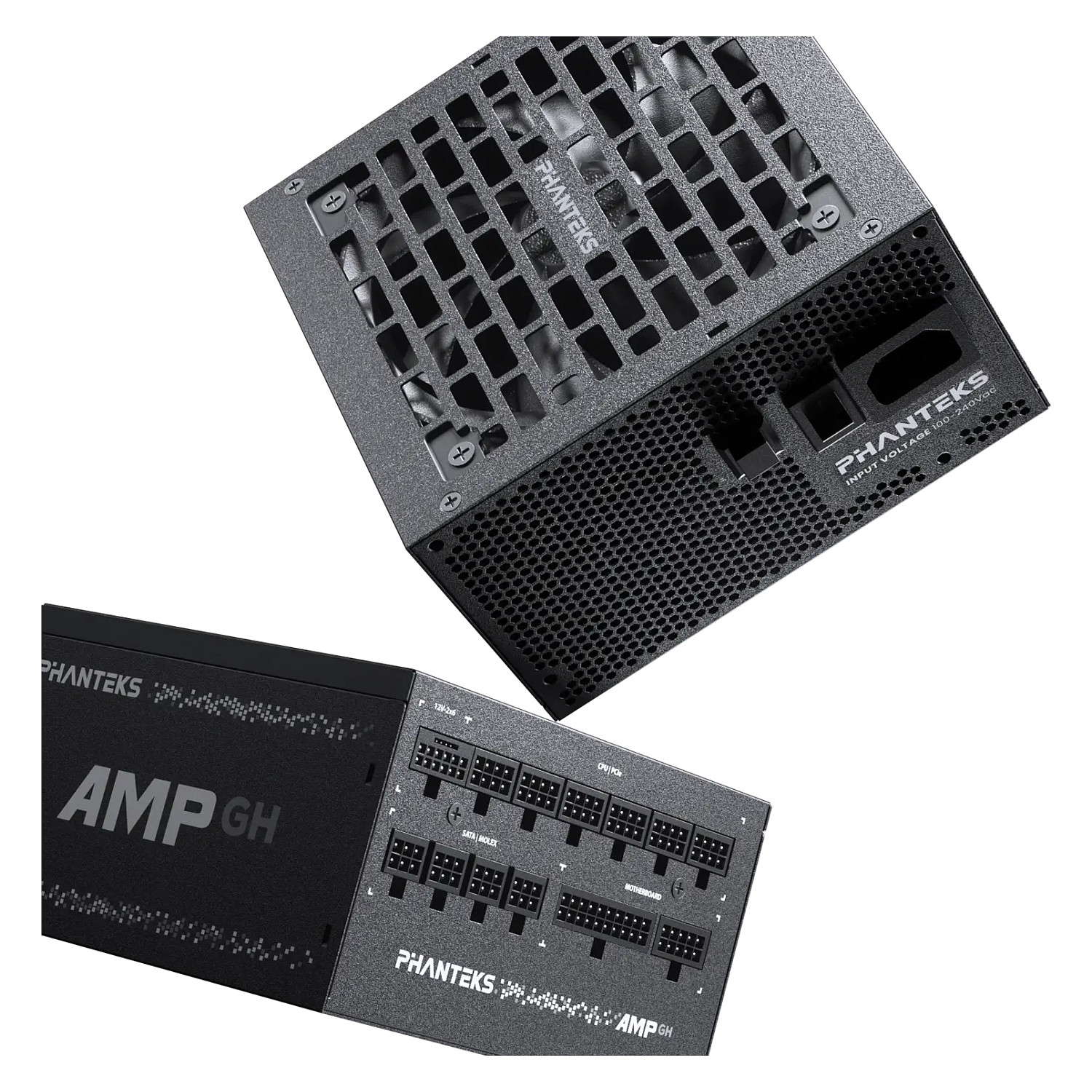

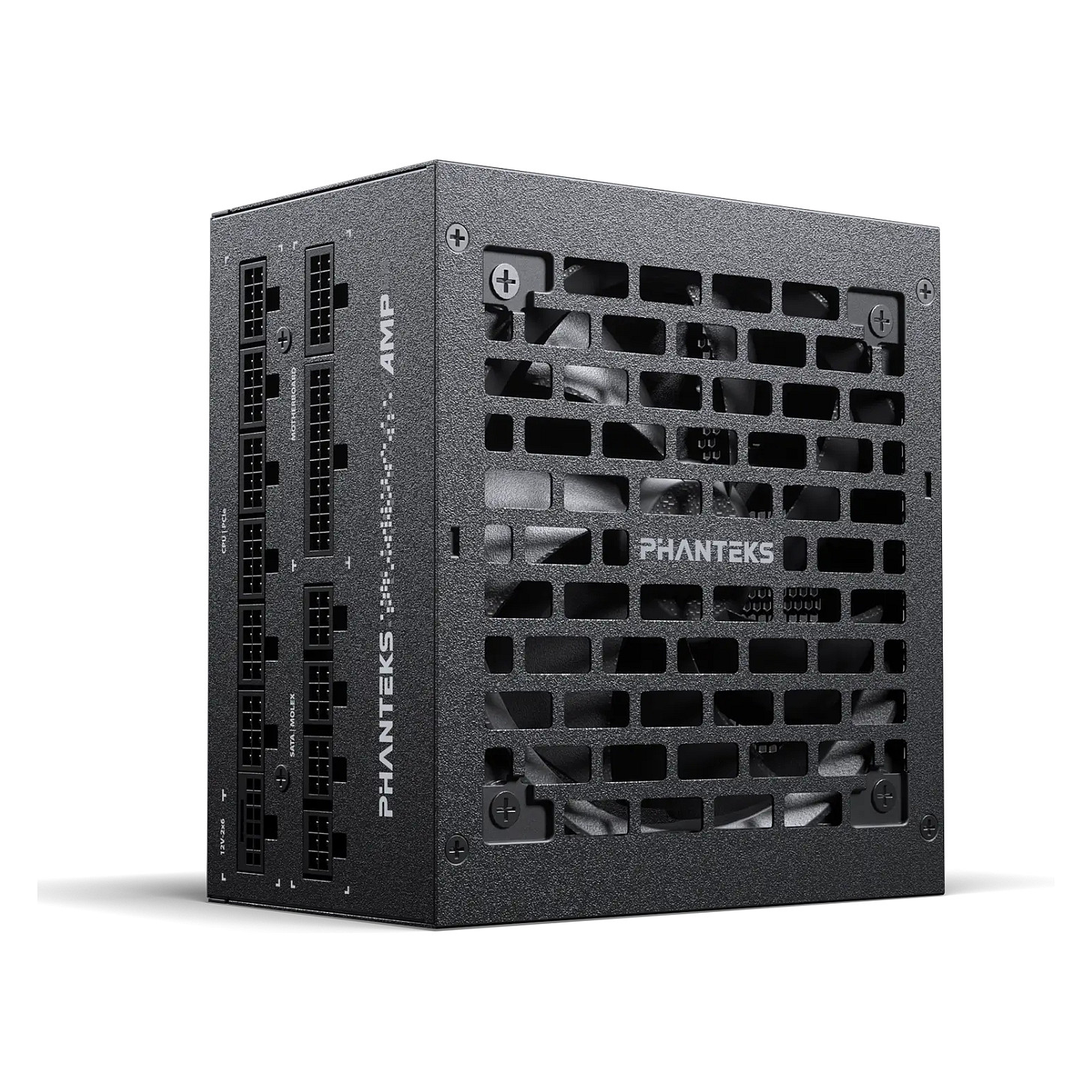

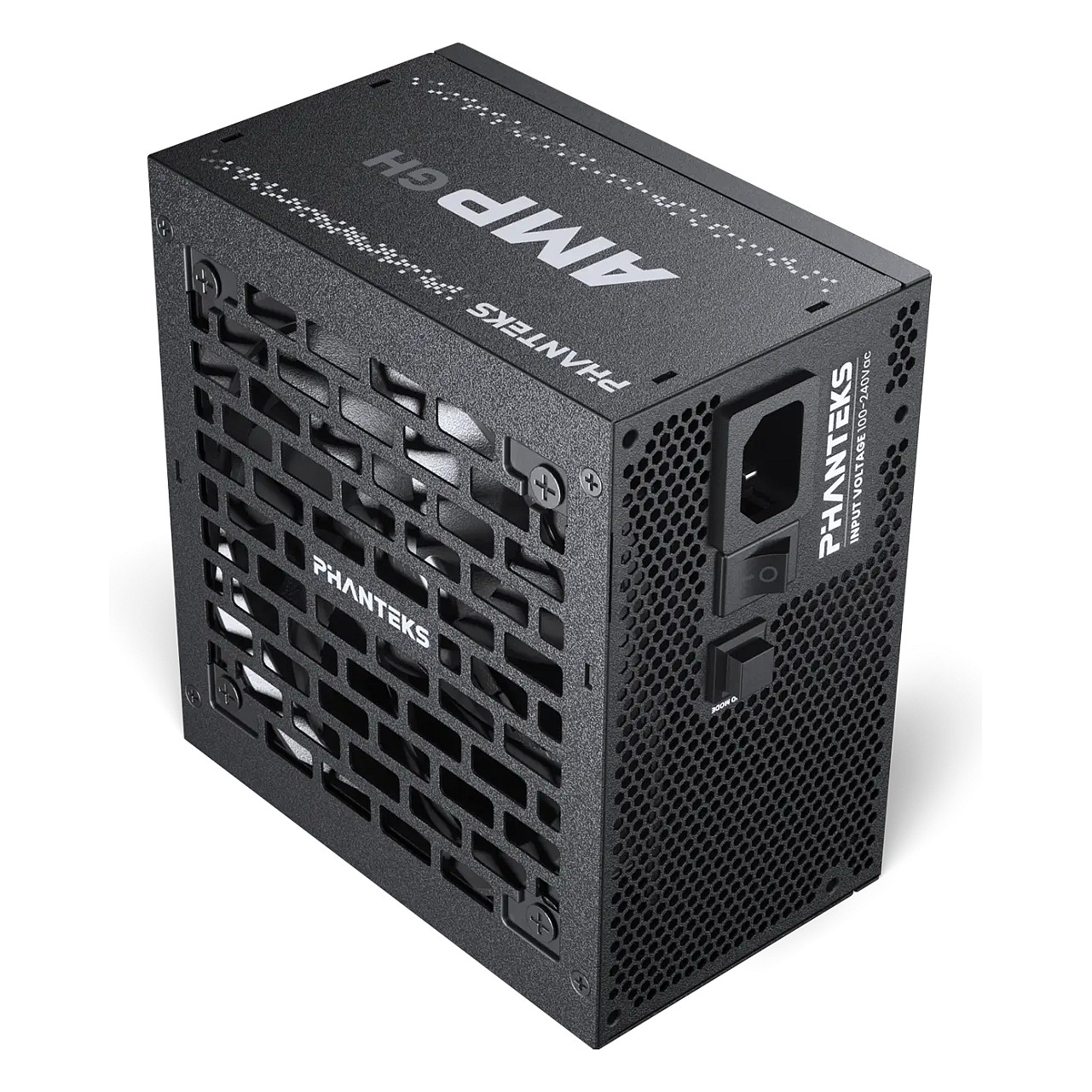

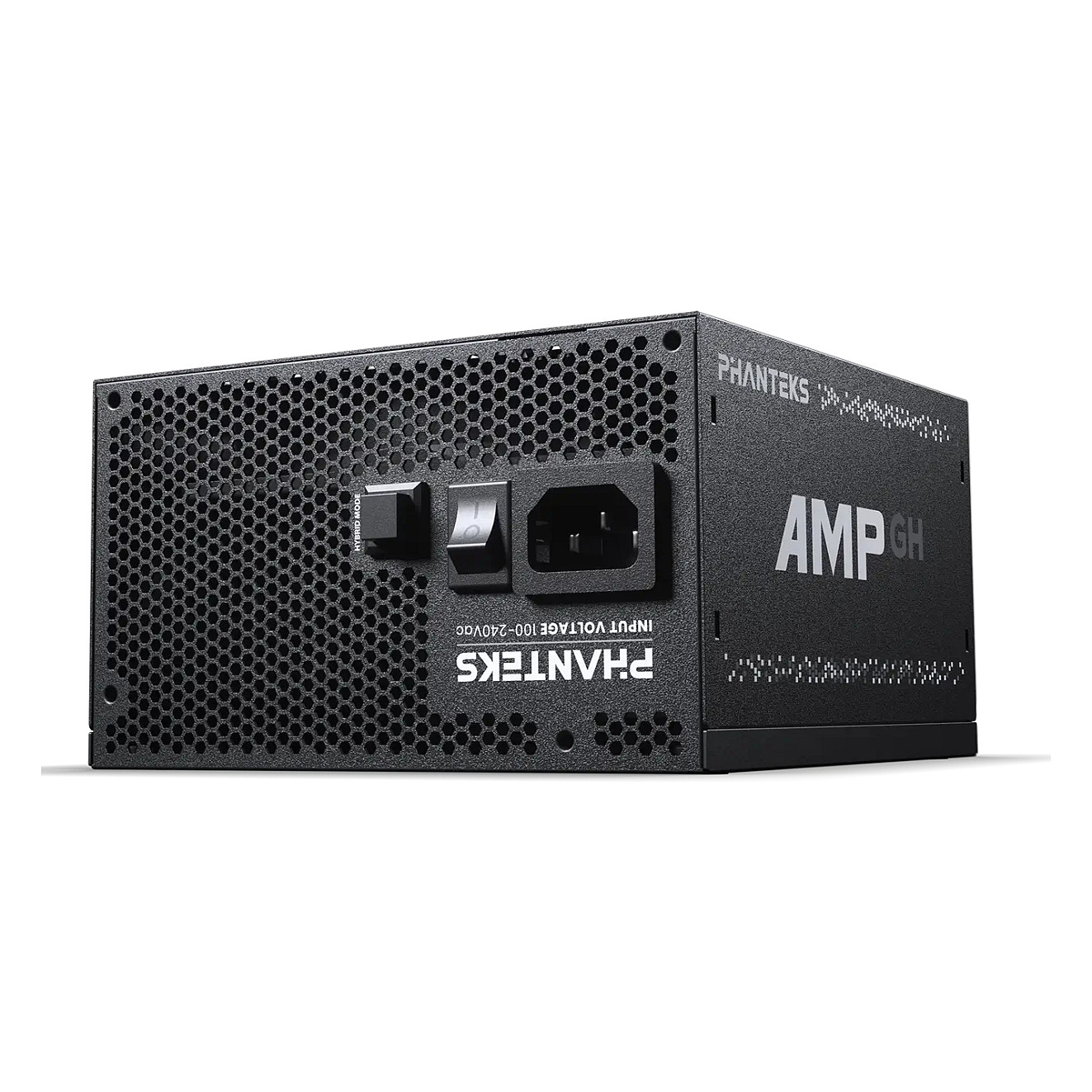

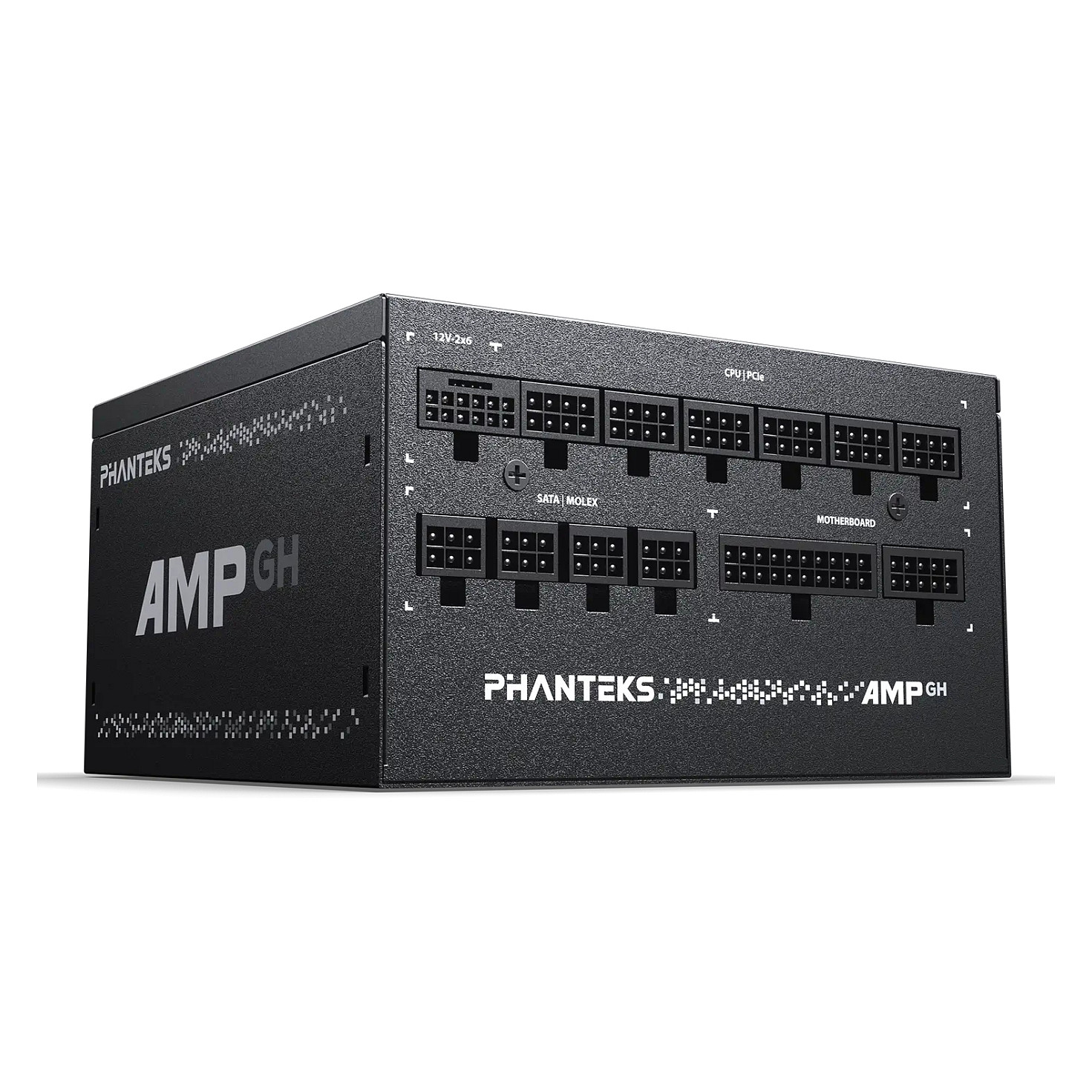

1200W PHANTEKS AMP GH schwarz
Pre-Order
€190.99
VAT (19%) included
Description
1200 W 100 - 240 V 50/60 Hz Motherboard power connector: 18+10 pin ATX PC ATX 80 PLUS Platinum Active 12 cm Black
Technical Specifications
SKU
KPH-P1200GH_BK01_EU
Total Power
1200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15 - 7.5 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
No load operation, Over power, Over voltage, Short circuit, Under voltage, Overheating, Over current
Motherboard Power Connector
18+10 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 300, 450 mm
Number Of Sata Power Cables
3
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
300, 450 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Cable Length
75 cm
Cpu Power Cable Length
65 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Hydraulic
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Cables Included
AC, CPU, PCIe, SATA, Peripheral (Molex)
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
2.33 kg
Package Weight
3.81 kg
Warranty Period
8 year(s)
