Thermaltake

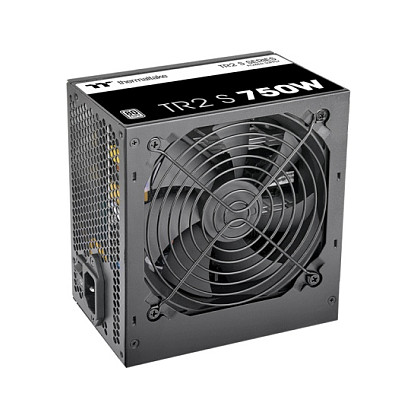

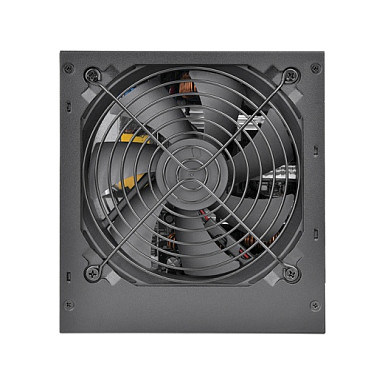

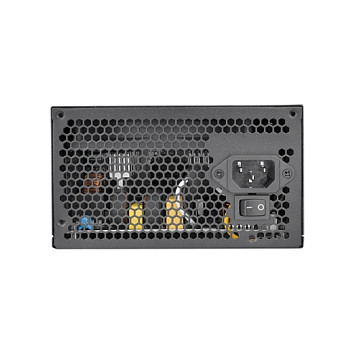

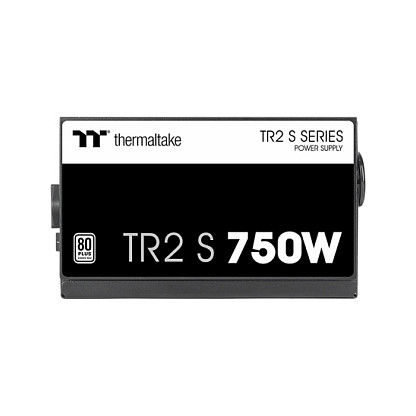

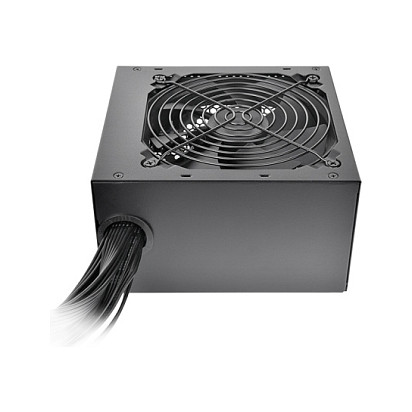

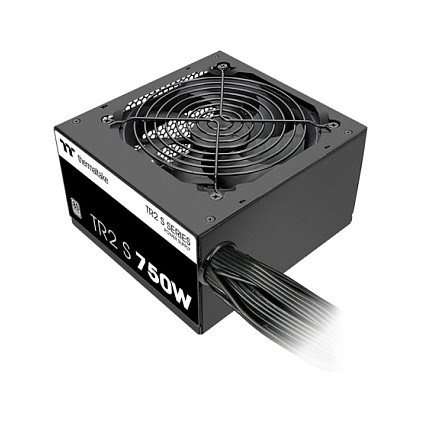

750W Thermaltake TR2 S ATX 80 Plus
Pre-Order
€68.99
VAT (19%) included
Description
750 W 220 - 240 V 50 Hz Motherboard power connector: 20+4 pin ATX PC/Server ATX 80 PLUS Active 12 cm Black
Technical Specifications
SKU
KPS-TRS-0750NNSAWE-H
Total Power
750 W
Ac Input Voltage
220 - 240 V
Ac Input Frequency
50 Hz
Input Current
8 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
18 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Hold Time
17 ms
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
500 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
50 cm
Cpu Power Cable Length
65 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
Hydraulic
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
5 - 40 °C
Storage Temperature (T-T)
-40 - 55 °C
Operating Relative Humidity (H-H)
10 - 95%
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
