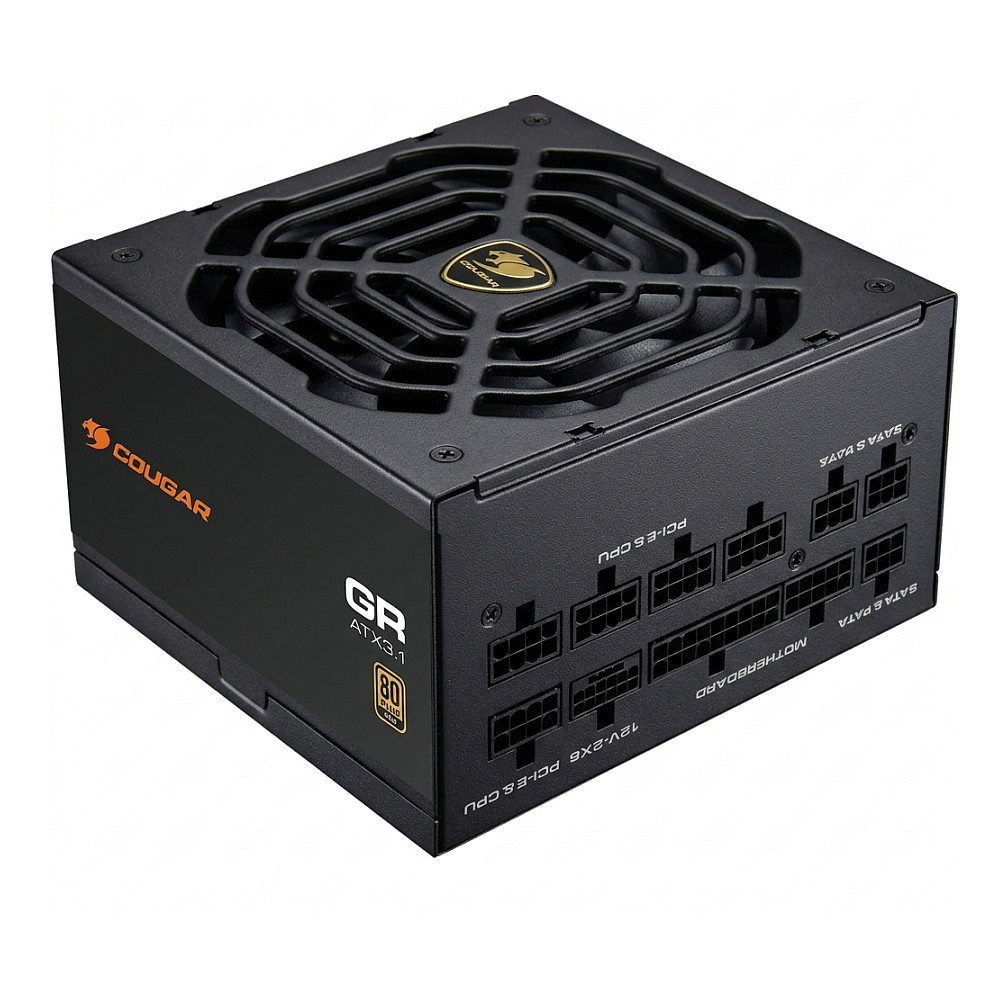

1000W COUGAR Netzteil GR 1000W ATX3.1/ PCIE 5.1/ 80 Plus Gold
Pre-Order
€129.99
VAT (19%) included
Description
Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs. 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills. Durable Fluid Dynamic Bearing Fan lets you experience noiseless gaming. 100% Refined Japanese Capacitors for outstanding component longevity in the PSU. Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology. Powerful performance even at 40°C ambient temperature. Full Protections with UVP, OCP, SCP, OTP, OVP, OPP
Technical Specifications
SKU
KCGR GDN-1000
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15-8 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
999.6 W
Combined Power (+5V)
100 W
Combined Power (-12V)
4.8 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
83.3 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.4 A
Max Output Current (+5Vsb)
3 A
Efficiency
91%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
9
Sata Power Cable Length
150, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Certification
CE, FCC, EAC, RoHS
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
2.25 kg
Package Width
316 mm
Package Depth
220 mm
Package Height
107 mm
Package Weight
3.45 kg
