1050W COUGAR Netzteil GEX 1050W ATX3.0 / 80 Plus Gold / Modular
Pre-Order
€178.99
VAT (19%) included
Description
80PLUS Gold Certified Fully Modular Power Supply Unit Durable HDB Fan Superior fan Curve Tuning Flawless Operation at 40°C Compatible with The Lastest PC Technology Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Technical Specifications
SKU
KCGR-GEX1050
Total Power
1050 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
13 - 6 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1050 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
87.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
92%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

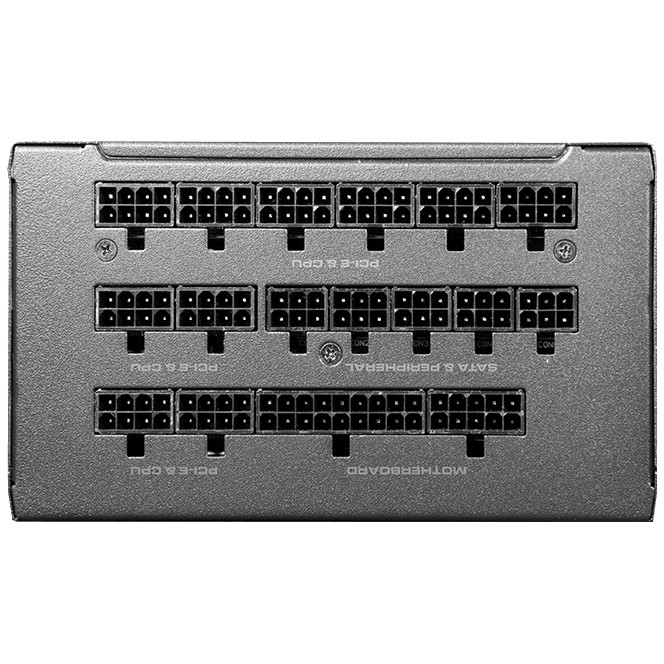

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
65 cm
Number Of Sata Power Connectors
12
Number Of Pata Power Connectors
1
Sata Power Cable Length
120, 500 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
120, 500 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Cable Length
65 cm
Cpu Power Cable Length
65 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
HDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
10 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Cables Included
CPU, PATA, PCIe
Compliance Certificates
CCC, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark
Width
150 mm
Depth
180 mm
Height
86 mm
Weight
2.09 kg
Package Width
229 mm
Package Depth
331 mm
Package Height
107 mm
Package Weight
3.59 kg
Warranty Period
5 year(s)
