MSI

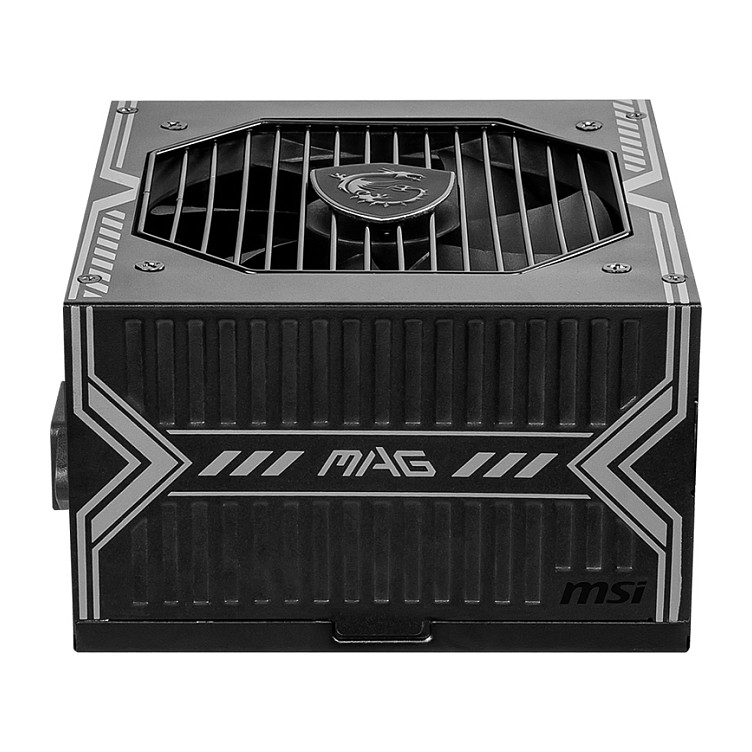

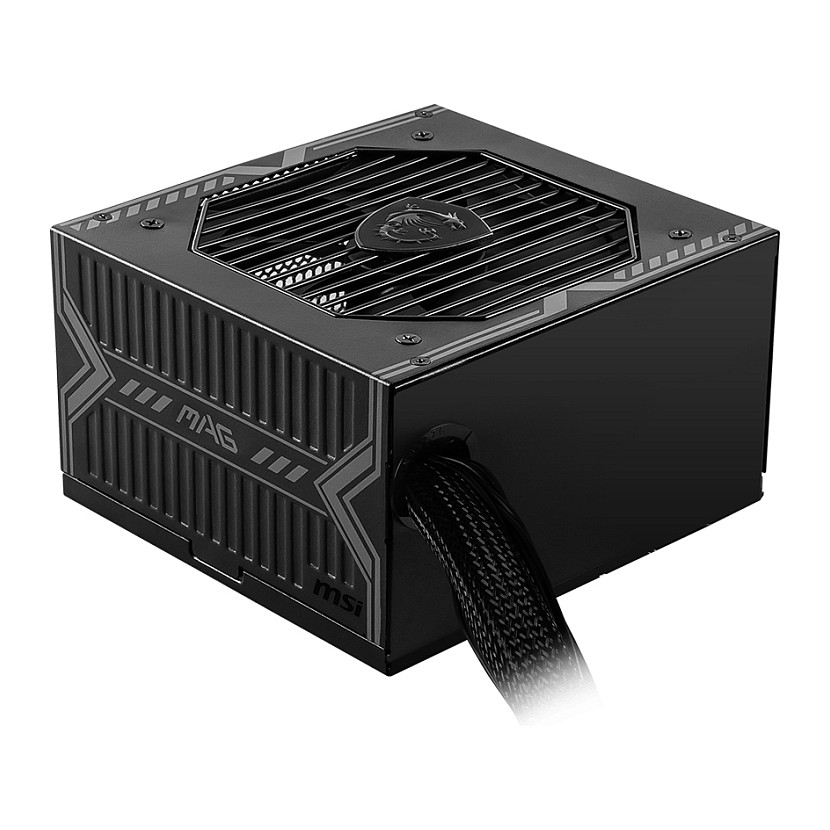

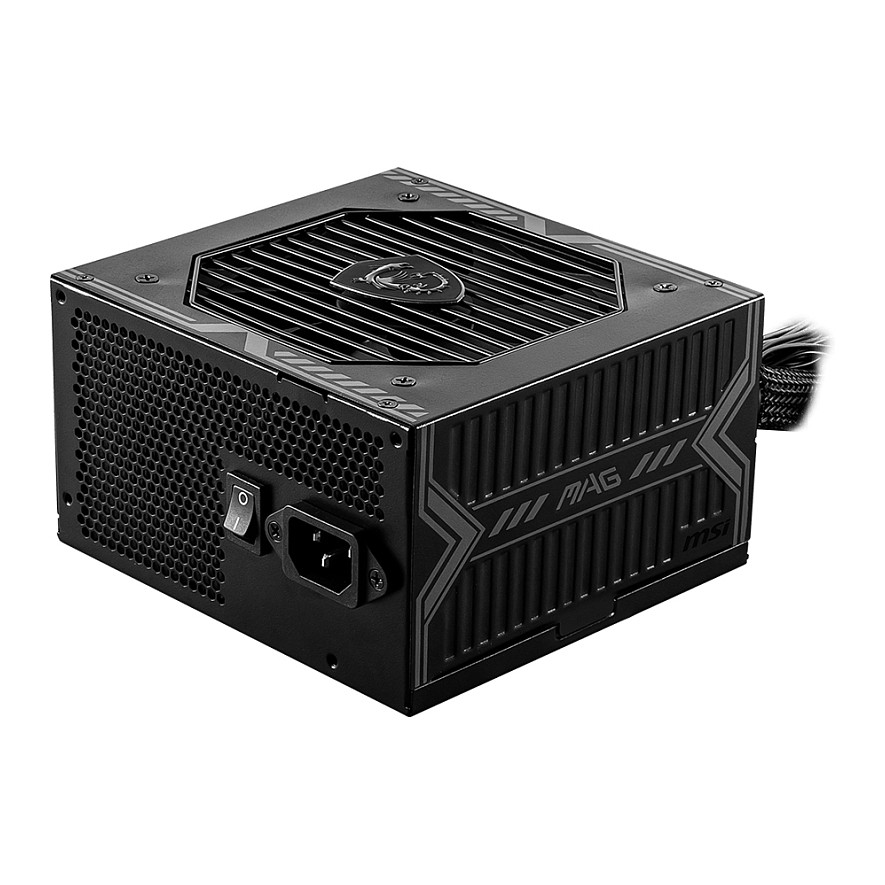

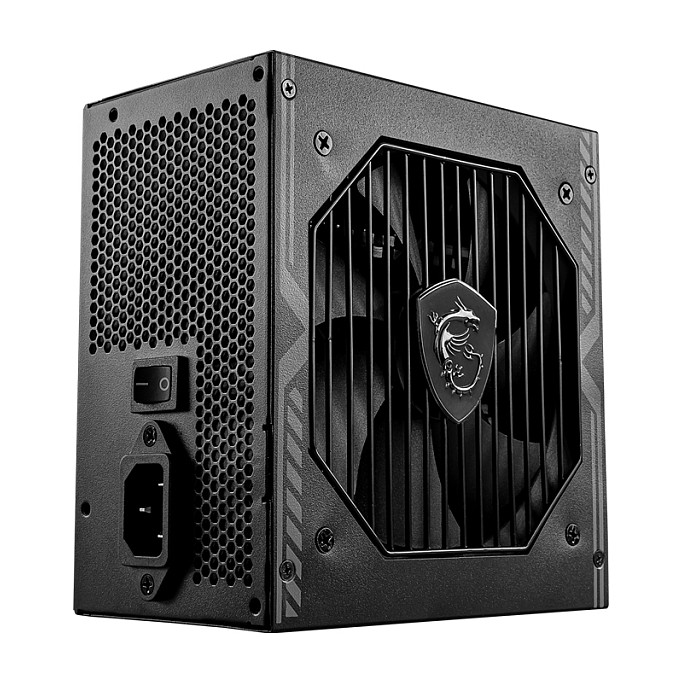

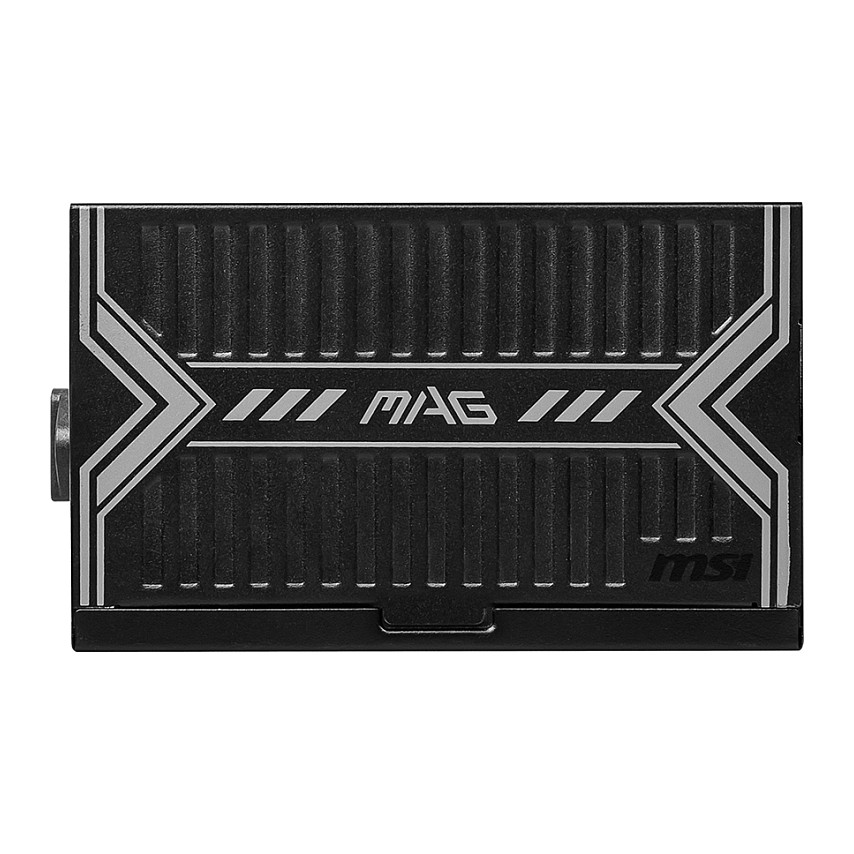

550W MSI Netzteil MAG A550BN
Pre-Order
€69.99
VAT (19%) included
Description
80 Plus Bronze certified for high efficiency 120mm Low Noise Fan Industrial level protection with OVP,OCP,OPP,OTP, SCP DC-DC Circuit Design Active PFC design
Technical Specifications
SKU
K306-7ZP2A11-CE0
Total Power
550 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Maximum Input Current (@110V)
8 A
Maximum Input Current (@220V)
4 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
546 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
45.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
85%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
5
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
2
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Width
150 mm
Depth
140 mm
Height
86 mm
Harmonized System (Hs) Code
84733020
