750W COUGAR Netzteil ATLAS 750W ATX3.1 / 80 Plus Bronze
Pre-Order
€79.99
VAT (19%) included
Description
Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs. 80 PLUS Bronze Certified for up to 87% efficiency in power conversion. Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology. Full protections with SCP，OCP，OVP，UVP，OPP，OTP.
Technical Specifications
SKU
KCGR VG-750
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10-6 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
140 W
Combined Power (+12V)
750 W
Combined Power (+5V)
140 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A

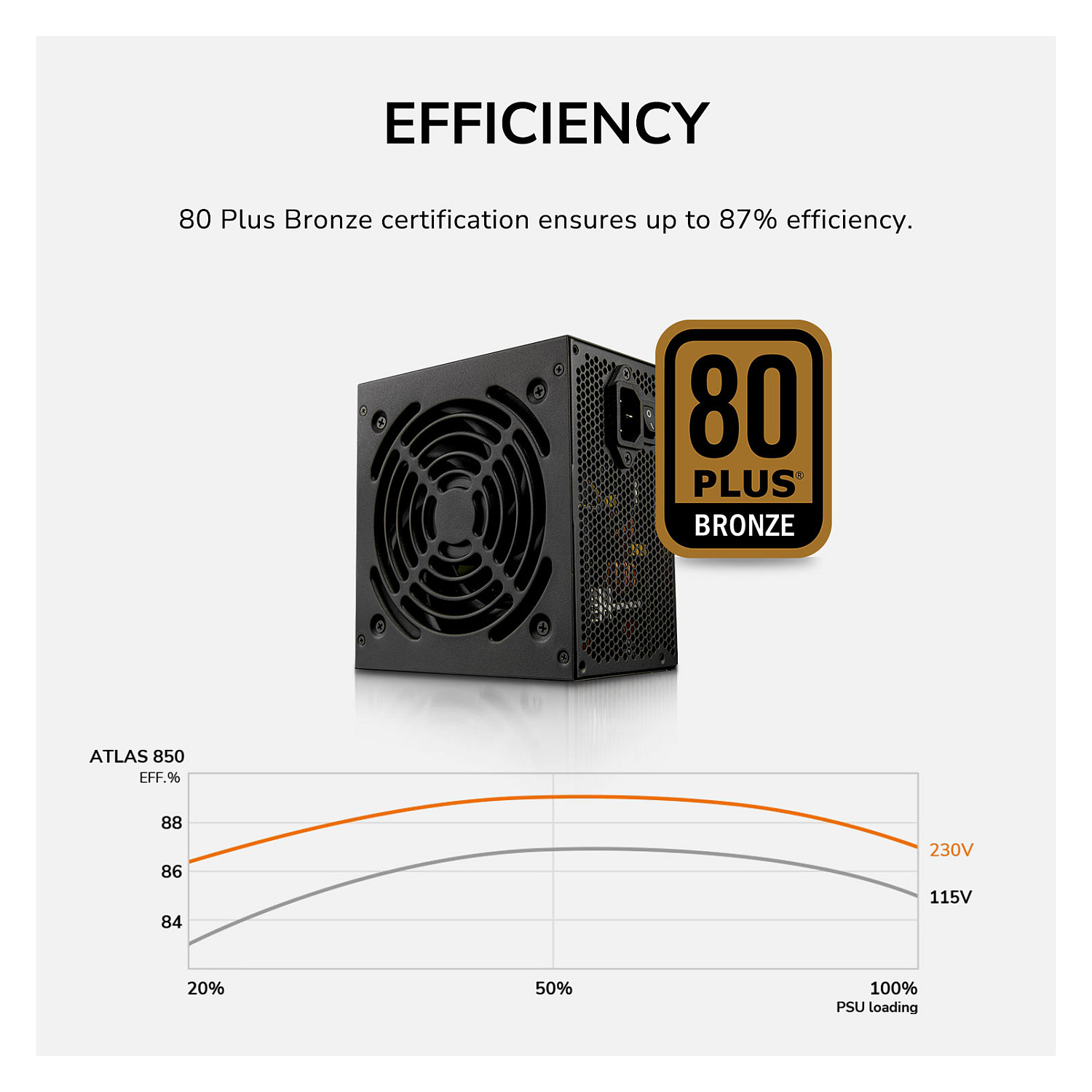

Efficiency
87%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cpu Power Cable Length
70 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1

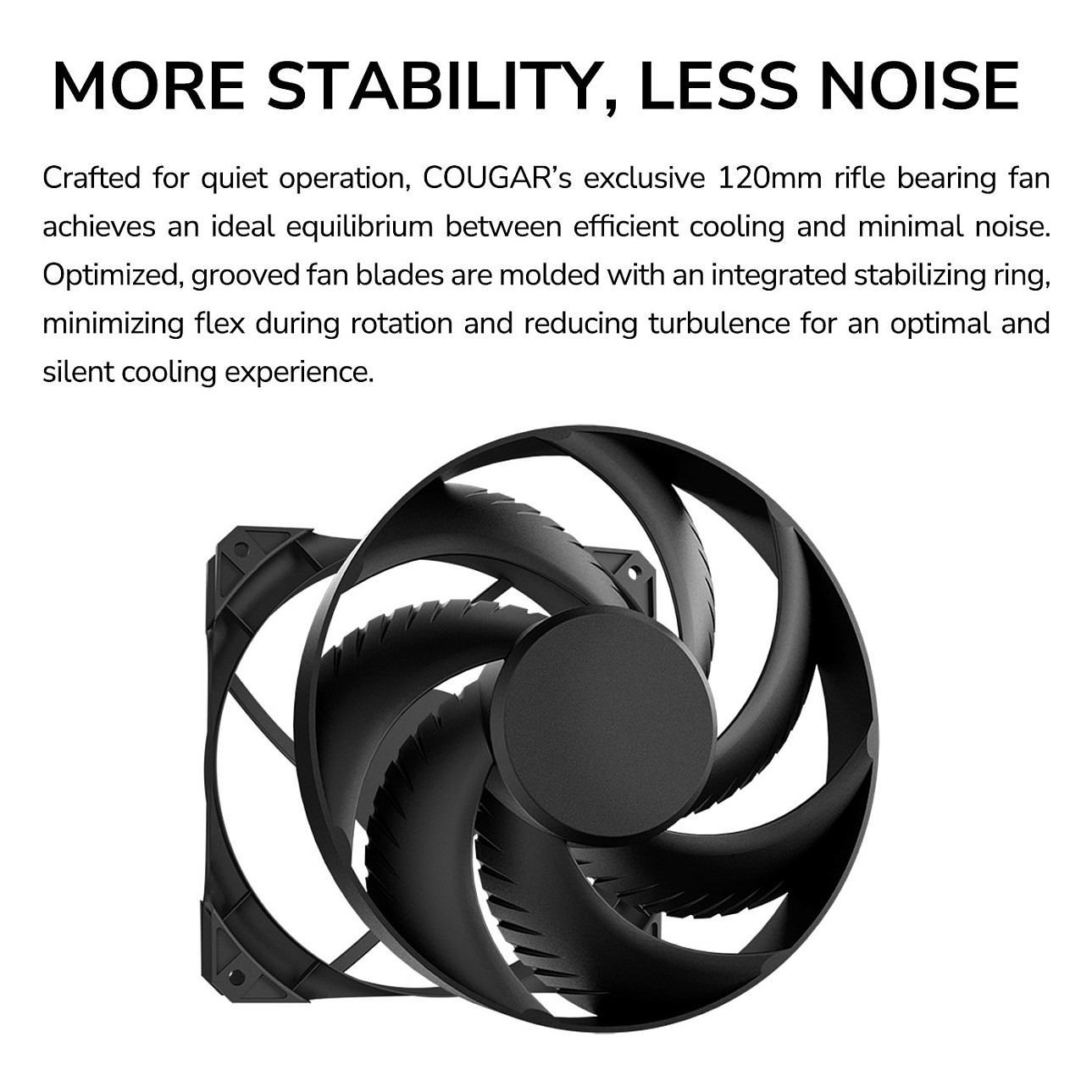

Bearing Technology
Rifle
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Certification
CE, FCC, RoHS
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.94 kg
Package Width
187 mm
Package Depth
158 mm
Package Height
165 mm
Package Weight
2.23 kg
