ASUS

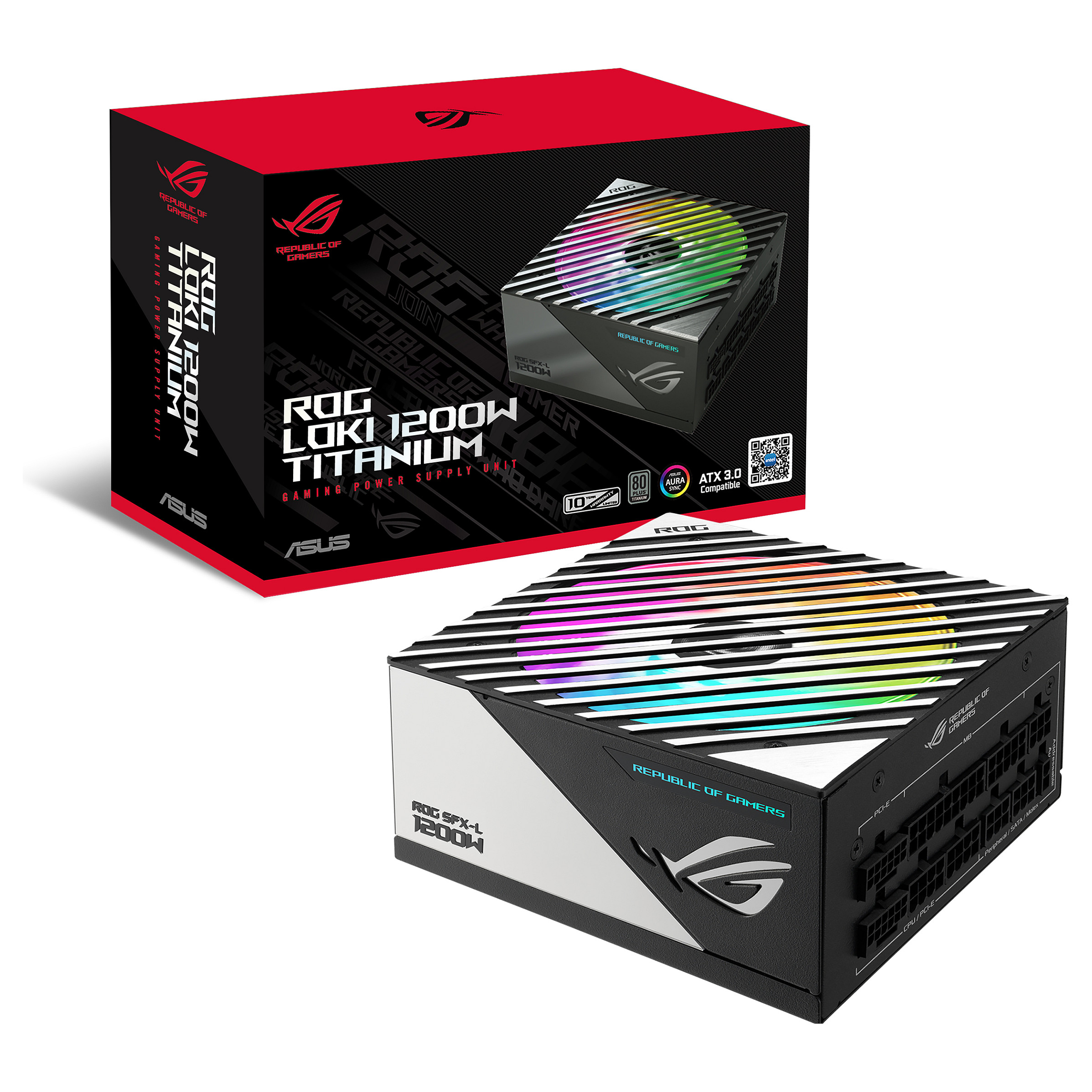

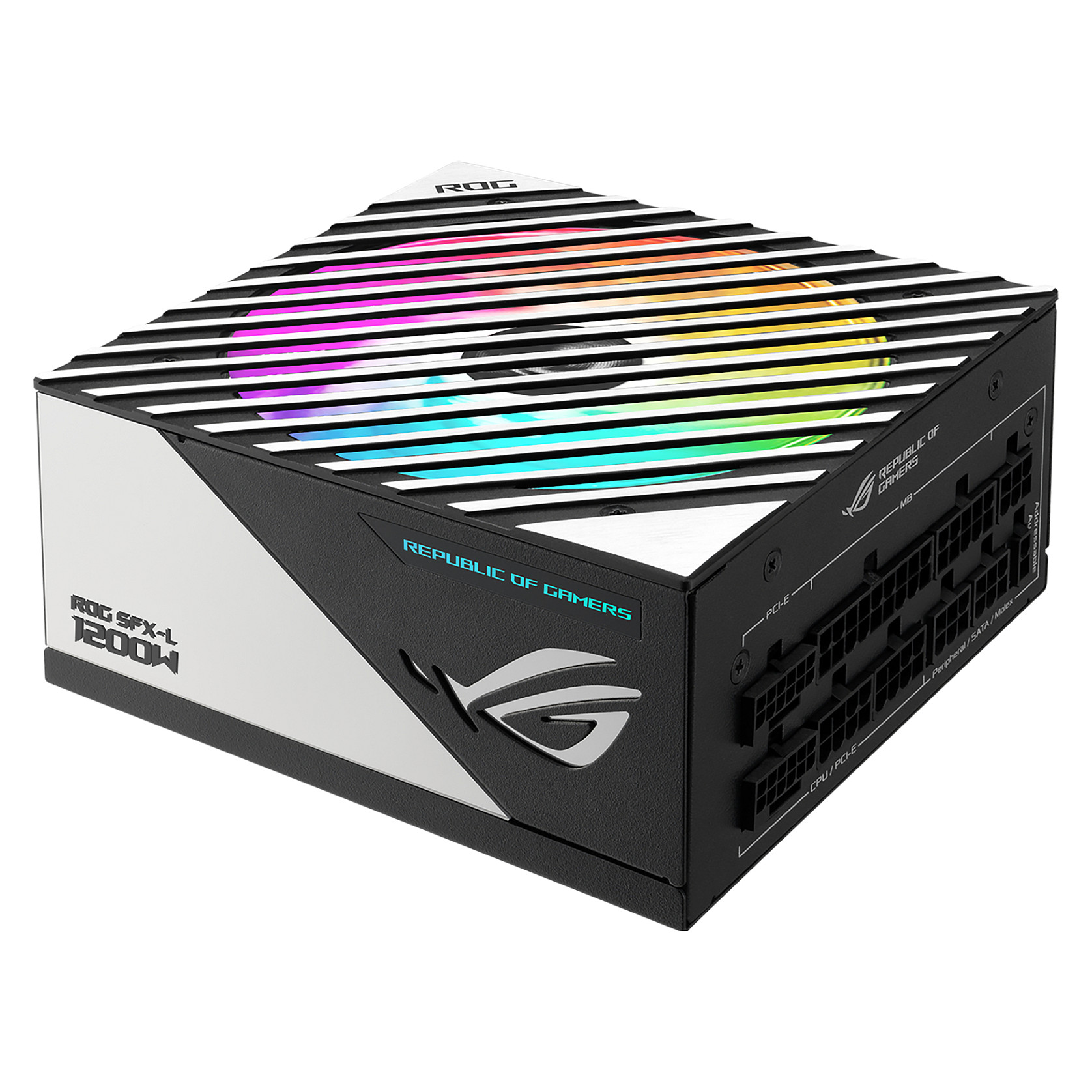

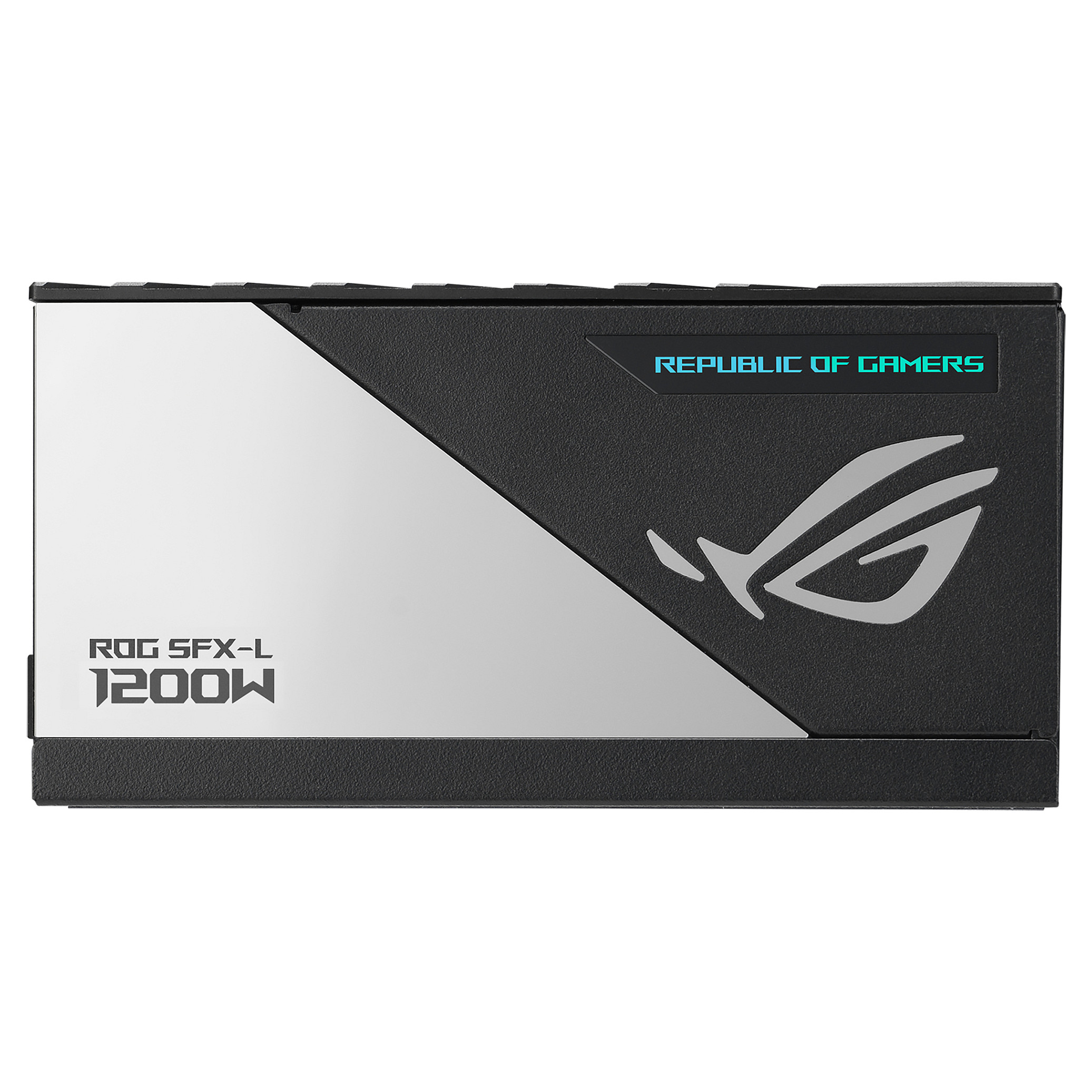

1200W ASUS Netzteil ROG Loki SFX-L 80+ Titanium
Pre-Order
€418.99
VAT (19%) included
Description
1200 W 100 - 240 V Motherboard power connector: 20+4 pin ATX PC SFX-L 80 PLUS Platinum Active 12 cm Black, Silver
Technical Specifications
SKU
K90YE00N0-B0NA00
Total Power
1200 W
Peak Power
1200 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
110 W
Combined Power (-12V)
9.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.8 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
45 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
100, 200, 300 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
100, 300 mm
Pci Express Power Connectors (8-Pin)
4
Pci Express Power Connectors (16-Pin)
2
Cpu Power Cable Length
55 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX-L
Atx Version
3.1
Bearing Technology
Ball bearing
Product Colour
Black, Silver
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
RoHS
Width
125 mm
Depth
125 mm
Height
63.5 mm
Weight
2.15 kg
Package Width
285 mm
Package Depth
190 mm
Package Height
100 mm
Package Weight
2.84 kg
Package Type
Box
Warranty Period
10 year(s)
