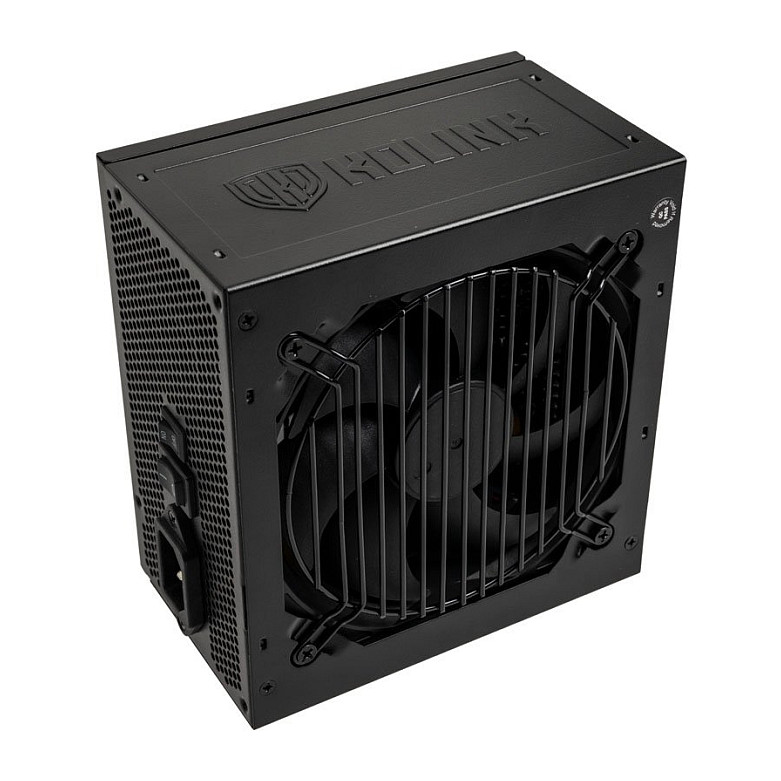

Kolink Regulator 80 PLUS Gold Netzteil, ATX 3.0, PCIe 5.0, modular - 750 Watt
Pre-Order
€111.99
VAT (19%) included
Description
700 W 100 - 240 V 47 - 63 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Gold Active 12 cm Black
Technical Specifications
SKU
KKL-R750FG
Total Power
700 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
5.5 - 11 A
Maximum Input Current (@110V)
5.5 A
Maximum Input Current (@220V)
11 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
130 W
Combined Power (+12V)
750 W
Combined Power (+5V)
130 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Efficiency
92%
Power Protection Features
Over voltage, Under voltage, Over current, Over power, Overheating, Short circuit, Surge and inrush
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
3
Number Of Pata Power Connectors
4
Sata Power Cable Length
500, 650, 800 mm
Number Of Sata Power Cables
2
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
500, 650, 800, 950 mm
Pci Express Power Connectors (6+2 Pin)
2
Cpu Power Cable Length
65 cm

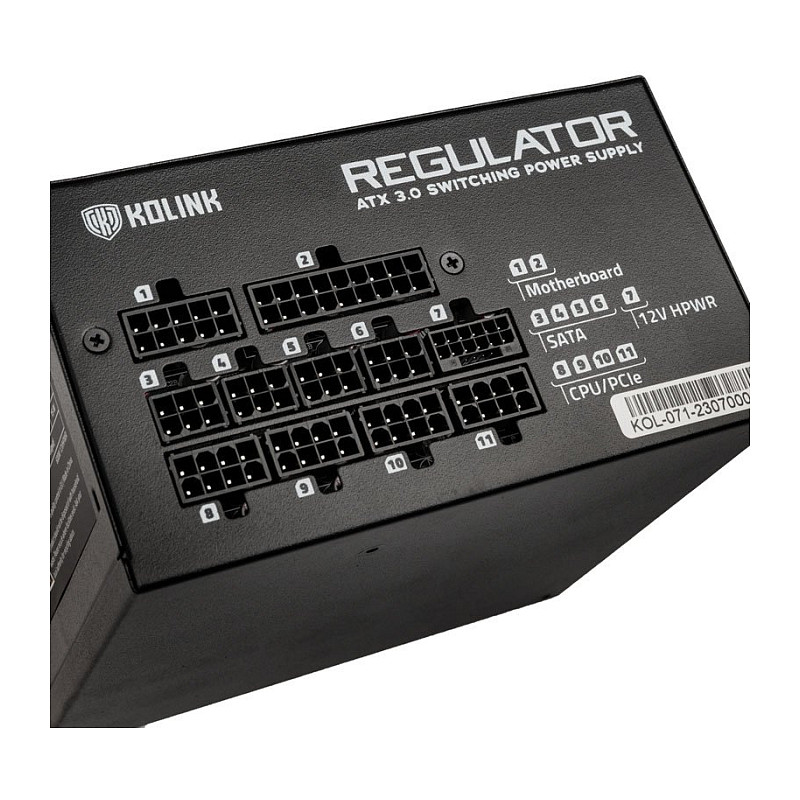

Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.0
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
15000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Operating Temperature (T-T)
0 - 50 °C

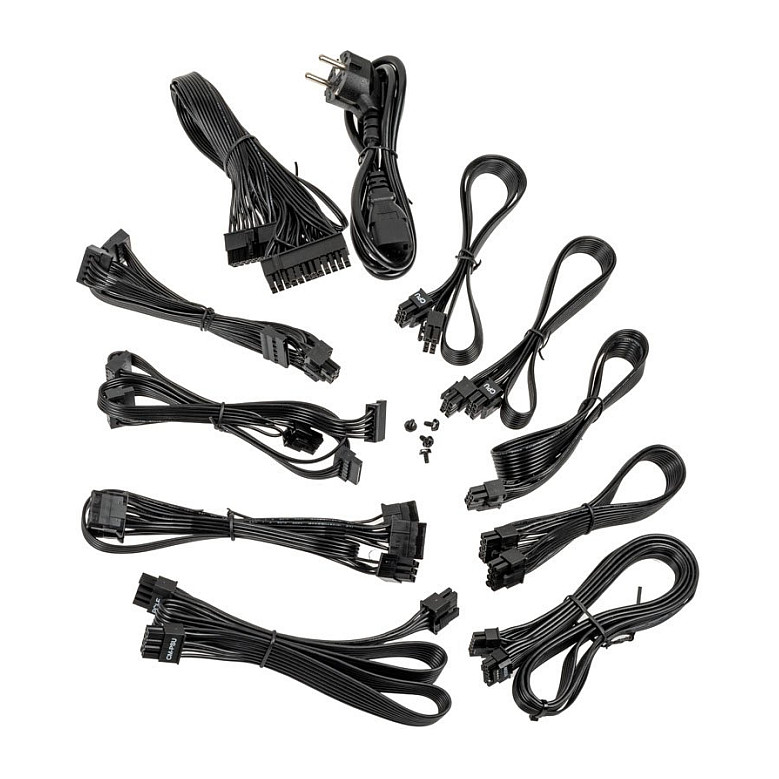

Cables Included
CPU, PATA, SATA
Width
140 mm
Depth
150 mm
Height
86 mm
Package Width
295 mm
Package Depth
210 mm
Package Height
110 mm
Package Weight
2.47 kg
Package Type
Box
