ASUS

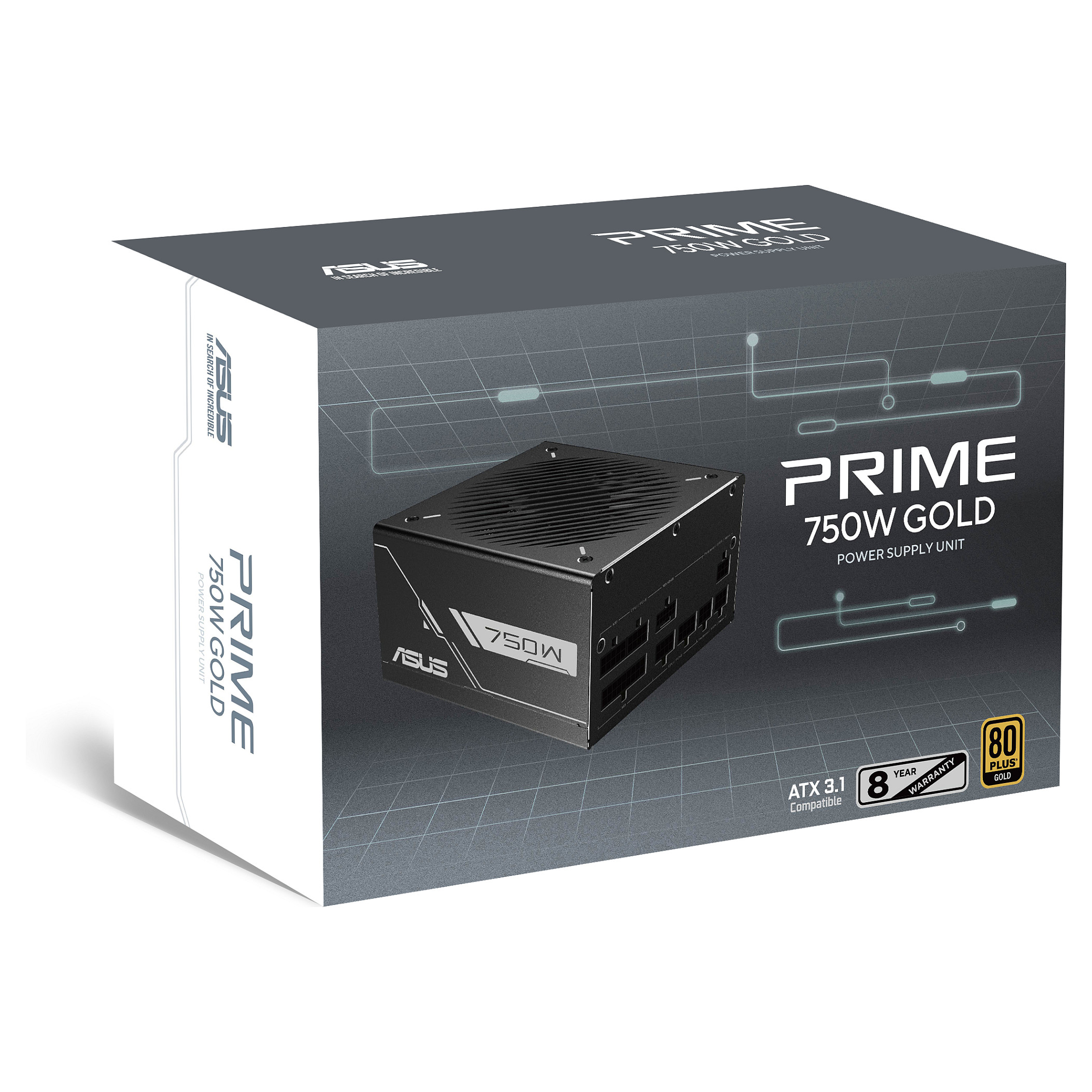

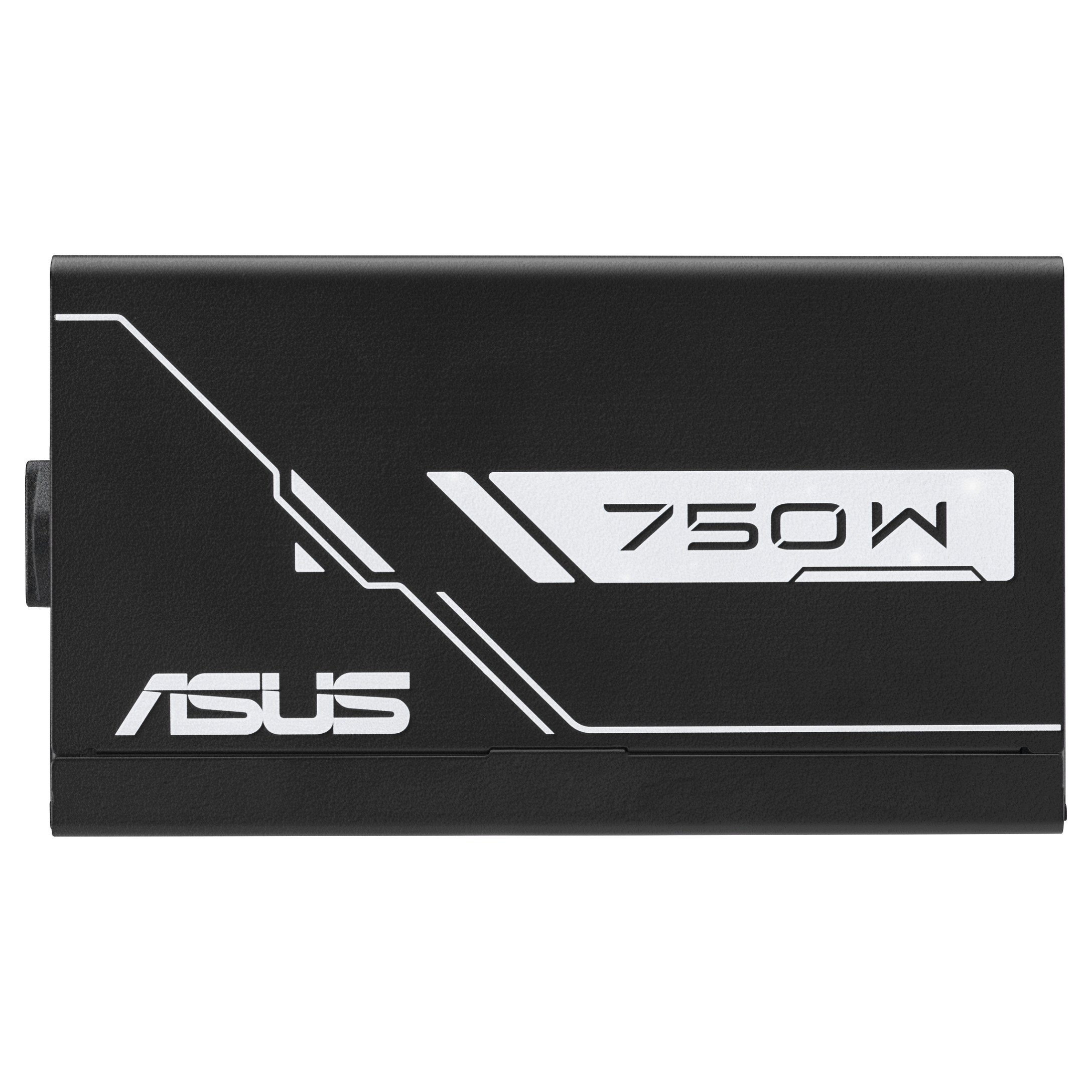

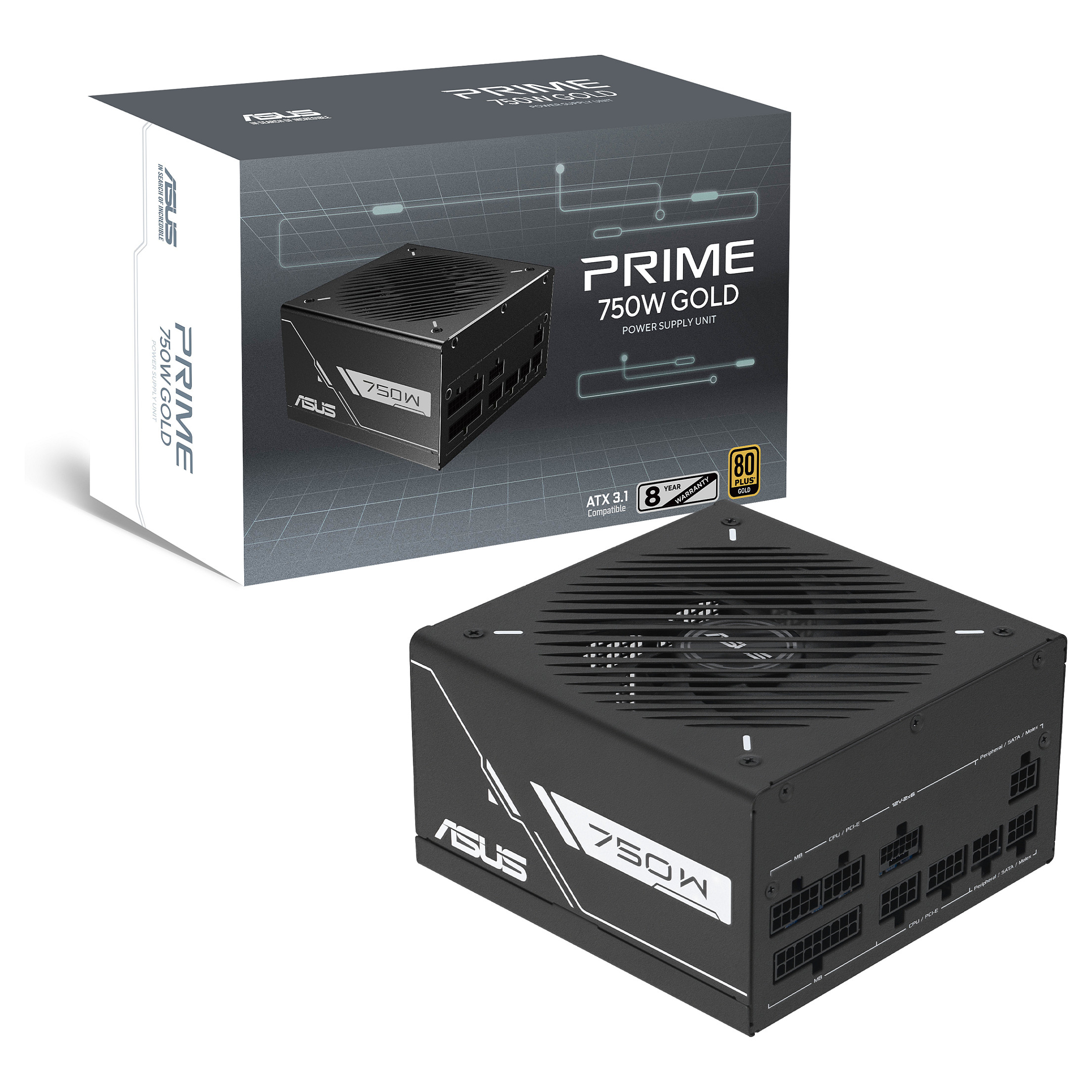

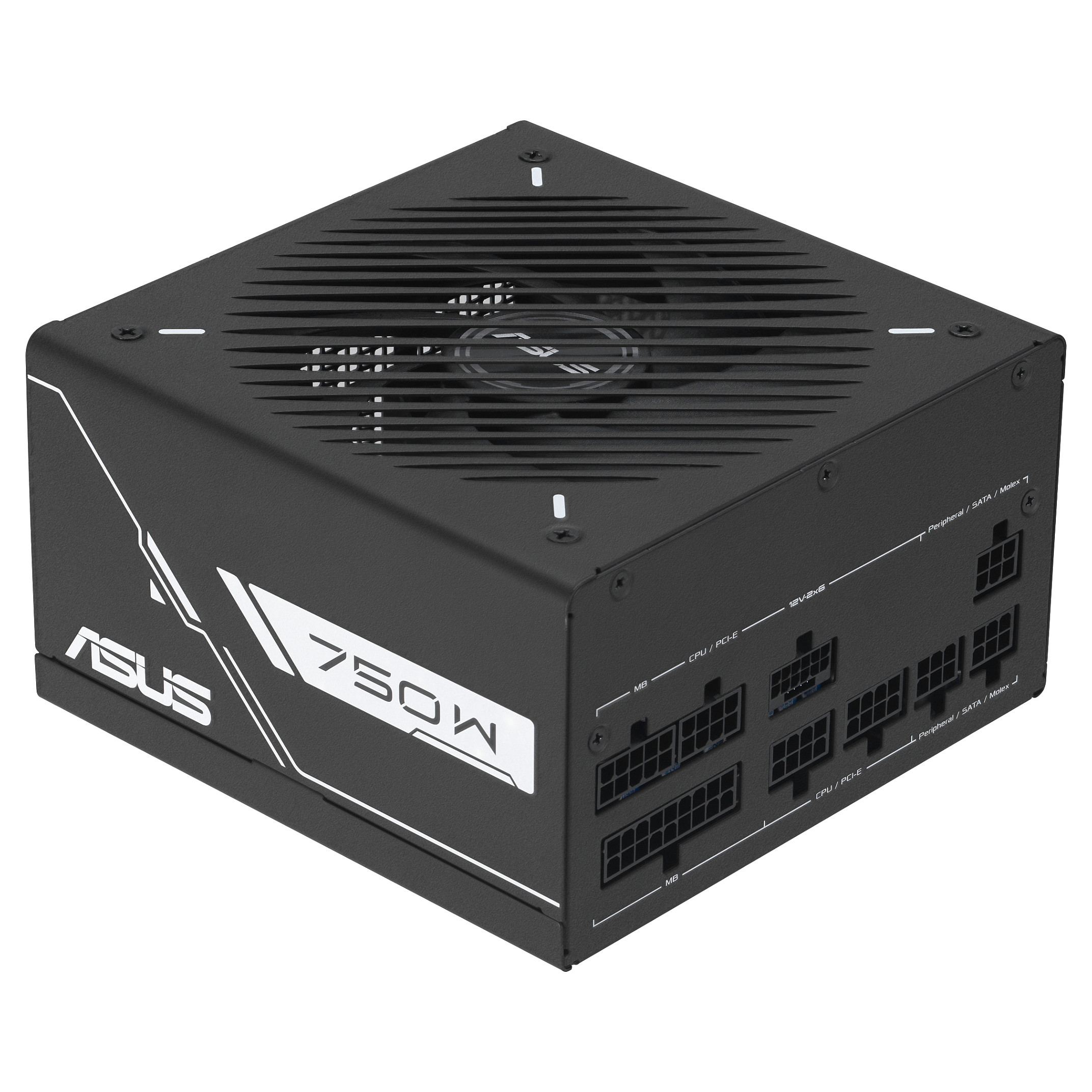

750W ASUS Netzteil PRIME-750G 80+ Gold
Pre-Order
€172.99
VAT (19%) included
Description
80 Plus & Cybenetics Gold certified: the result of low-ESR capacitors and other premium components. ATX 3.1 Compatible: Prime Gold series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards. Dual-ball fan bearings that can last up to twice as long as sleeve bearing designs. Fully modular etched cables keep your rig neat and tidy.
Technical Specifications
SKU
K90YE00U3-B0NA00
Total Power
750 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
744 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

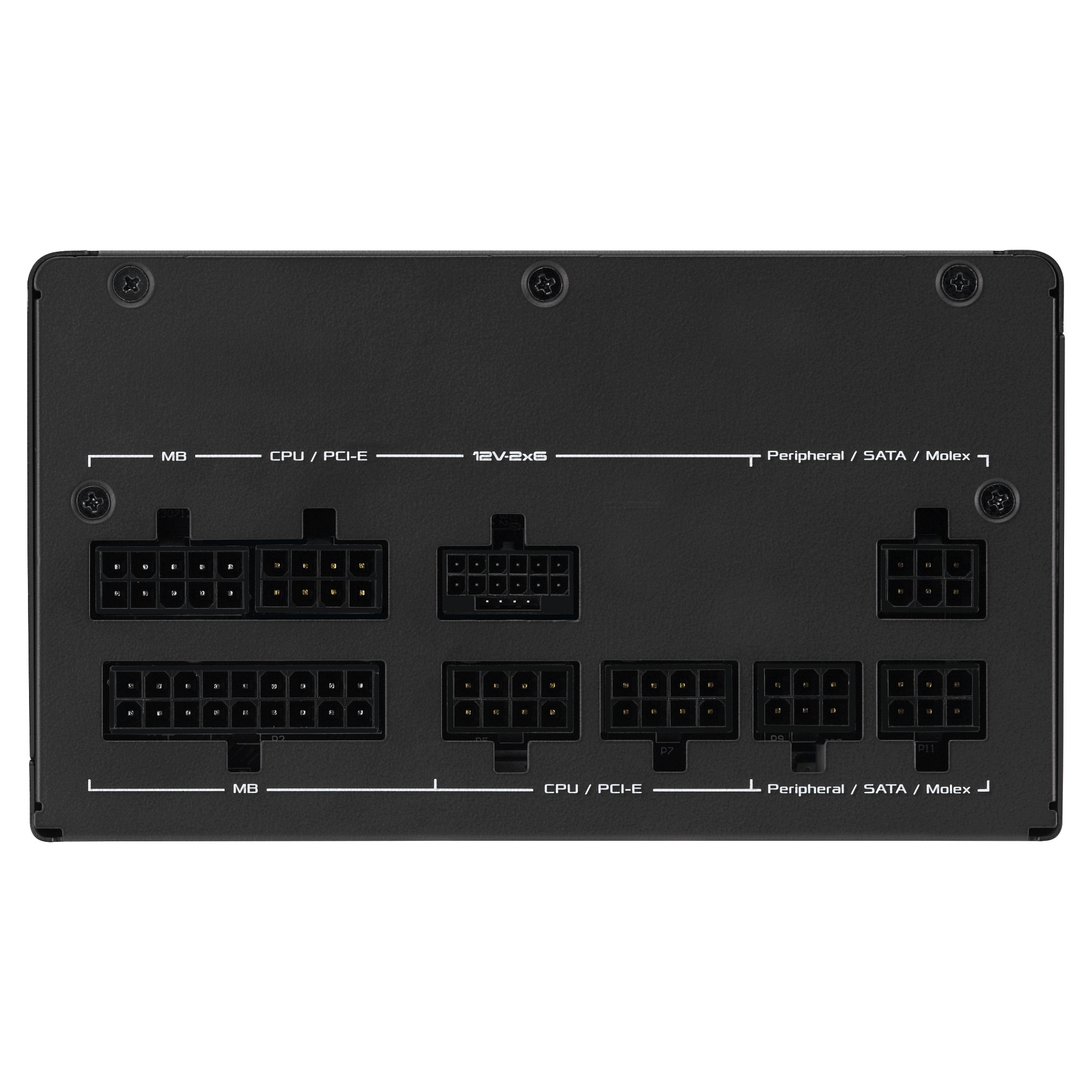

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
5
Sata Power Cable Length
400, 120 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
400, 150 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
60 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
DBB
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Cooling Type
Active
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.45 kg
Package Width
320 mm
Package Depth
213 mm
Package Height
113 mm
Package Weight
2.74 kg
Package Type
Box
