Cooler Master

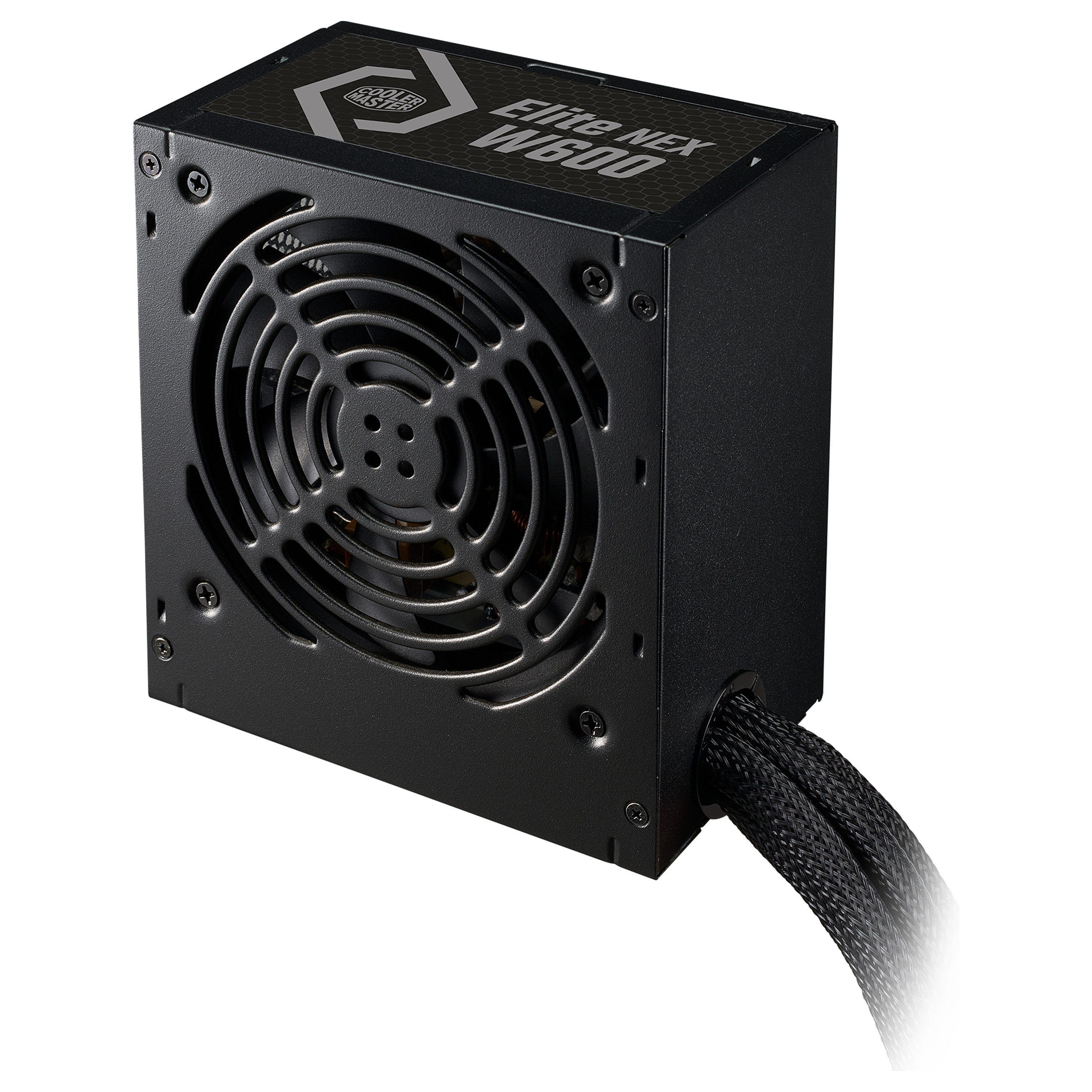

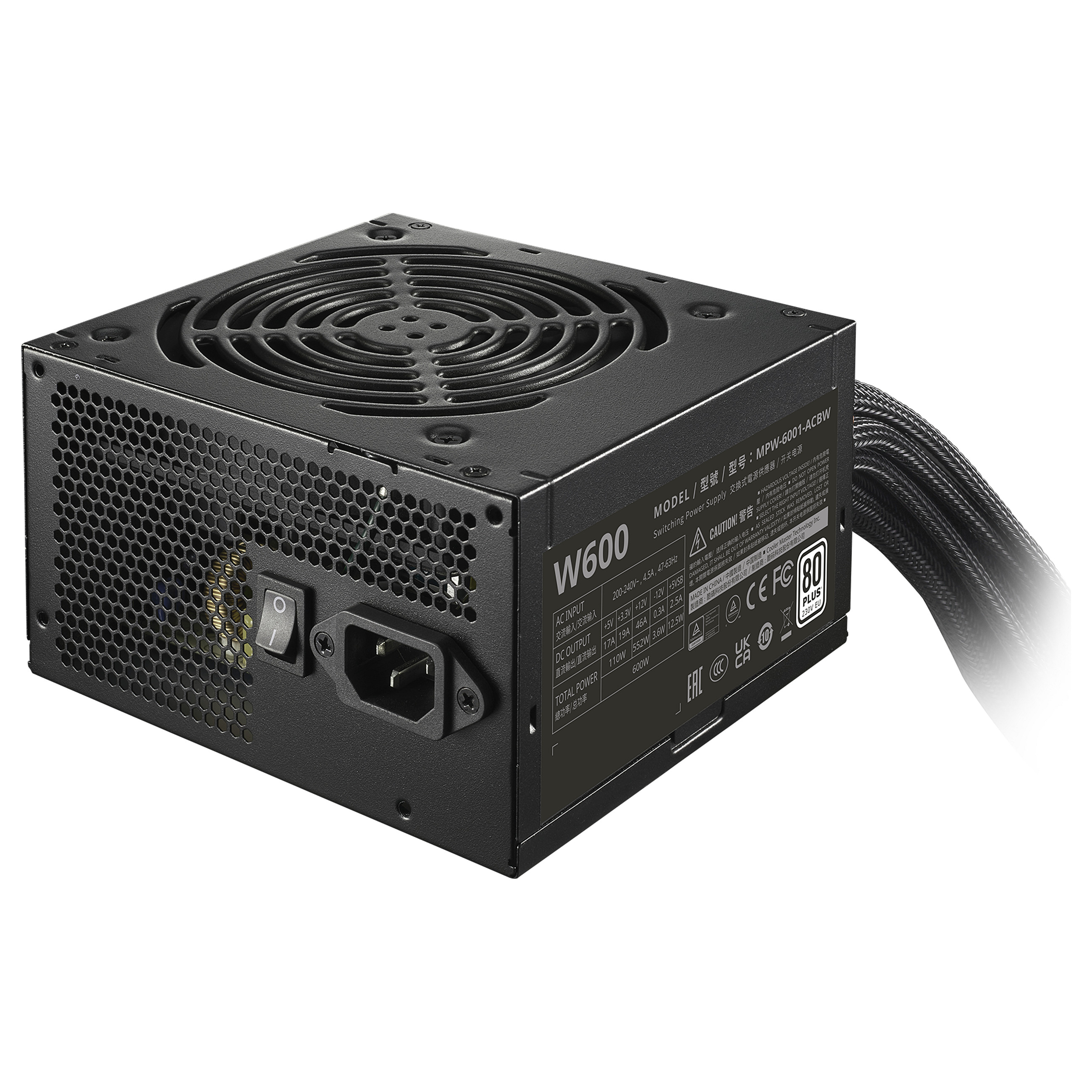

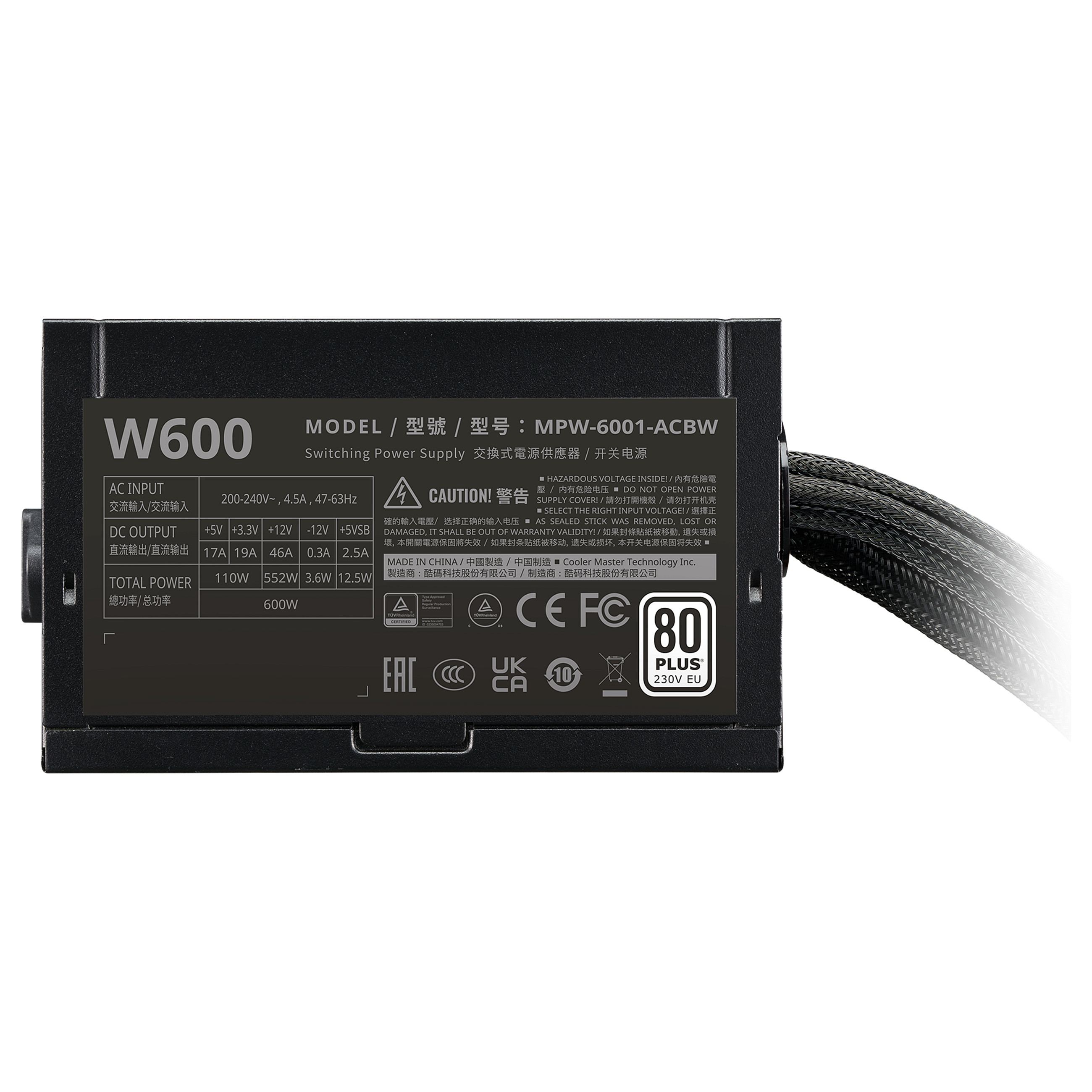

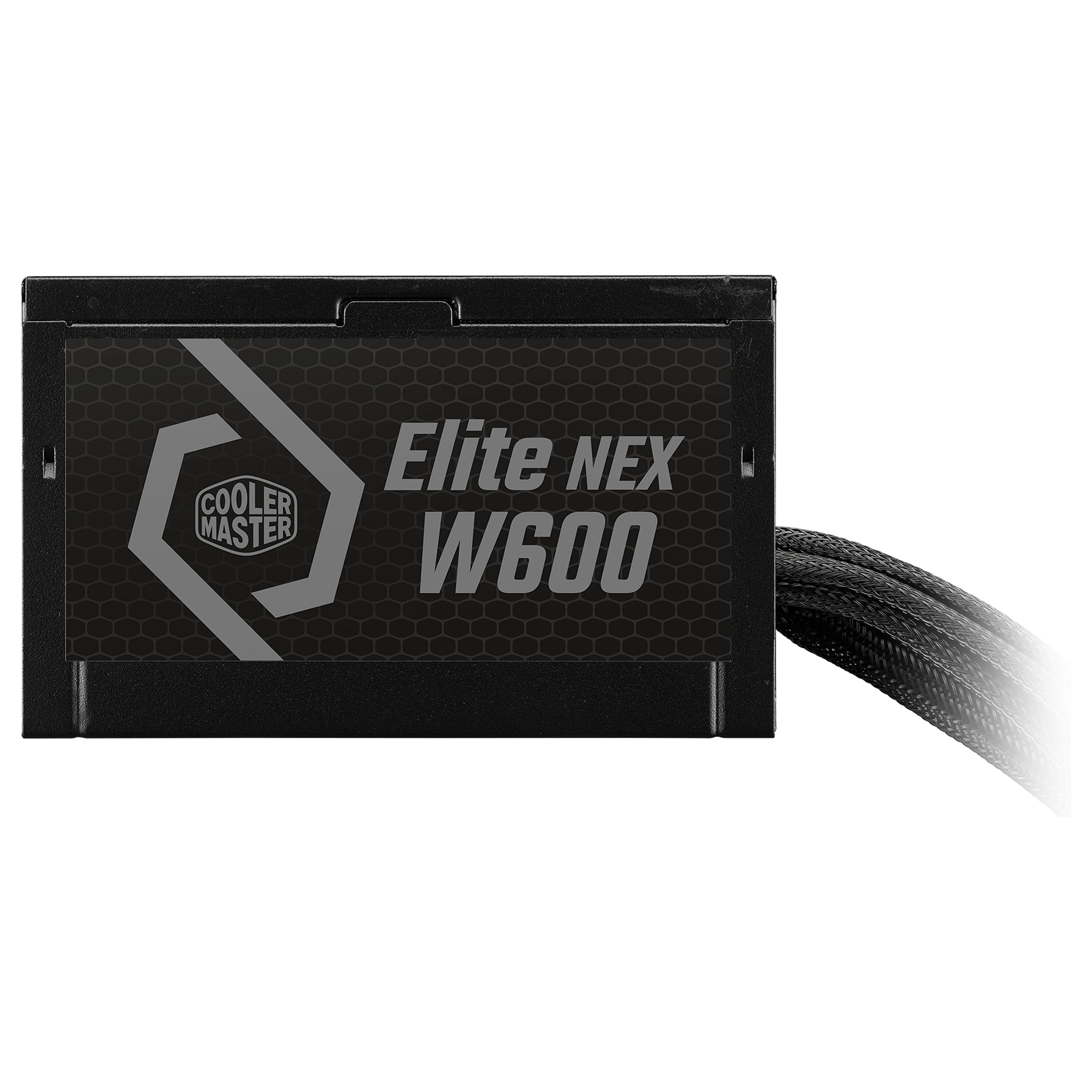

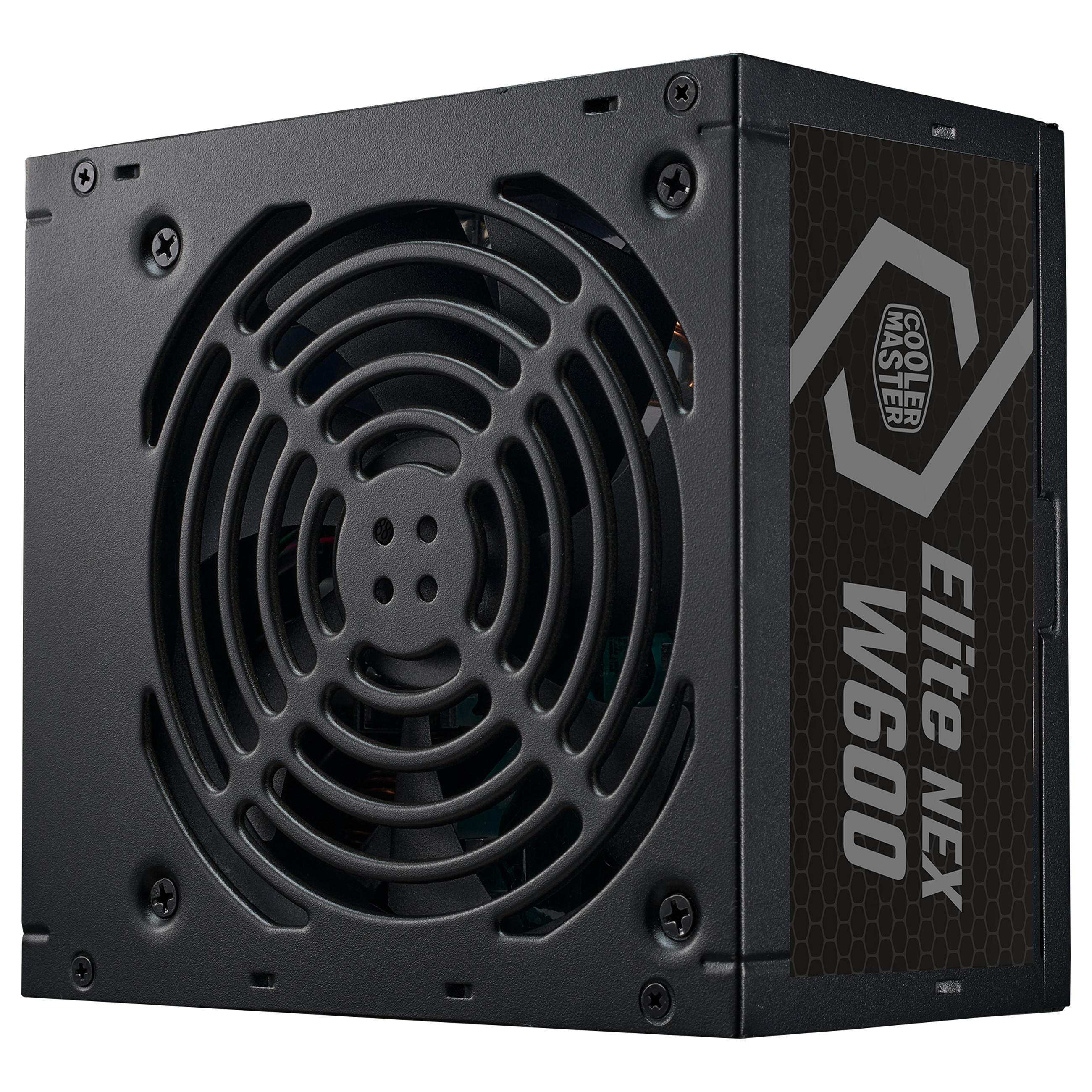

600W Cooler Master Power Supply Elite NEX W600 230V A EU Black Cable
Pre-Order
€49.99
VAT (19%) included
Description
Active PFC and a dual forward topology design Excellent temperature resistance High peak power tolerance Durability, reliability, and safety 80 Plus standard certified efficiency
Technical Specifications
SKU
KMPW-6001-ACBW-BE1
Total Power
600 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
4.5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
552 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
19 A
Max Output Current (+12V)
46 A
Max Output Current (+5V)
17 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Hold Time
10 ms
Efficiency
85%
Power Good Signal Delay Range
100 - 500 ms
Power Protection Features
Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
50 cm
Number Of Sata Power Connectors
5
Sata Power Cable Length
150, 400 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
150, 400 mm
Pci Express Power Connectors (6+2 Pin)
2
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.41
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C
Certification
TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
1.49 kg
Package Width
190 mm
Package Depth
280 mm
Package Height
95 mm
Package Weight
1.88 kg
Package Type
Box
