FSP

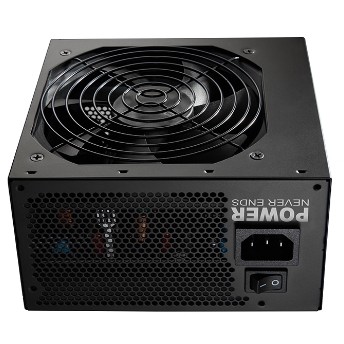

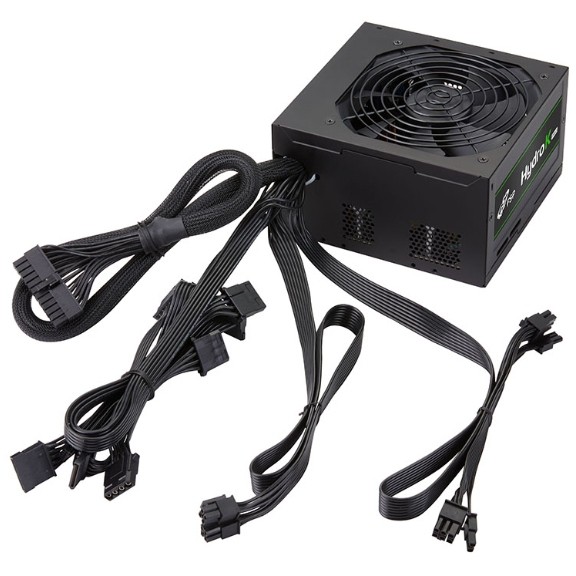

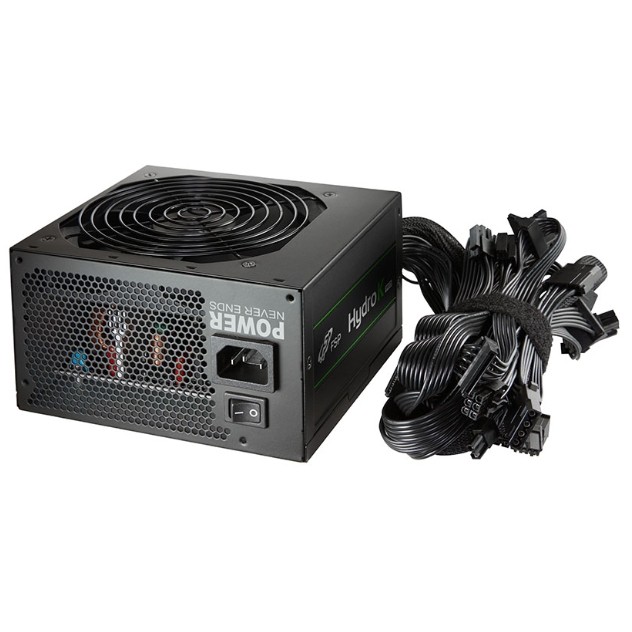

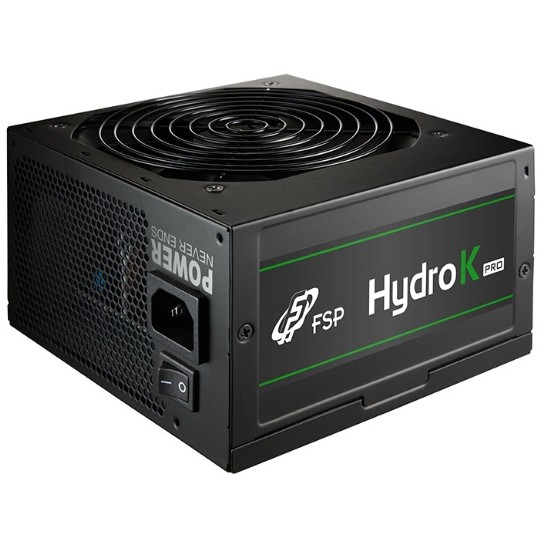

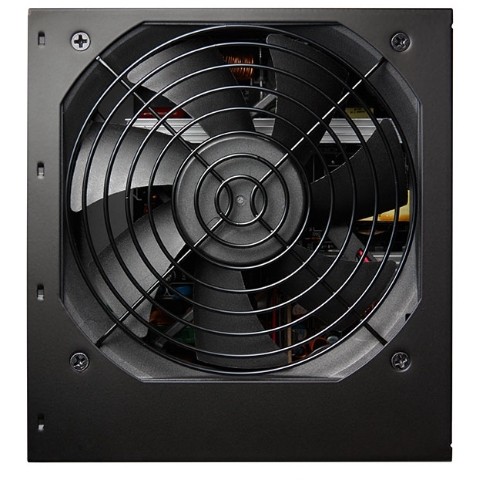

600W FSP HYDRO K PRO 600
Pre-Order
€77.99
VAT (19%) included
Description
Intel latest CPU ready Global safety approved Active PFC ≥ 0.9 High efficiency ≧ 88% Powerful +12V single rail design Hold up time ≥ 17ms @ 80% load Double layer EMI filter 120mm hydraulic bearing (HYB) fan +5V & 3.3V DC to DC module design All black cables Complete protections: OCP/OVP/OPP/SCP
Technical Specifications
SKU
KPPA6005605
Total Power
600 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
4.5 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
600 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
50 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
88%
Power Protection Features
Over current, Over power, Over voltage, Short circuit
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
50 cm
Number Of Sata Power Connectors
5
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
2
Cpu Power Cable Length
85 cm
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.0
Bearing Technology
HYB
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
140 mm
Depth
150 mm
Height
86 mm
Package Type
Box
