ASUS

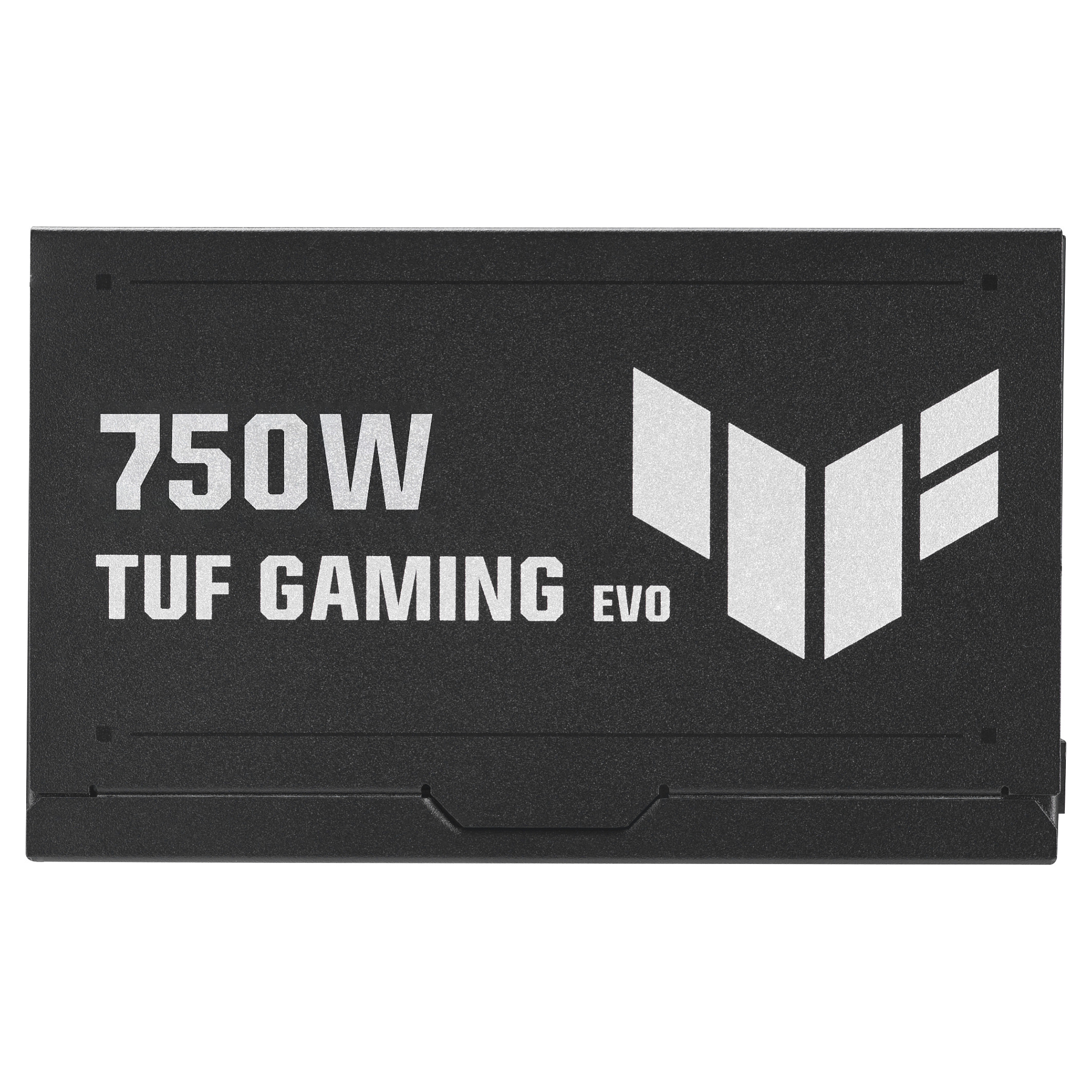

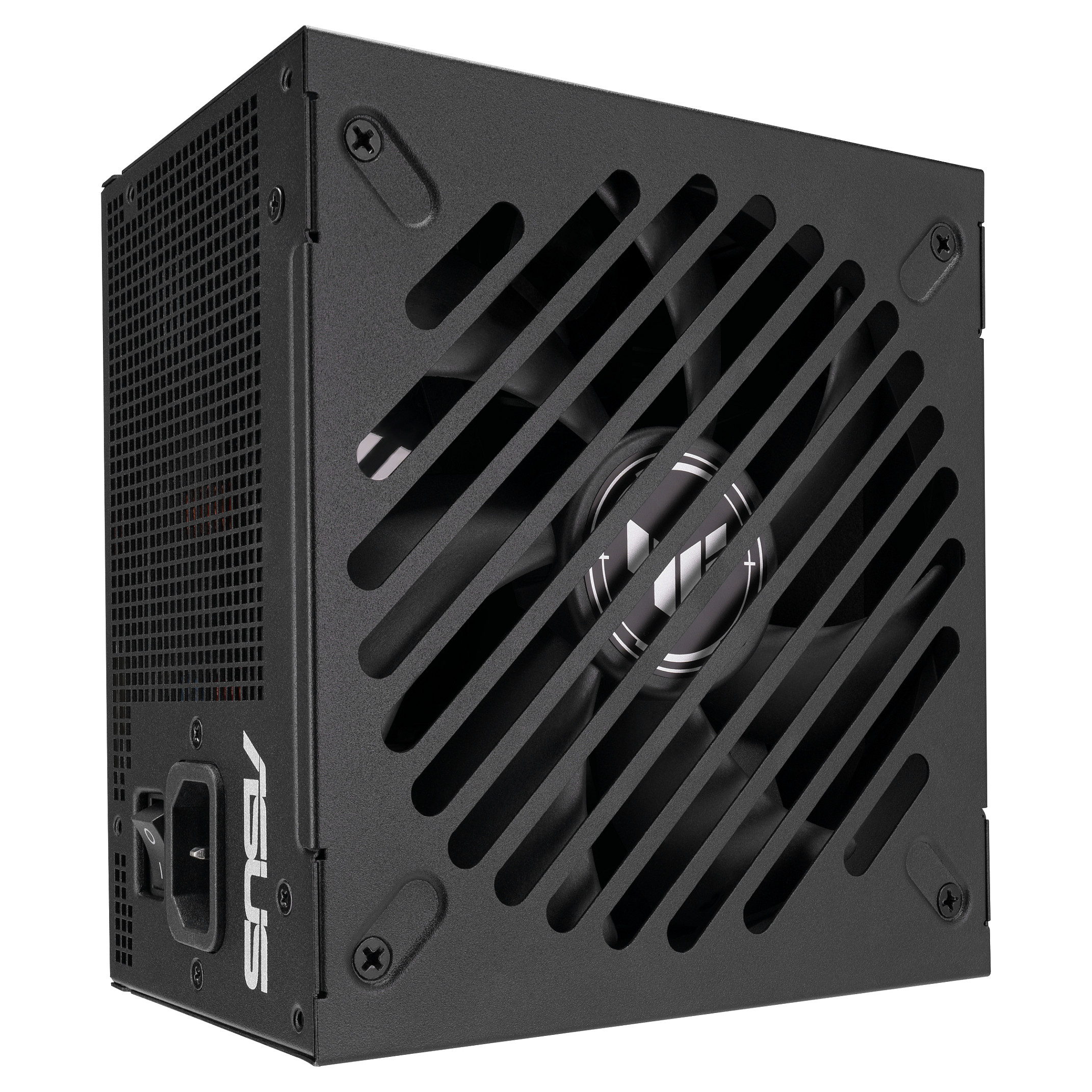

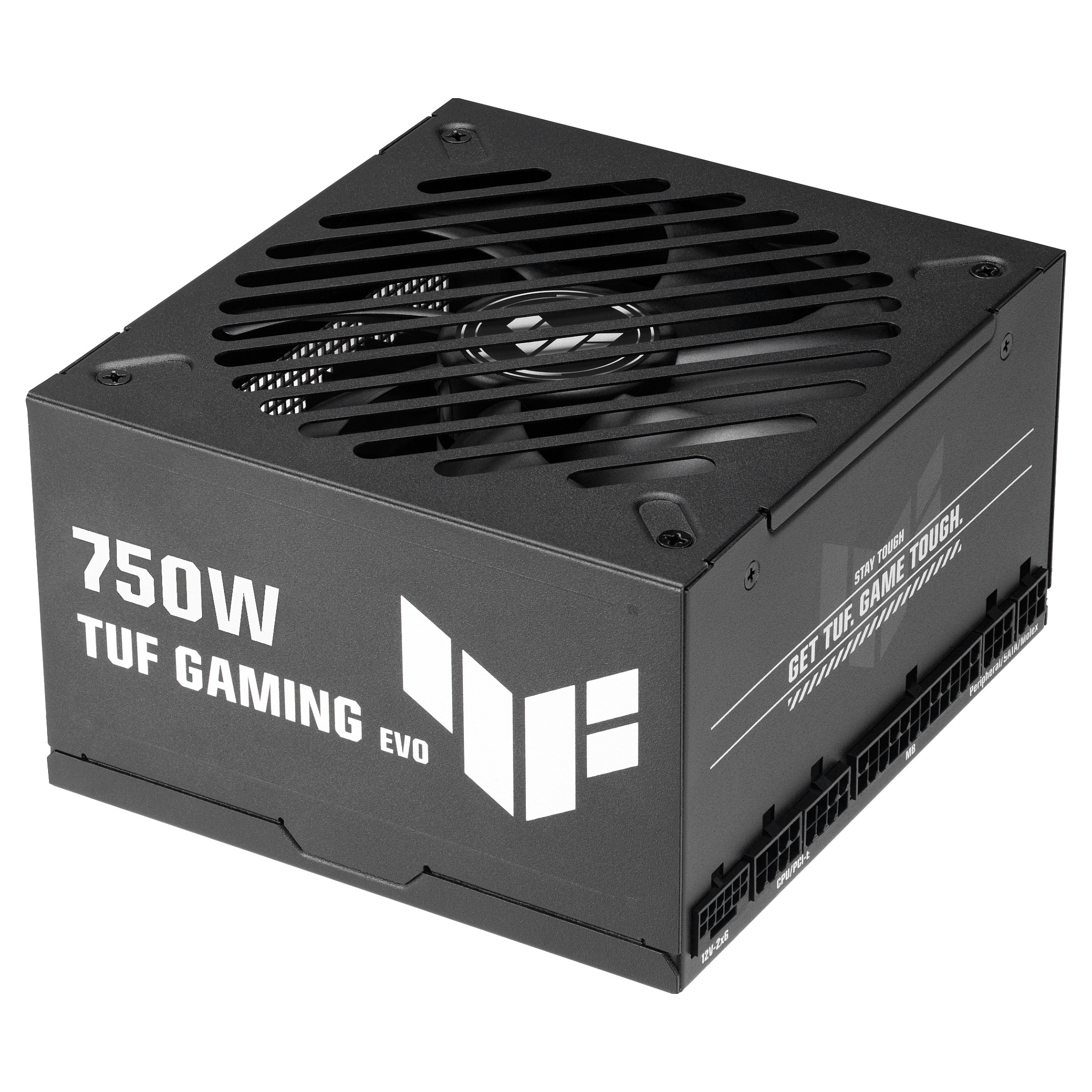

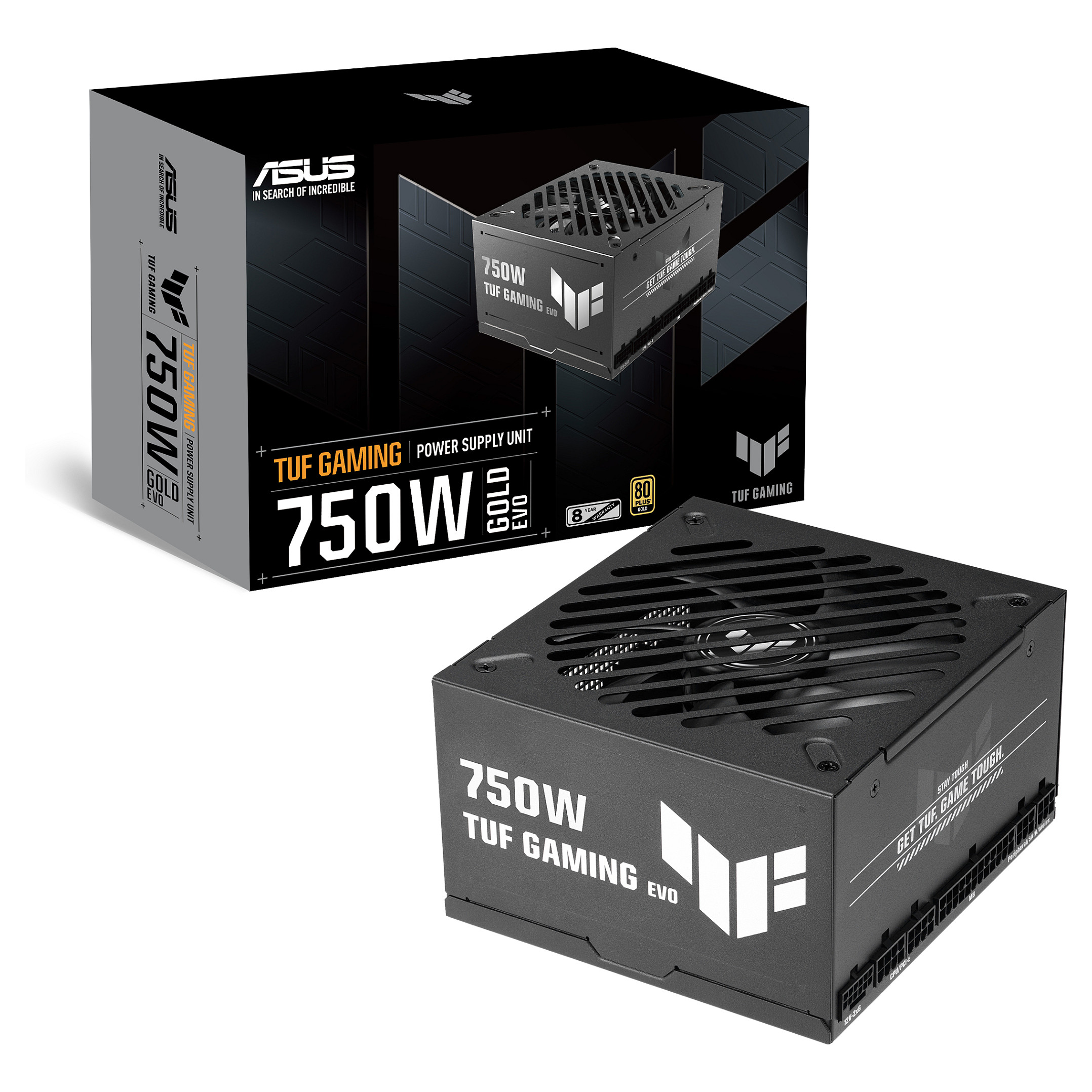

750W ASUS Netzteil TUF Gaming-750G-EVO 80+ Gold
Pre-Order
€150.99
VAT (19%) included
Description
Military-grade capacitors provide premium durability. Dual-Ball Fan Bearings can last up to twice as long as sleeve bearing designs. Protective PCB coating protects against moisture, dust, and extreme temperatures. 80 Plus & Cybenetics Gold certified: Japanese capacitors and premium components deliver industry-leading power efficiency. ATX 3.1 Compatible: TUF Gaming Gold EVO series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards. Fully modular etched cables keep your rig neat and tidy.
Technical Specifications
SKU
K90YE00SB-B0NA00
Total Power
750 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
750 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
50 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
400, 120 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
400, 120 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (16-Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
DBB
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Cooling Type
Active
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.32 kg
Package Width
320 mm
Package Depth
182 mm
Package Height
127 mm
Package Weight
2.06 kg
Package Type
Box
