ASUS

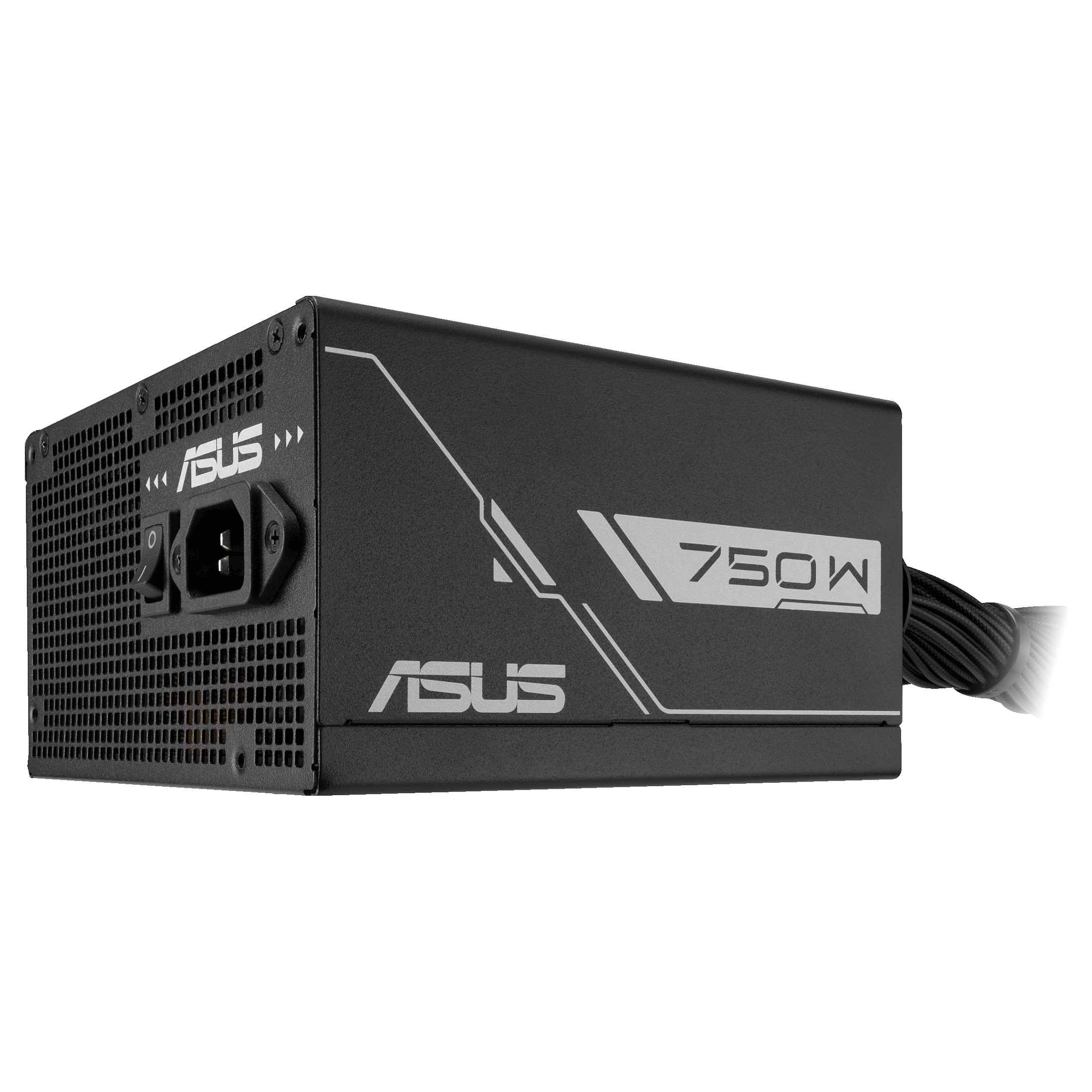

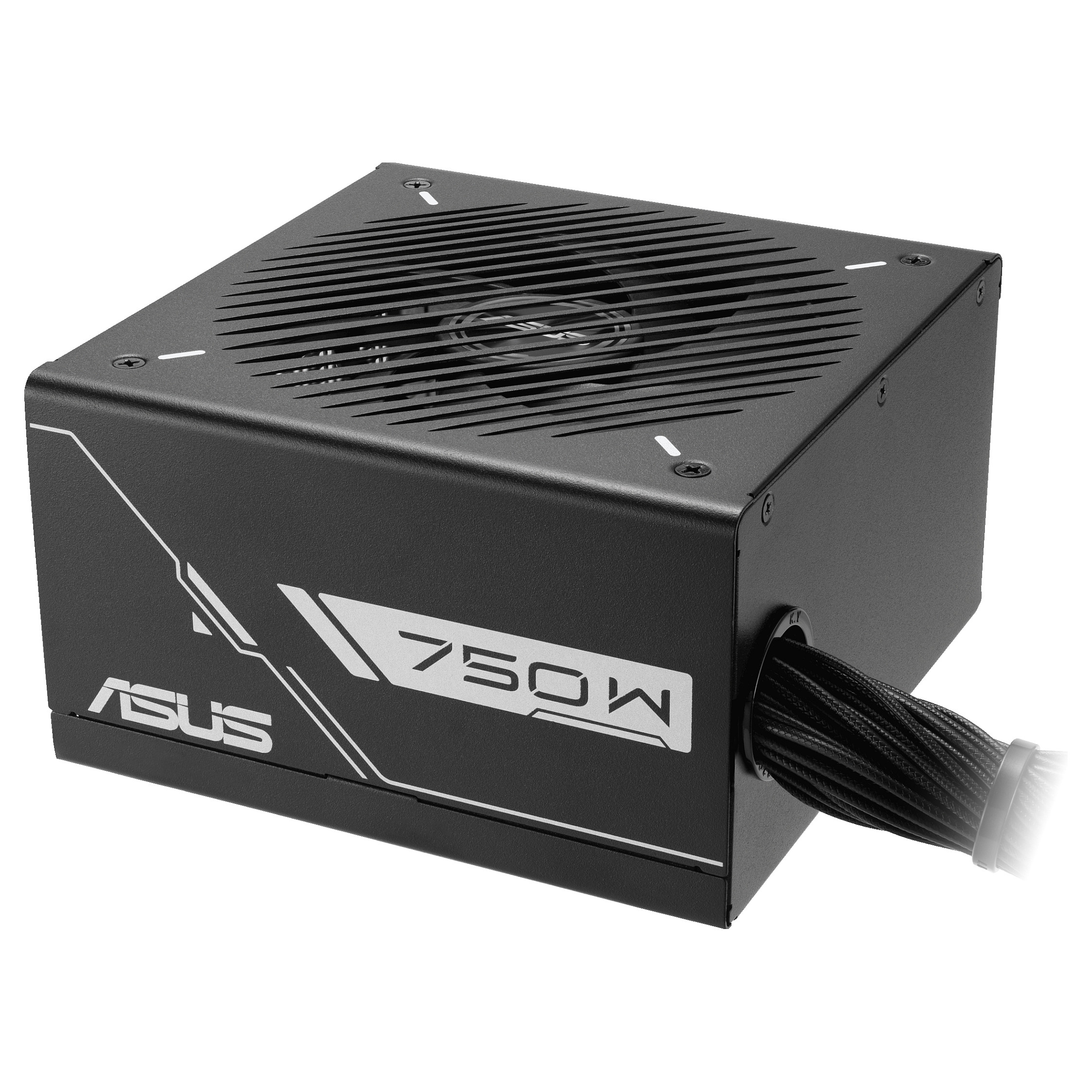

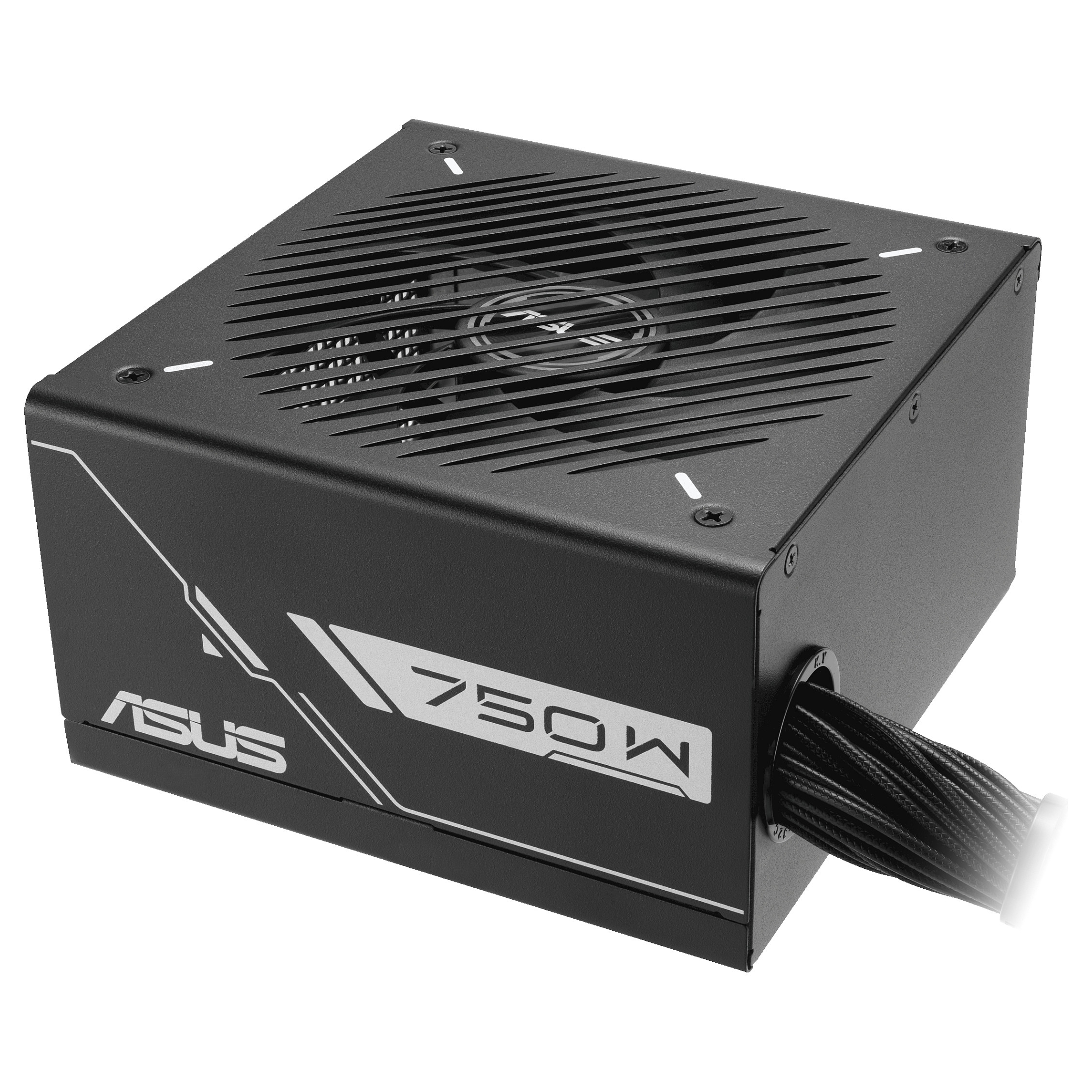

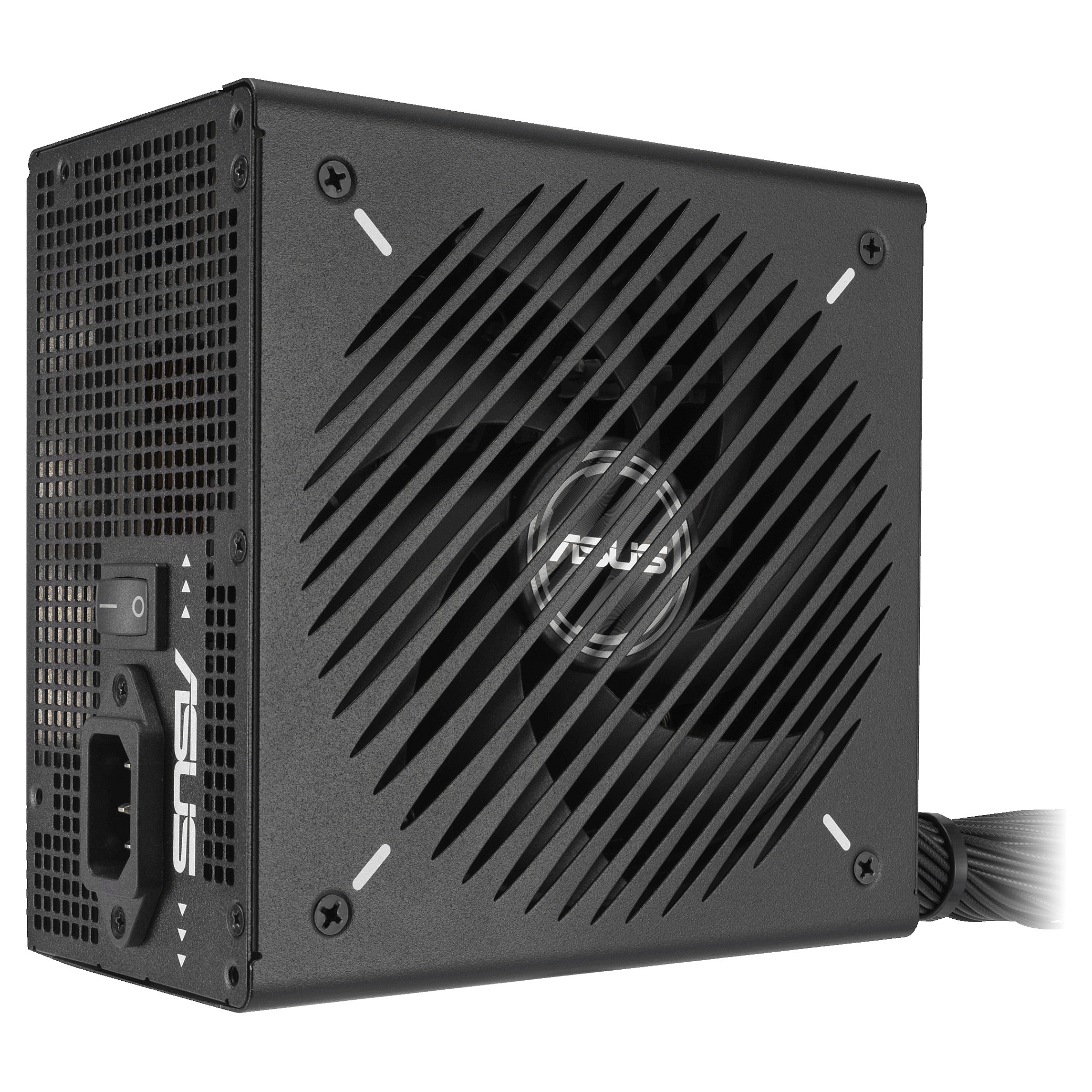

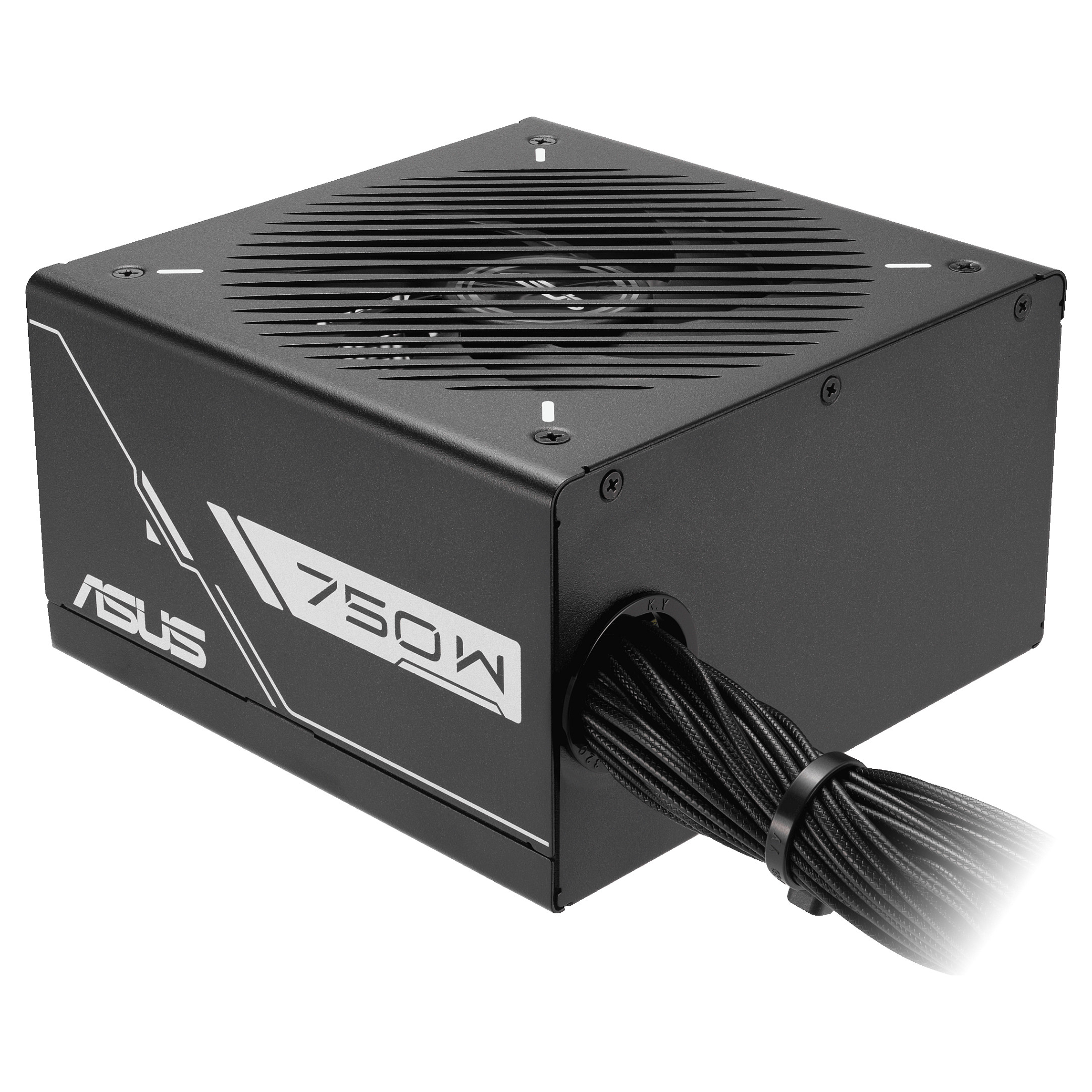

750W ASUS Netzteil PRIME-750B-BLACK 80+ Bronze
Pre-Order
€105.99
VAT (19%) included
Description
Dual ball fan bearings that can last up to twice as long as sleeve bearing designs An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components Etched cables can be bent easily during installation 6-year warranty included
Technical Specifications
SKU
K90YE00Y0-B0NA00
Total Power
750 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
750 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
120, 400 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
120, 400 mm
Pci Express Power Connectors (8-Pin)
3
Cpu Power Cable Length
80 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
Ball bearing
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.92 kg
Package Width
340 mm
Package Depth
196 mm
Package Height
115 mm
Package Weight
3 kg
Package Type
Box
