Thermaltake

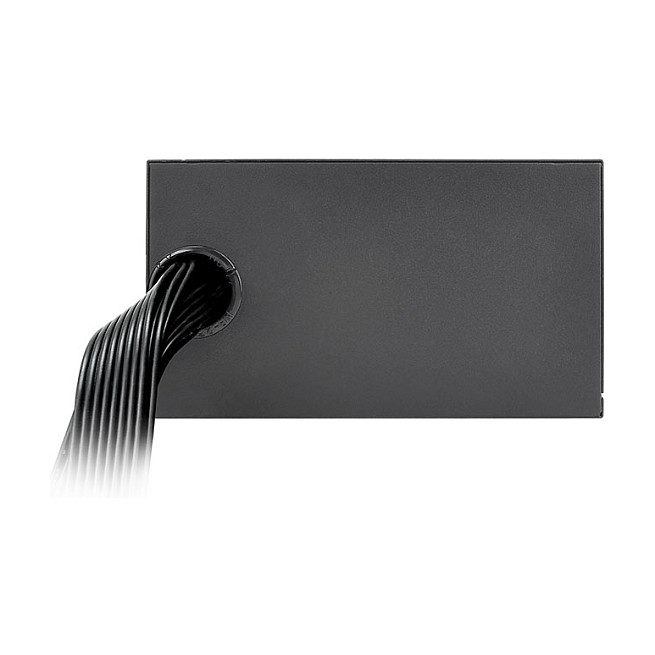

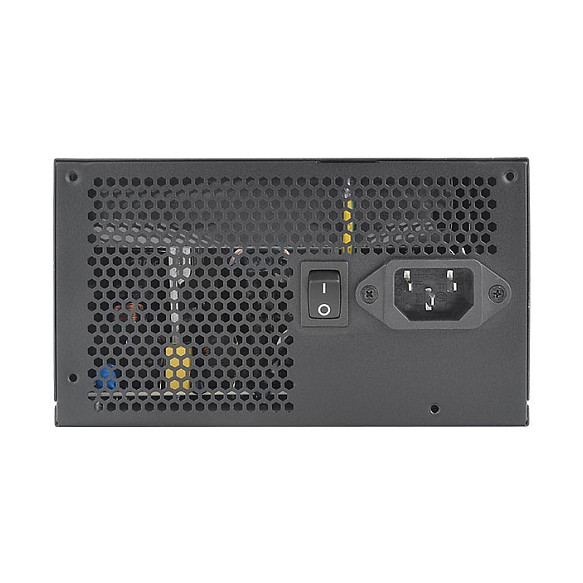

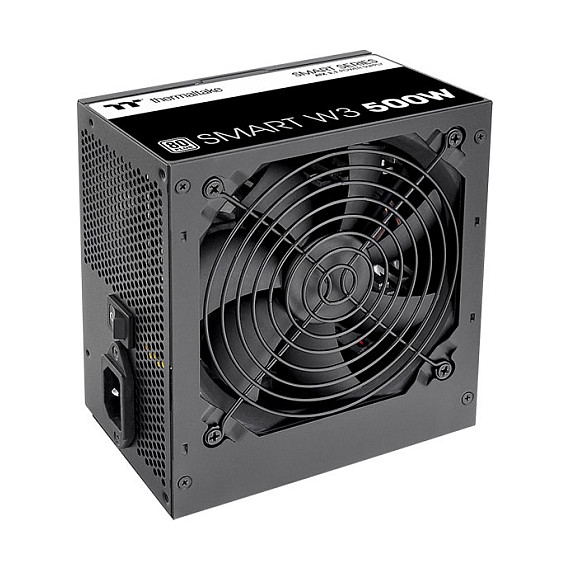

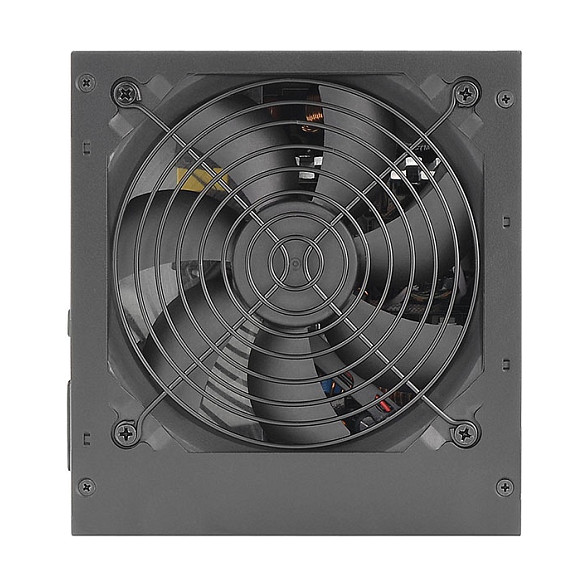

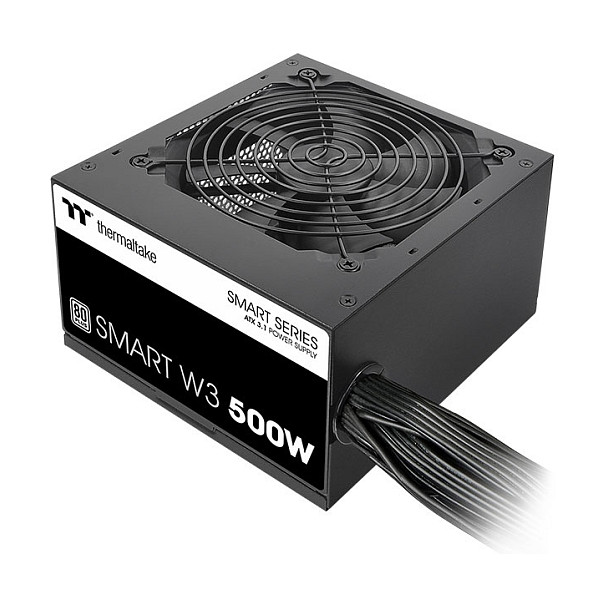

500W Thermaltake Smart W3 ATX12V 3.1 80+
Pre-Order
€58.99
VAT (19%) included
Description
500 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS 12 cm Black
Technical Specifications
SKU
KPS-SPW-0500NNFAWE-1
Total Power
500 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
500 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
16 A
Max Output Current (+12V)
41.67 A
Max Output Current (+5V)
16 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
500, 650, 800, 950 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
500, 650, 800, 950 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
65 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
5 - 40 °C
Storage Temperature (T-T)
-40 - 55 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
10 - 95%
Certification
CB/FCC/cTUVus/ICES
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
