ASUS

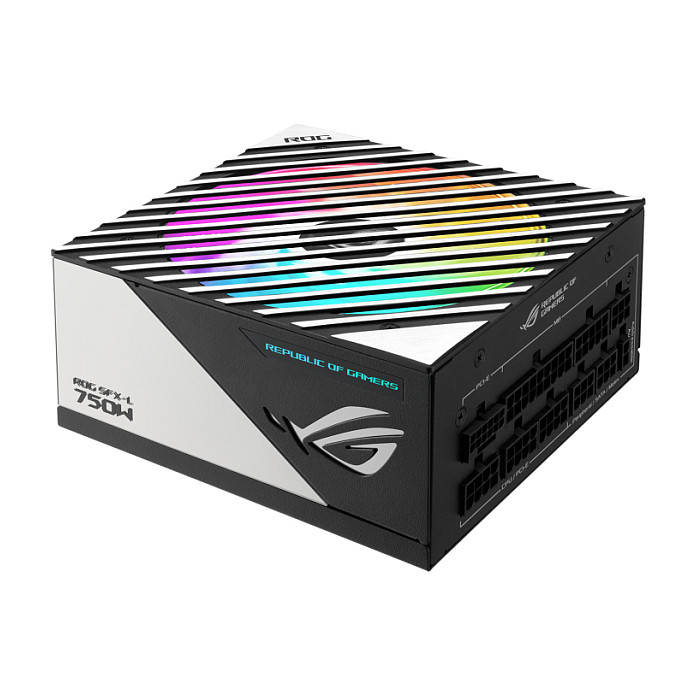

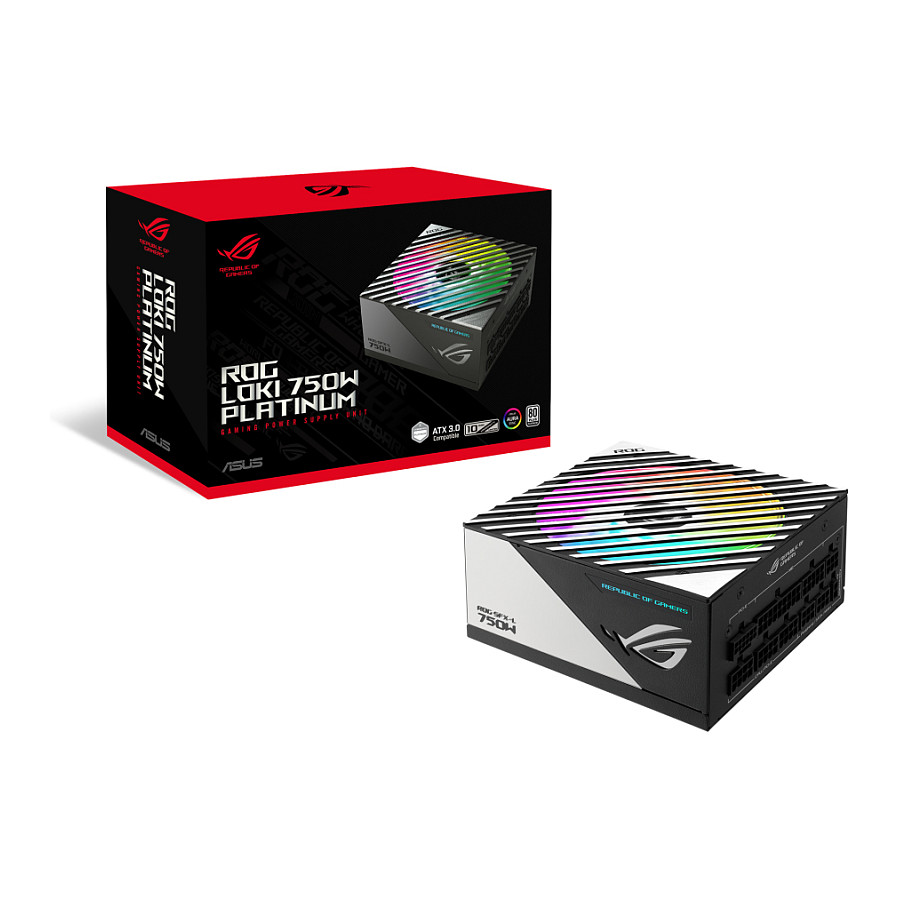

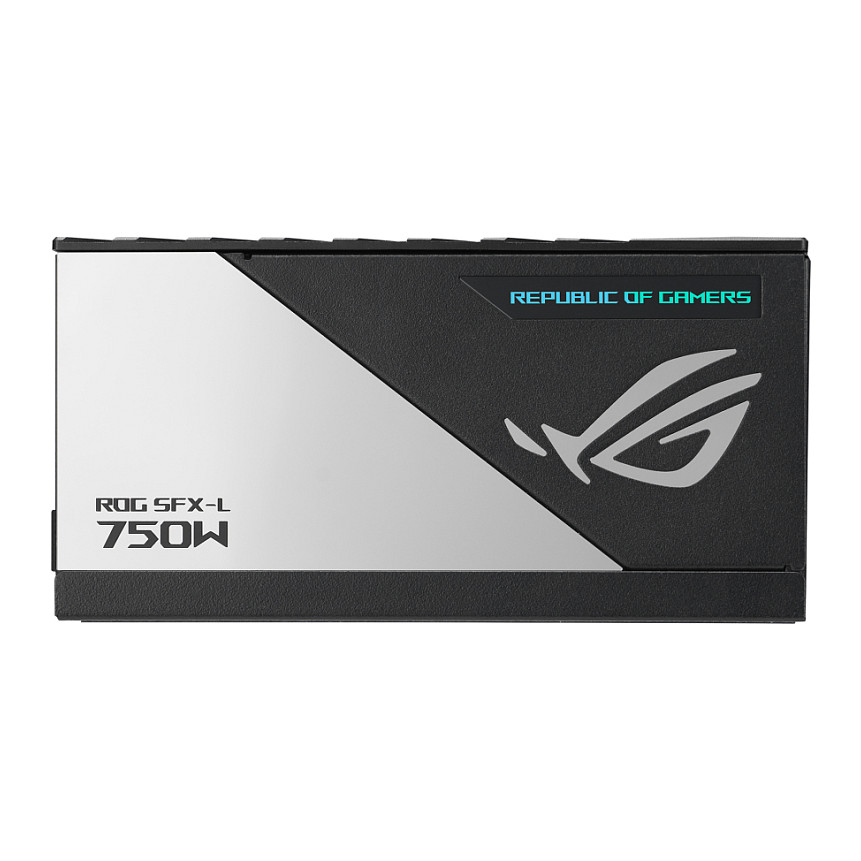

750W ASUS Netzteil ROG Loki SFX-L 80+ Platinum
Pre-Order
€231.99
VAT (19%) included
Description
750 W 100 - 240 V Motherboard power connector: 20+4 pin ATX PC SFX-L 80 PLUS Platinum Semi-passive 12 cm Black, Silver
Technical Specifications
SKU
K90YE00N4-B0NA00
Total Power
750 W
Ac Input Voltage
100 - 240 V
Combined Power (+3.3V)
110 W
Combined Power (+12V)
750 W
Combined Power (+5V)
110 W
Combined Power (-12V)
9.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.8 A
Max Output Current (+5Vsb)
2.5 A

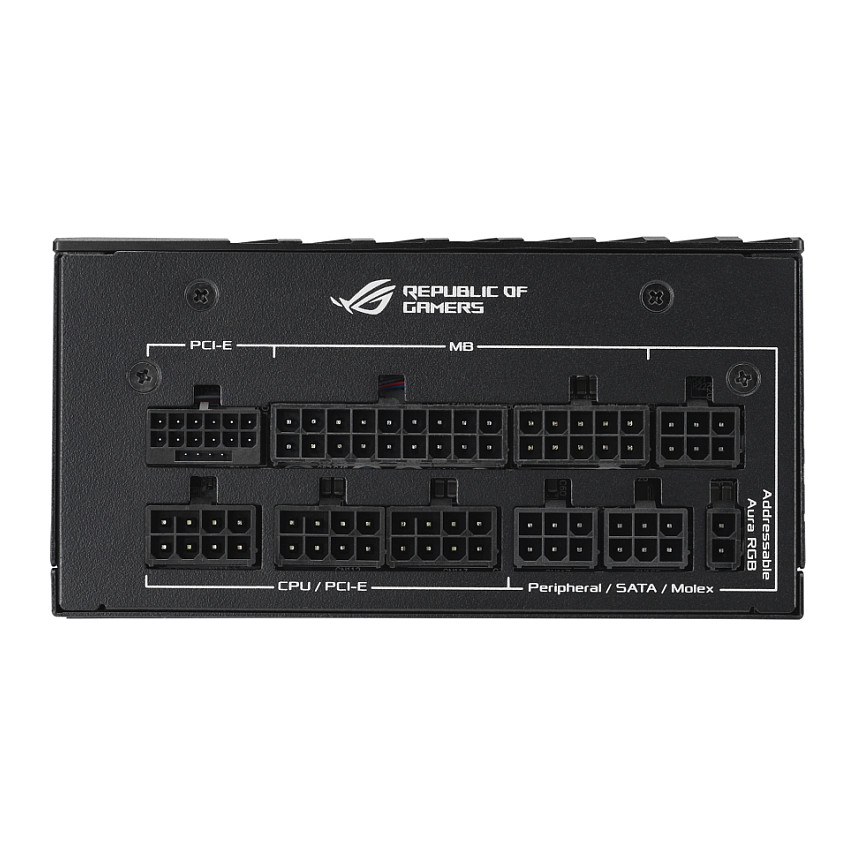

Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
4
Pci Express Power Connectors (8-Pin)
3
Pci Express Power Connectors (16-Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX-L
Atx Version
3.0
Product Colour
Black, Silver
Cooling Type
Semi-passive
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Compliance Certificates
RoHS
Certification
OPP/OVP/UVP/SCP/OCP/OTP
Width
125 mm
Depth
125 mm
Height
63.5 mm
Weight
1.81 kg
Package Width
285 mm
Package Depth
190 mm
Package Height
100 mm
Package Weight
2.5 kg
Package Type
Box
