Chieftec

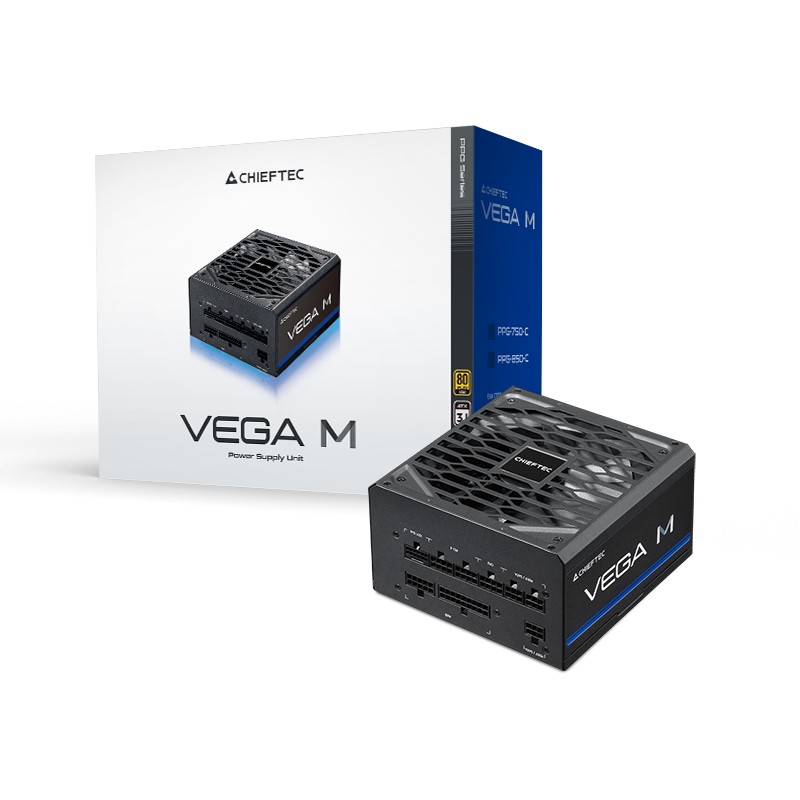

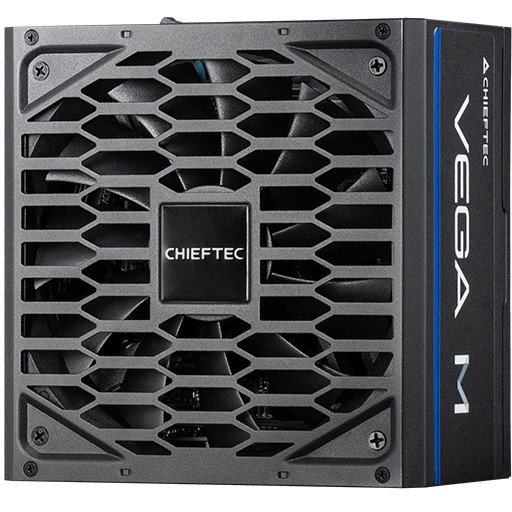

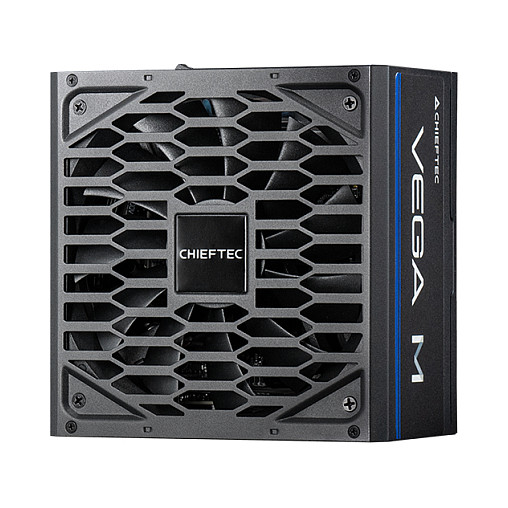

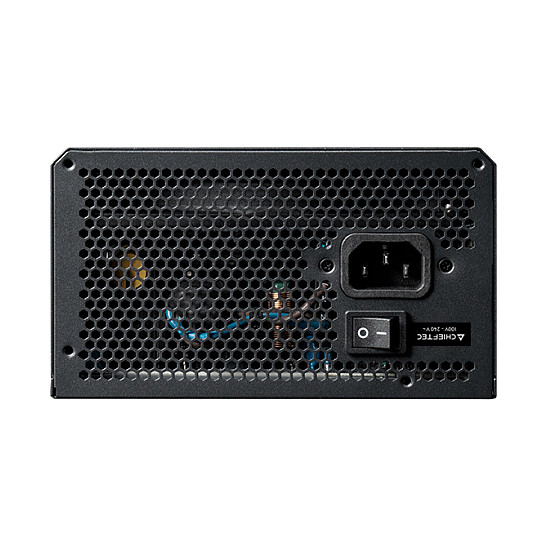

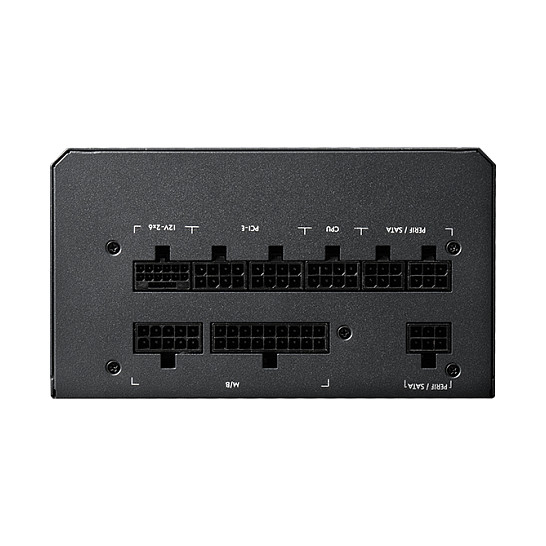

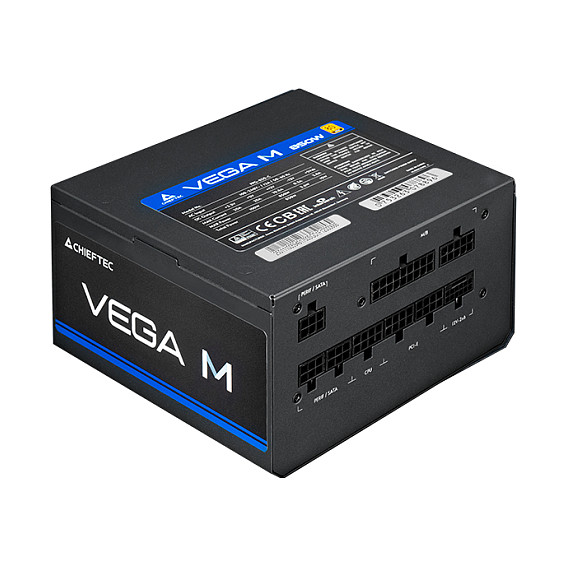

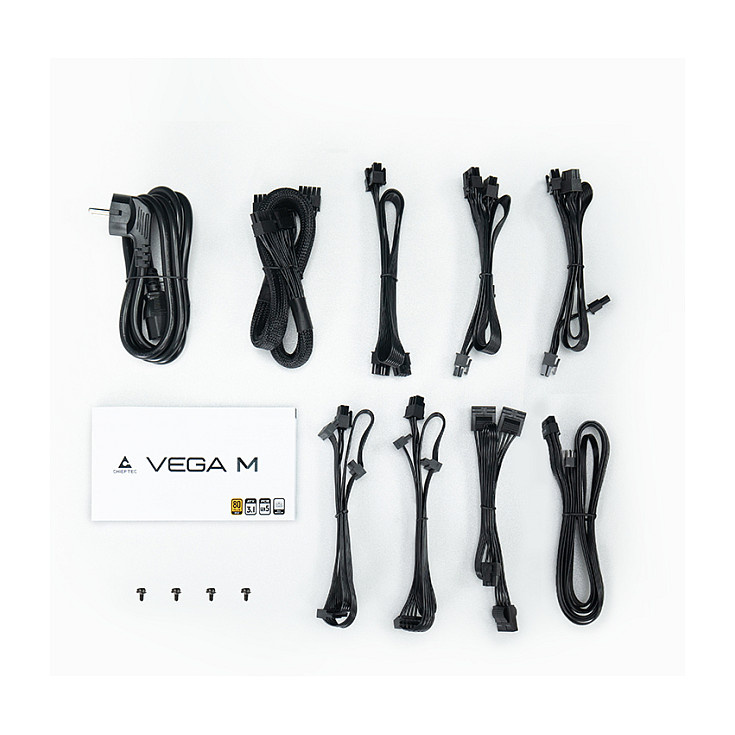

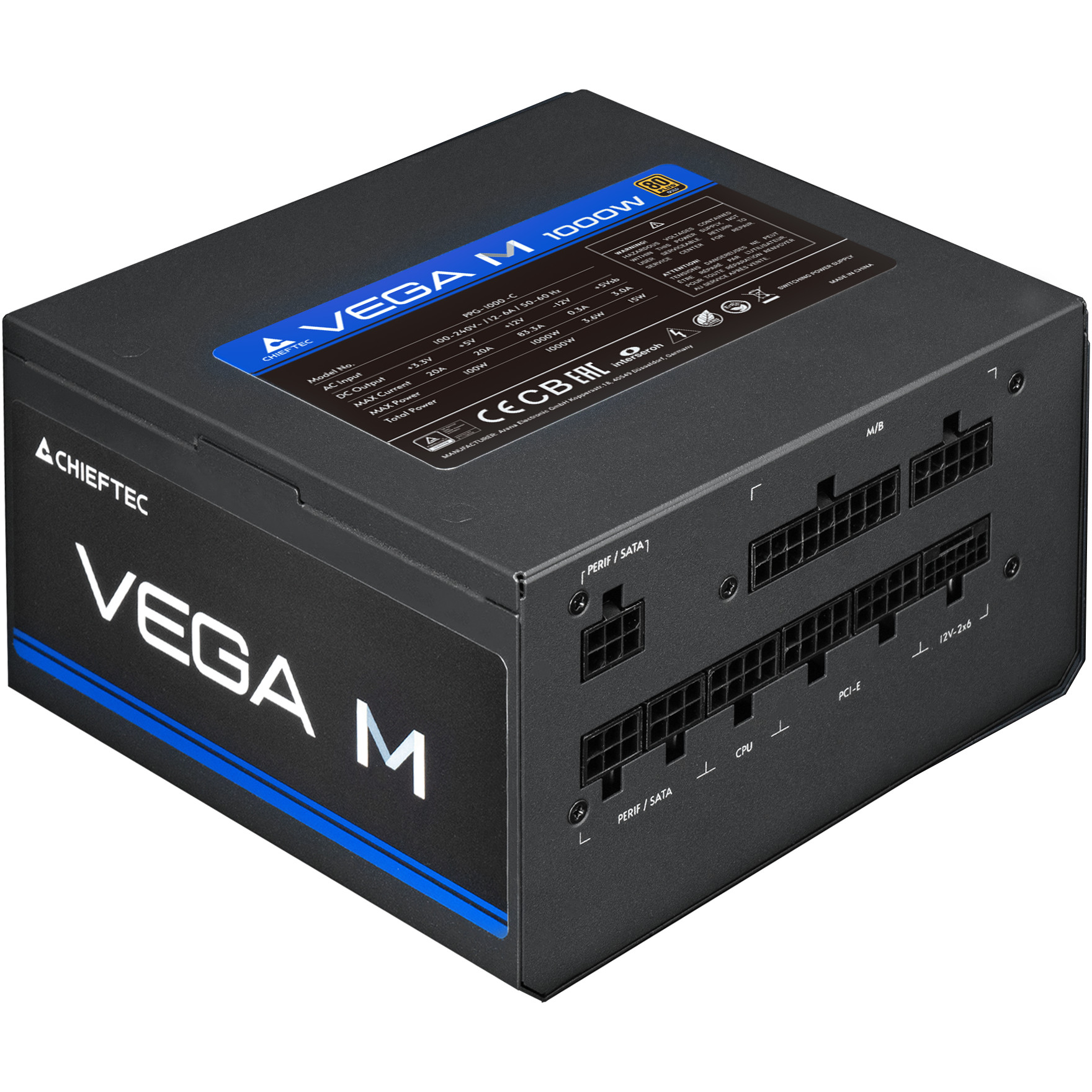

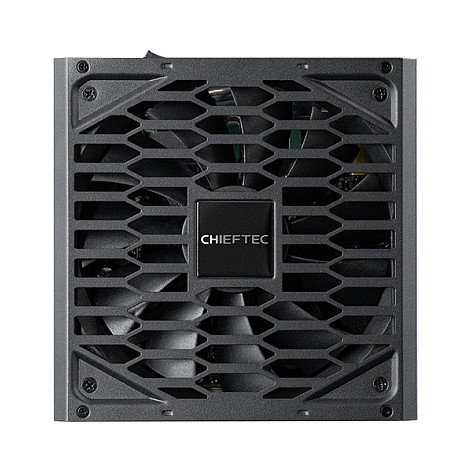

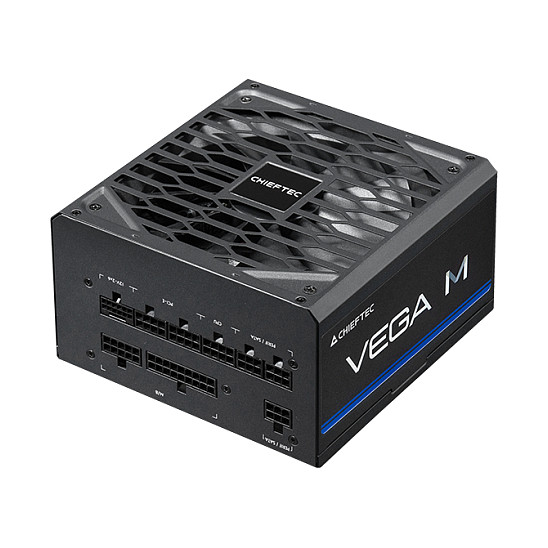

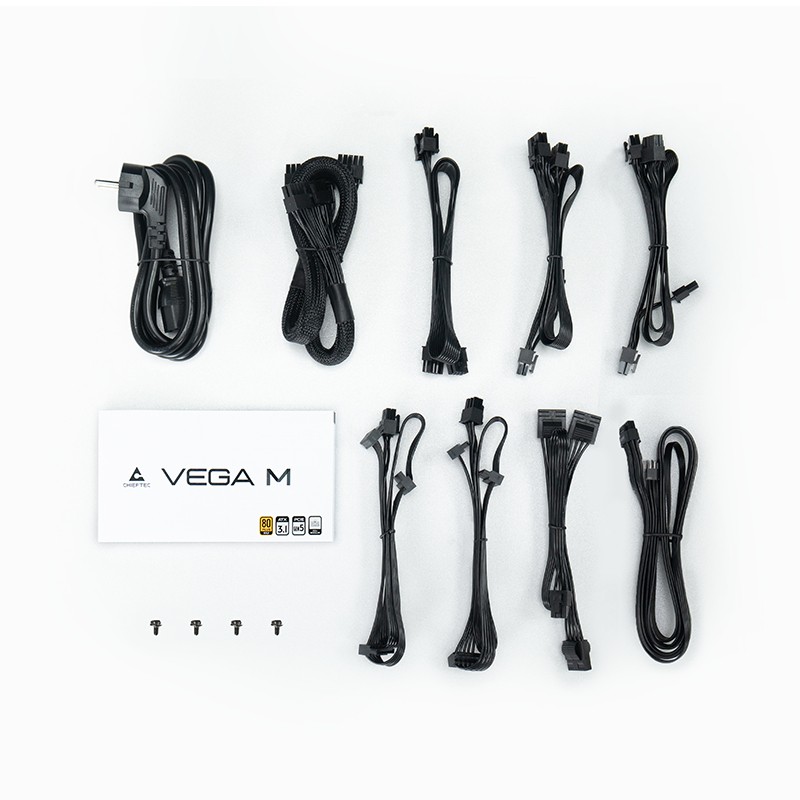

1000W Chieftec Vega M Series PPG-1000-C 80+ Gold
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€127.99
VAT (19%) included
Description
1000 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold Active 13.5 cm White
Technical Specifications
SKU
KPPG-1000-C
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
12 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
1000 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
83.33 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over voltage, Overload, Short circuit, Surge and inrush
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 400 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
150, 400 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
65 cm
Number Of Eps Connectors
2
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Product Colour
White
Cooling Type
Active
Fan Diameter
13.5 cm
Certification
80PLUS Gold
Width
150 mm
Depth
150 mm
Height
85 mm
