LC-Power

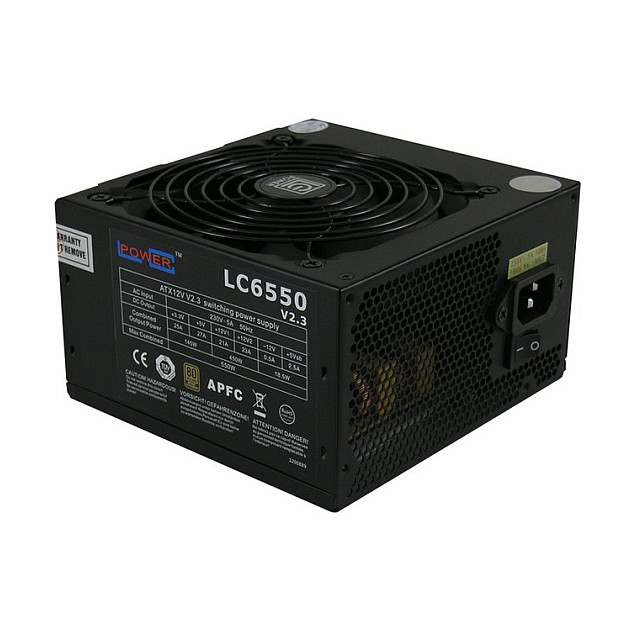

550W LC-Power LC6550 V2.2 12
Pre-Order
€61.99
VAT (19%) included
Description
550 W 230 V 50 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Bronze 12 cm Black
Technical Specifications
SKU
KLC6550 V2.3
Total Power
550 W
Ac Input Voltage
230 V
Ac Input Frequency
50 Hz
Input Current
5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
145 W
Combined Power (+12V)
450 W
Combined Power (+5V)
145 W
Combined Power (-12V)
18.5 W
Combined Power (+5Vsb)
18.5 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
21 A
Max Output Current (+12V2)
23 A
Max Output Current (+5V)
27 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
88%
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
45 cm
Number Of Sata Power Connectors
4
Number Of Pata Power Connectors
4
Pci Express Power Connectors (6+2 Pin)
1
Cpu Power Cable Length
45 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Black
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
1.75 kg
Harmonized System (Hs) Code
84733020
