ADATA

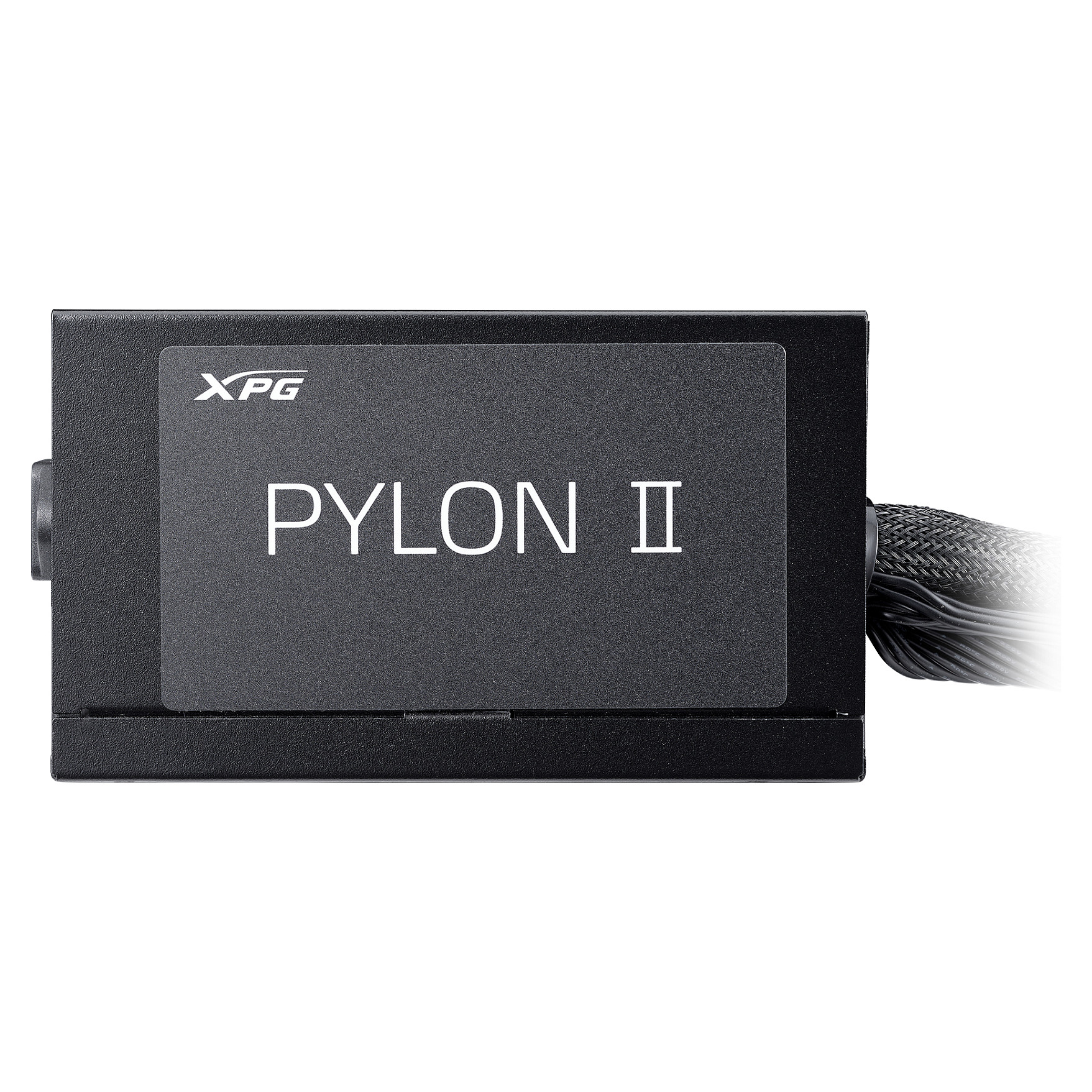

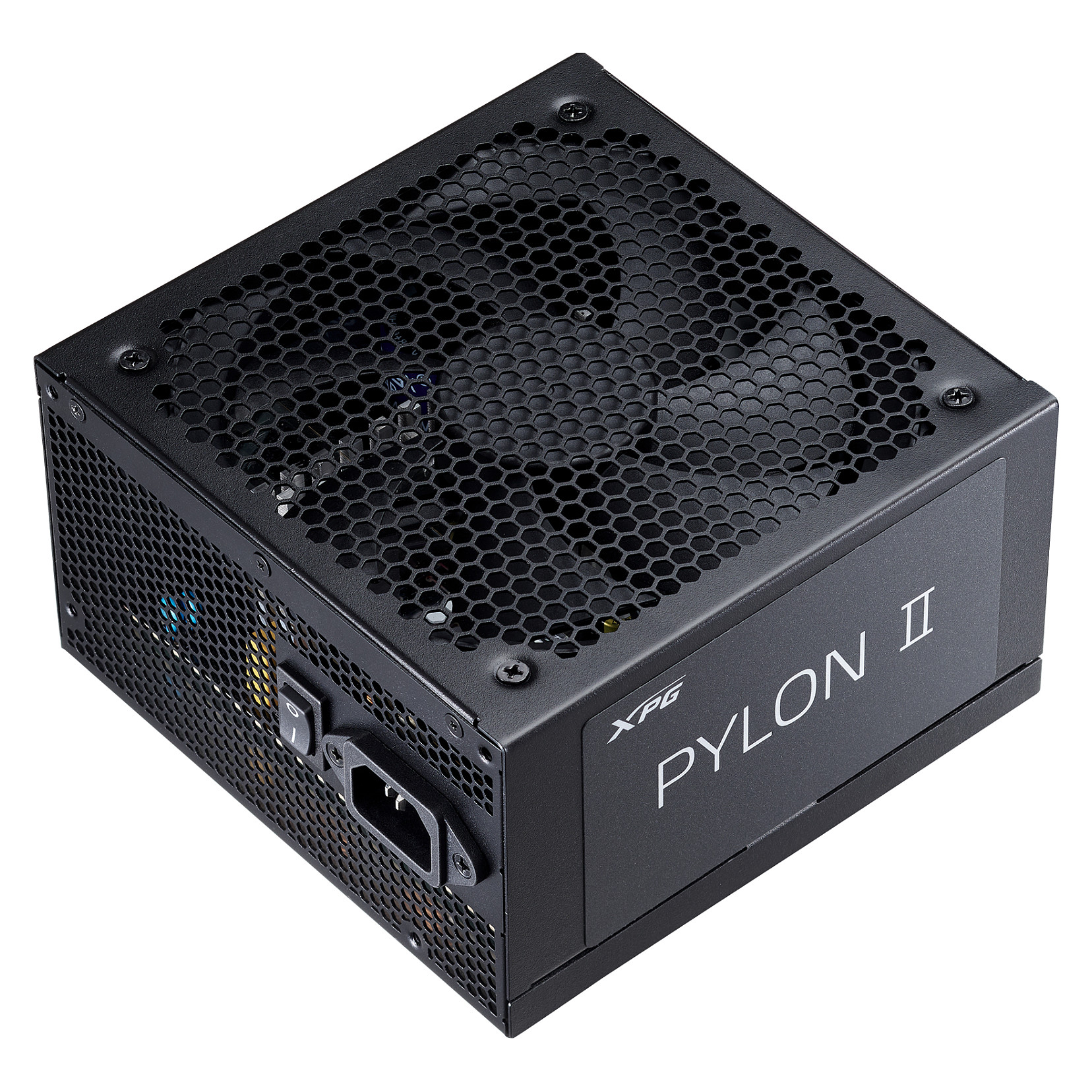

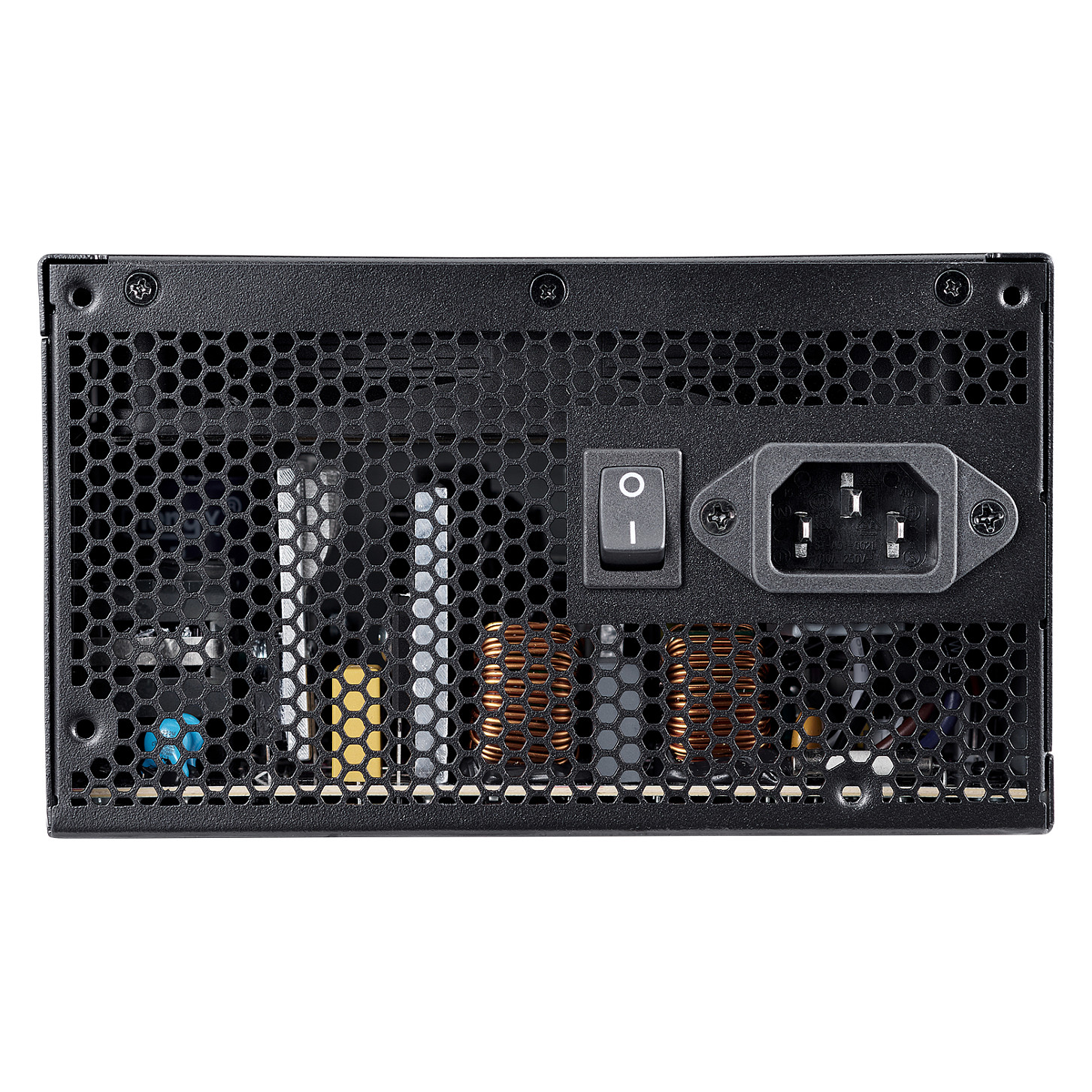

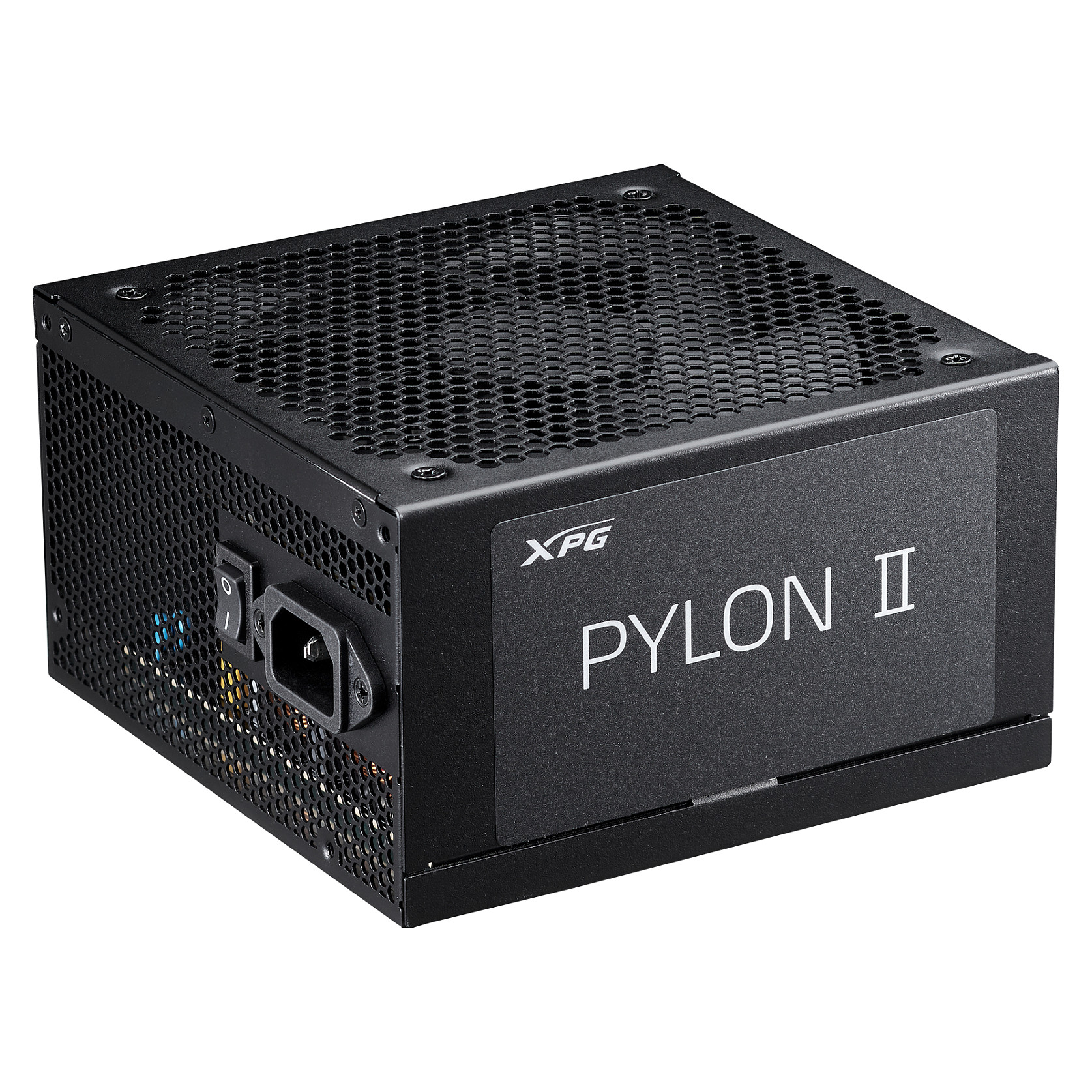

XPG Pylon II 650W ATX 3.1 80 Plus Bronze non modular
Pre-Order
€52.99
VAT (19%) included
Description
650 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Bronze Active 13.5 cm 0 - 2300 RPM Black
Technical Specifications
SKU
K75261630
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 A
Power Factor
0.99
Power Factor Correction (Pfc) Type
Active
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
54 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
1
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active

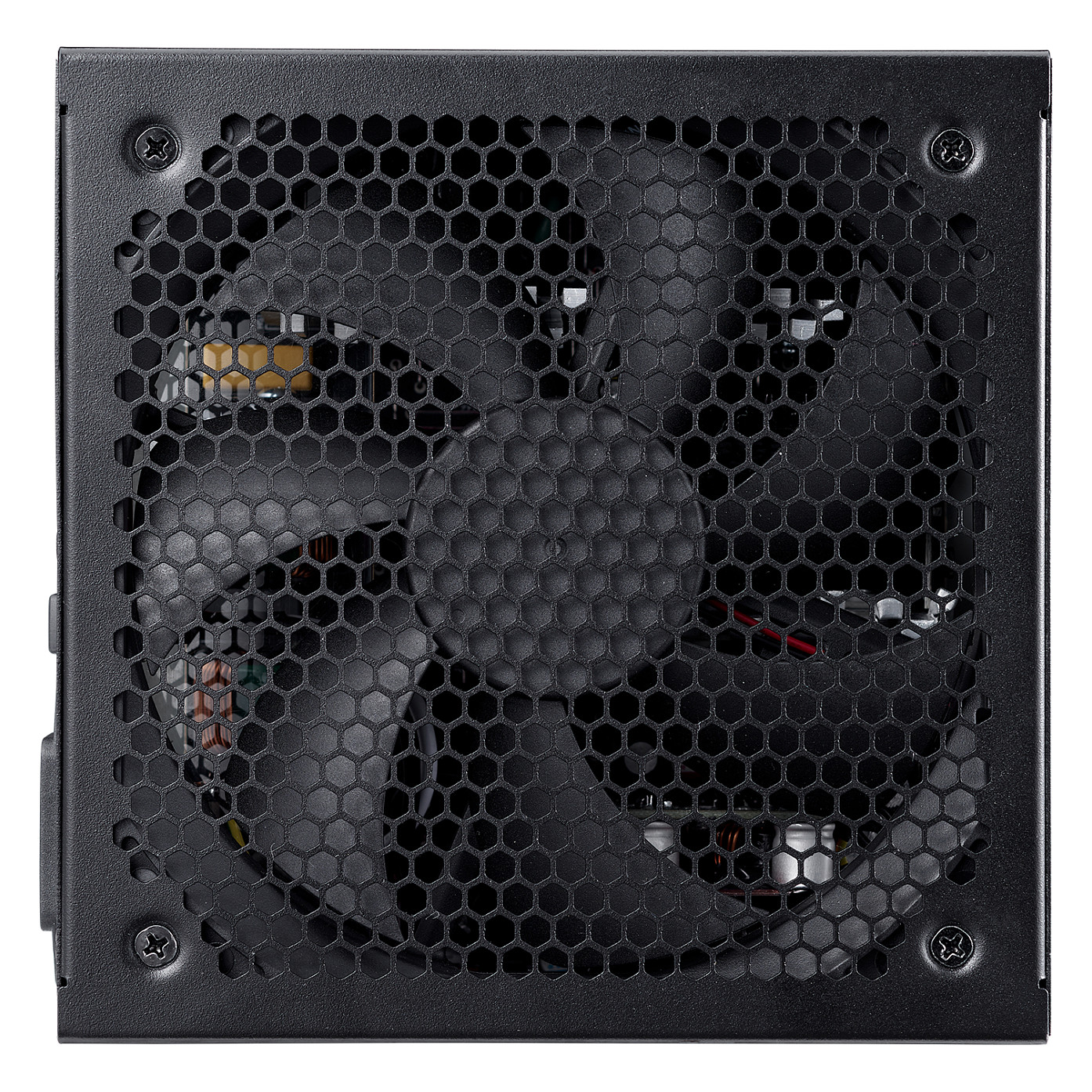

Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2300 RPM
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.8 kg
