Gigabyte

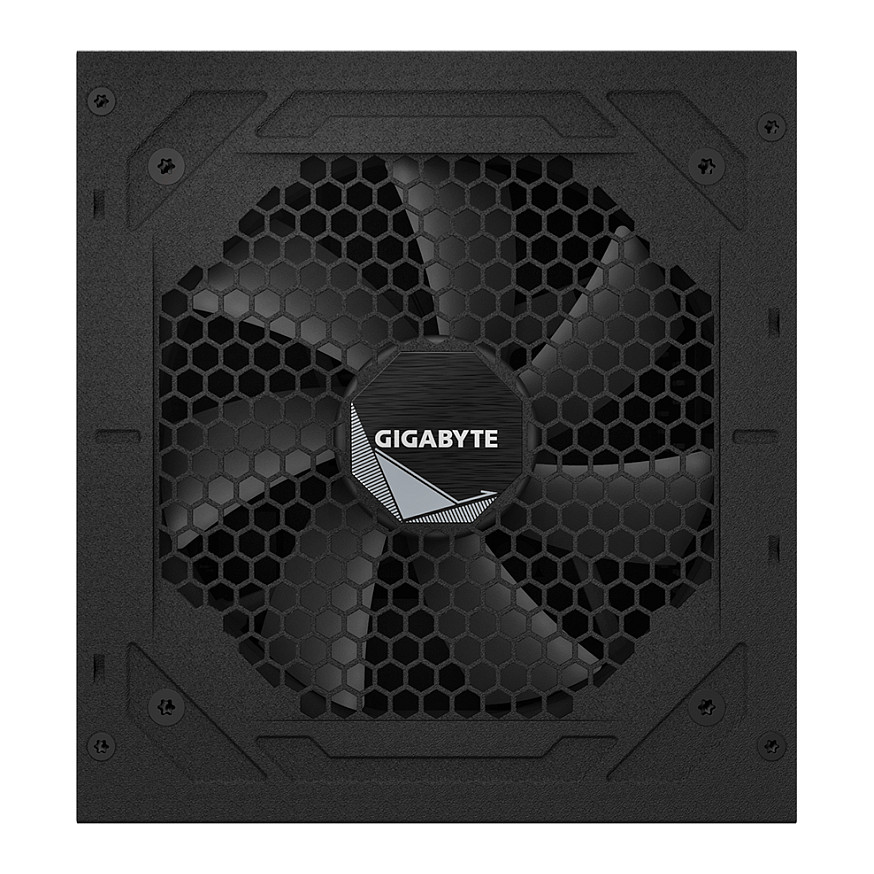

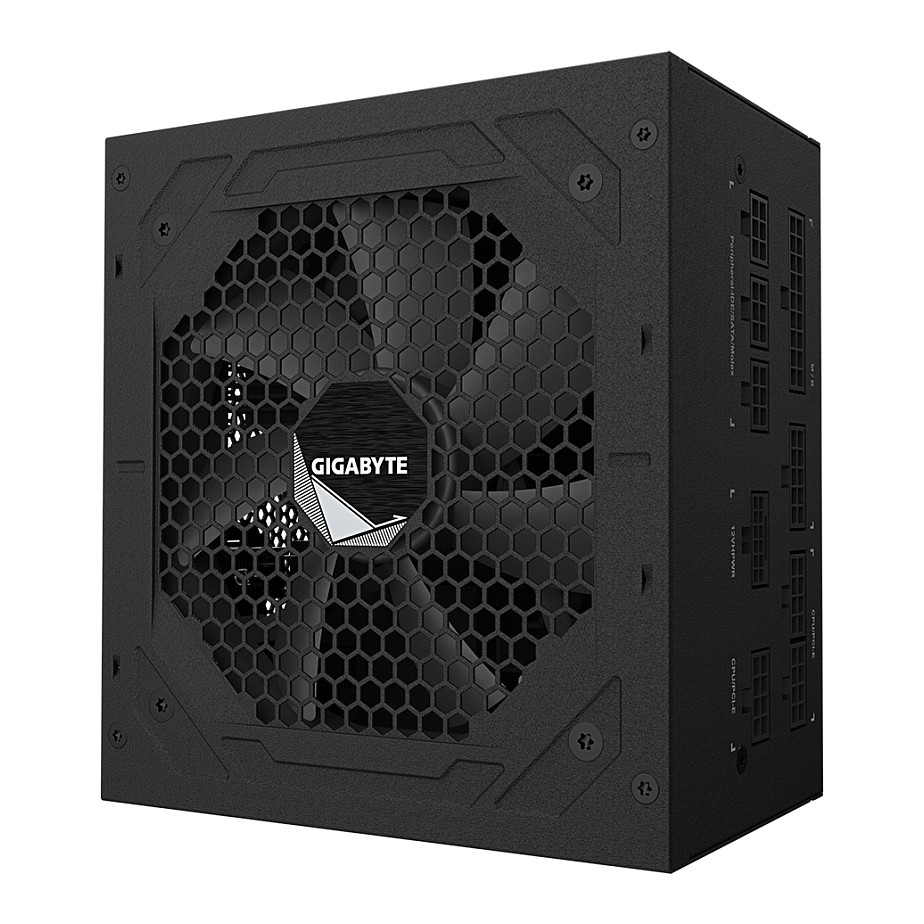

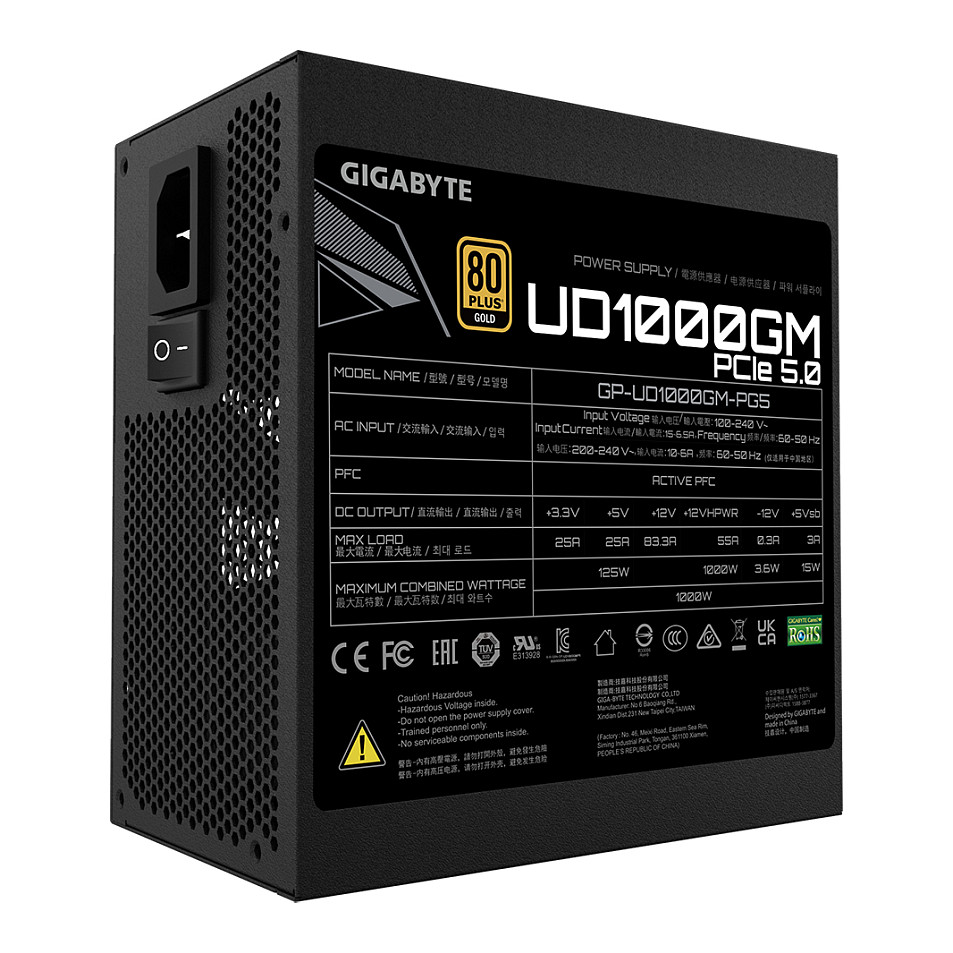

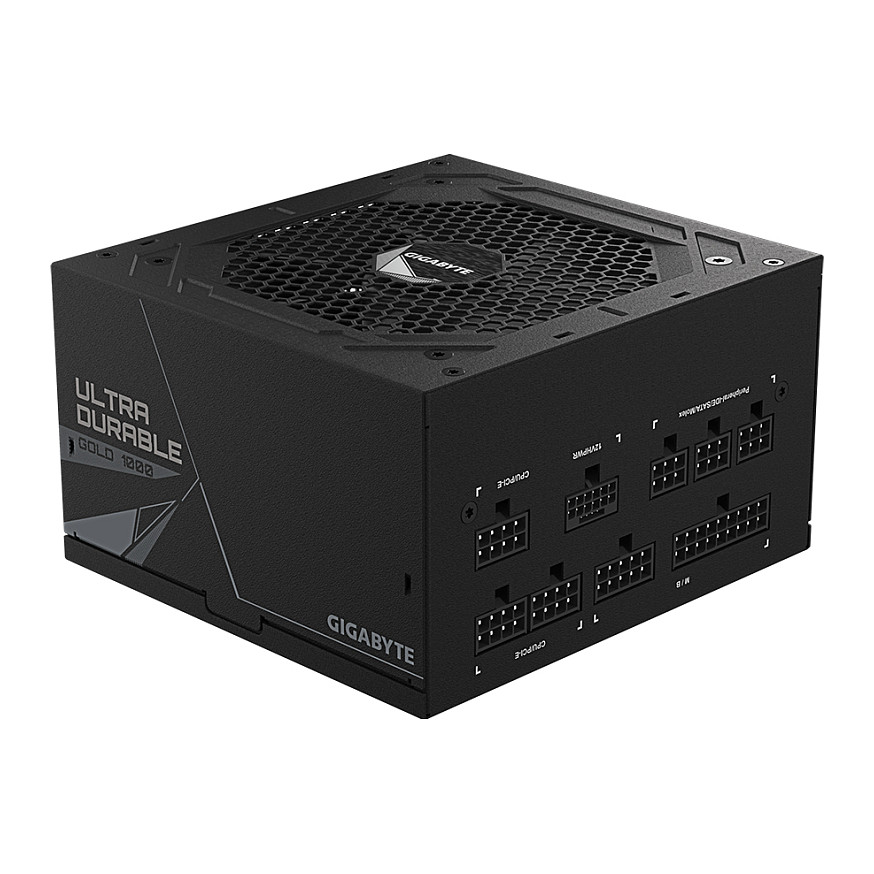

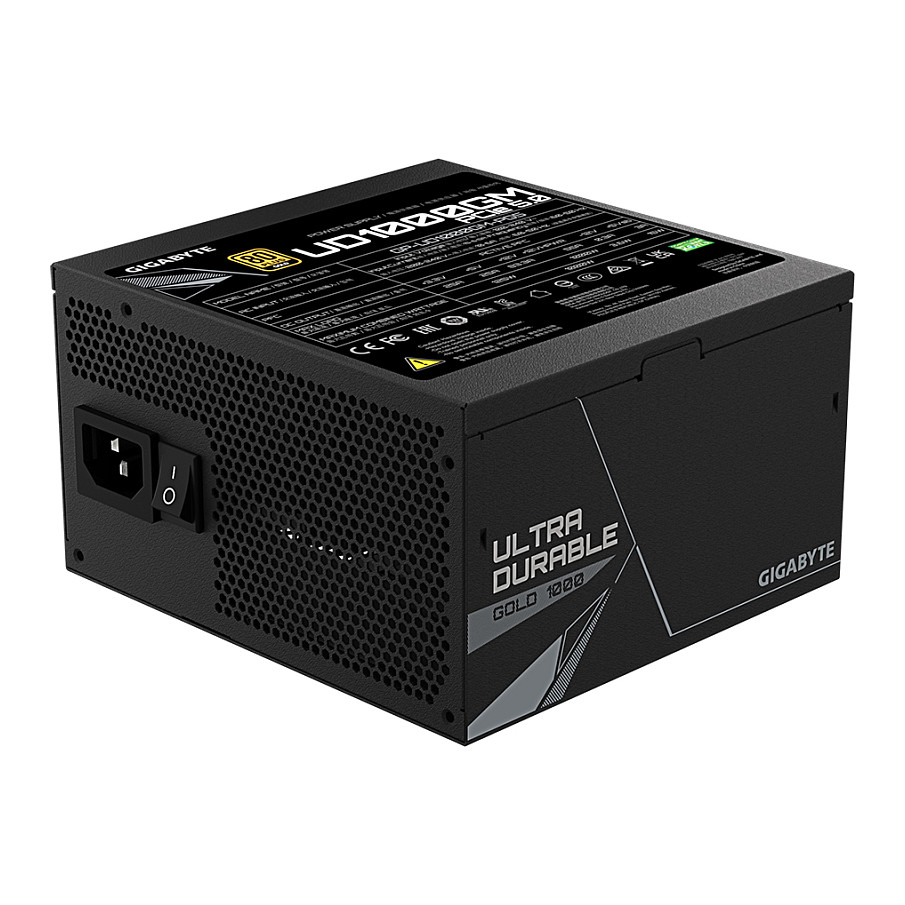

1000W Gigabyte UD1000GM PG5 2.0 ATX12V 3.0/ EPS12V - 80 PLUS Gold
Pre-Order
€147.99
VAT (19%) included
Description
Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics card High-quality native 16-pin cable supports 600W output 80 PLUS Gold certified Fully modular design Compact design
Technical Specifications
SKU
KGP-UD1000GM PG5 2.0
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
6.5 - 15 A
Power Factor Correction (Pfc) Type
Active
Hold Time
16 ms
Efficiency
90%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
8
Sata Power Cable Length
150, 600 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
120, 150, 500 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
70 cm
Cpu Power Cable Length
80 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
HYB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Width
150 mm
Depth
86 mm
Height
140 mm
