Cooler Master

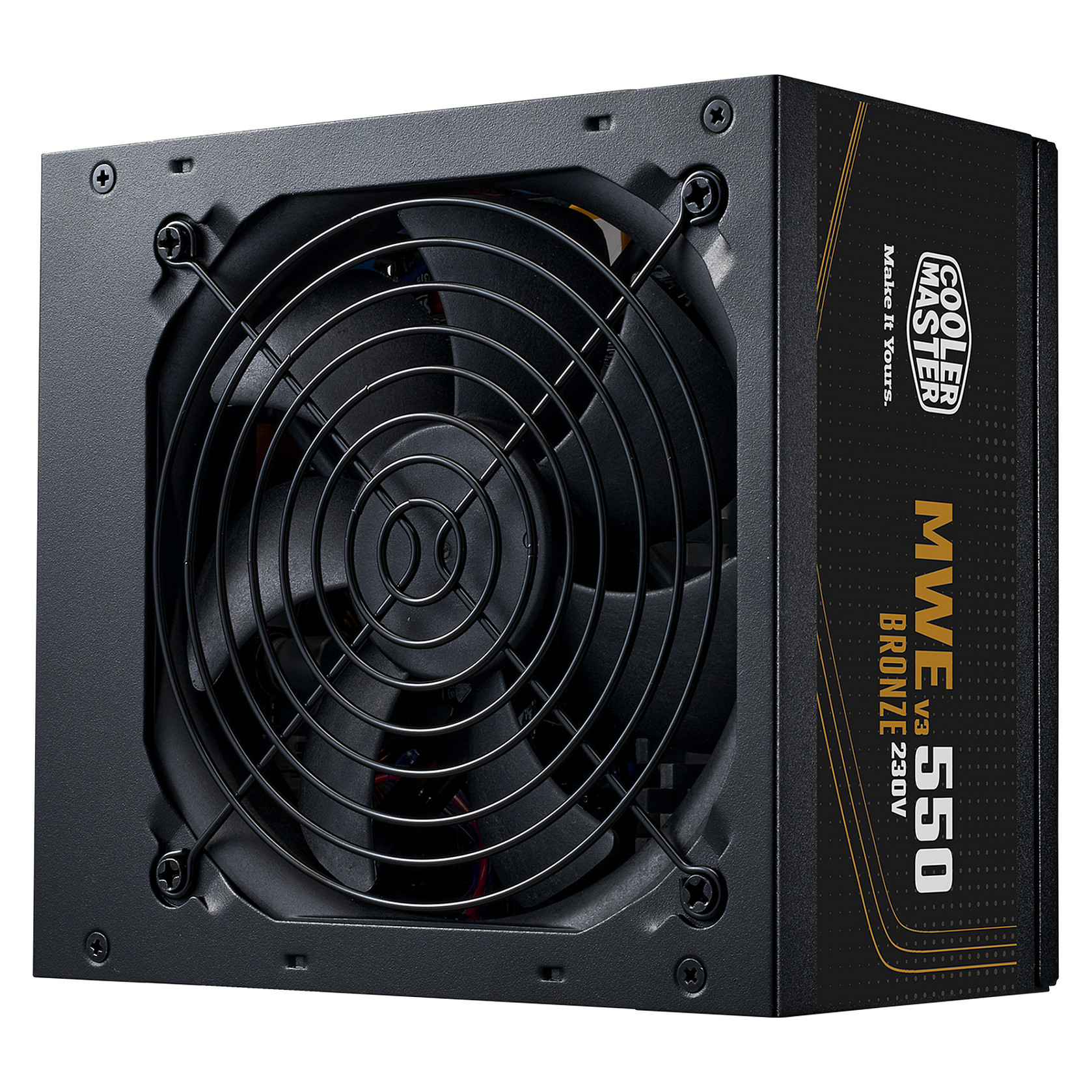

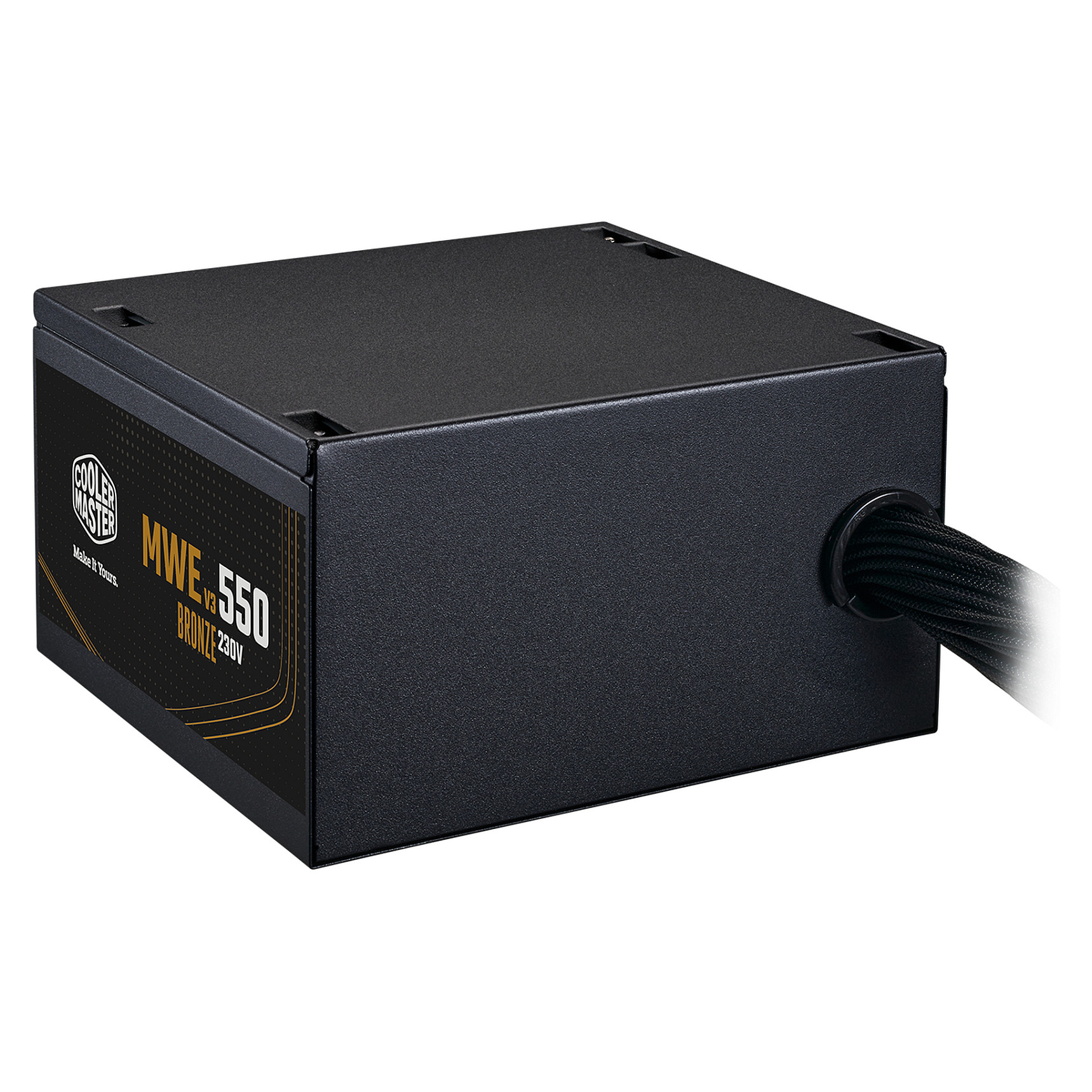

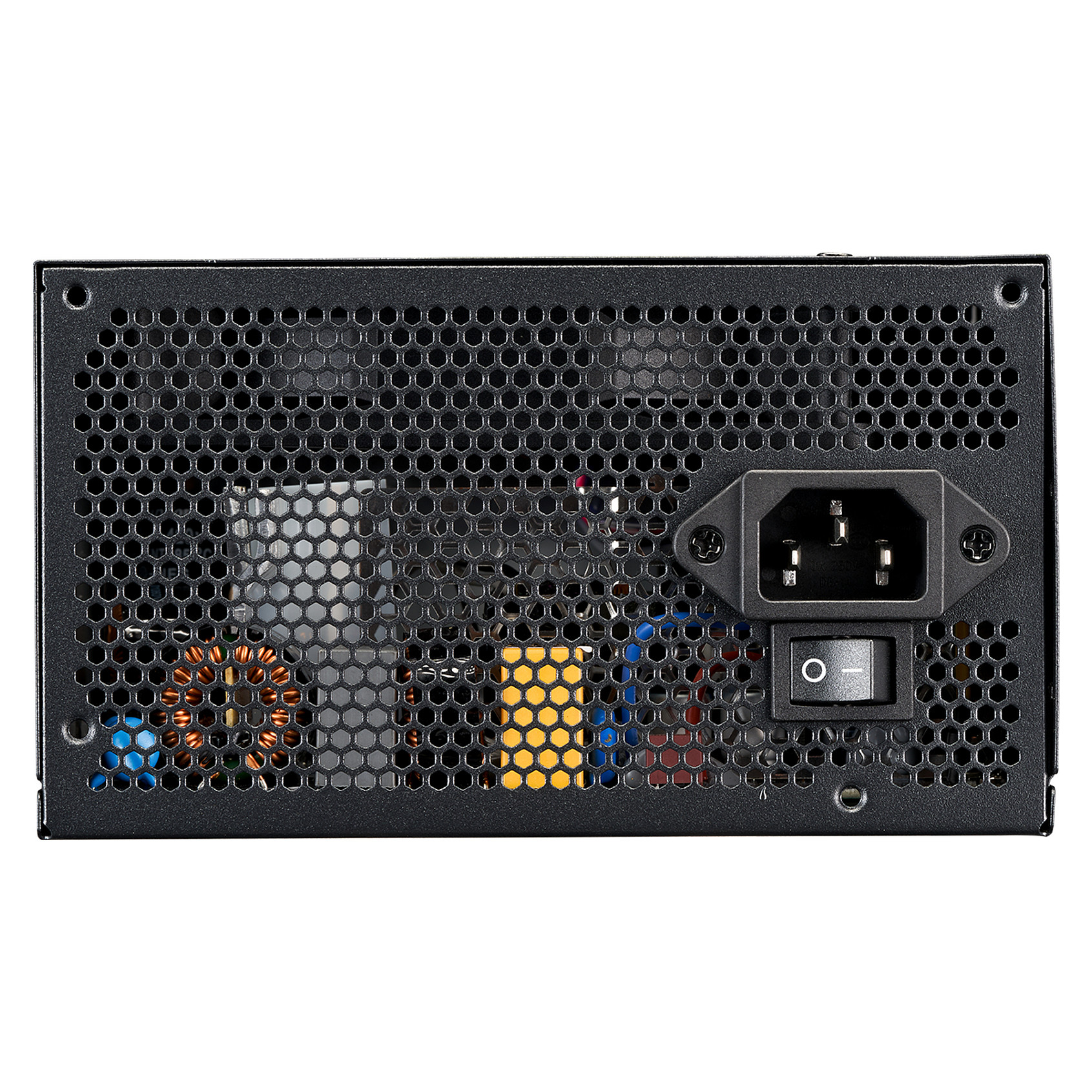

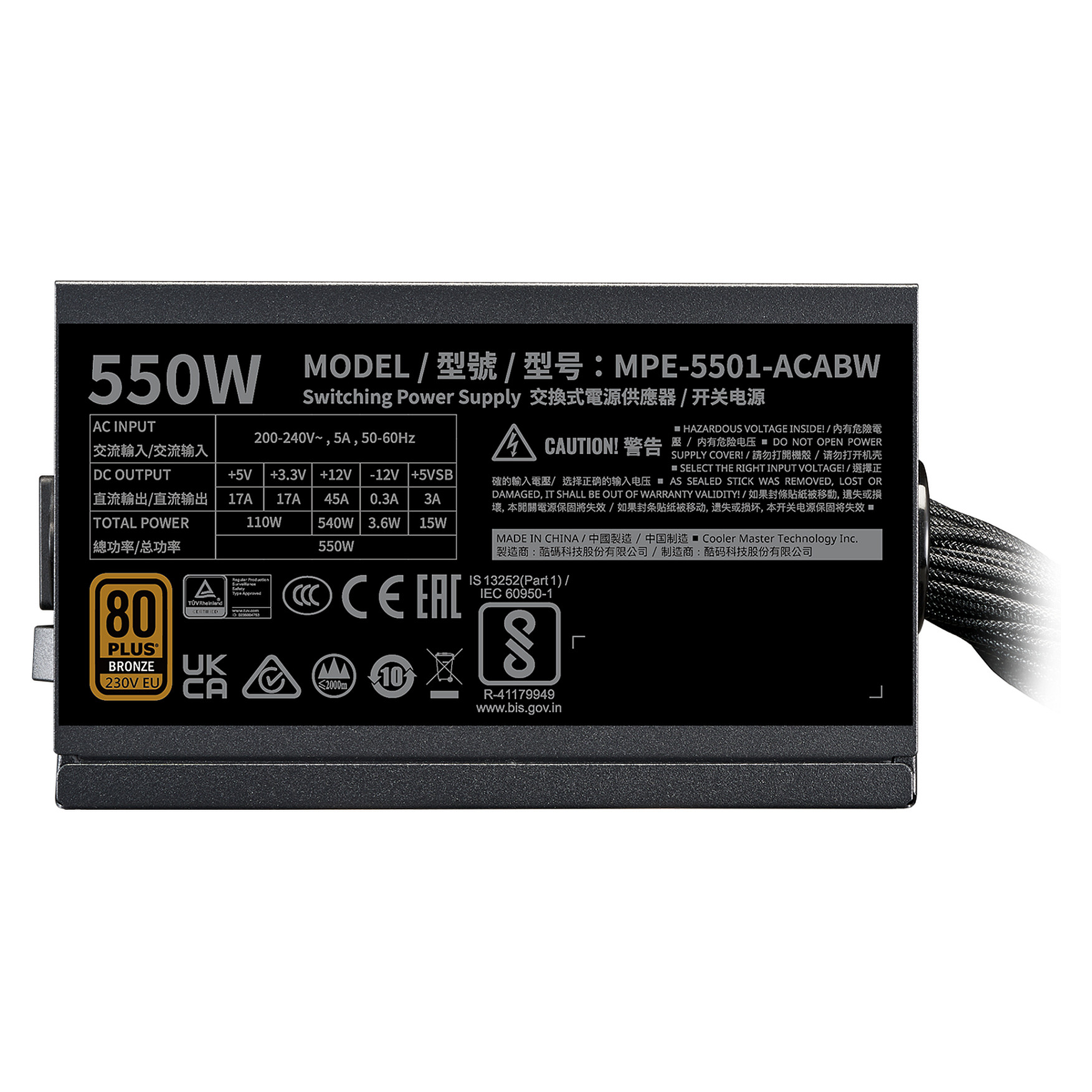

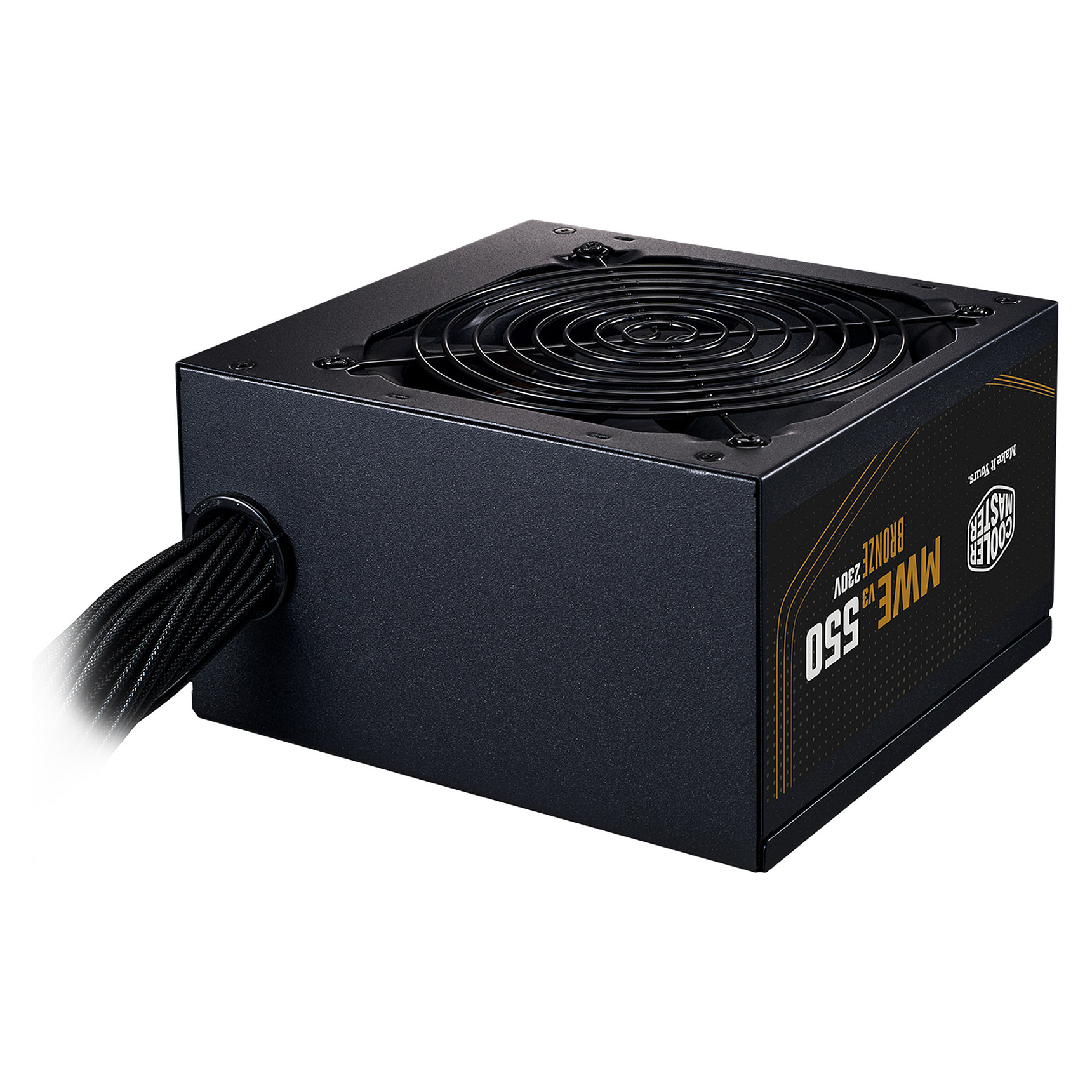

550W Cooler Master MWE BRONZE 550 V3 230V
Pre-Order
€62.99
VAT (19%) included
Description
ATX 3.1 support High temperature resilience Quiet HDB fan 80 Plus Bronze certified efficiency Embossed cable
Technical Specifications
SKU
KMPE-5501-ACABW-3BEU
Total Power
550 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
540 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
17 A
Max Output Current (+12V)
45 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
88%
Power Good Signal Delay Range
100 - 500 ms
Power Protection Features
Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
50 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
400, 550, 700 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
550, 700, 400 mm
Pci Express Power Connectors (6+2 Pin)
2
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
HDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Compliance Certificates
BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, TÜV mark, UKCA
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
1.45 kg
Package Width
245 mm
Package Depth
190 mm
Package Height
110 mm
Package Weight
1.85 kg
Package Type
Box
