Gigabyte

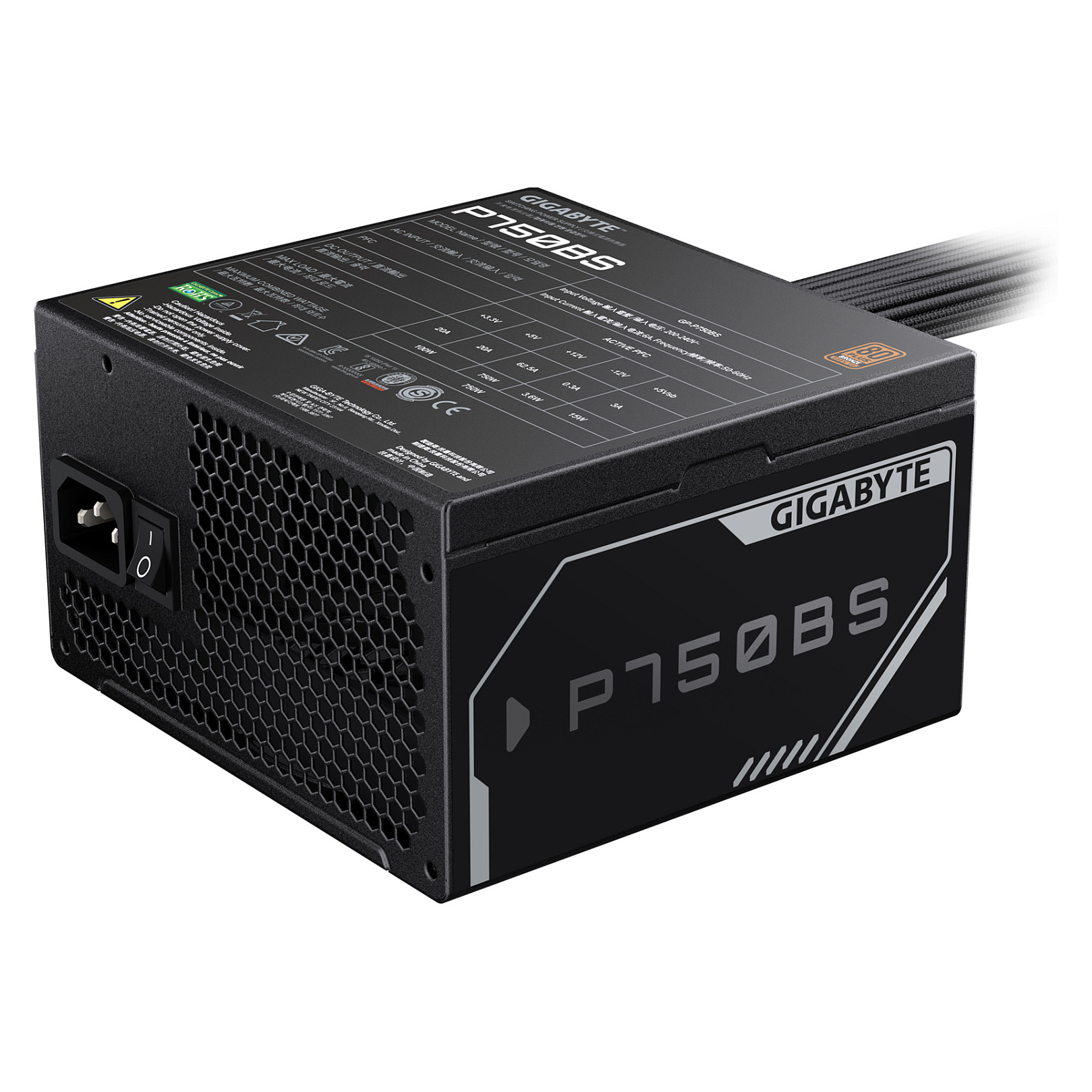

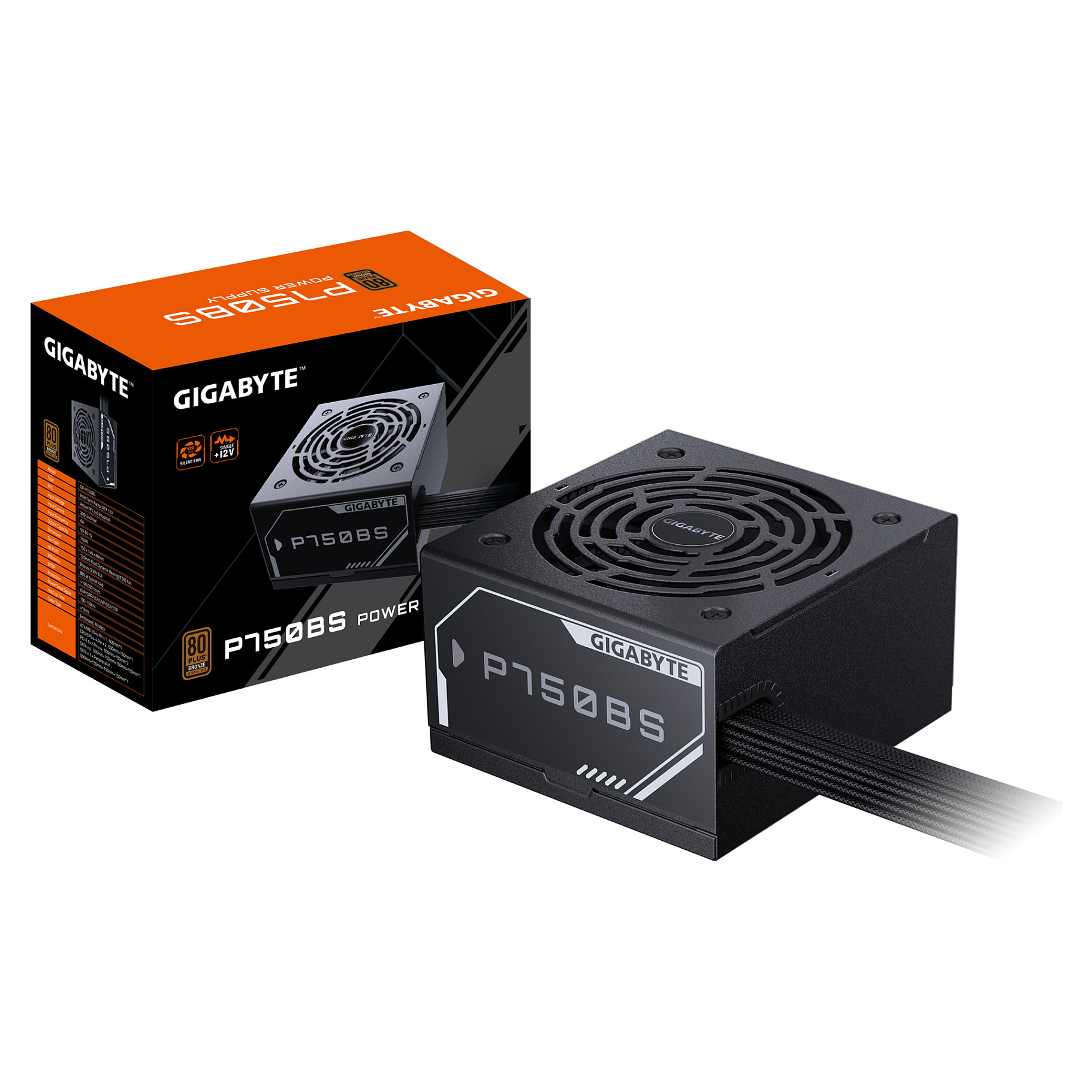

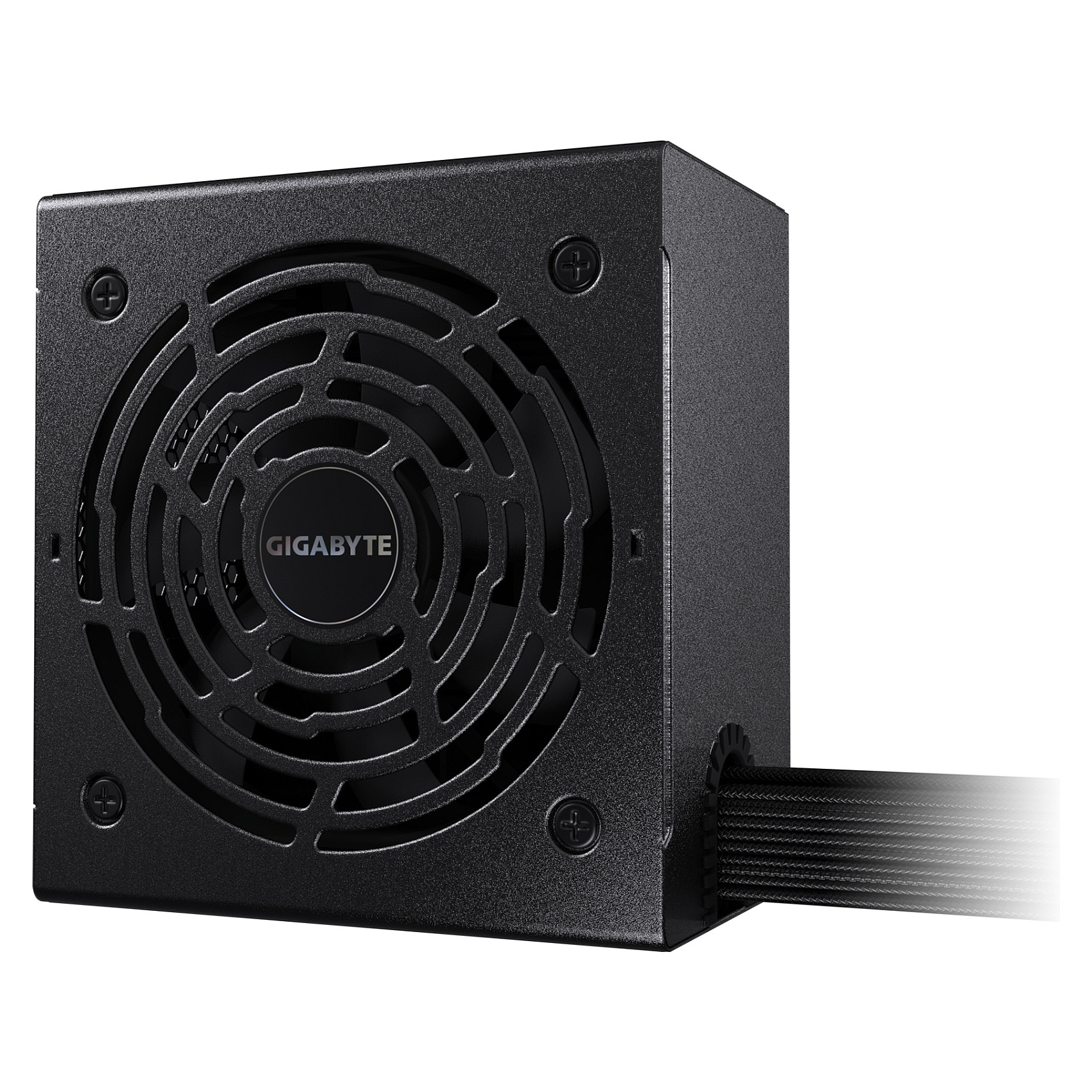

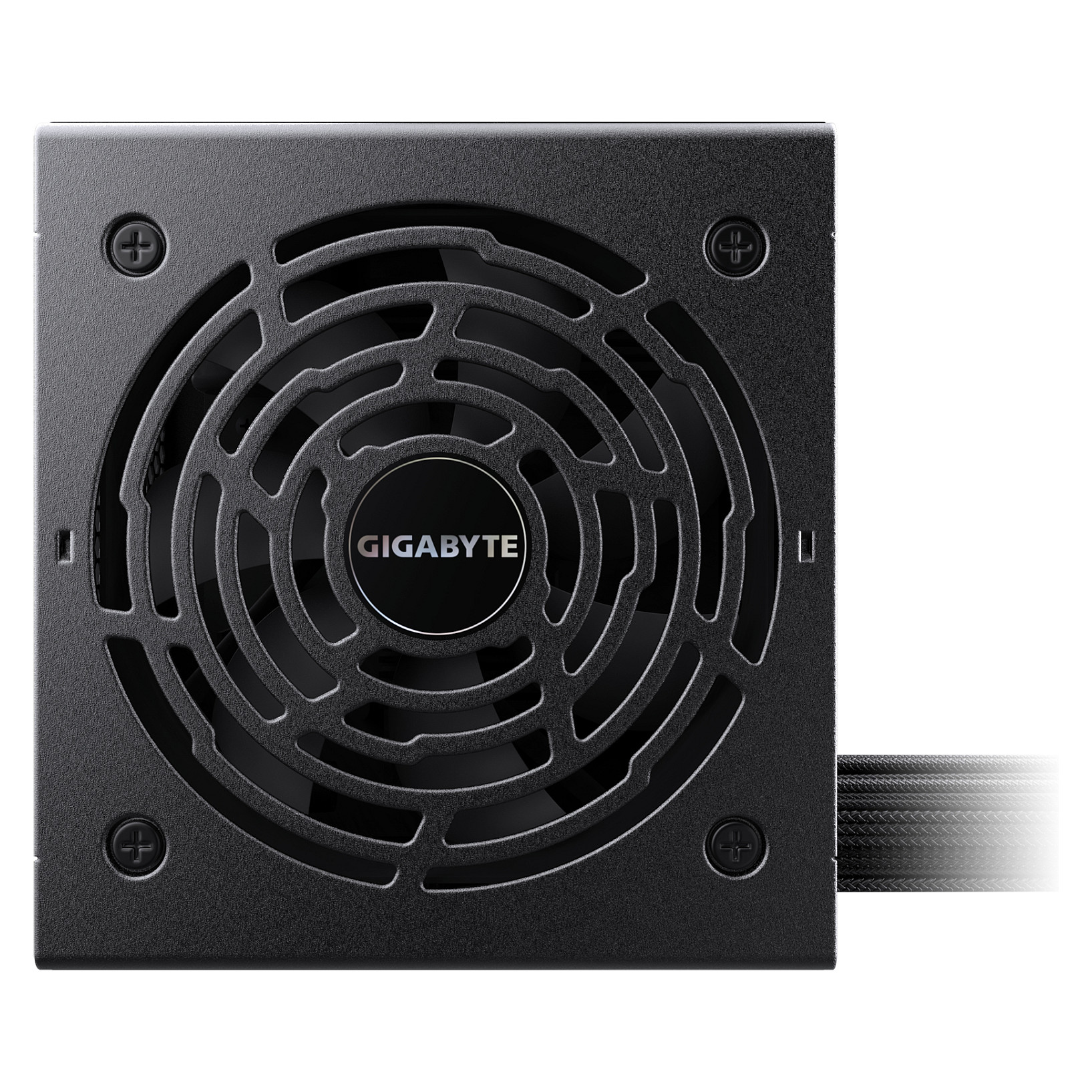

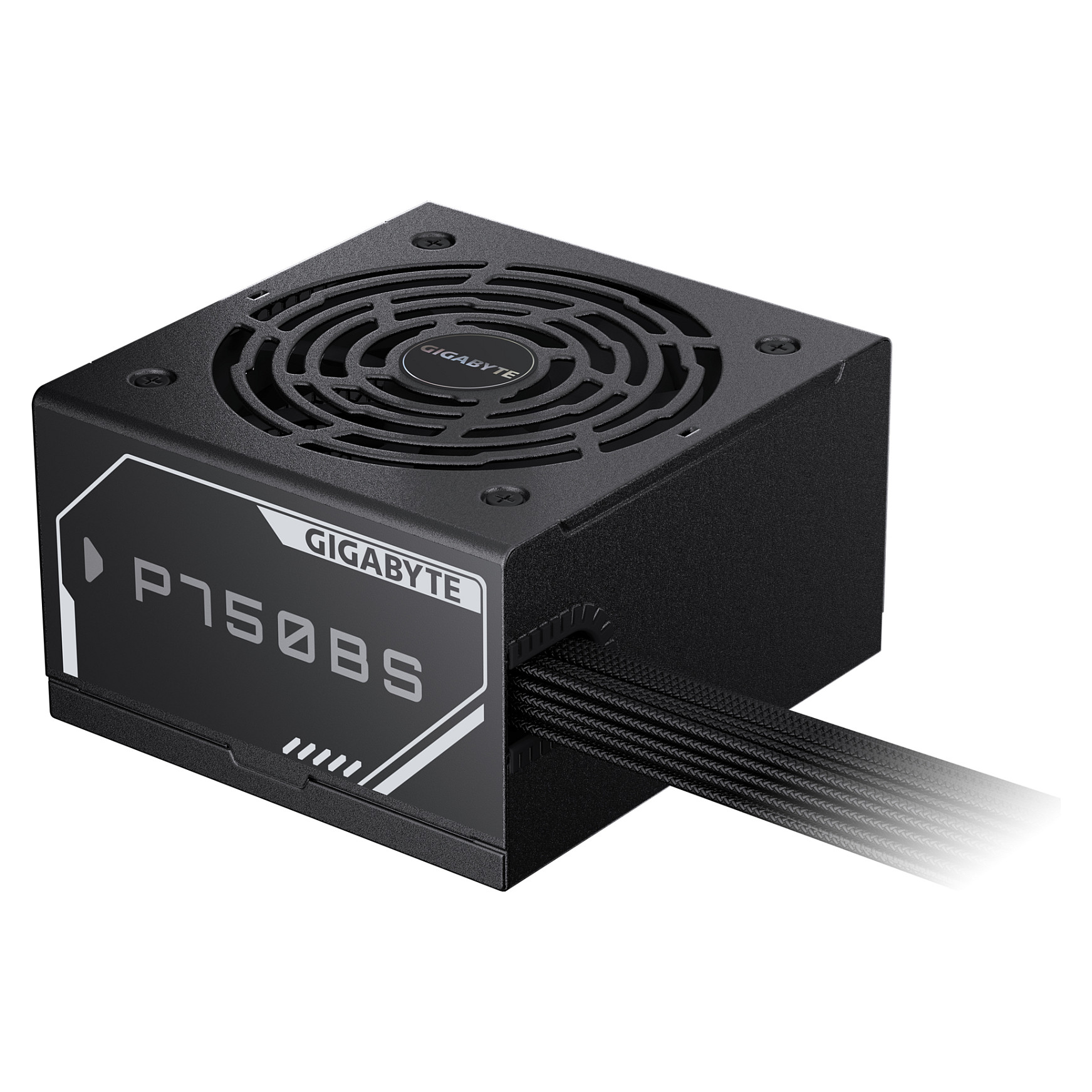

750W GIGABYTE P750BS ATX Power Supply 80+ Bronze
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€69.99
VAT (19%) included
Description
80 PLUS Bronze certified (230V EU) 120mm Silent Fluid Dynamic Bearing (FDB) fan Soft-textured embossed cables Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection
Technical Specifications
SKU
KGP-P750BS
Total Power
750 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
6 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
88%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
7
Sata Power Cable Length
150, 500 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150, 600 mm
Pci Express Power Connectors (6+2 Pin)
4
Floppy Drive Power Connector
2
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2.22 kg
Package Width
254 mm
Package Depth
206 mm
Package Height
117 mm
Package Weight
2.68 kg
Package Type
Box
Warranty Period
3 year(s)
