Deepcool

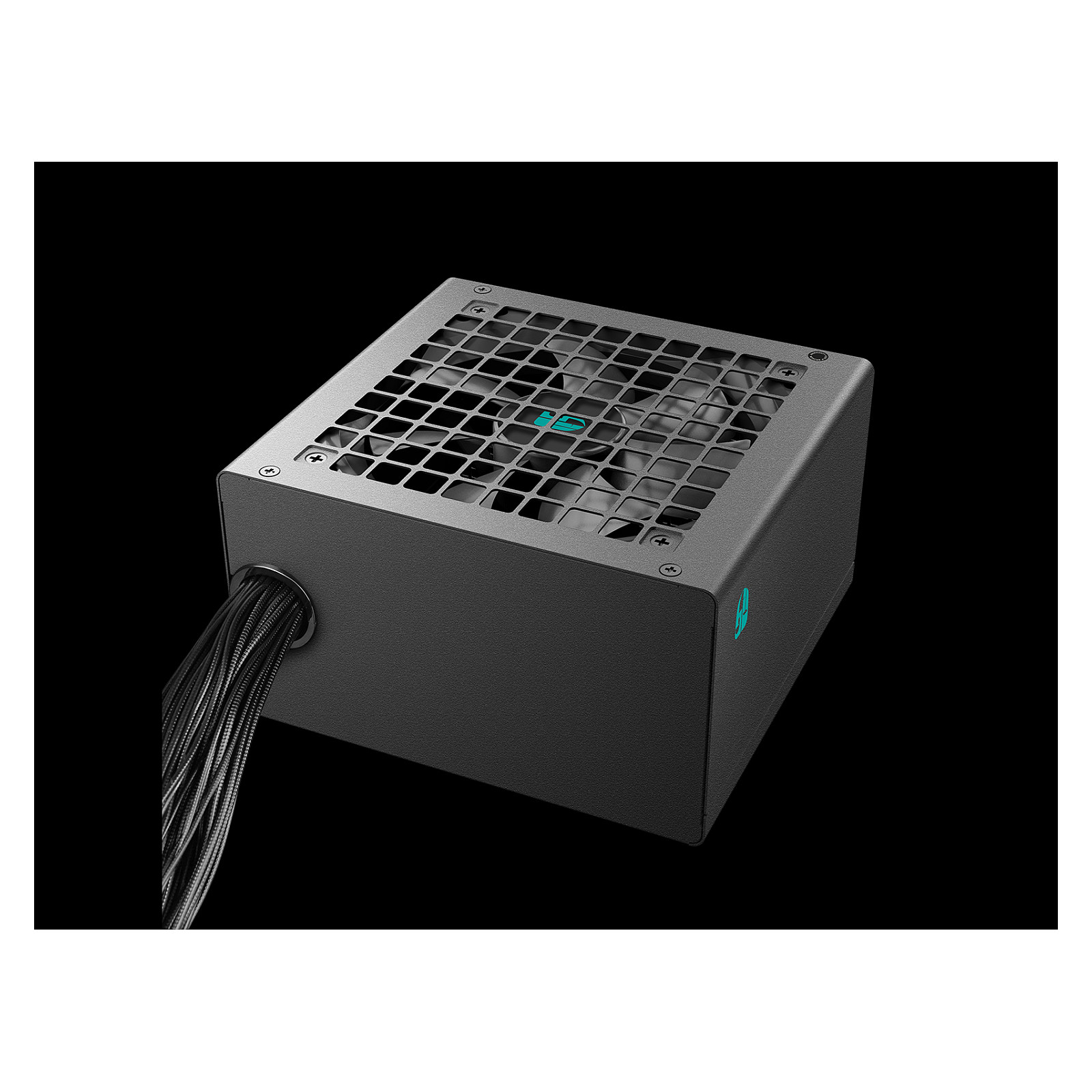

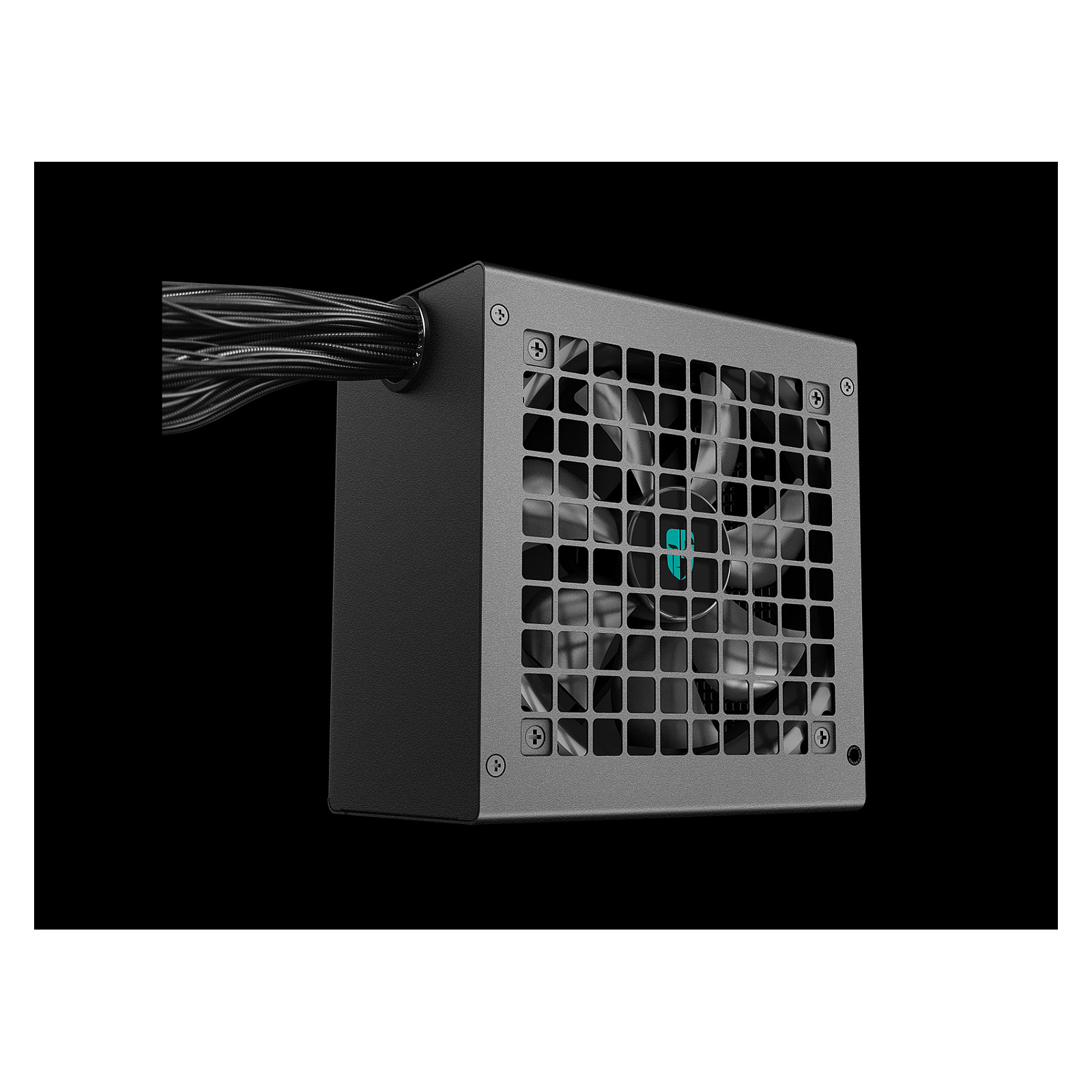

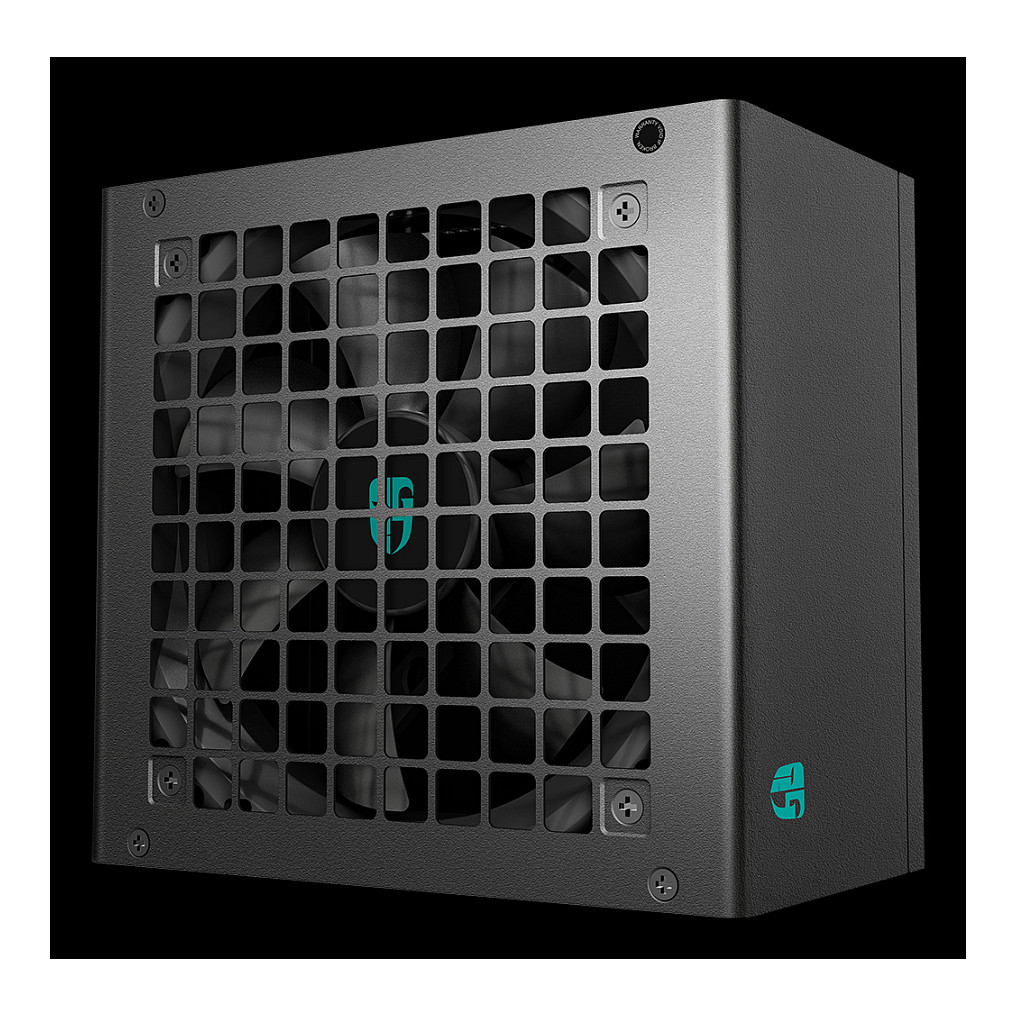

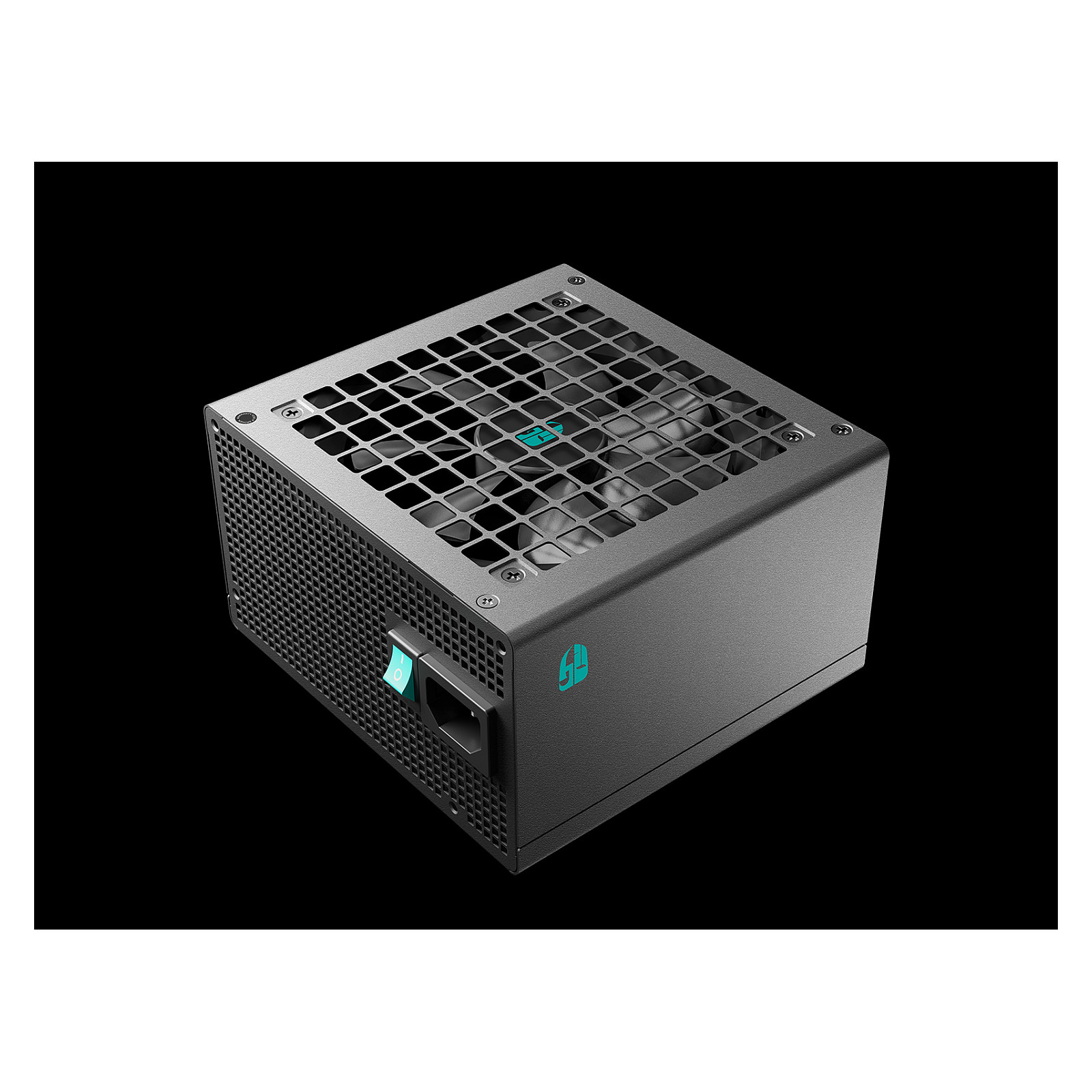

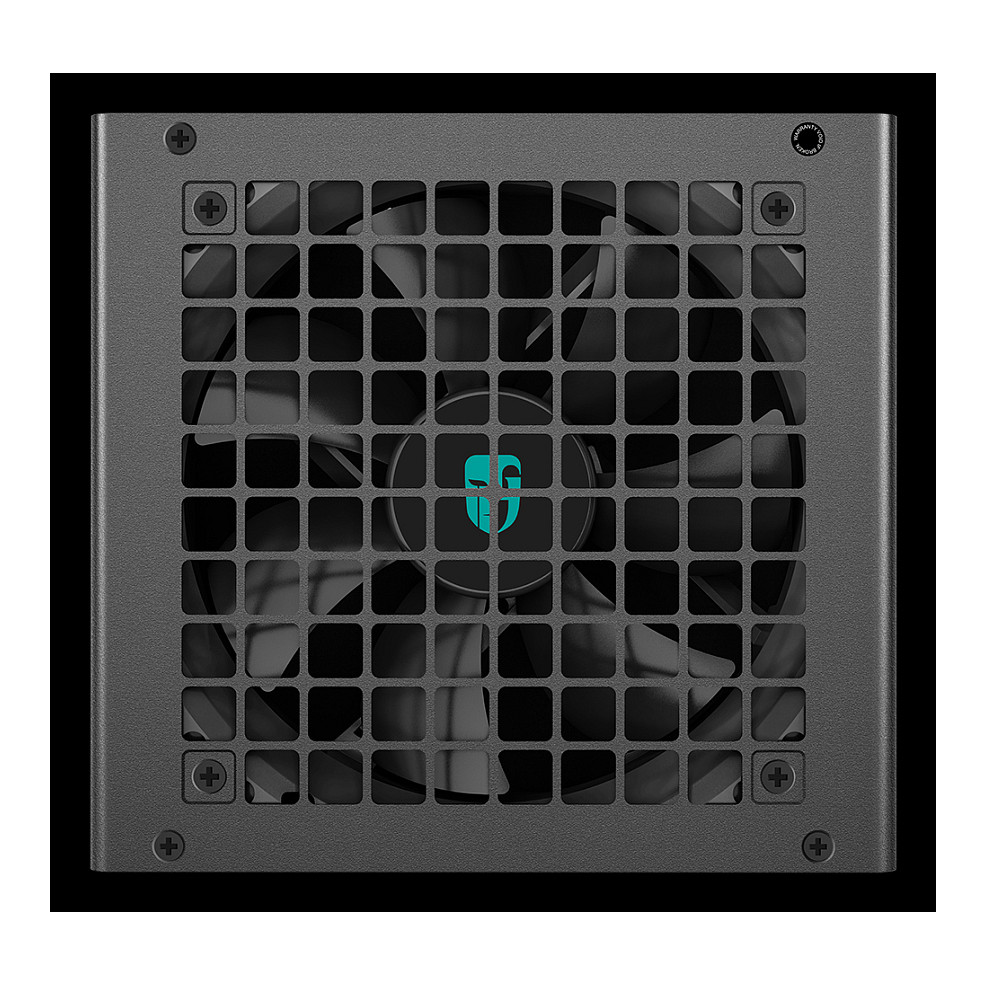

500W DeepCool PF500X 80+
Pre-Order
€41.99
VAT (19%) included
Description
500 W 200 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Bronze Active 12 cm Black
Technical Specifications
SKU
KR-PF500X-HD0B-JGEU
Total Power
500 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
499.2 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
16 A
Max Output Current (+12V)
41.6 A
Max Output Current (+5V)
16 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
88%
Power Protection Features
No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
450, 600, 750 mm
Number Of Sata Power Cables
2
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
900 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
55 cm
Cpu Power Cable Length
62 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.52
Bearing Technology
HYB
Mean Time Between Failures (Mtbf)
40000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C
Cables Included
AC
Compliance Certificates
CCC, CE, KC, RCM, TÜV mark, WEEE
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
Sustainability Certificates
ErP, Triman
Warranty Period
3 year(s)
