850W Lian Li SP850 V2 Gold ATX 3.1 Schwarz
Pre-Order
€149.99
VAT (19%) included
Description
Compact 125 × 100 × 63.5 mm SFX size for space-limited builds 80 PLUS Gold certified with 90%+ efficiency at 50% load (115V) ATX 3.1 & PCIe 5.0 ready with native 12V-2×6 GPU support Exclusive 12V-2×6 cable design prevents GPU clearance issues 92 mm FDB fan with ZERO RPM mode for silent operation Fully modular design with anti-tangle embossed cables Offering comprehensive protection mechanisms, including OCP, OVP, SCP, OPP, UVP, OTP
Technical Specifications
SKU
KG9P.SP0850G.B000.EU
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
5 - 10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
840 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
90%
Power Protection Features
No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage

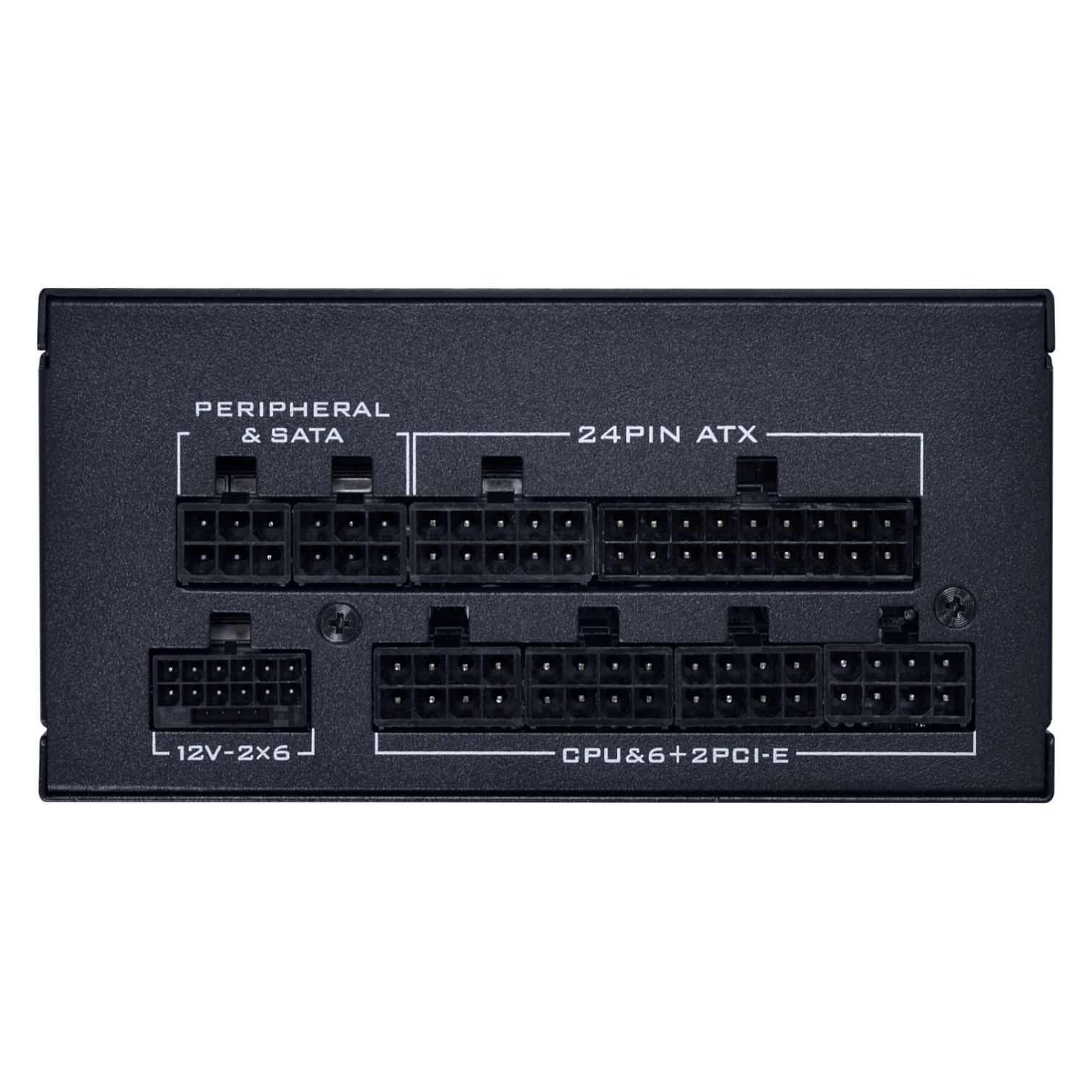

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
7
Sata Power Cable Length
350 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
350 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (8-Pin)
1
Pci Express Power Cable Length
40 cm
Cpu Power Cable Length
60 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Atx Version
3.1
Noise Level
40 dB
Bearing Technology
FDB
Product Colour
Black
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 3000 RPM
Operating Temperature (T-T)
0 - 40 °C
Width
125 mm
Depth
100 mm
Height
63.5 mm
