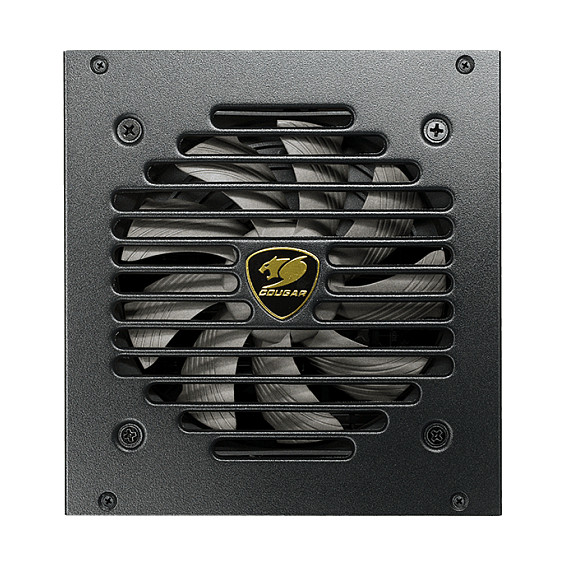

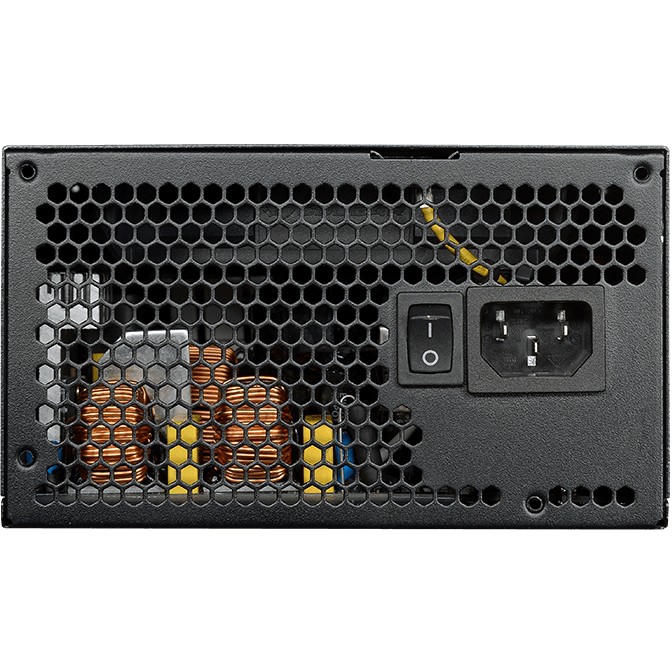

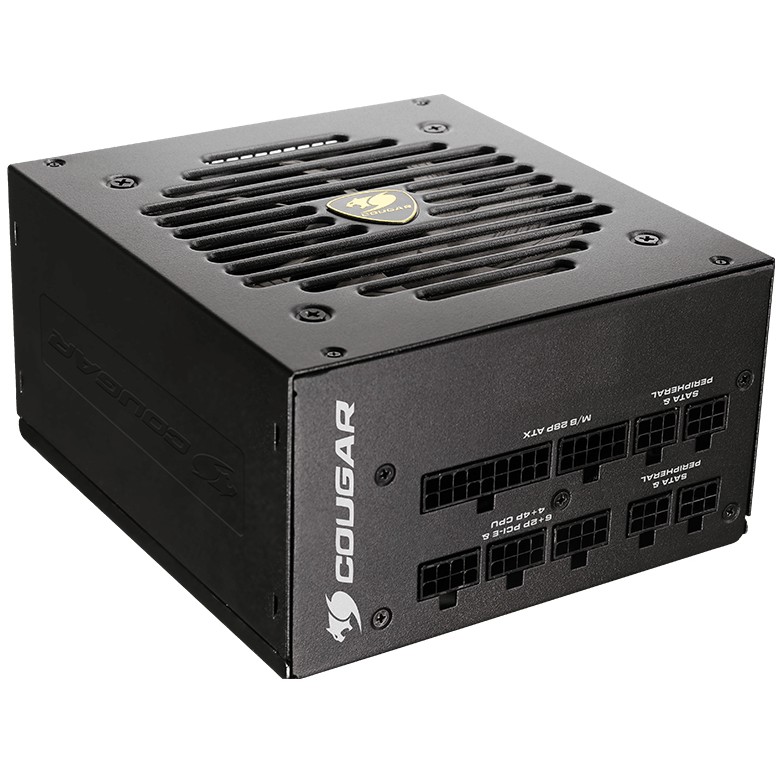

850W COUGAR Netzteil GEX 850W ATX3.0 / 80 Plus Gold / Modular
Pre-Order
€134.99
VAT (19%) included
Description
80 PLUS Gold Certified. Up to 91% efficiency power conversion to cut down your electricity bill COUGAR HDB Fan. Hydro Dynamic Bearing Fan: Extended durability and lower noise levels Flawless Operation at 40°C. Powerful performance at 40°C ambient temperature Dimension 160 x 150 x 86 (mm) Fully Modular Power Supply Unit. Connect only the cables you need for less clutter and better airflow Superior fan Curve Tuning. Advanced technology for noise minimization Ultra-stable Voltage Outputs. DC to DC technology for enhanced voltage stability Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP. Maximum safety for your key system components
Technical Specifications
SKU
KCGR GEX-850
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
12 - 6 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
849.6 W
Combined Power (+5V)
120 W
Combined Power (-12V)
0.3 W
Combined Power (+5Vsb)
3 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70.8 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
91%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
8
Number Of Pata Power Connectors
3
Sata Power Cable Length
120, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
120, 450 mm
Pci Express Power Connectors (6+2 Pin)
6
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
65 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
HDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
10 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
CCC, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.56 kg
Package Width
229 mm
Package Depth
331 mm
Package Height
107 mm
Package Weight
2.76 kg
Package Type
Box
Warranty Period
5 year(s)
