Gigabyte

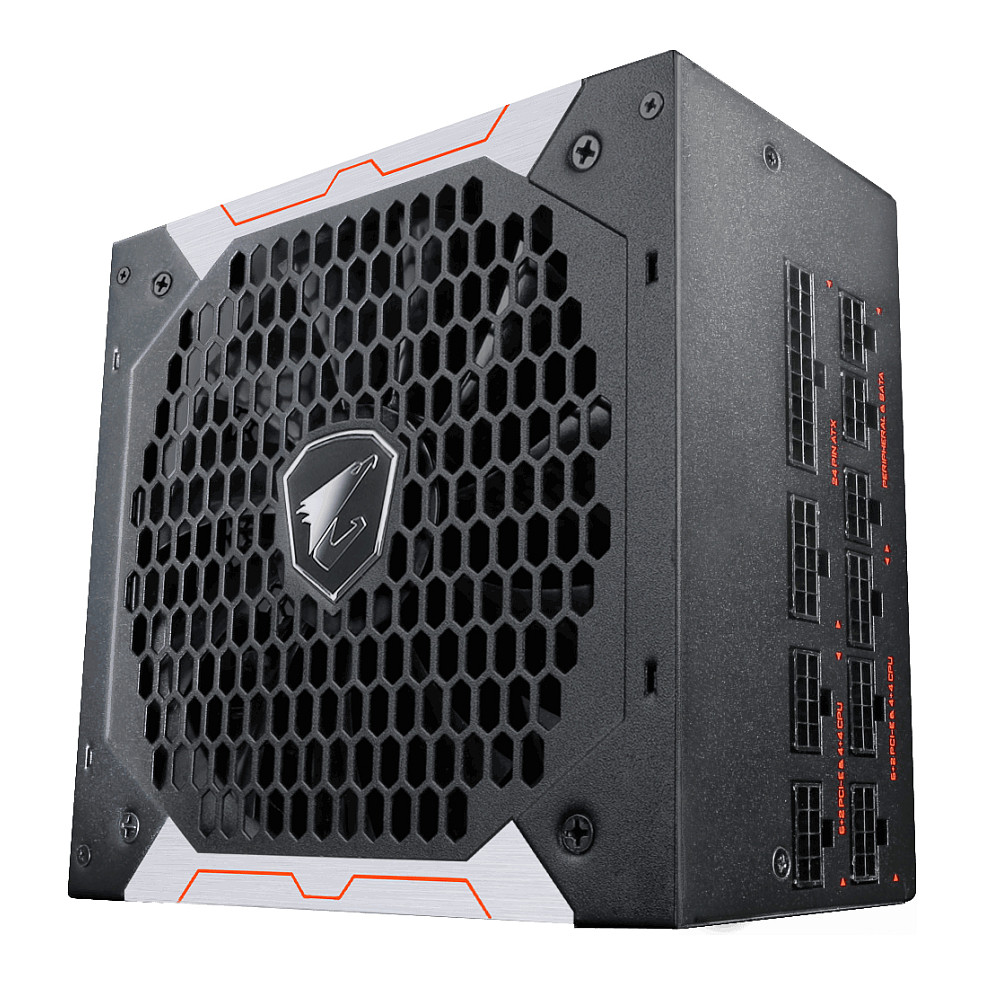

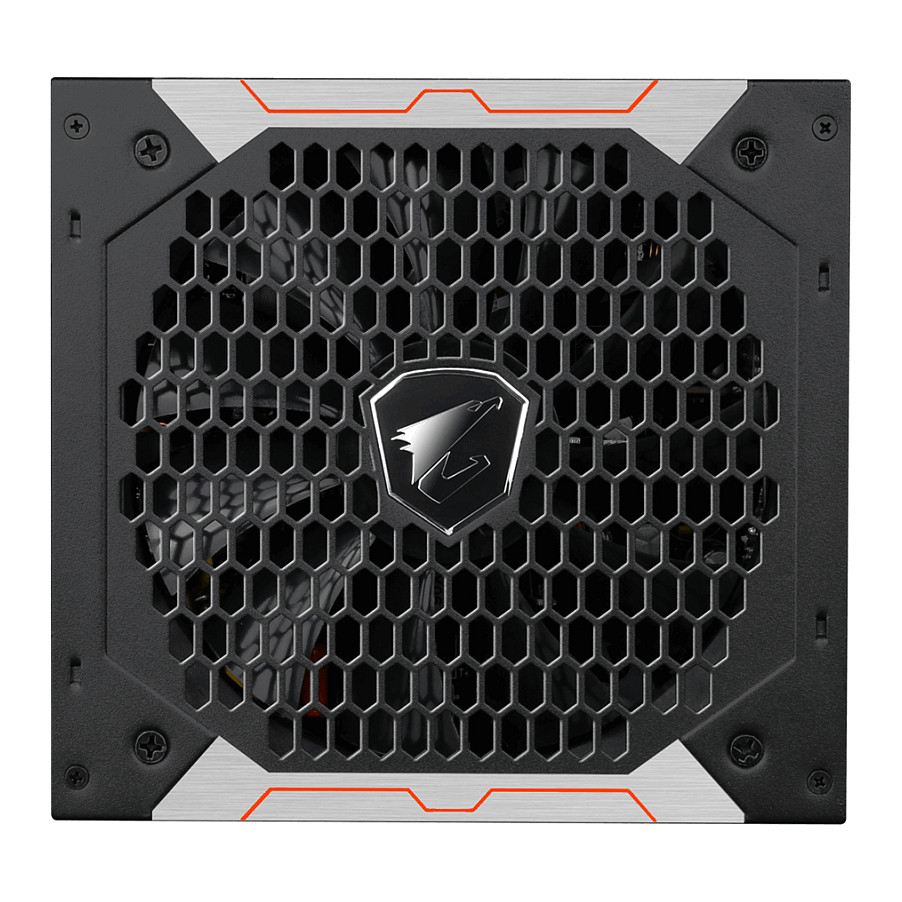

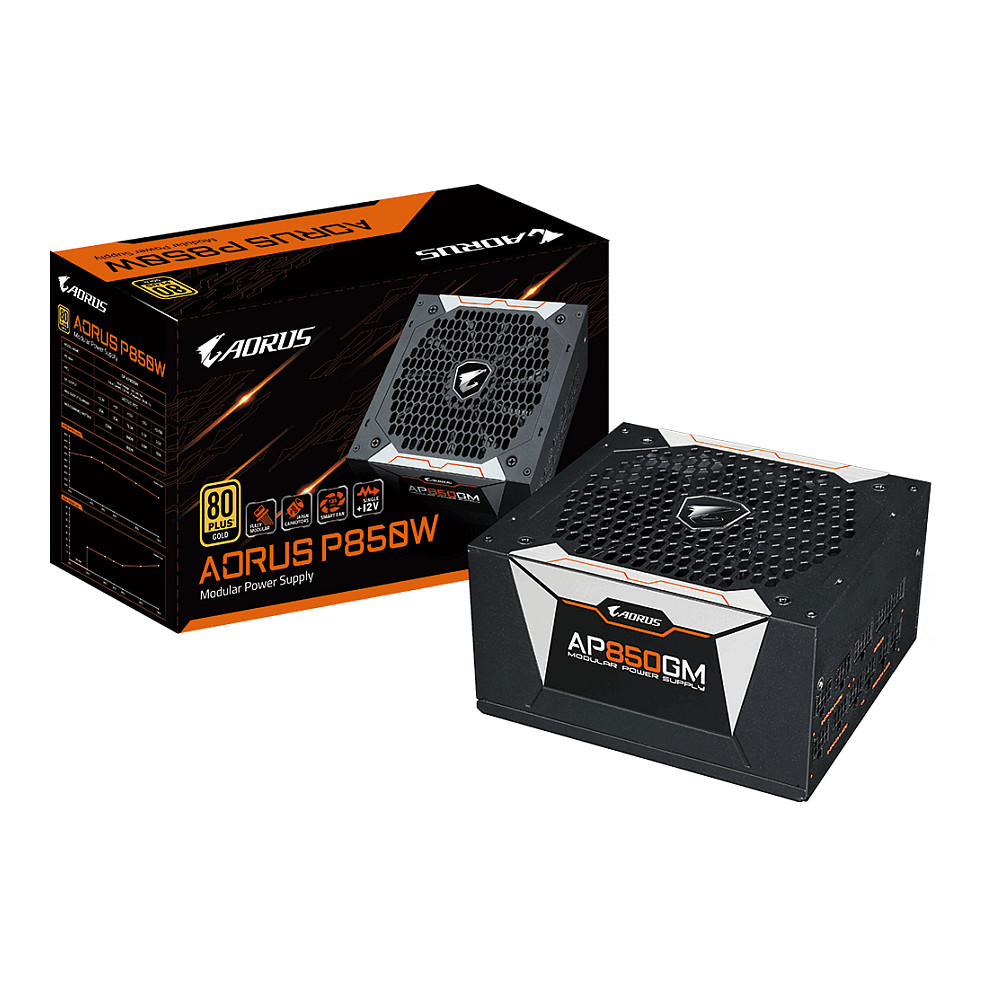

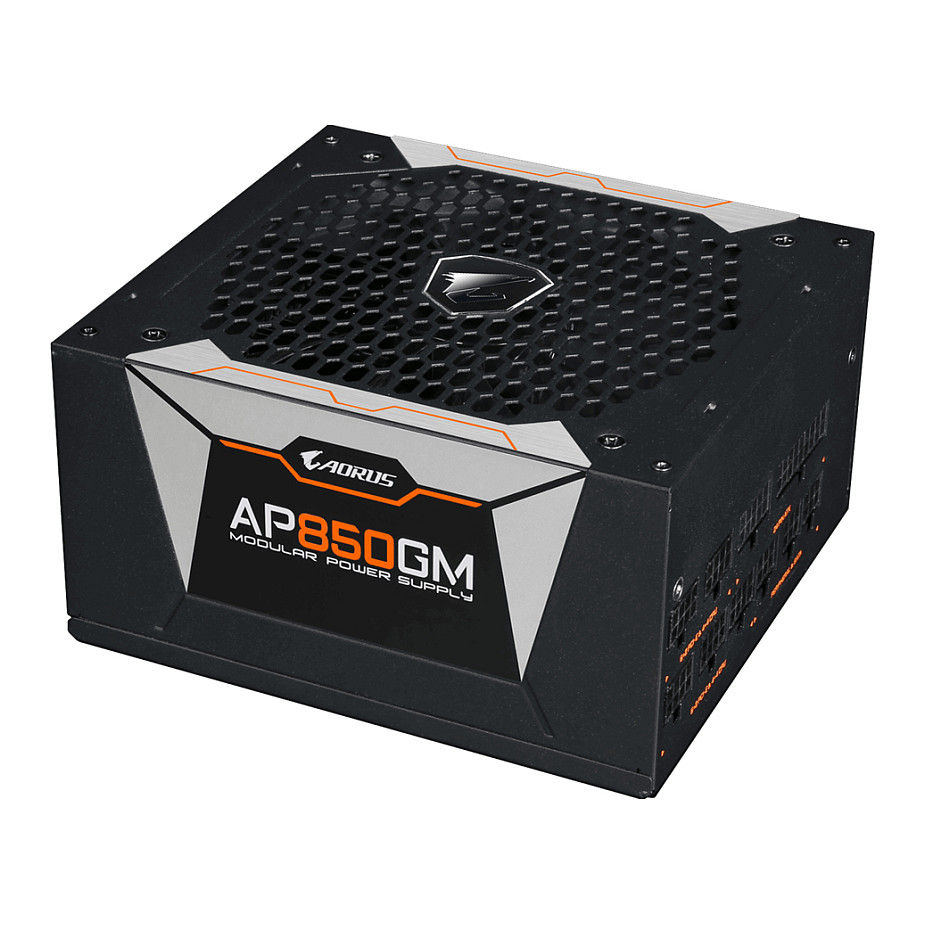

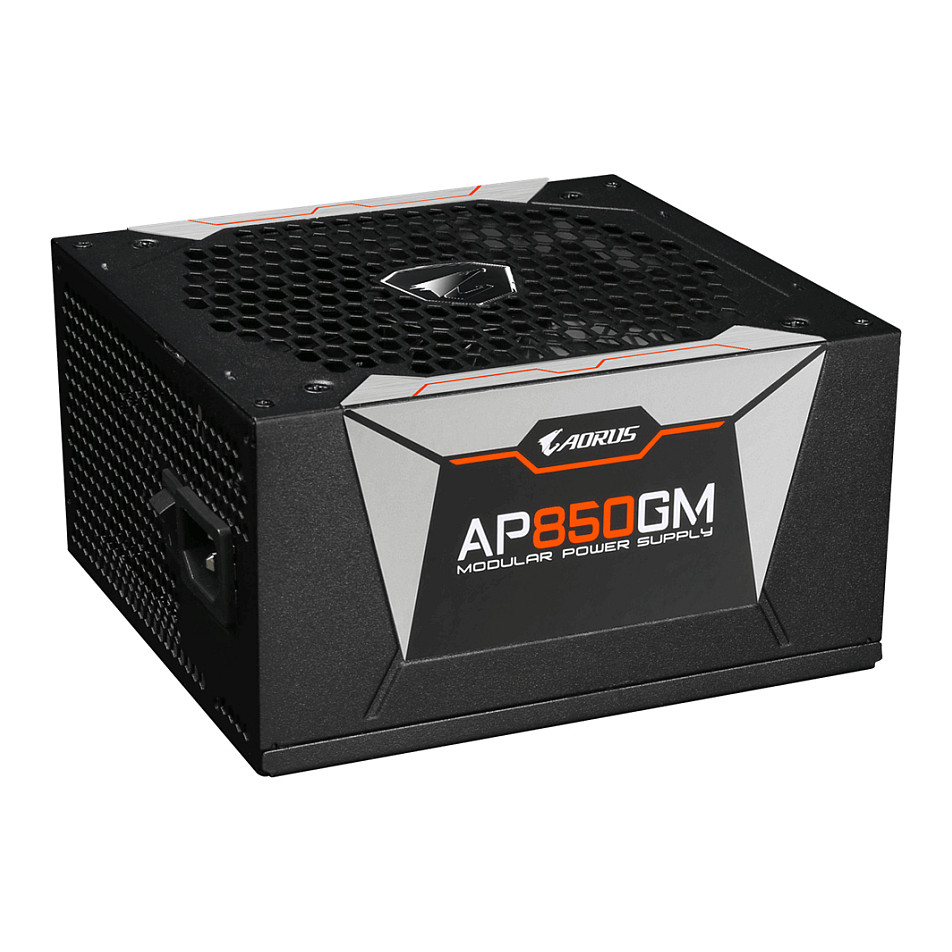

850W Gigabyte AP850GM |80+ Gold
Pre-Order
€130.99
VAT (19%) included
Description
Fully Modular Design High quality 100% Japanese Capacitors 135mm 2 ball bearing smart fan with fan stop function 80 PLUS Gold certified: above 90% efficiency at 50% load Single +12V rail OCP/OTP/OVP/OPP/UVP/SCP protection 10 years warranty (Adjusted according to different regions)
Technical Specifications
SKU
KGP-AP850GM
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
10 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
846 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
65 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
450, 550, 650, 750 mm
Peripheral (Molex) Power Connectors (4-Pin)
6
Pci Express Power Connectors (6+2 Pin)
6
Floppy Drive Power Connector
2
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.31
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
160 mm
Height
86 mm
Package Type
Box
Harmonized System (Hs) Code
84733020
