Gigabyte

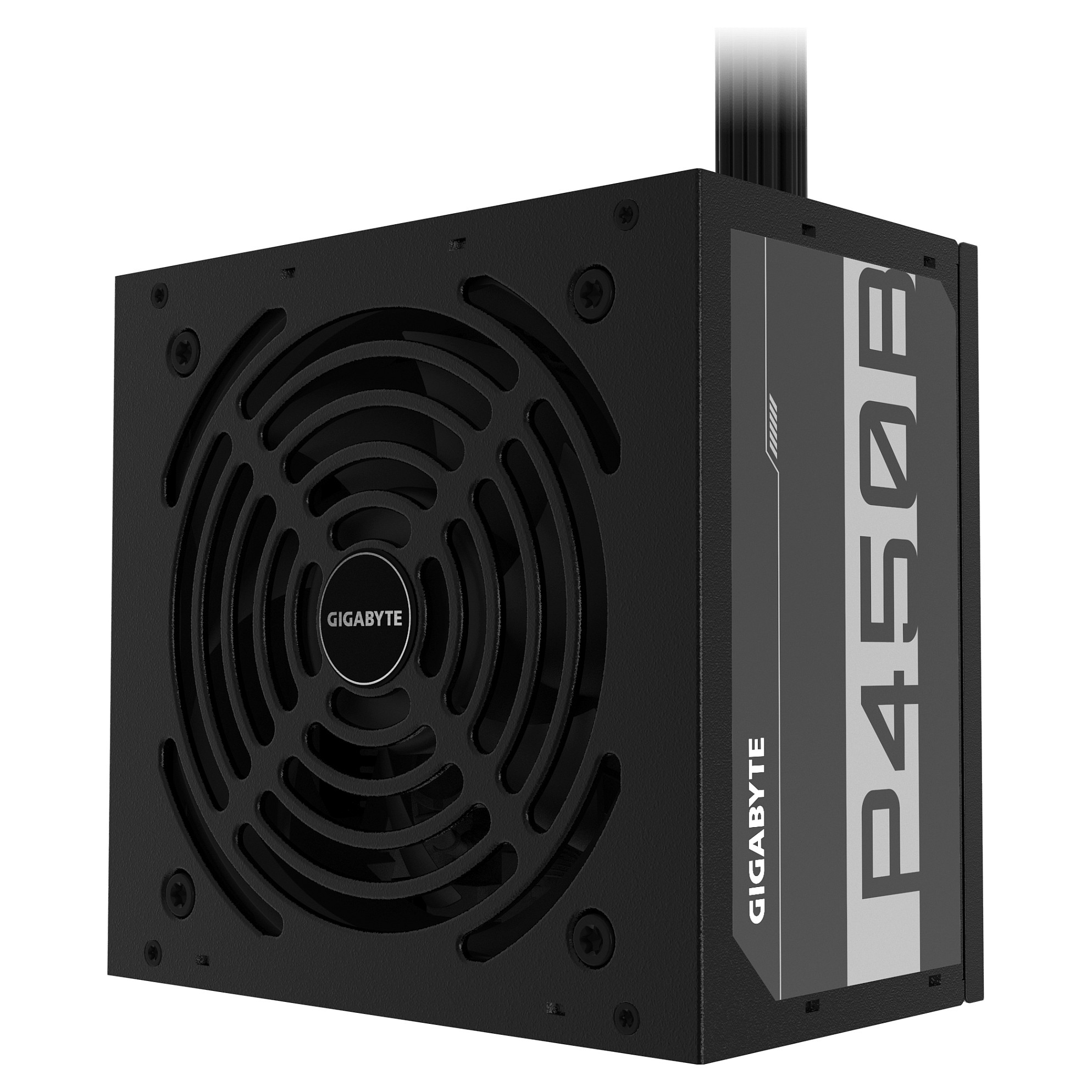

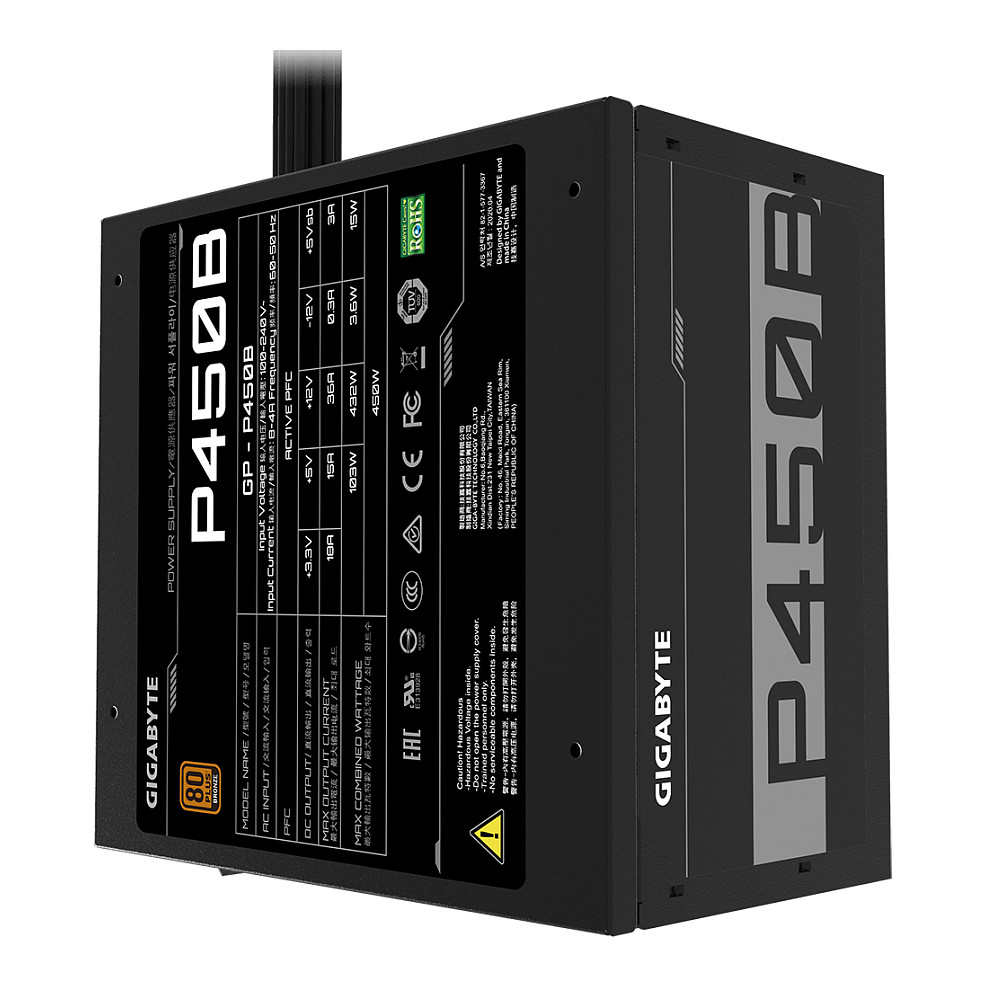

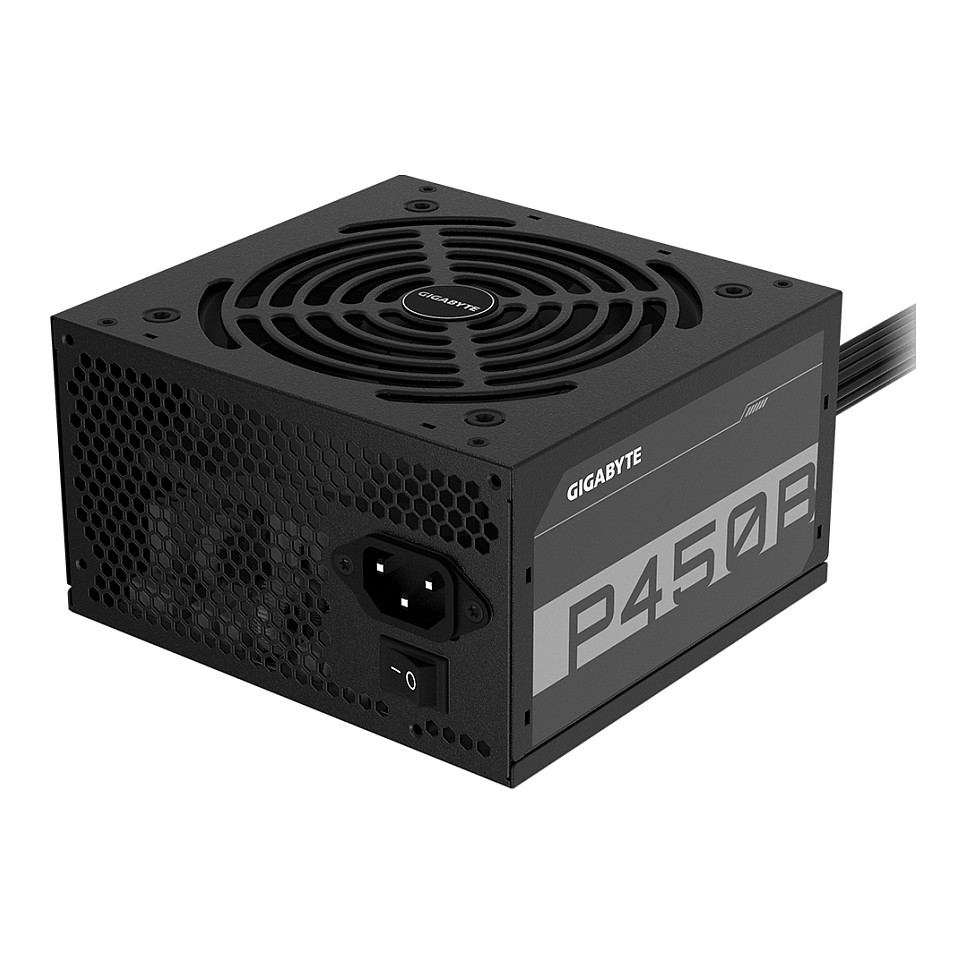

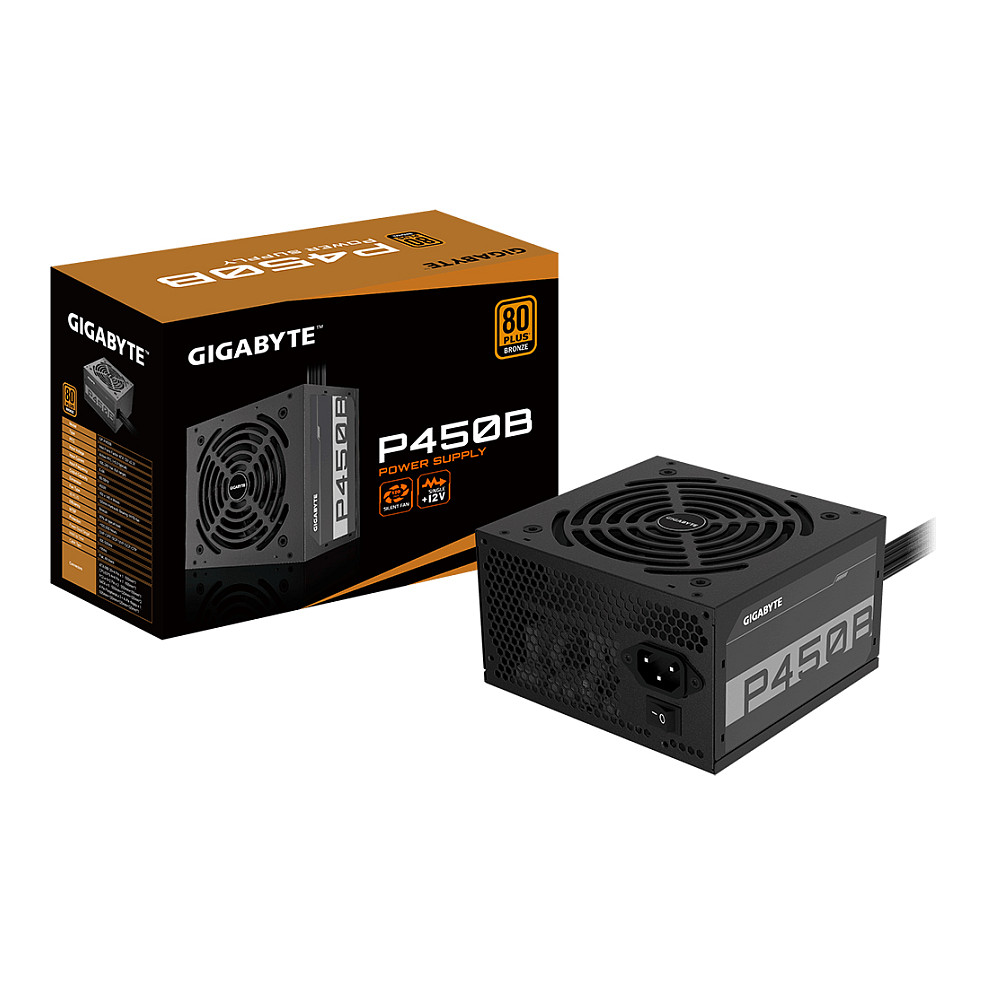

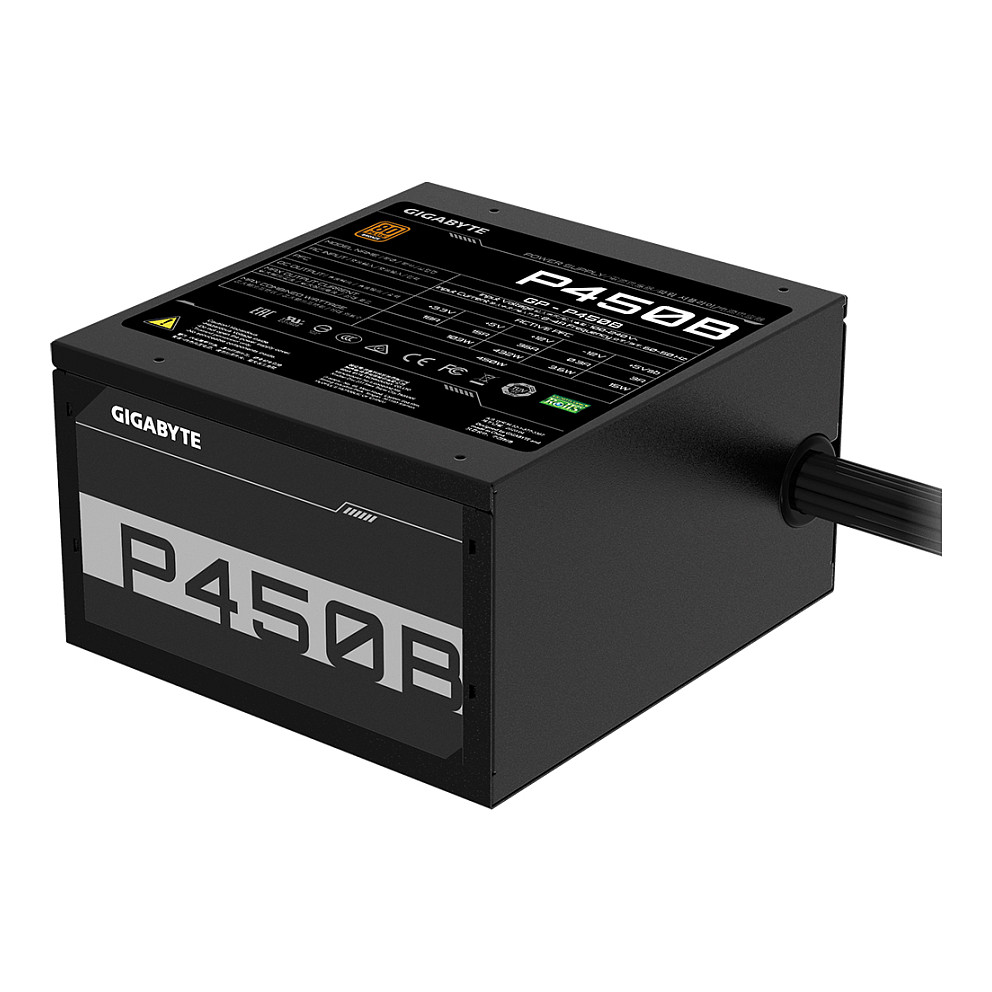

450W Gigabyte P450B
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€40.99
VAT (19%) included
Description
80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection
Technical Specifications
SKU
KGP-P450B
Total Power
450 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
8 - 4 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
103 W
Combined Power (+12V)
432 W
Combined Power (+5V)
103 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V)
36 A
Max Output Current (+5V)
15 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
85%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
500 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
55 cm
Cpu Power Cable Length
60 cm
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.31
Bearing Technology
HDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
140 mm
Height
86 mm
Harmonized System (Hs) Code
84733020
