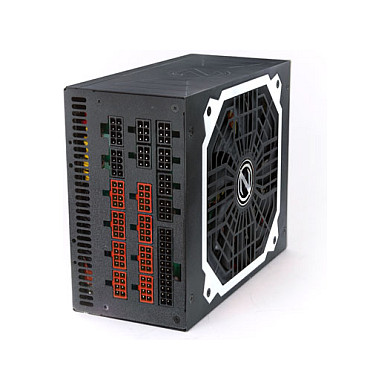

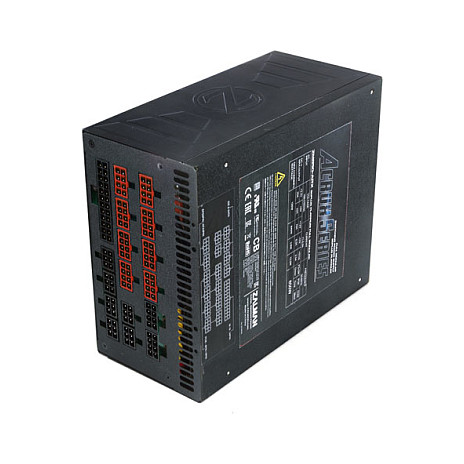

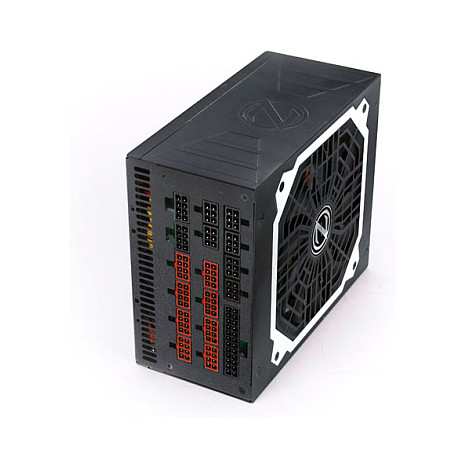

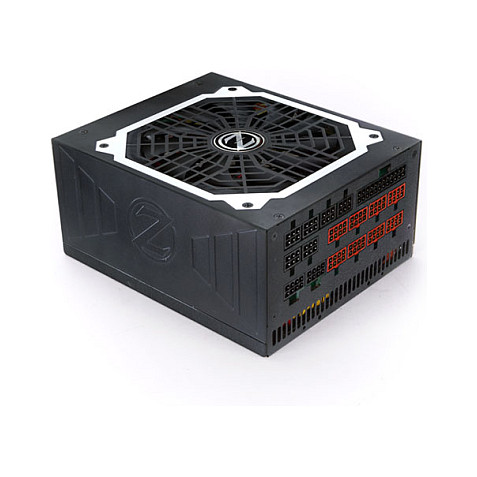

Alimentation ATX Zalman Acrux ArX - 1000W (Noir)
Pre-Order
€210.99
VAT (19%) included
Description
1000 W 100 - 240 V 50 - 60 Hz Motherboard power connector: 20+4 pin ATX PC 80 PLUS Platinum 13.5 cm Black
Technical Specifications
SKU
KZM1000-ARX
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
6 - 12 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
996 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V)
83 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
94%
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Product Colour
Black
Fan Diameter
13.5 cm
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-20 - 70 °C
Operating Relative Humidity (H-H)
5 - 95%
Storage Relative Humidity (H-H)
5 - 95%
Width
150 mm
Depth
180 mm
Height
86 mm
Weight
3.05 kg
