Gigabyte

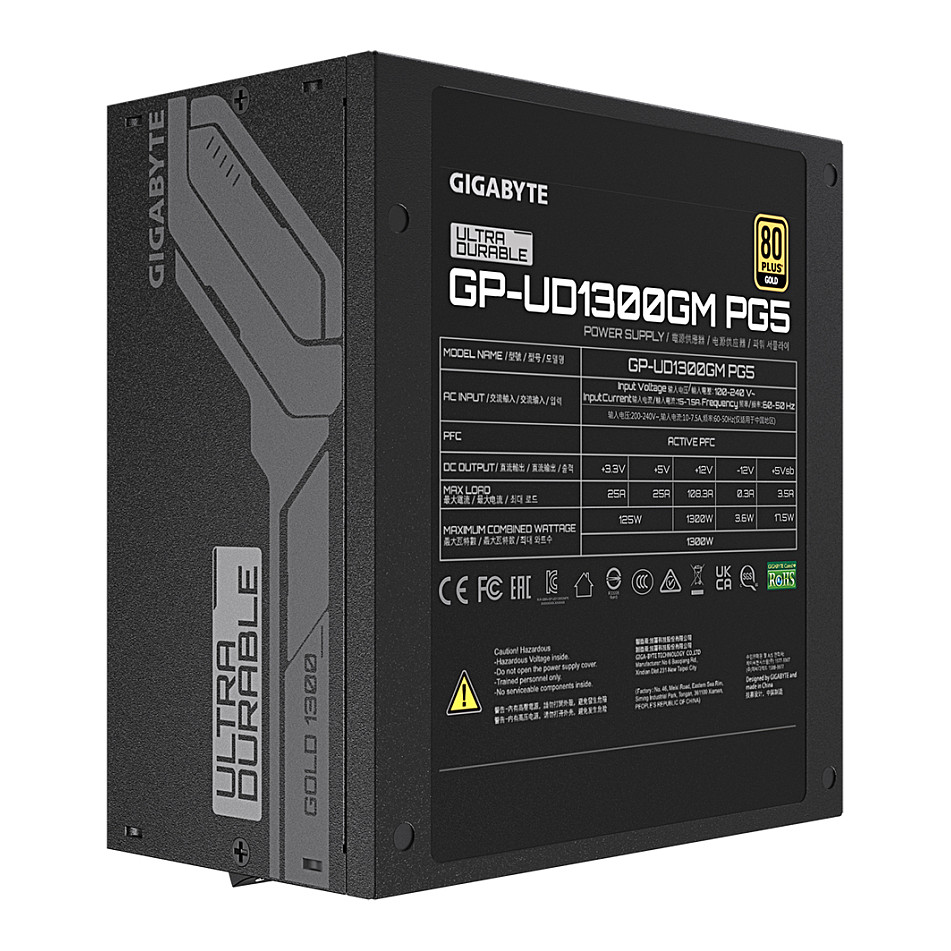

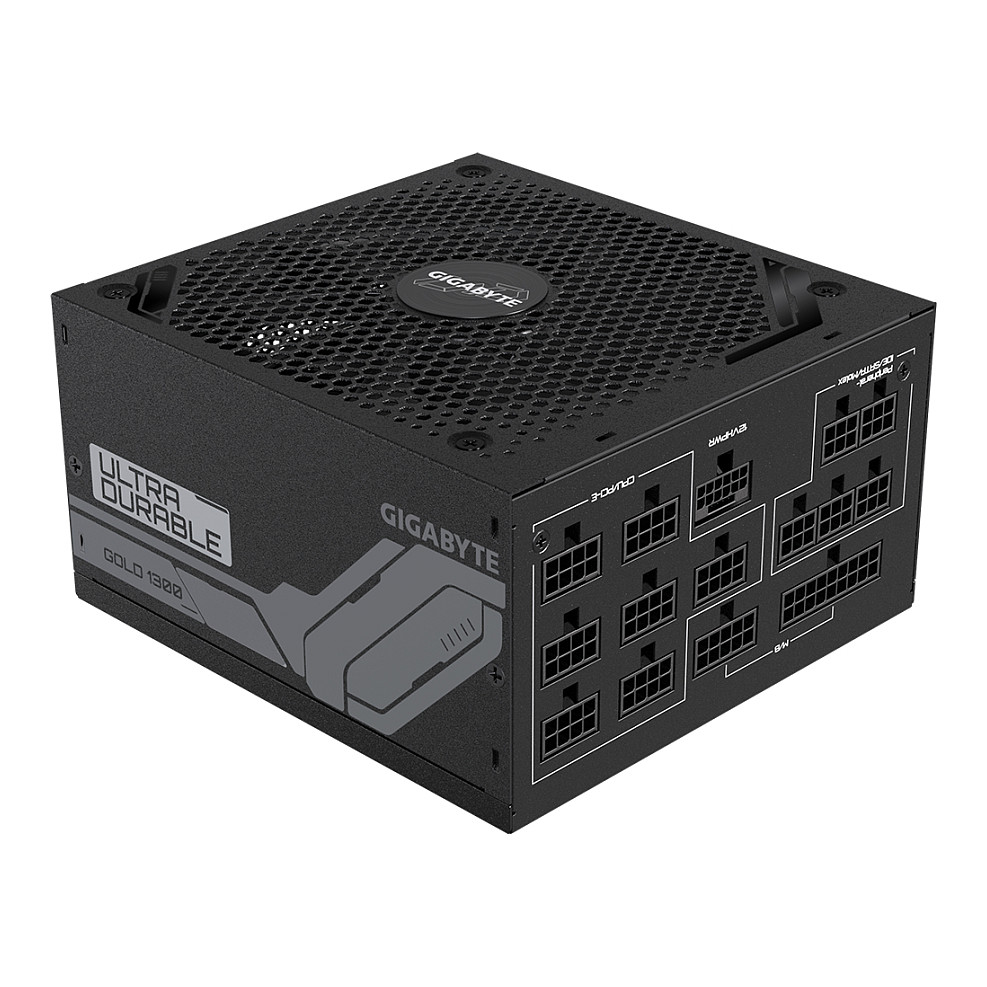

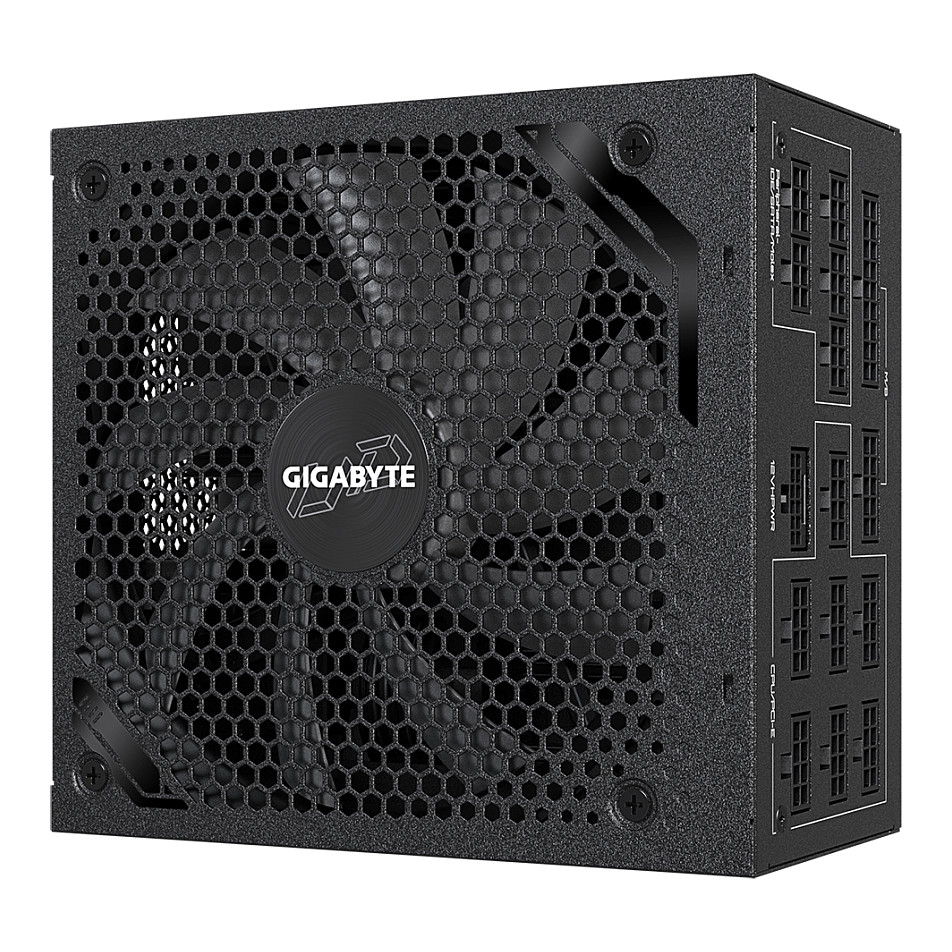

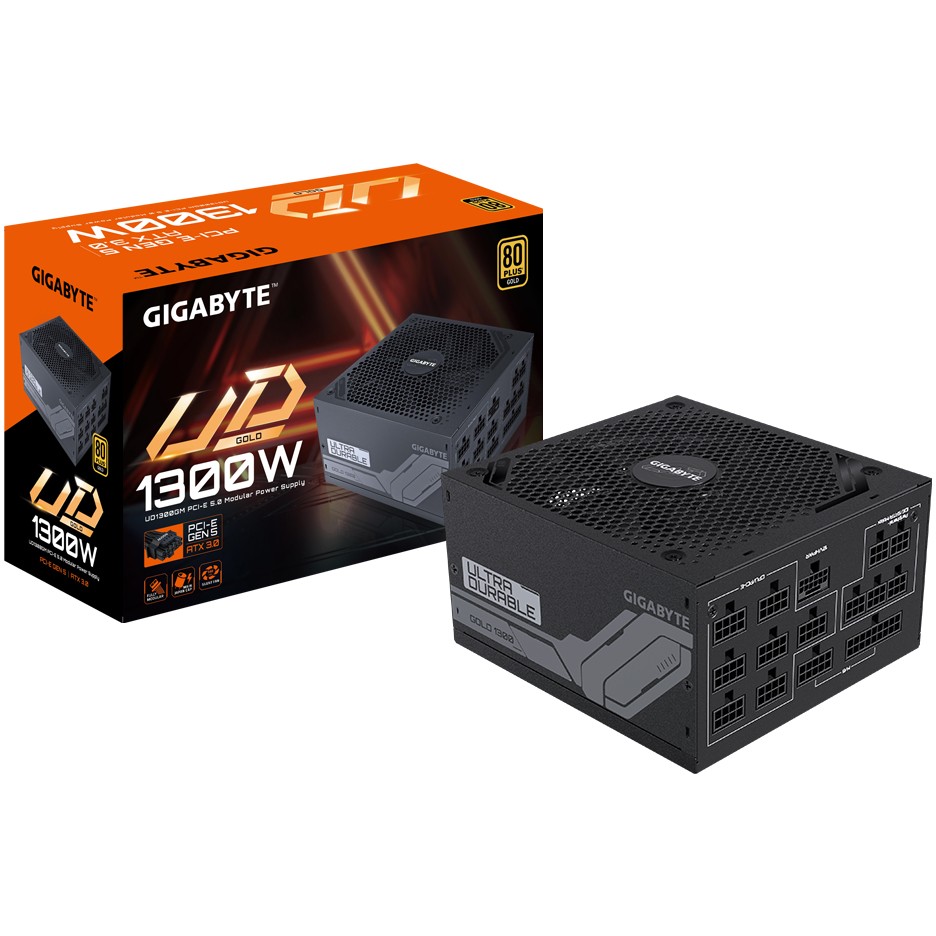

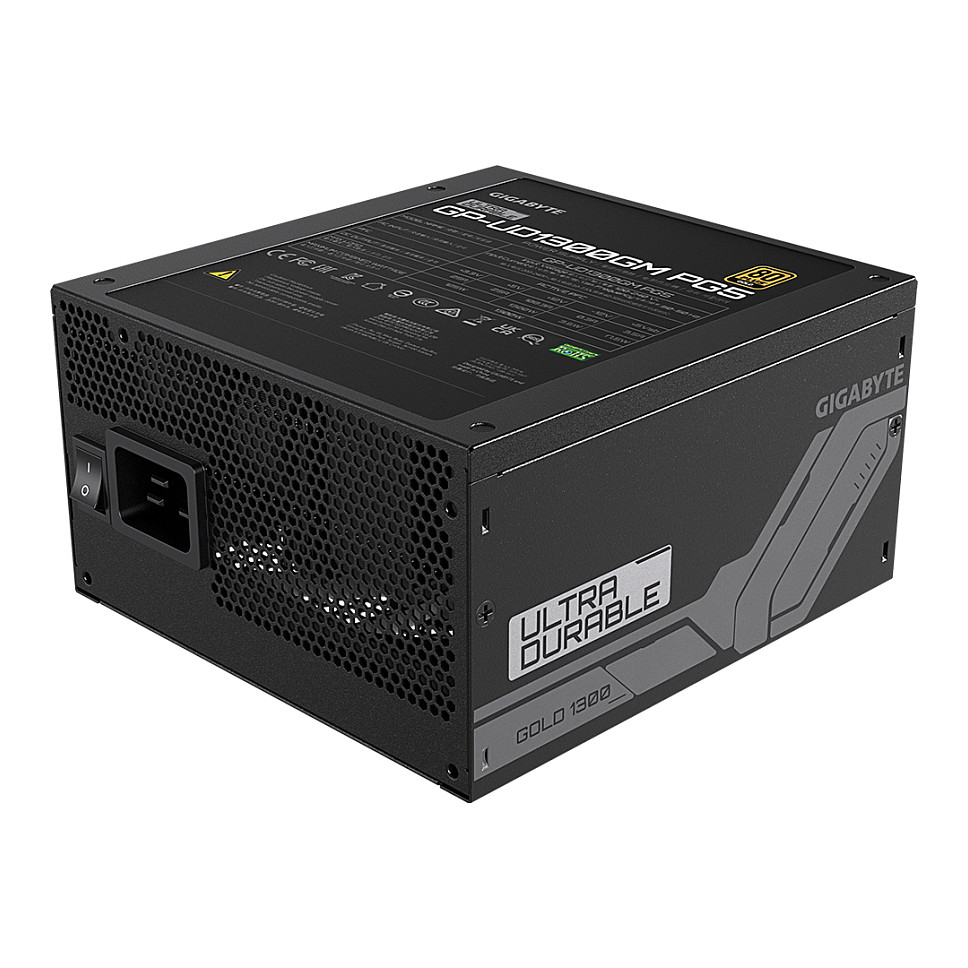

1300W GIGABYTE GP-UD1300GM PG5 80+ Gold
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€229.99
VAT (19%) included
Description
Main Japanese capacitors Enhanced thermal solution 140mm double ball bearing fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics card Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact size
Technical Specifications
SKU
KGP-UD1300GM PG5
Total Power
1300 W
Ac Input Voltage
100 - 240 V
Input Current
12 - 6 A
Maximum Input Current (@110V)
6 A
Maximum Input Current (@220V)
12 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
125 W
Combined Power (+12V)
1300 W
Combined Power (+5V)
125 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
17.5 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V)
108.3 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3.5 A
Hold Time
16 ms
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

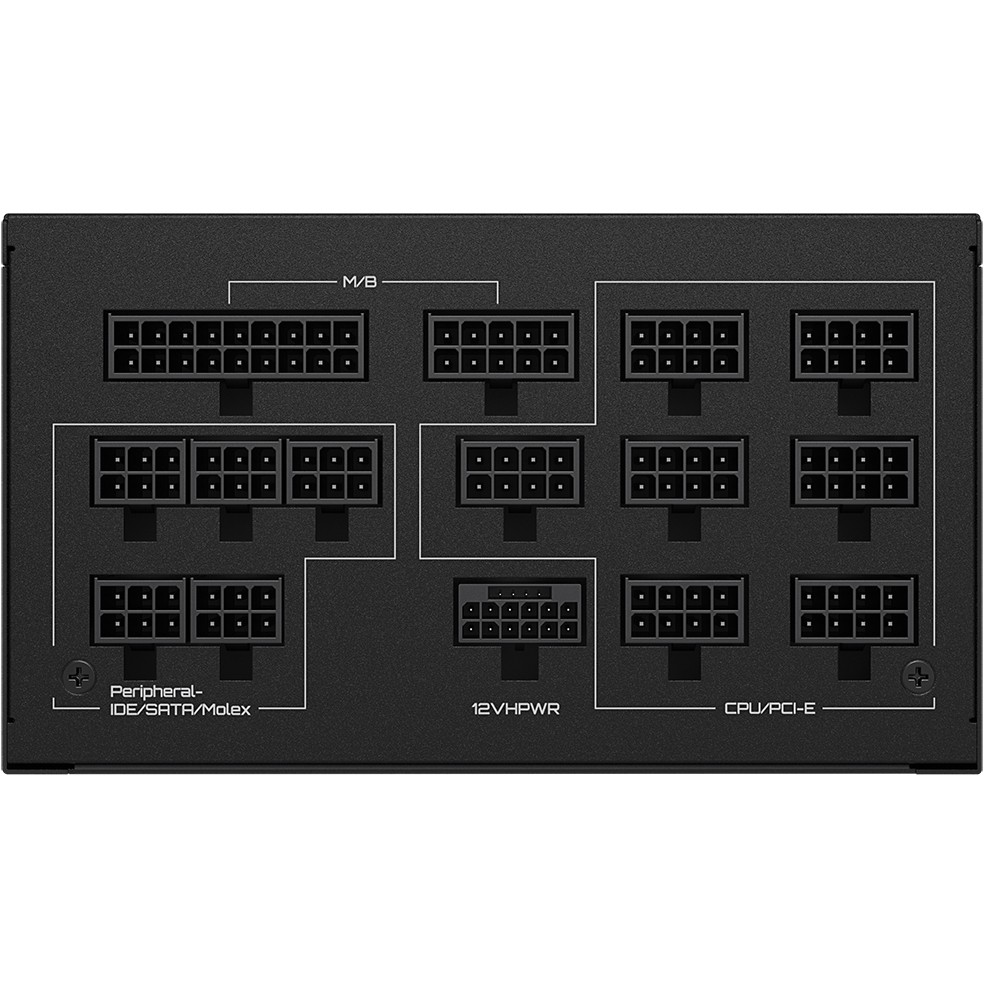

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
8
Number Of Pata Power Connectors
3
Sata Power Cable Length
150, 600 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
200, 600 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Noise Level
40 dB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active

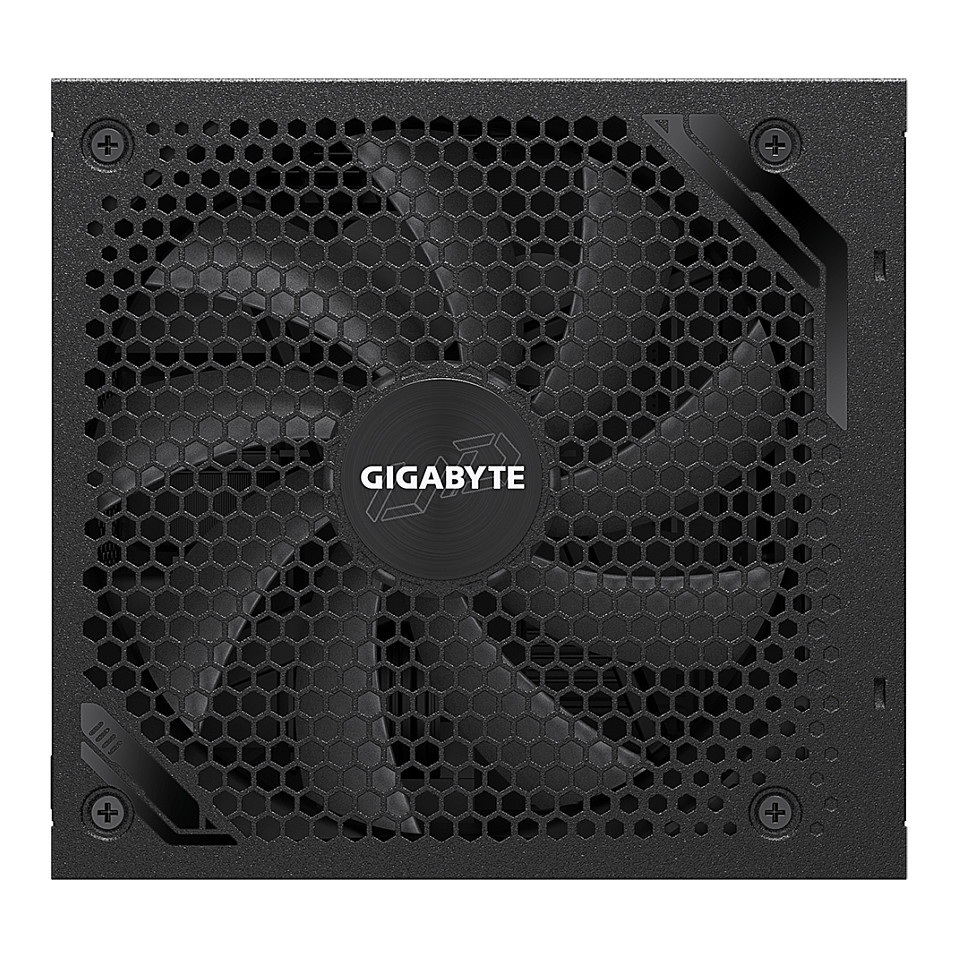

Fan Diameter
14 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PATA, Peripheral (Molex), SATA
Compliance Certificates
CCC, CE, Federal Communications Commission (FCC), RoHS
Width
150 mm
Depth
160 mm
Height
86 mm
Package Type
Box
Warranty Period
10 year(s)
