Sea Sonic

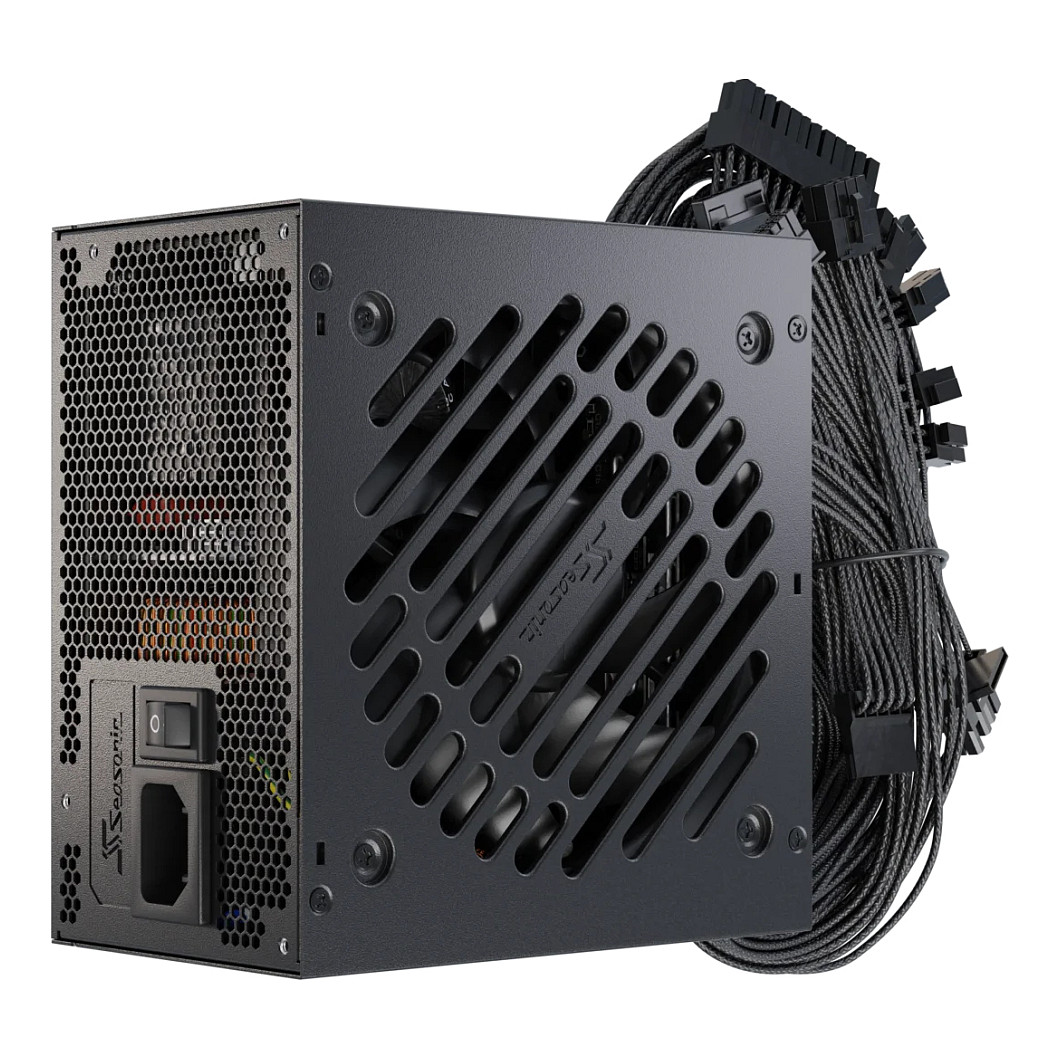

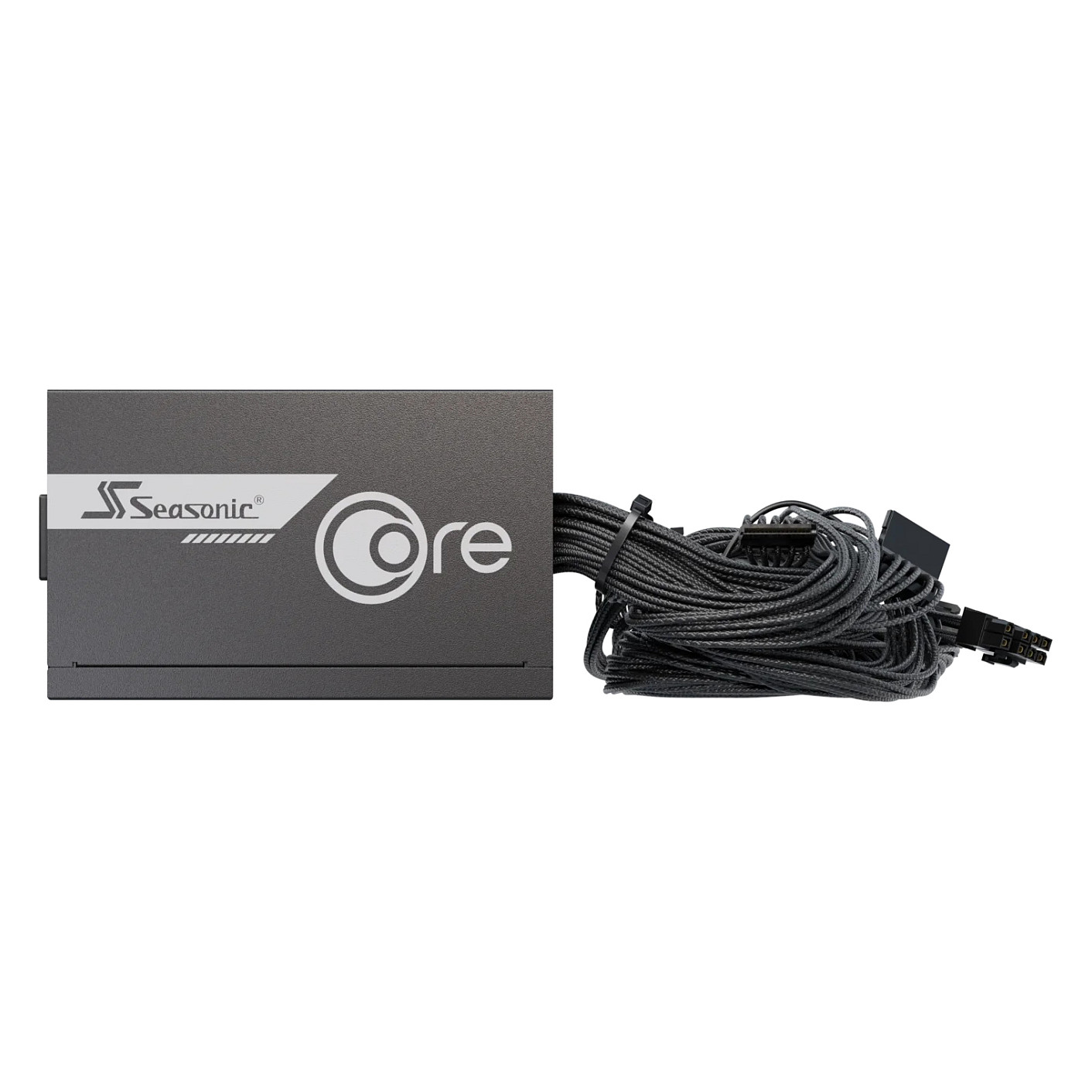

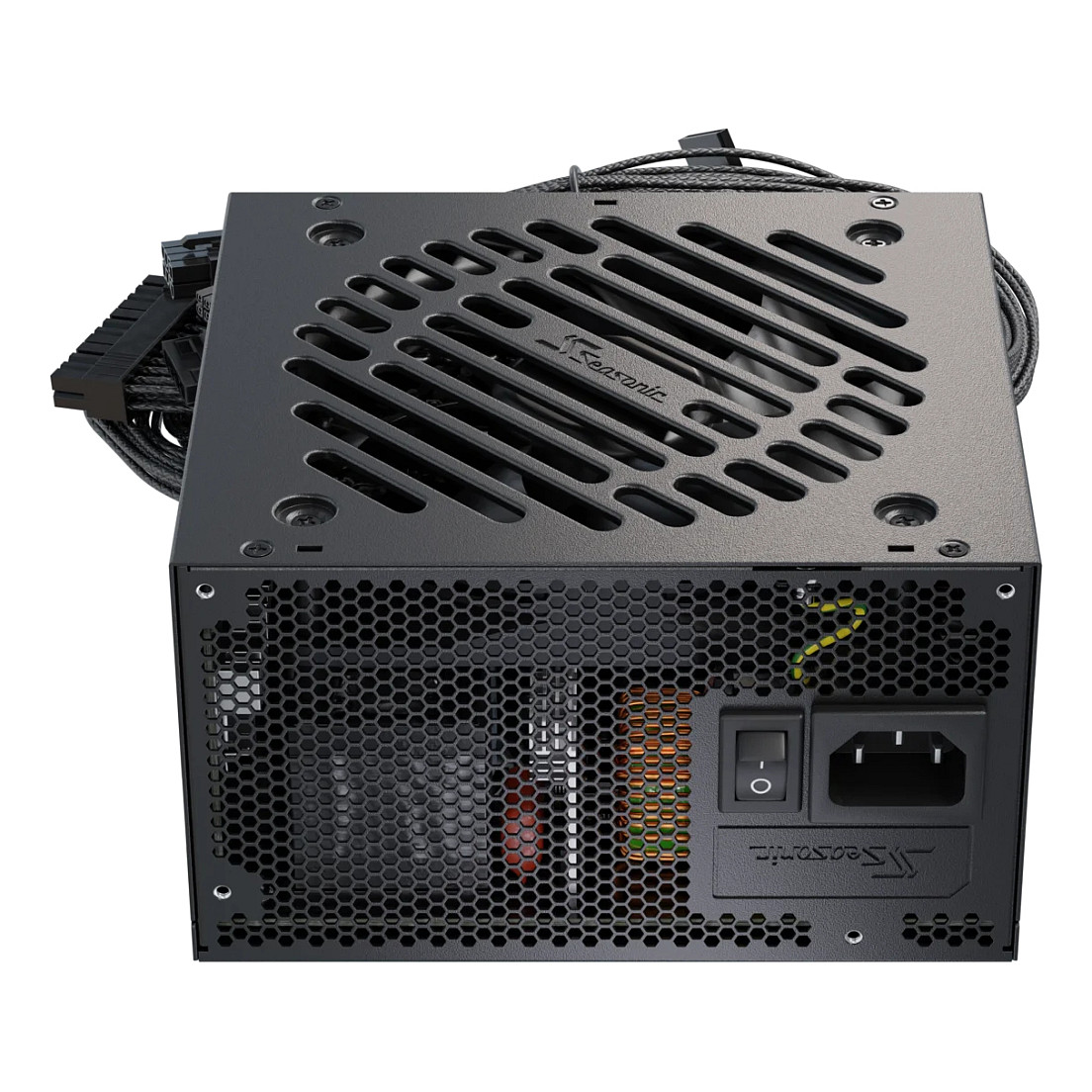

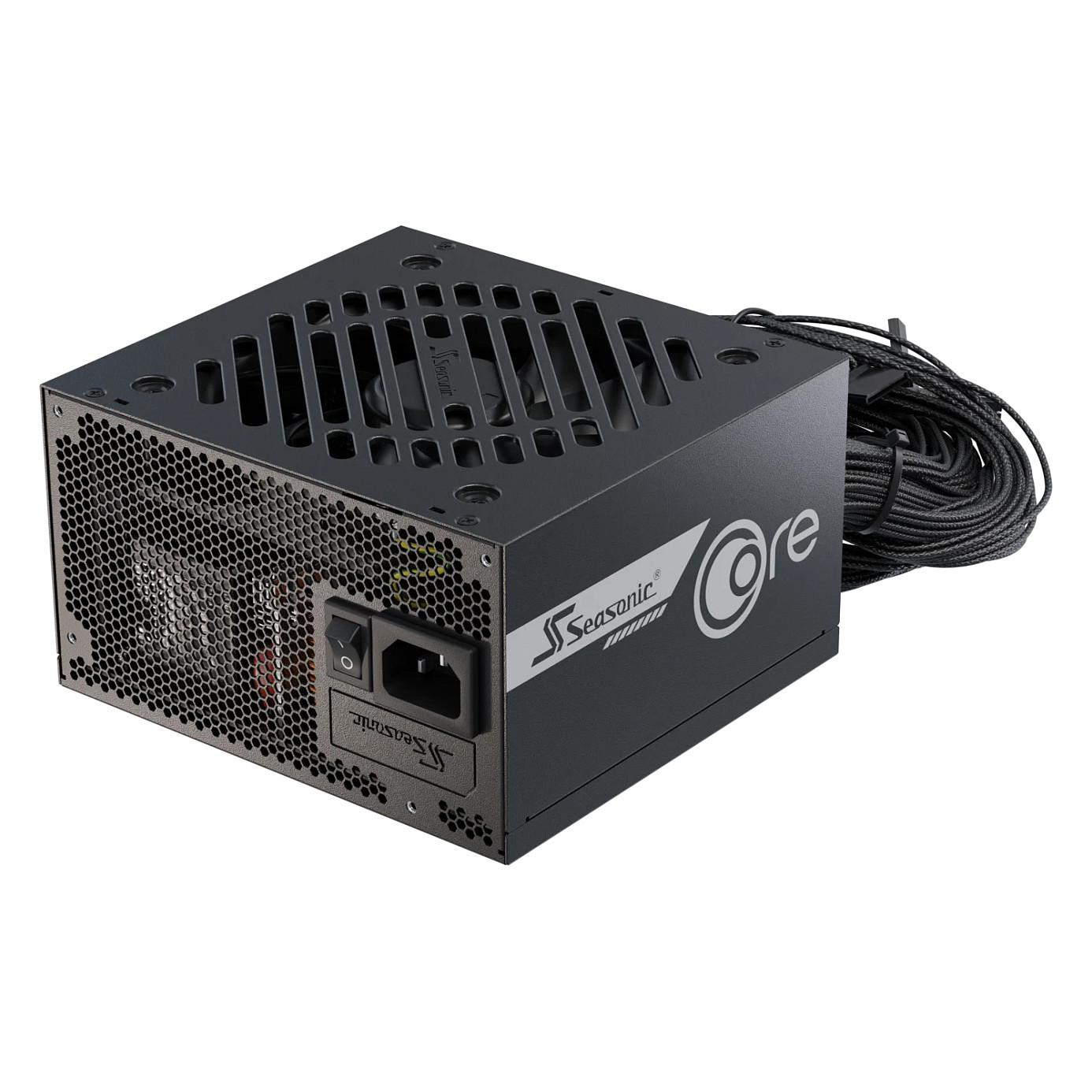

650W Seasonic Core BC-650 ATX3
Pre-Order
€59.99
VAT (19%) included
Description
650 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Bronze Active 12 cm Black
Technical Specifications
SKU
KSRP-CBC651-A5A51JF
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
9 - 4.5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
648 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
54 A
Max Output Current (+5V)
2.5 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
20 A
Power Protection Features
Over current, Over power, Over voltage, Short circuit
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (6+2 Pin)
4
Cpu Power Cable Length
60 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
Sleeve
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C
Compliance Certificates
BSMI, CB, CCC, CE, EAC, REACH, RoHS, UKCA, WEEE, cTUVus
Certification
CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Width
150 mm
Depth
140 mm
Height
86 mm
Sustainability Certificates
ENERGY STAR
