Thermaltake

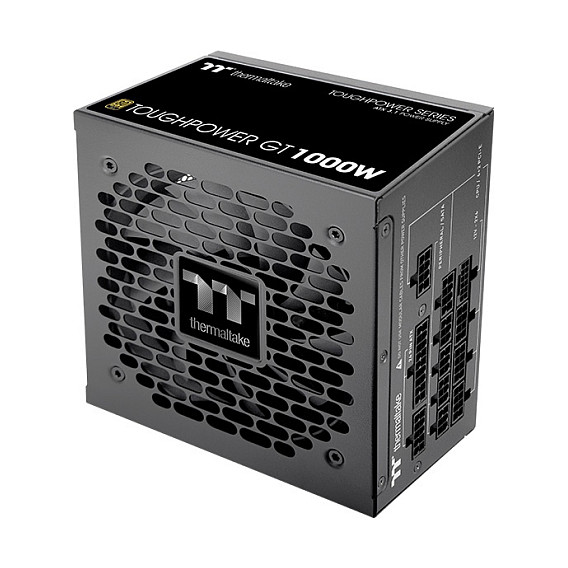

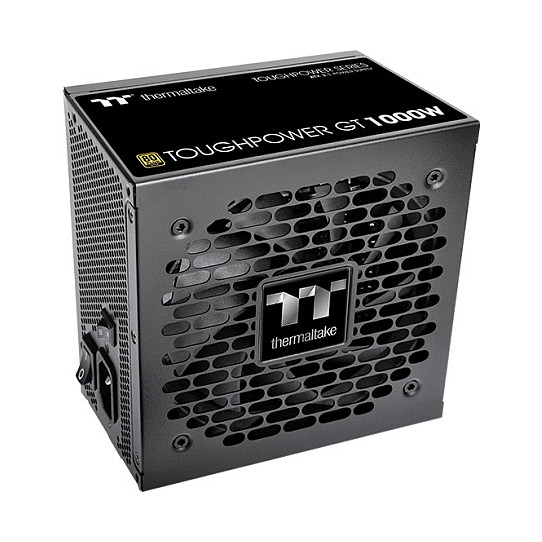

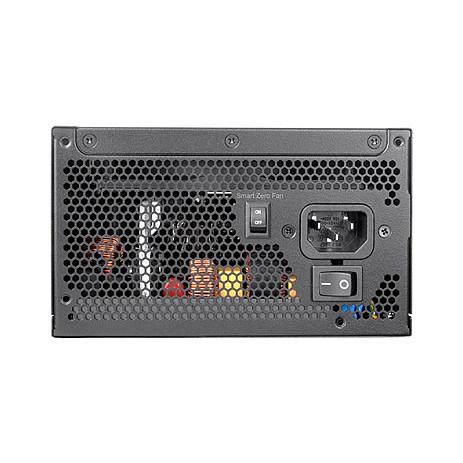

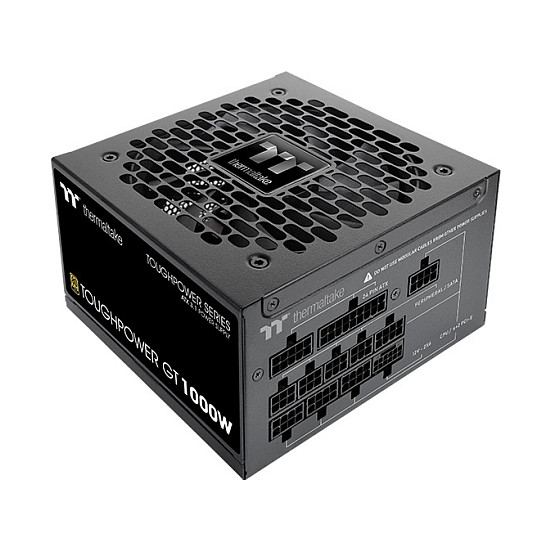

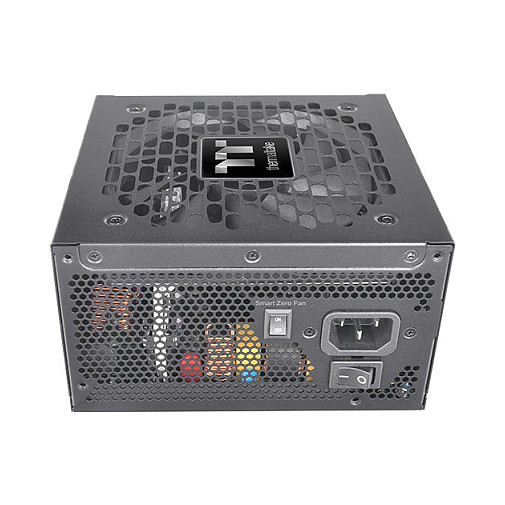

1000W Thermaltake Toughpower GT 1000W ATX3.1/GEN5 80+G BK
Pre-Order
€155.99
VAT (19%) included
Description
1000 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold Active 12 cm Black
Technical Specifications
SKU
KPS-TPT-1000FNFAGE-3
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15 - 10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
999.6 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
83.3 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Power Protection Features
Over current, Over power, Under voltage, Over voltage, Short circuit
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
150, 400 mm
Pci Express Power Connectors (6+2 Pin)
5
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Hydraulic
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
5 - 85%
Compliance Certificates
BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, UKCA, cTUVus
Width
150 mm
Depth
140 mm
Height
86 mm
