Chieftec

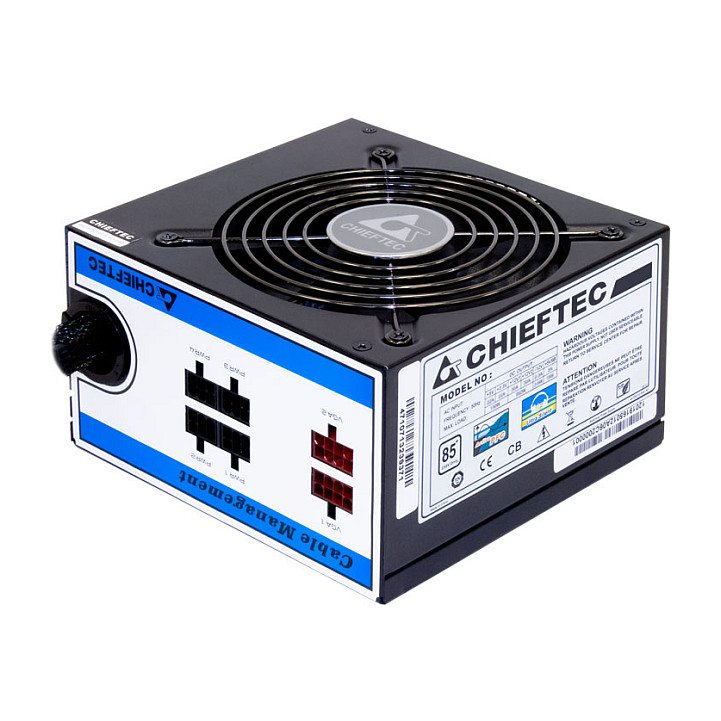

550W Chieftec A-80 Serie CTG-550C
Pre-Order
€85.99
VAT (19%) included
Description
550 W 230 V 50 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Active 12 cm Black
Technical Specifications
SKU
KCTG-550C
Total Power
550 W
Ac Input Voltage
230 V
Ac Input Frequency
50 Hz
Input Current
6 A
Maximum Input Current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
130 W
Combined Power (+12V)
456 W
Combined Power (+5V)
130 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
25 A
Max Output Current (+12V2)
25 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
85%
Power Protection Features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
4
Pci Express Power Connectors (6+2 Pin)
2
Cpu P4 Connector (4-Pin)
1
Floppy Drive Power Connector
2
Cabling Type
Semi-Modular
80 Plus Certification
80 PLUS
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Compliance Certificates
RoHS
Certification
CE, CB, FCC
Width
150 mm
Depth
140 mm
Height
87 mm
Package Type
Box
Harmonized System (Hs) Code
84733020
Parallel Processing Technology Support
2-Way CrossFireX, 2-Way SLI
