Sea Sonic

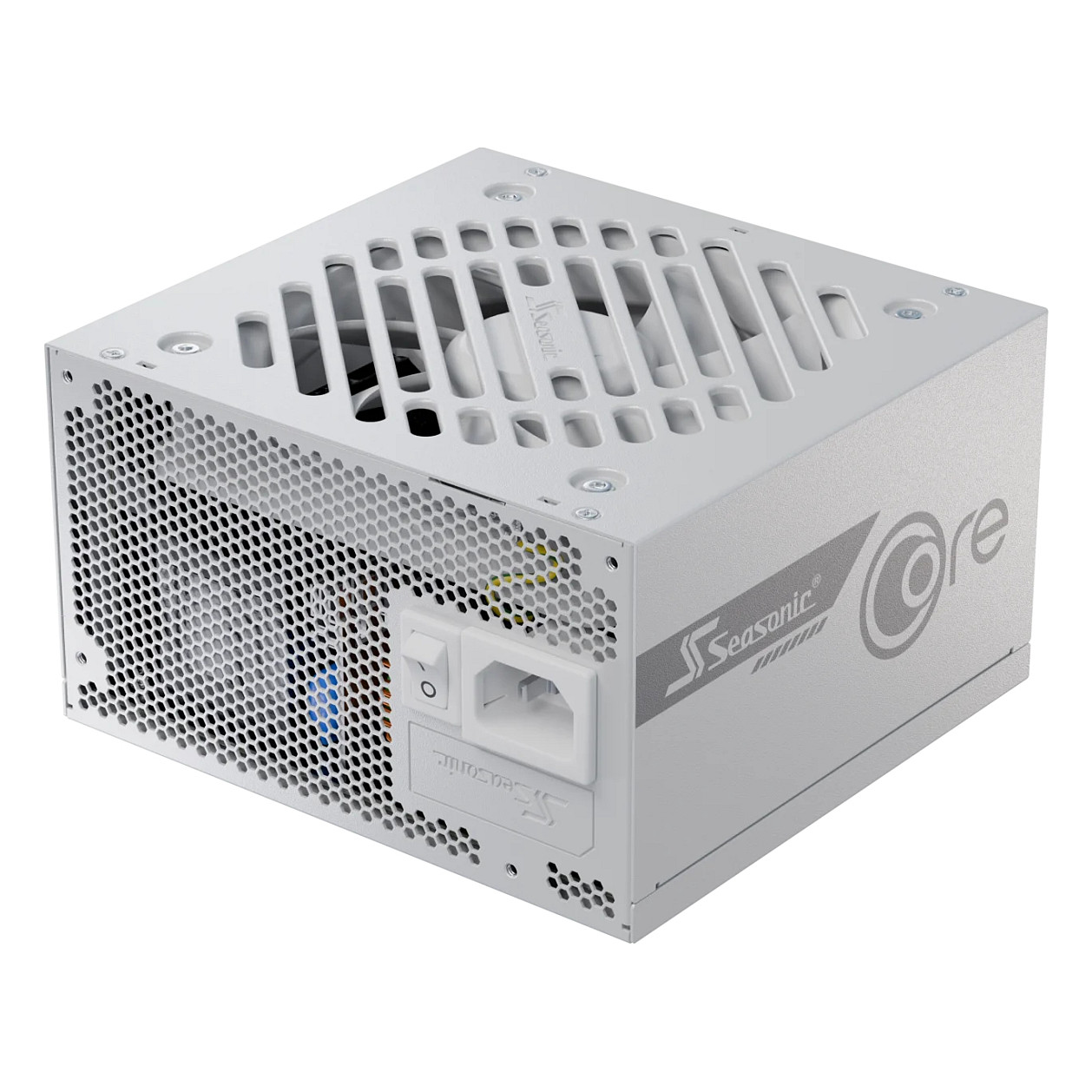

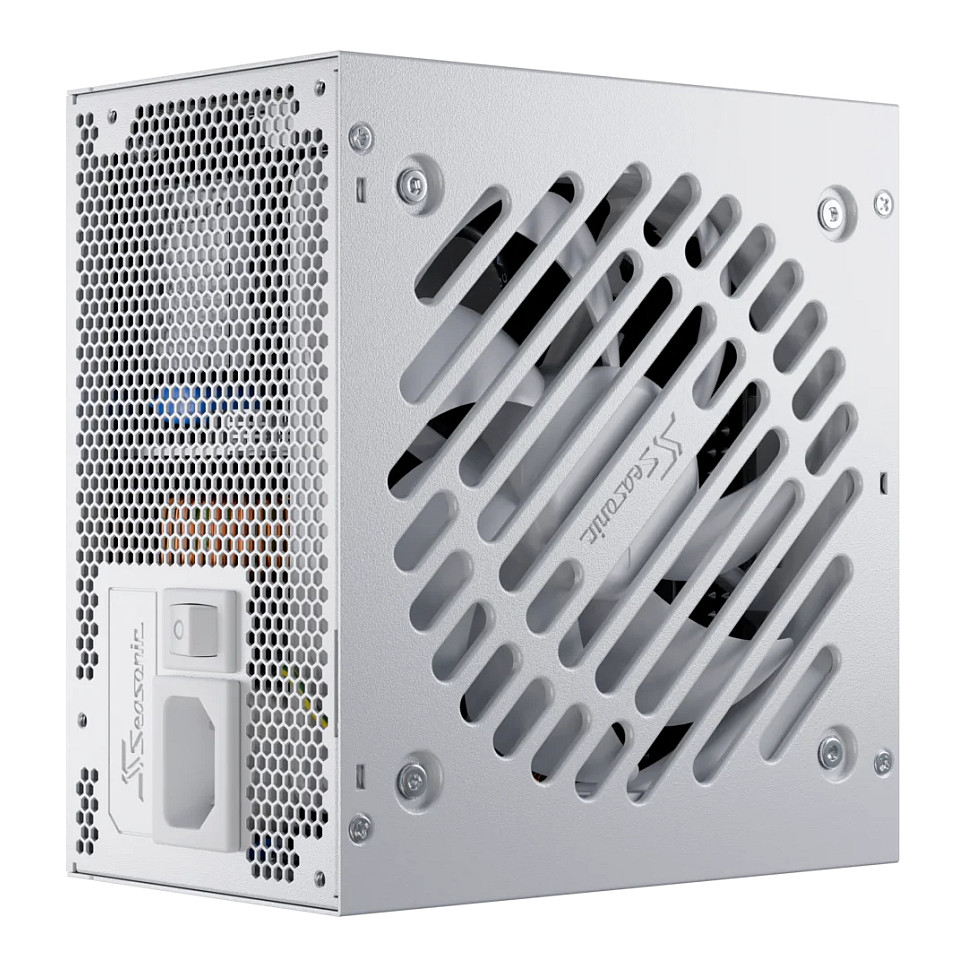

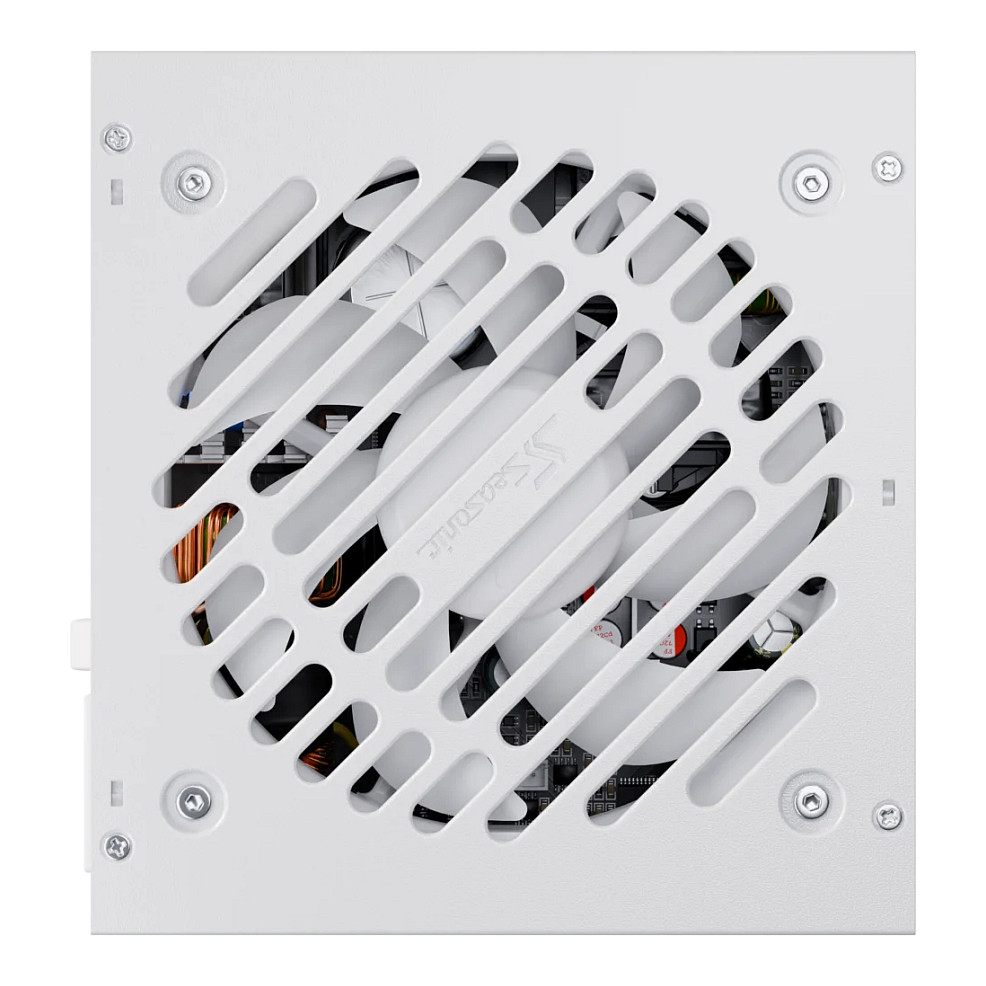

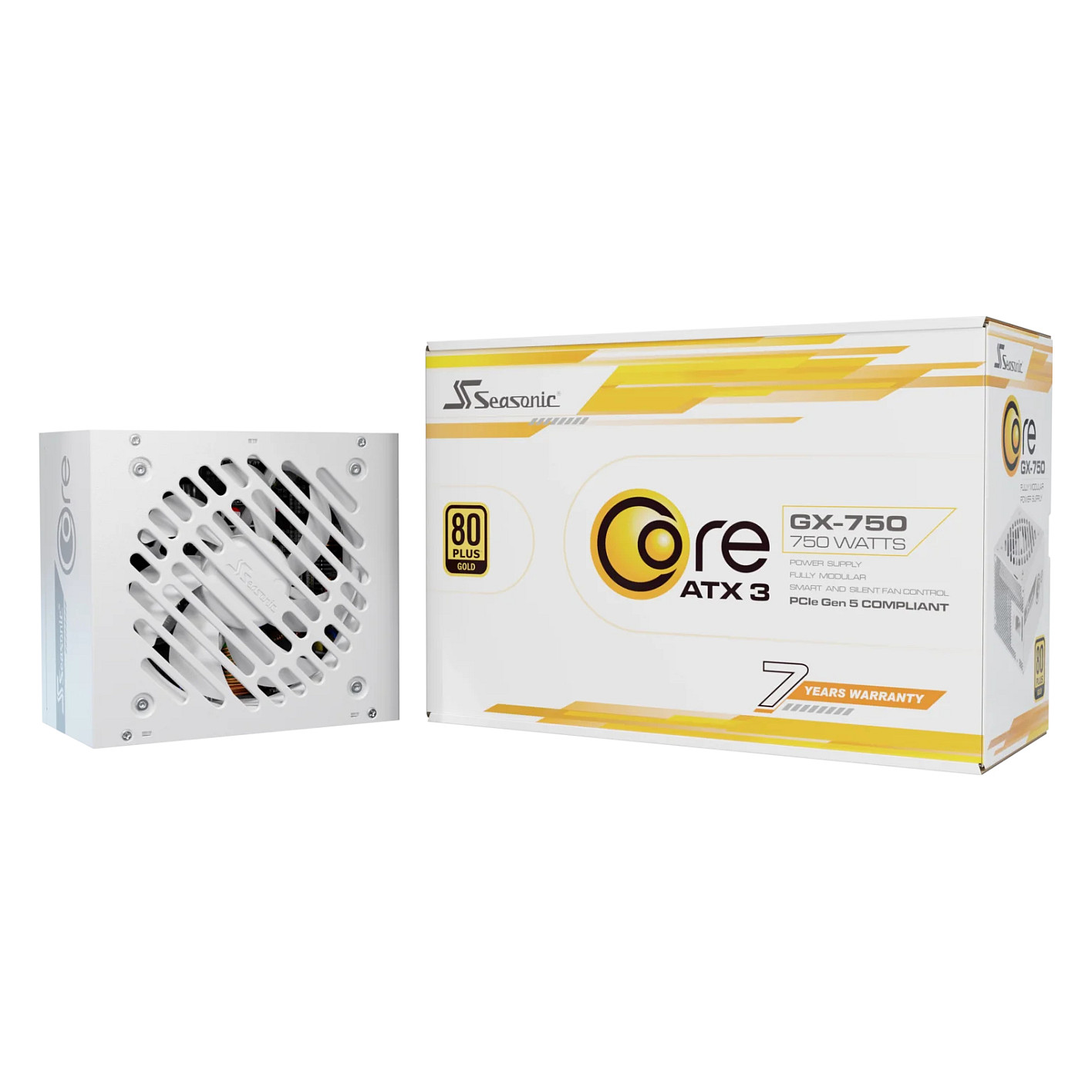

750W Seasonic Core GX-750-V2-WHITE Kabelmanagement
Pre-Order
€114.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Gold Active 12 cm White
Technical Specifications
SKU
KSRP-CGX751-A5A32SF-W
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
11 - 5.5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
744 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

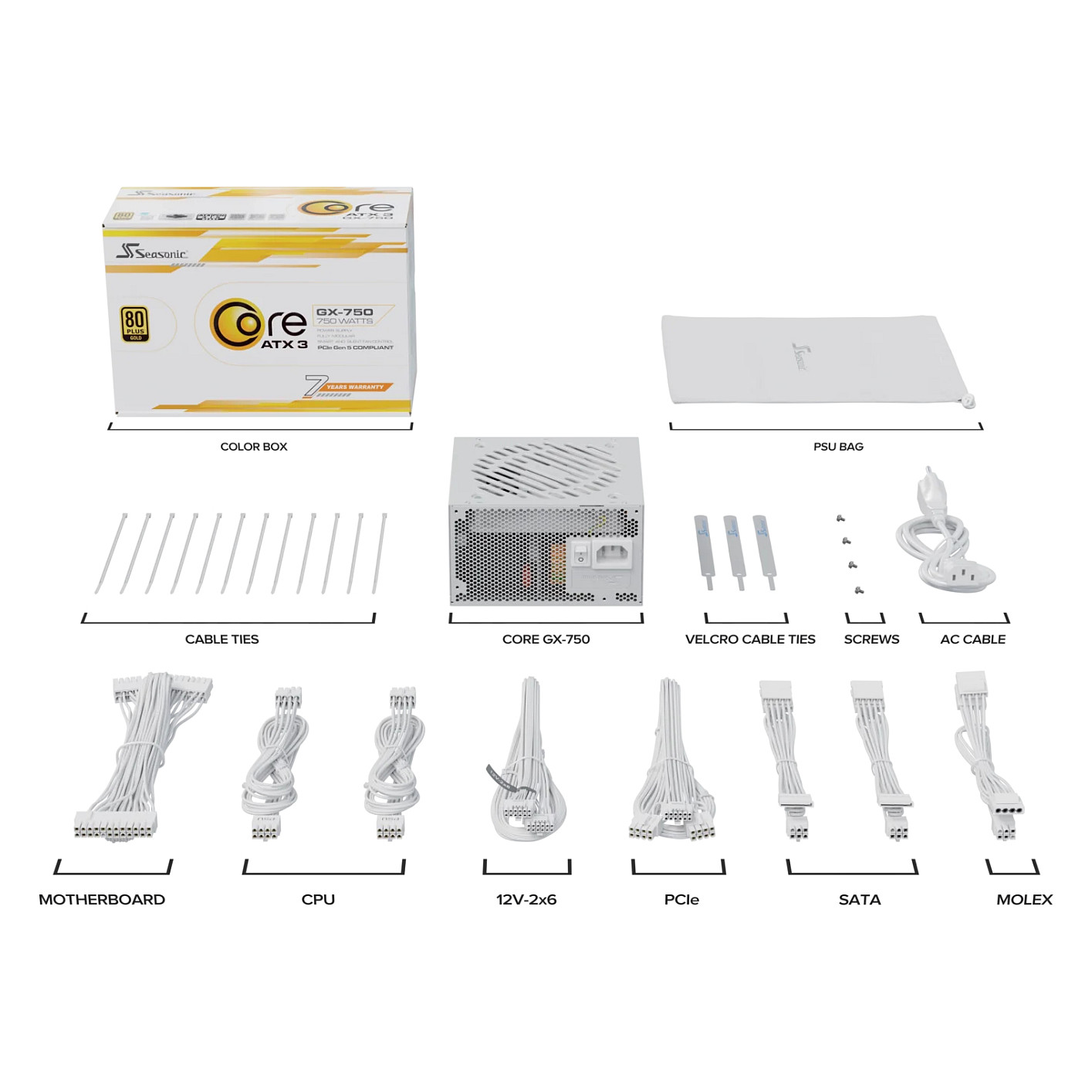

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
750 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
690 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
700 mm
Cpu Power Cable Length
75 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Hypro Bearing
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
White
Cooling Type
Active
Fan Diameter
12 cm
Operating Temperature (T-T)
0 - 50 °C
Width
140 mm
Depth
150 mm
Height
86 mm
