850W be quiet! Straight Power 12 | 80+Platinum
Pre-Order
€190.99
VAT (19%) included
Description

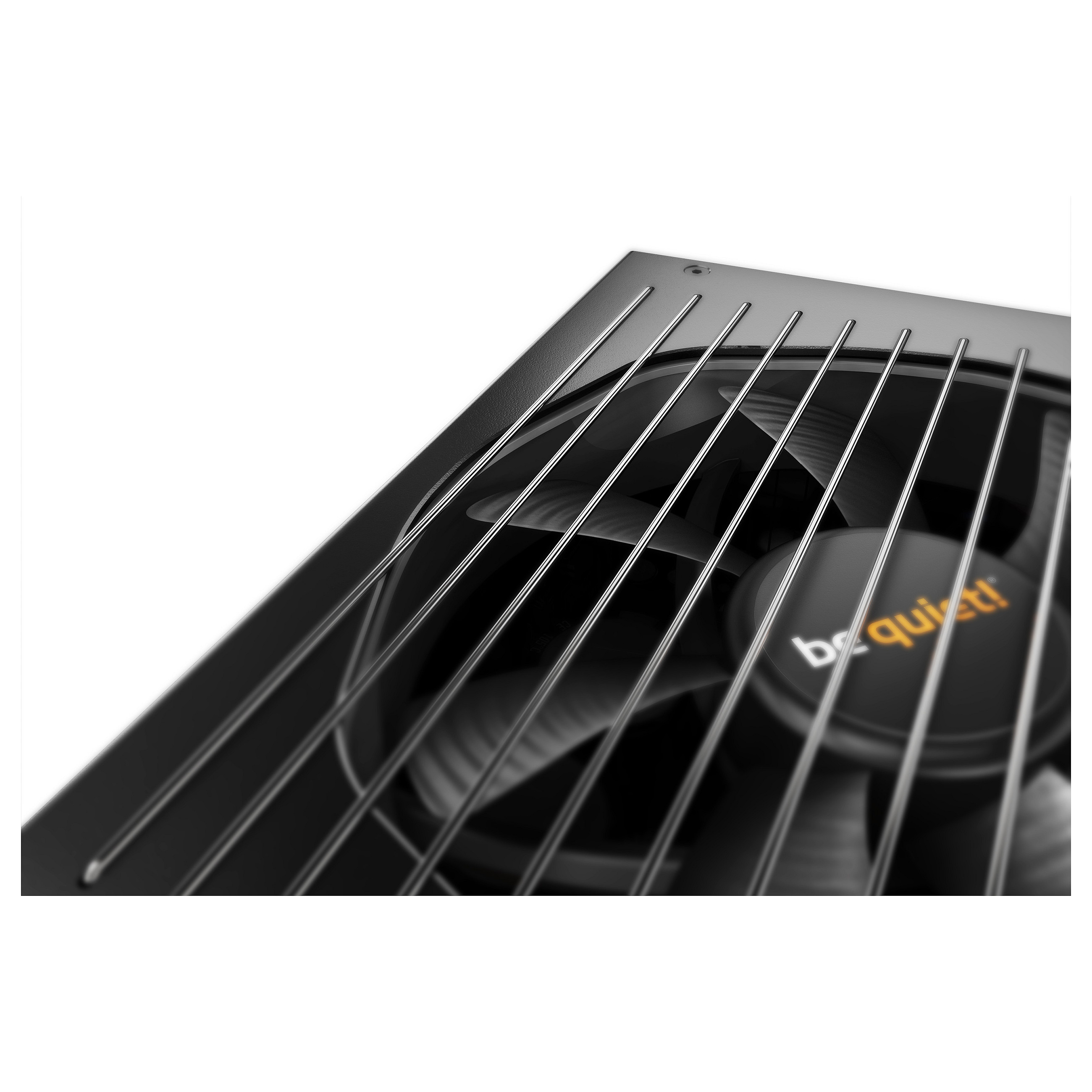

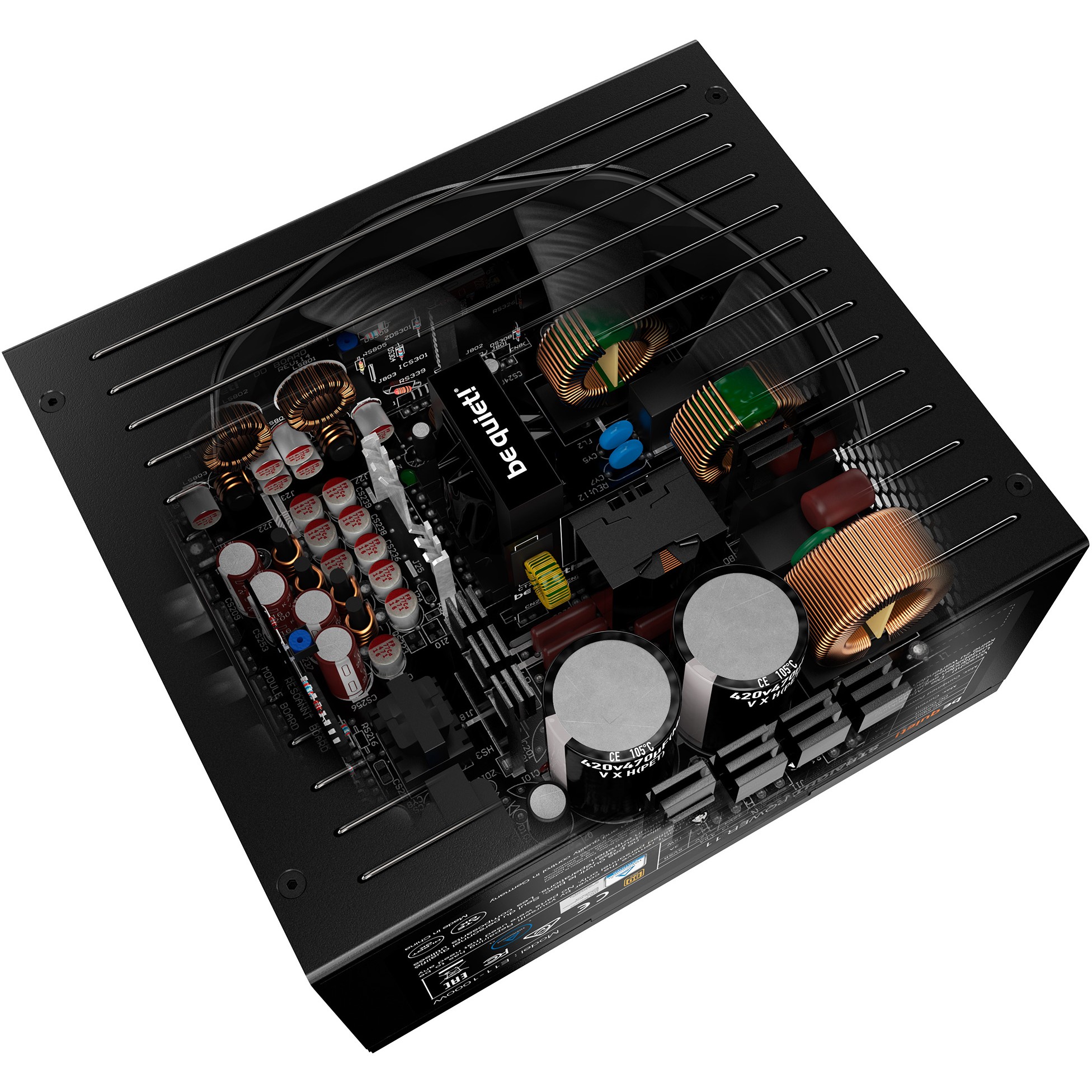

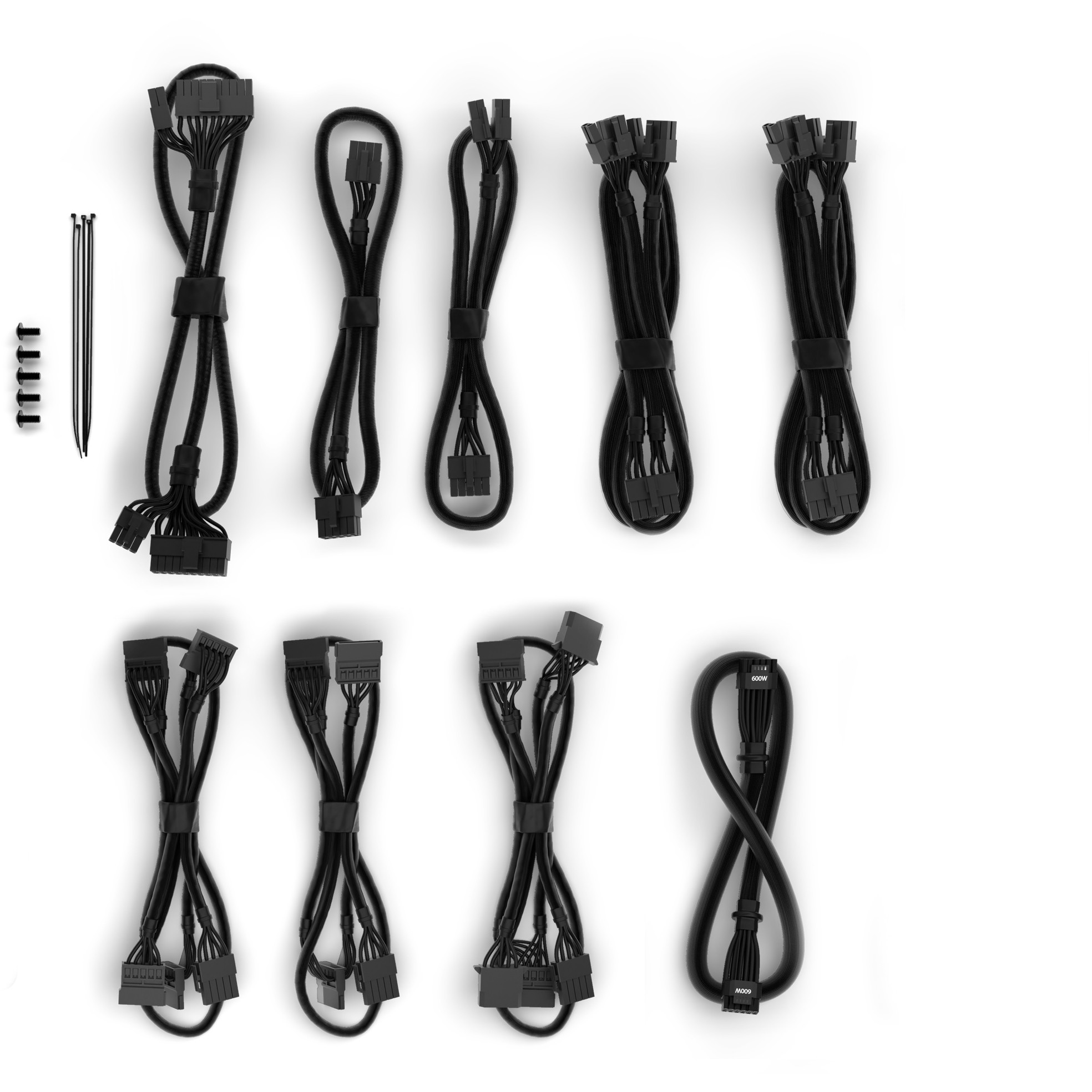

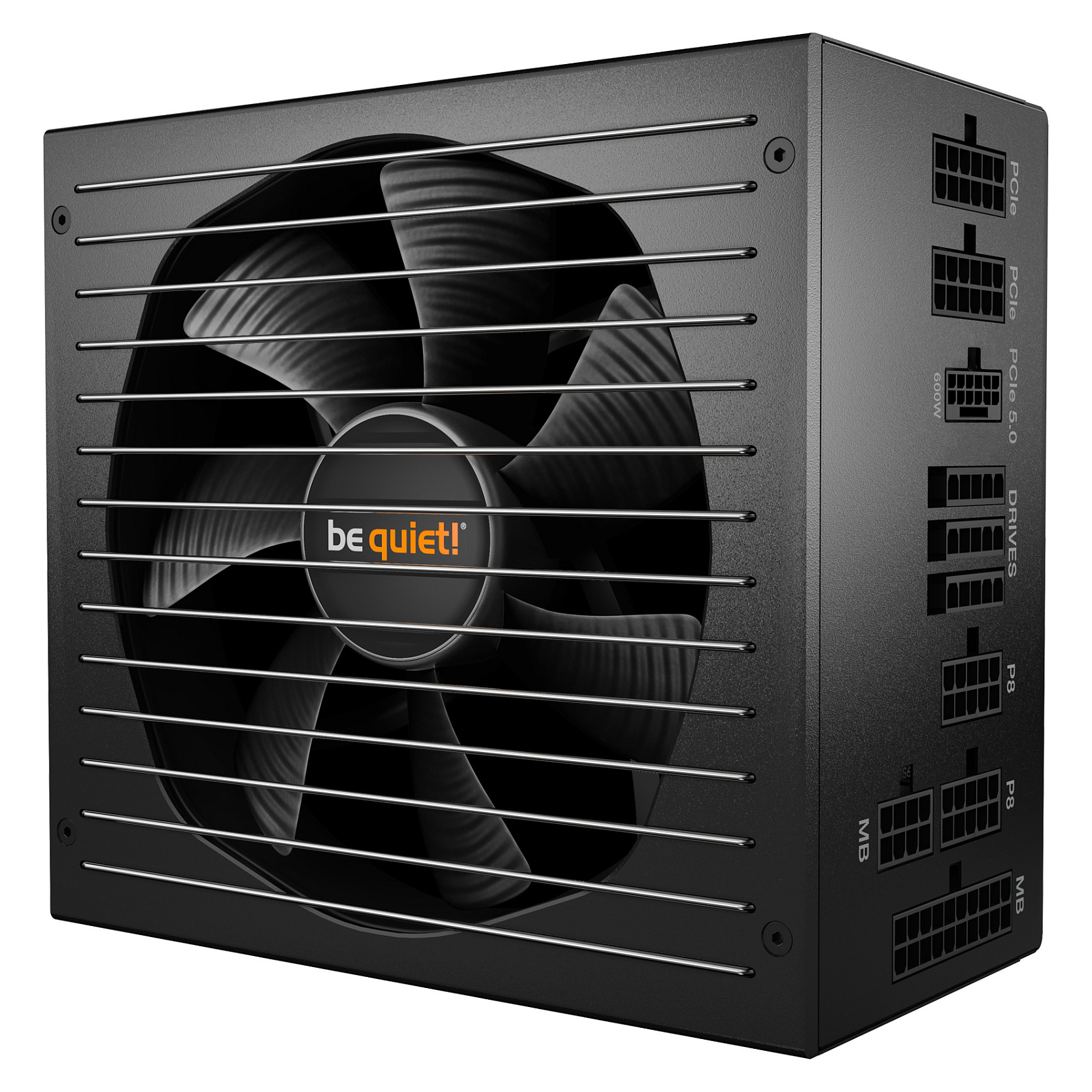

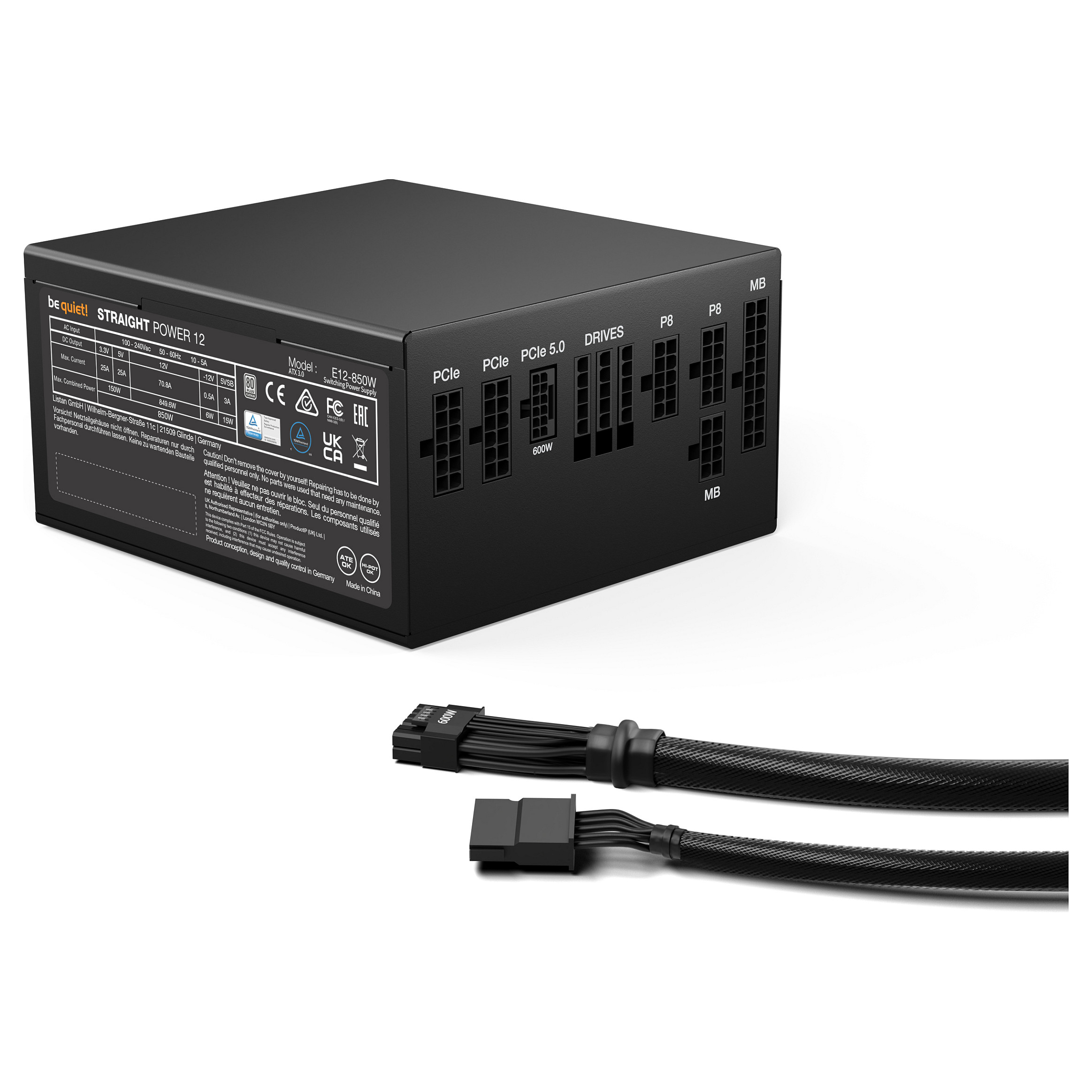

80 PLUS Platinum efficiency (up to 94%) ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Virtually inaudible Silent Wings 135mm fan Funnel-shaped fan opening on PSU case for high airflow intake Full bridge LLC technology for unmatched signal stability One massive high-performance 12V-rail Japanese 105°C capacitors ensure highest stability and reliability Wire-free DC side inside the PSU for enhanced cooling and longevity Modular cable management for maximum convenience One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Technical Specifications
SKU
KBN337
Total Power
850 W
Peak Power
920 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10/5 A
Power Factor
0.99
Combined Power (+3.3V)
150 W
Combined Power (+12V)
849.6 W
Combined Power (+5V)
150 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
70.8 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3 A
Hold Time
19.2 ms
Efficiency
92.3%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
9
Number Of Pata Power Connectors
2
Sata Power Cable Length
550, 700, 850, 1000 mm
Peripheral (Molex) Power Cable Length
1000, 850 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Supported Motherboard Form Factors
ATX, micro ATX, Mini-ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
22.1 dB
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2100 RPM
Operating Temperature (T-T)
0 - 40 °C
Cables Included
CPU, SATA
Compliance Certificates
RoHS, Federal Communications Commission (FCC), UKCA, WEEE, CE
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.81 kg
Package Width
248 mm
Package Depth
328 mm
Package Height
102 mm
Package Weight
3.52 kg
Package Type
Box
Sustainability Certificates
Triman, ENERGY STAR, ErP
Shipping (Inner) Case Length
65.1 cm
Shipping (Inner) Case Width
28.2 cm
Shipping (Inner) Case Height
34.6 cm
Shipping (Inner) Case Net Weight
22.7 kg
Products Per Shipping (Inner) Case
6 pc(s)
Warranty Period
10 year(s)
