Sea Sonic

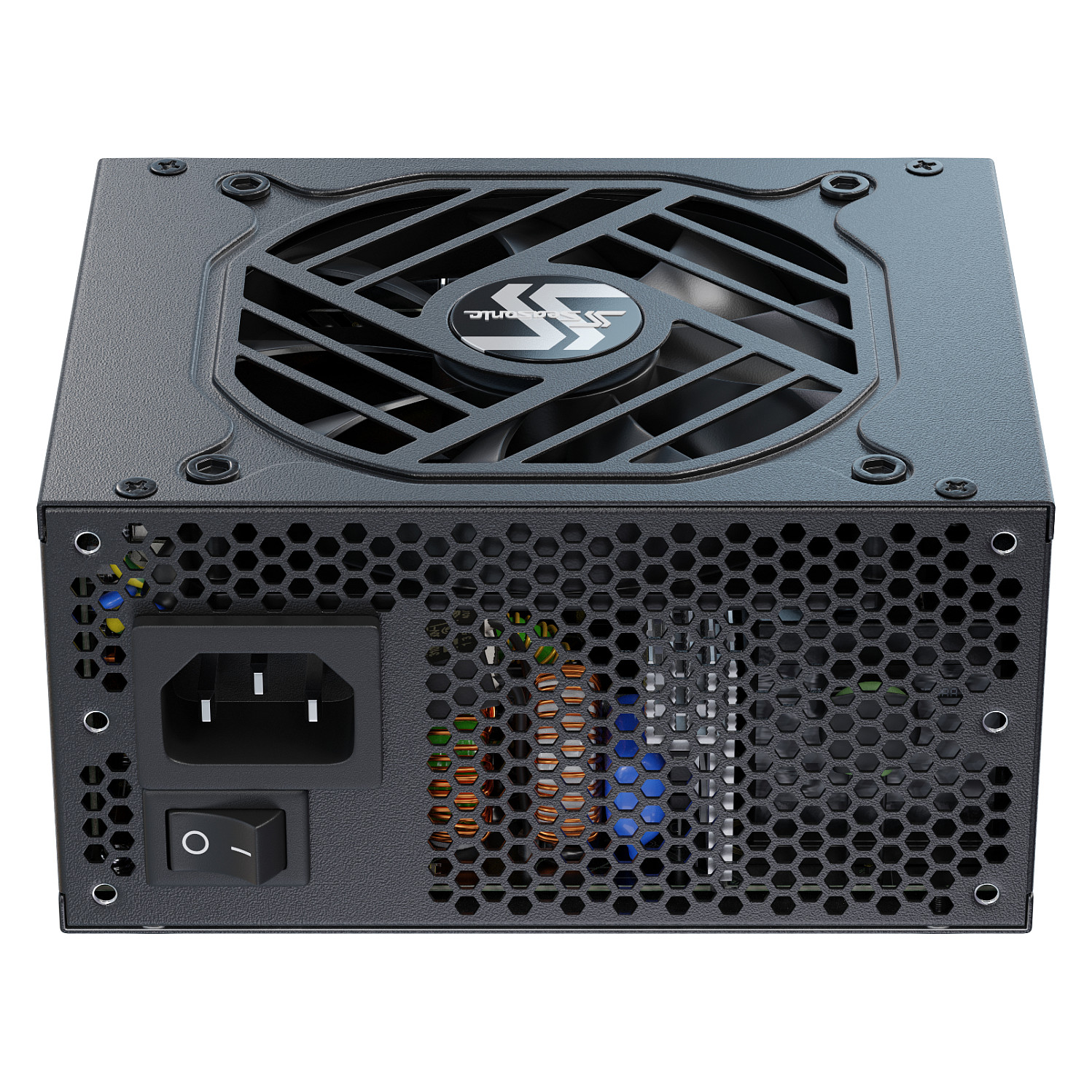

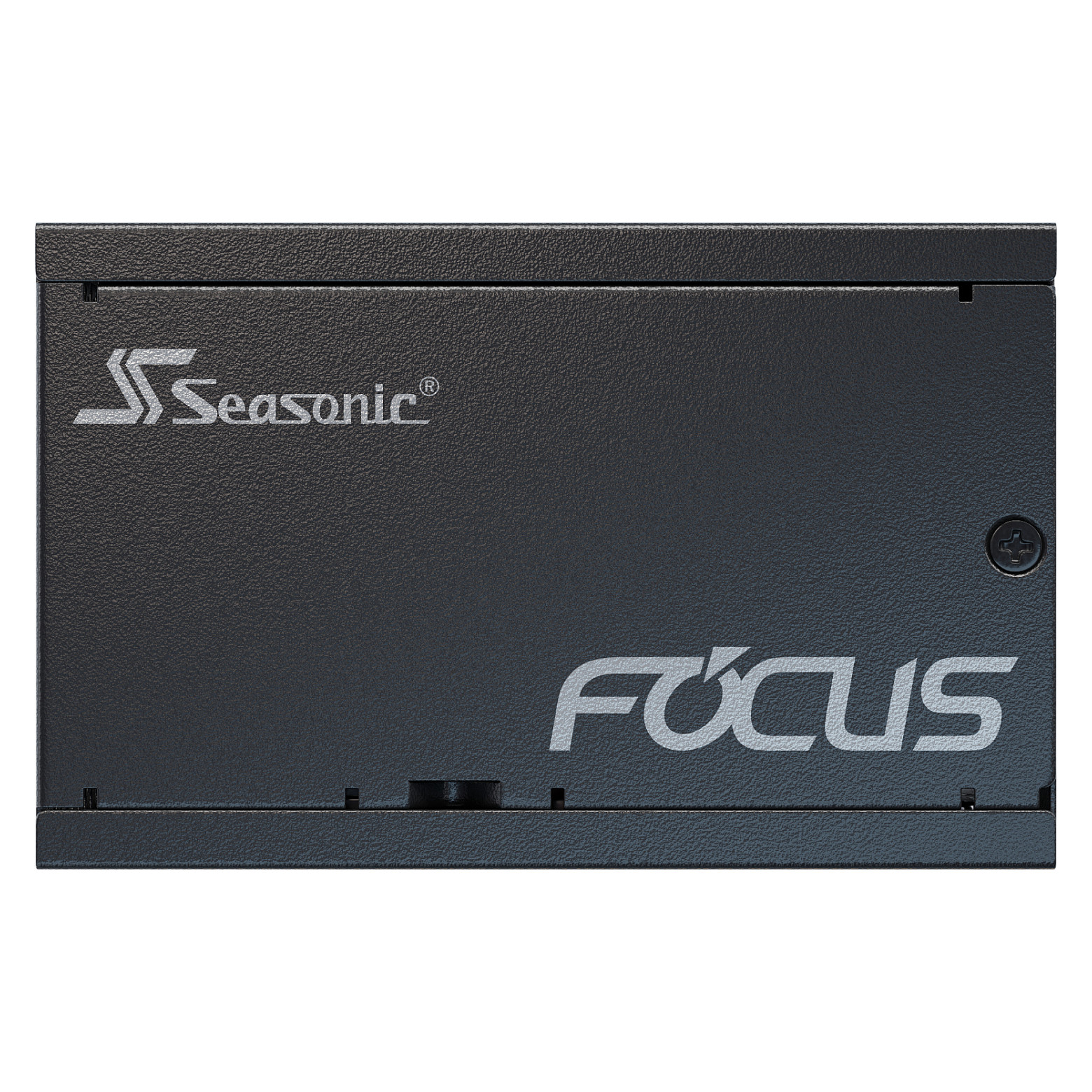

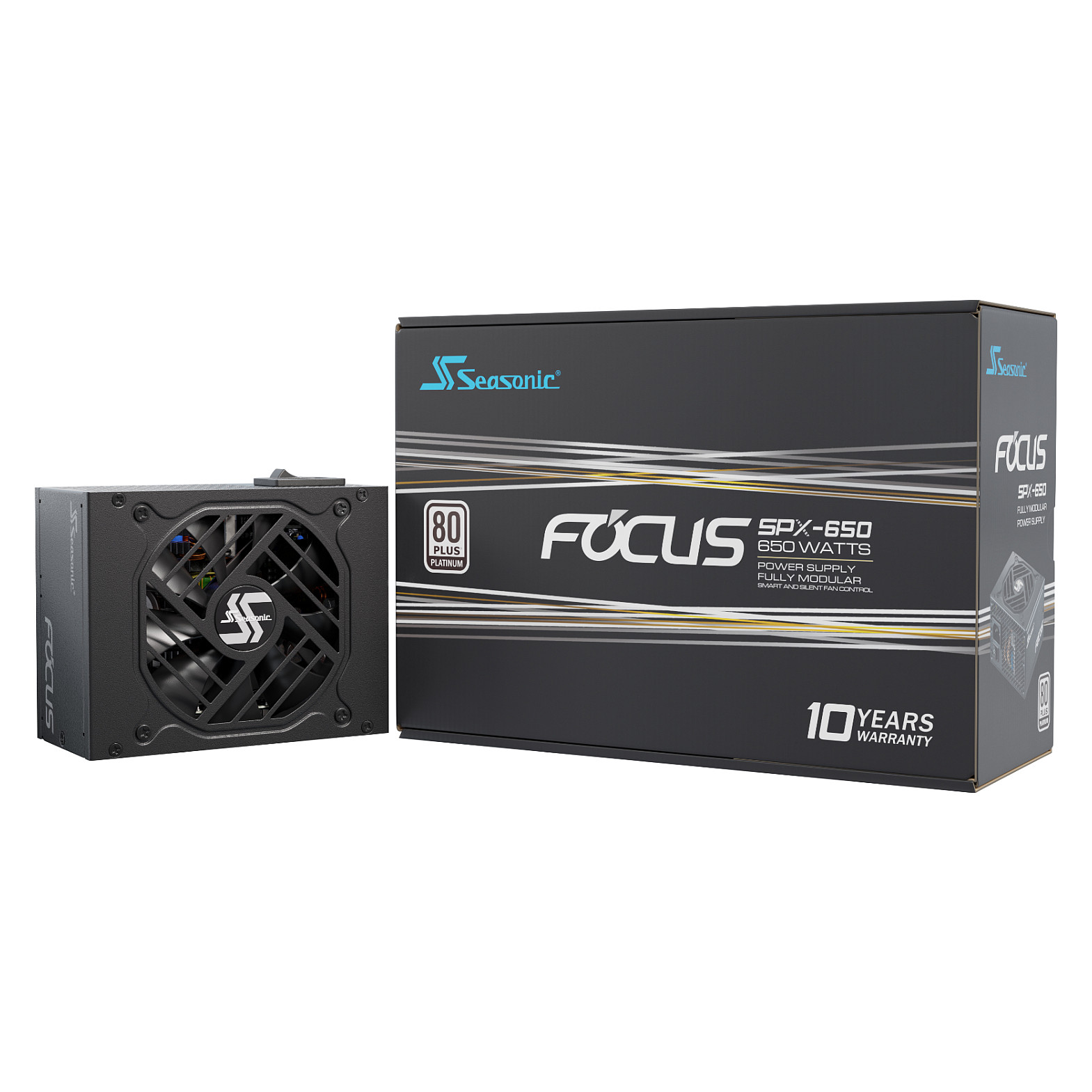

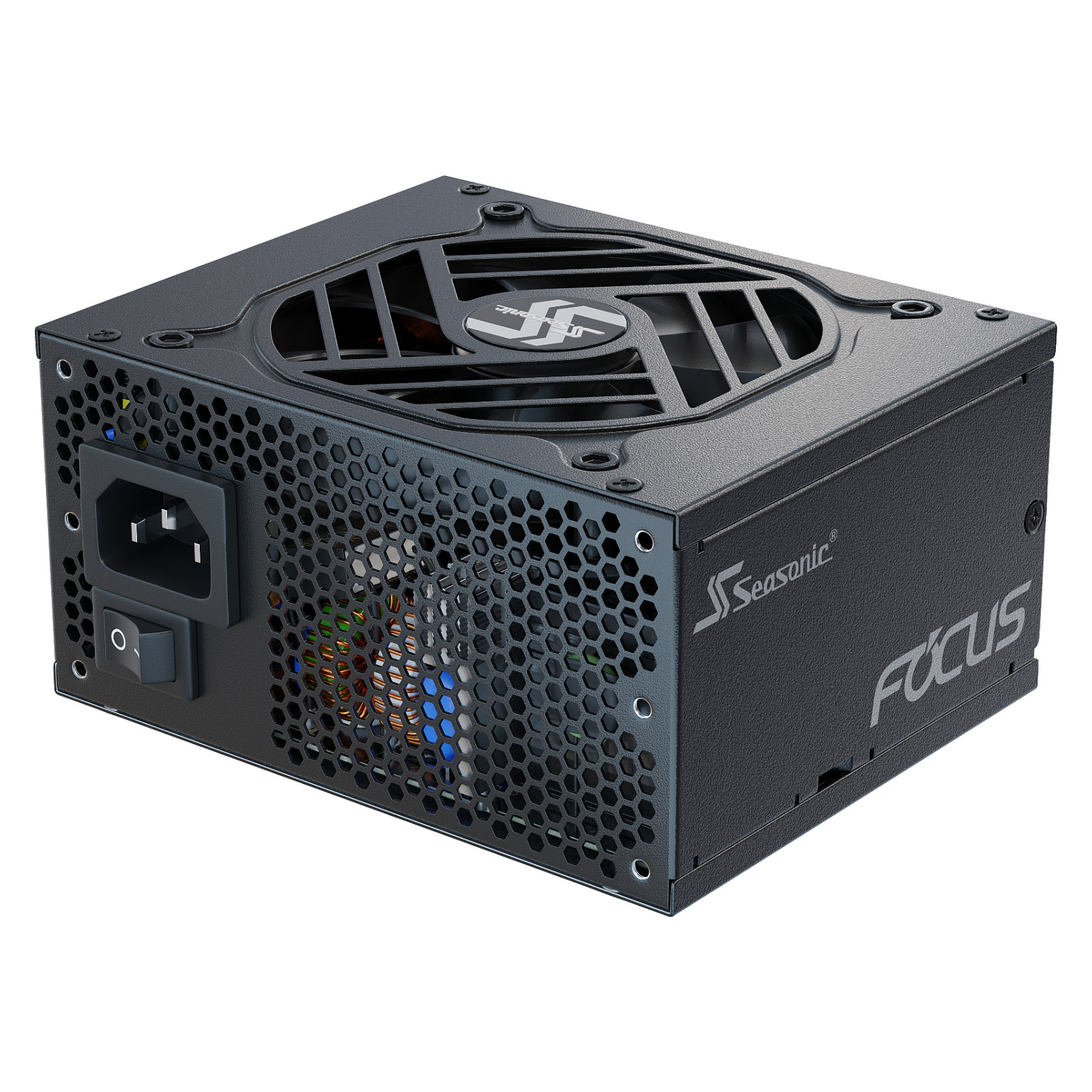

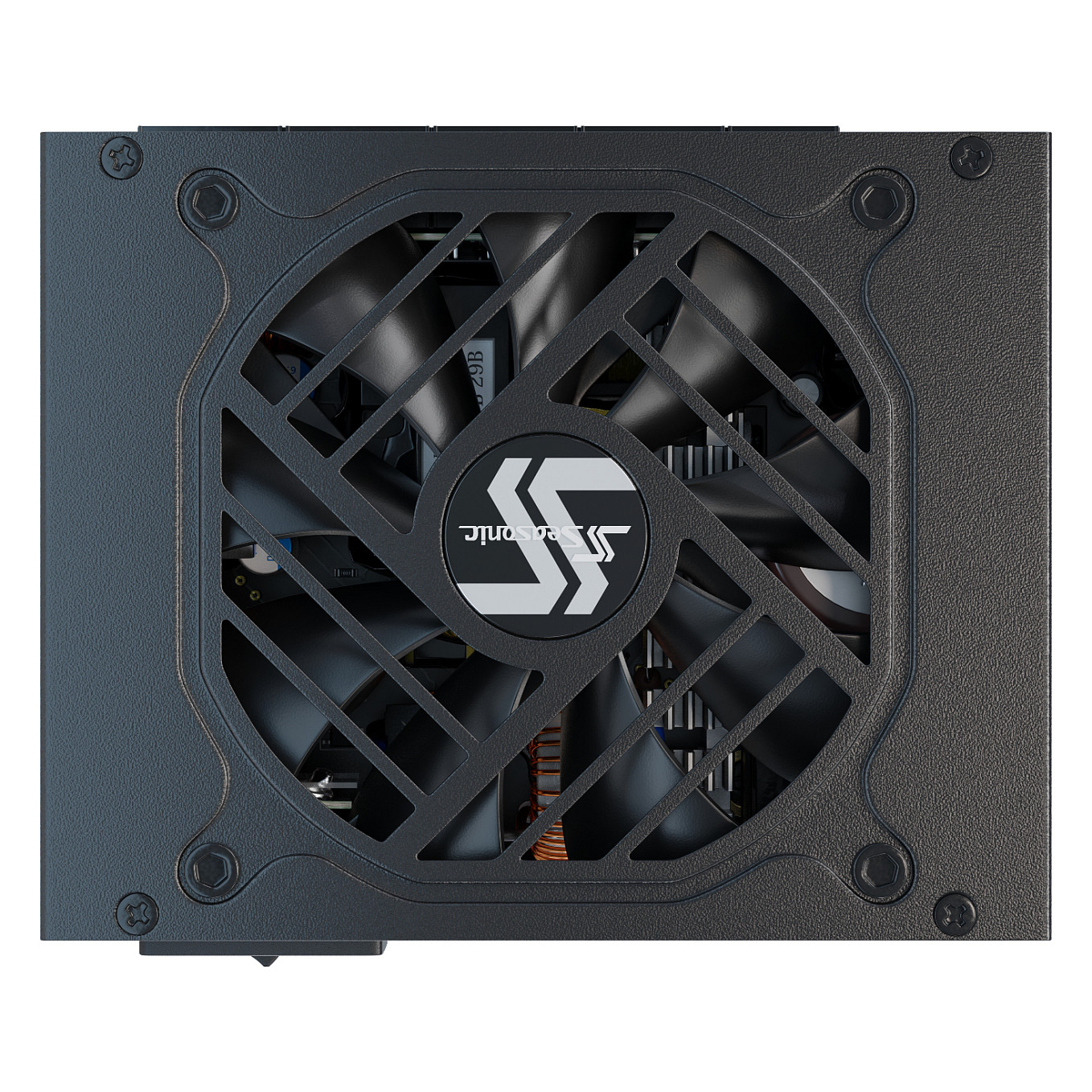

650W Seasonic FOCUS-SPX-650 80+Platinum
Pre-Order
€164.99
VAT (19%) included
Description
SFX 12 V / ATX 12 V Fully Modular 80 PLUS Platinum Certified
Technical Specifications
SKU
KFOCUS-SPX-650
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
9 - 4.5 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
648 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
54 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over voltage, Short circuit
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (8-Pin)
4
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
CFX
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 50 °C
Cables Included
AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Certification
OPP, OVP, UVP, OCP, OTP, SCP, cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Width
125 mm
Depth
100 mm
Height
63.5 mm
Package Type
Box
