Chieftec

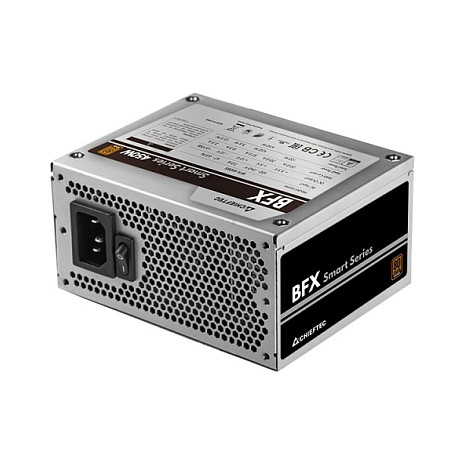

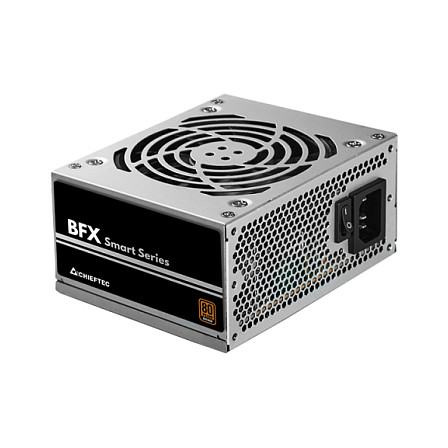

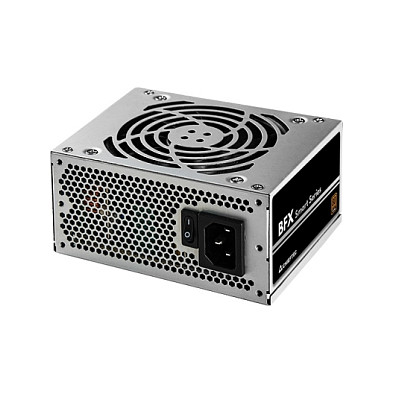

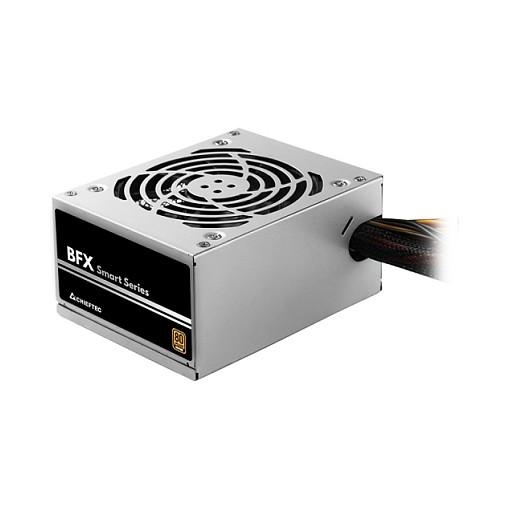

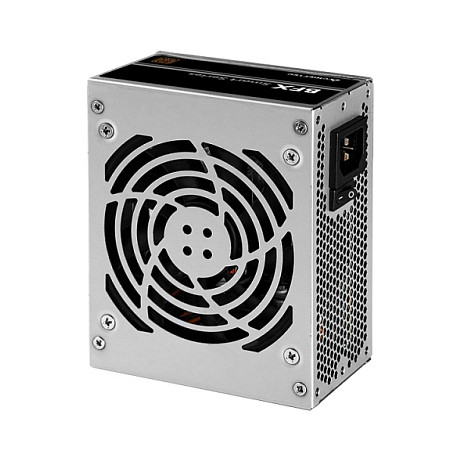

450W Chieftec BFX Smart Series - Netzteil
In Stock
€57.99
VAT (19%) included
Description
80 PLUS Bronze certifed efciency DC-to-DC technology OCP and OTP Protection Long Life 9cm fan
Technical Specifications
SKU
KBFX-450BS
Total Power
450 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
7 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
450 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
37.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Power Protection Features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
250 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
35 cm
Floppy Drive Power Connector
1
Floppy Disk Drive Cable Length
15 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Black, Silver
Cooling Type
Active
Fan Diameter
9 cm
Width
125 mm
Depth
100 mm
Height
64 mm
Weight
1.5 kg
Harmonized System (Hs) Code
84733020
