850W ENDORFY Supremo FM6 80 PLUS Gold
In Stock
€139.99
VAT (19%) included
Description
850 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold Active 12 cm 1260 - 1540 RPM Black
Technical Specifications
SKU
KEY7A012
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
13 - 6.5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
66 W
Combined Power (+12V)
840 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage

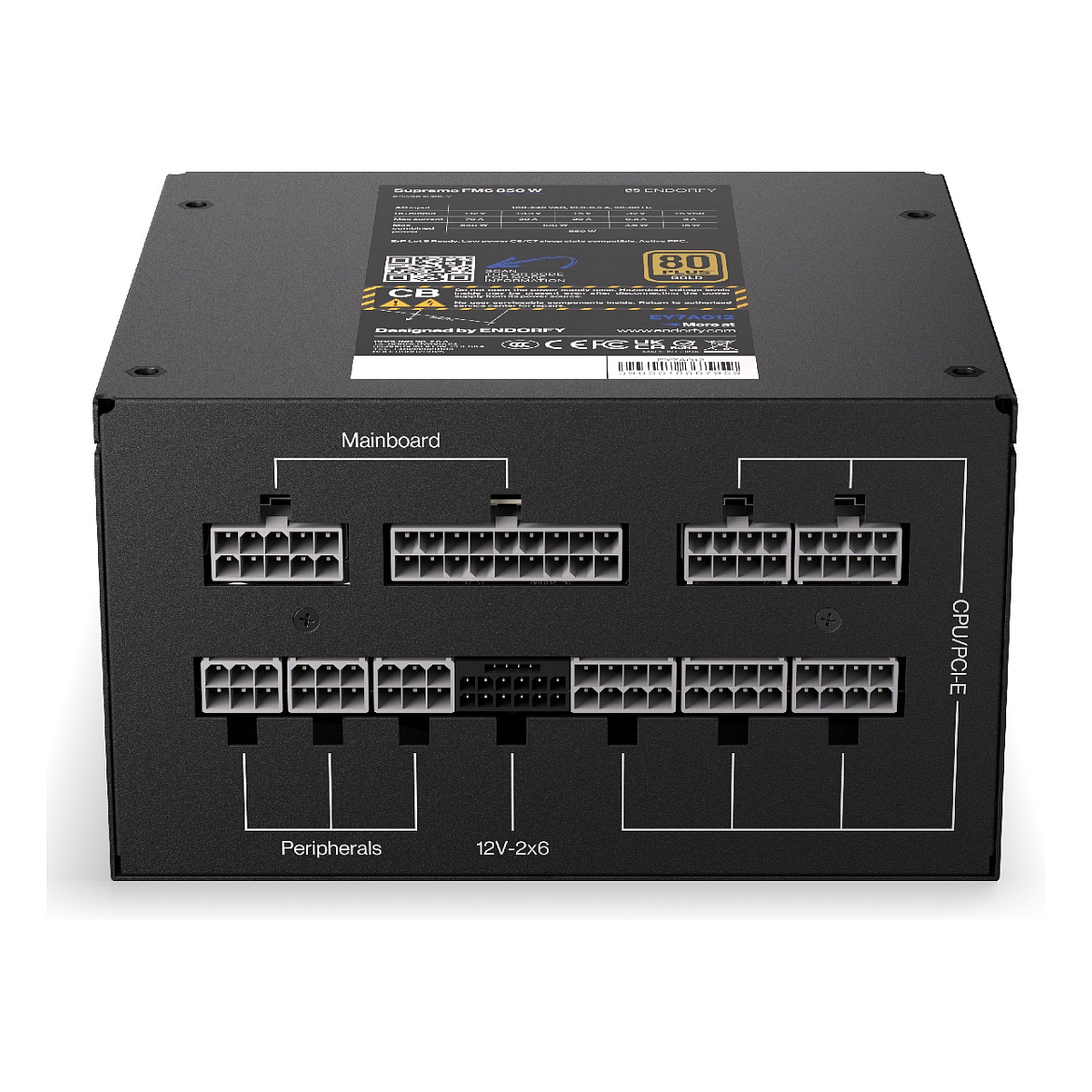

Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
8
Sata Power Cable Length
560 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (12+4 Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Speed
1260 - 1540 RPM
Fan Location
Top
Cables Included
AC
Compliance Certificates
CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Width
140 mm
Depth
150 mm
Height
87 mm
Weight
1.46 kg
Case Or Master Carton Dimensions (W X D X H)
600 x 235 x 290 mm
Case Or Master Carton Weight
17000 kg
Package Width
220 mm
Package Depth
270 mm
Package Height
95 mm
Package Weight
2.74 kg
Package Type
Box
Doesn'T Contain
Cadmium, Lead, Mercury
Warranty Period
10 year(s)
Country Of Origin
China
