Sea Sonic

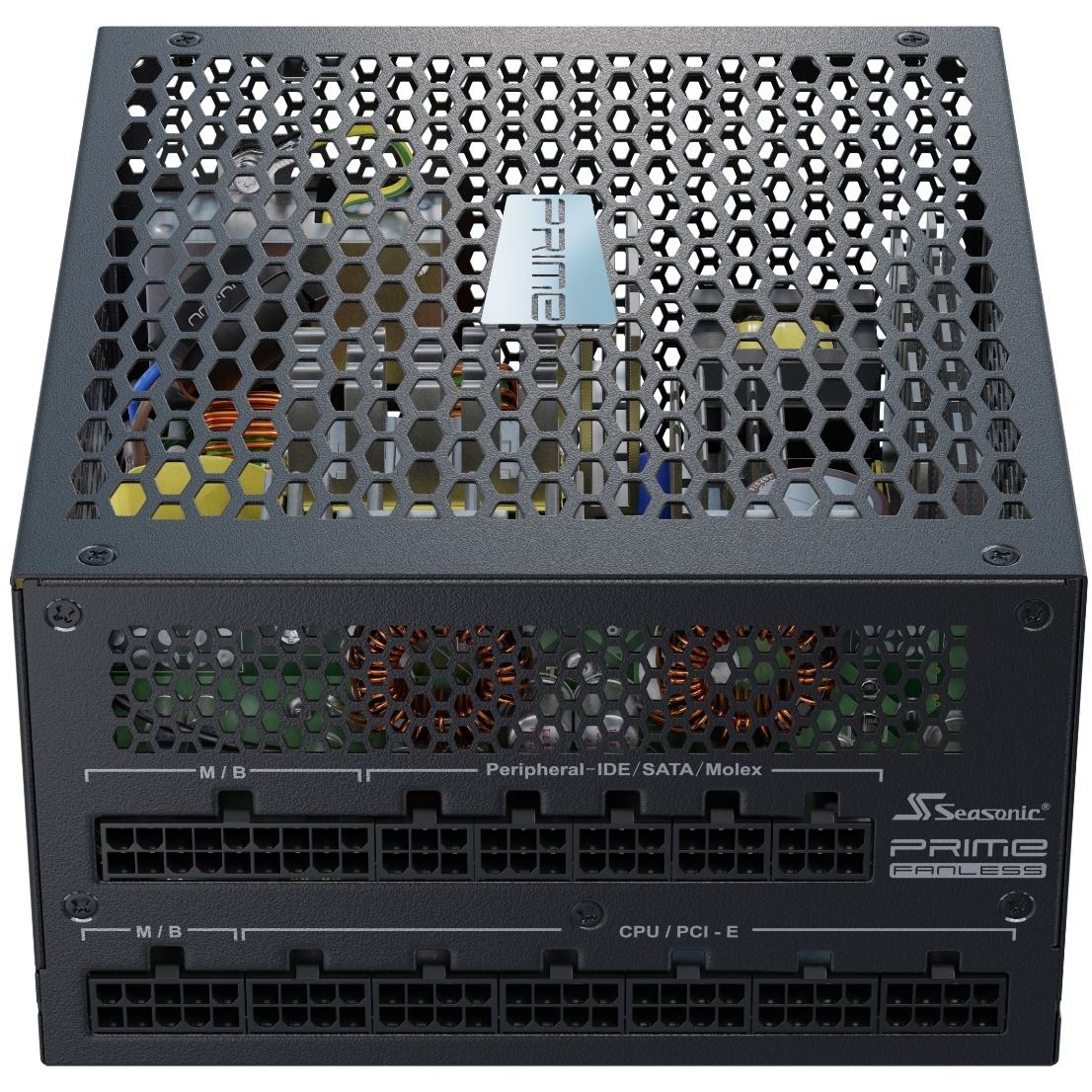

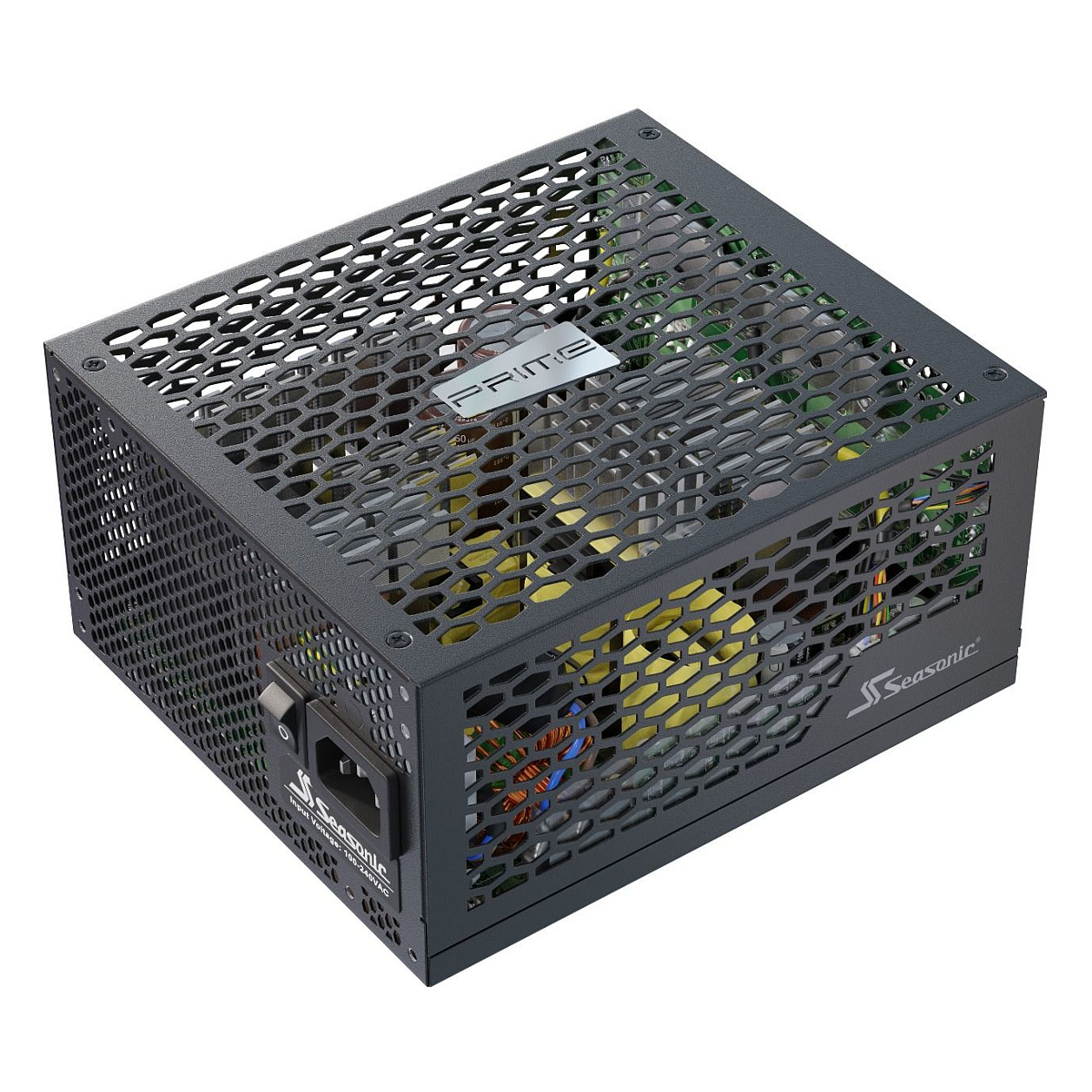

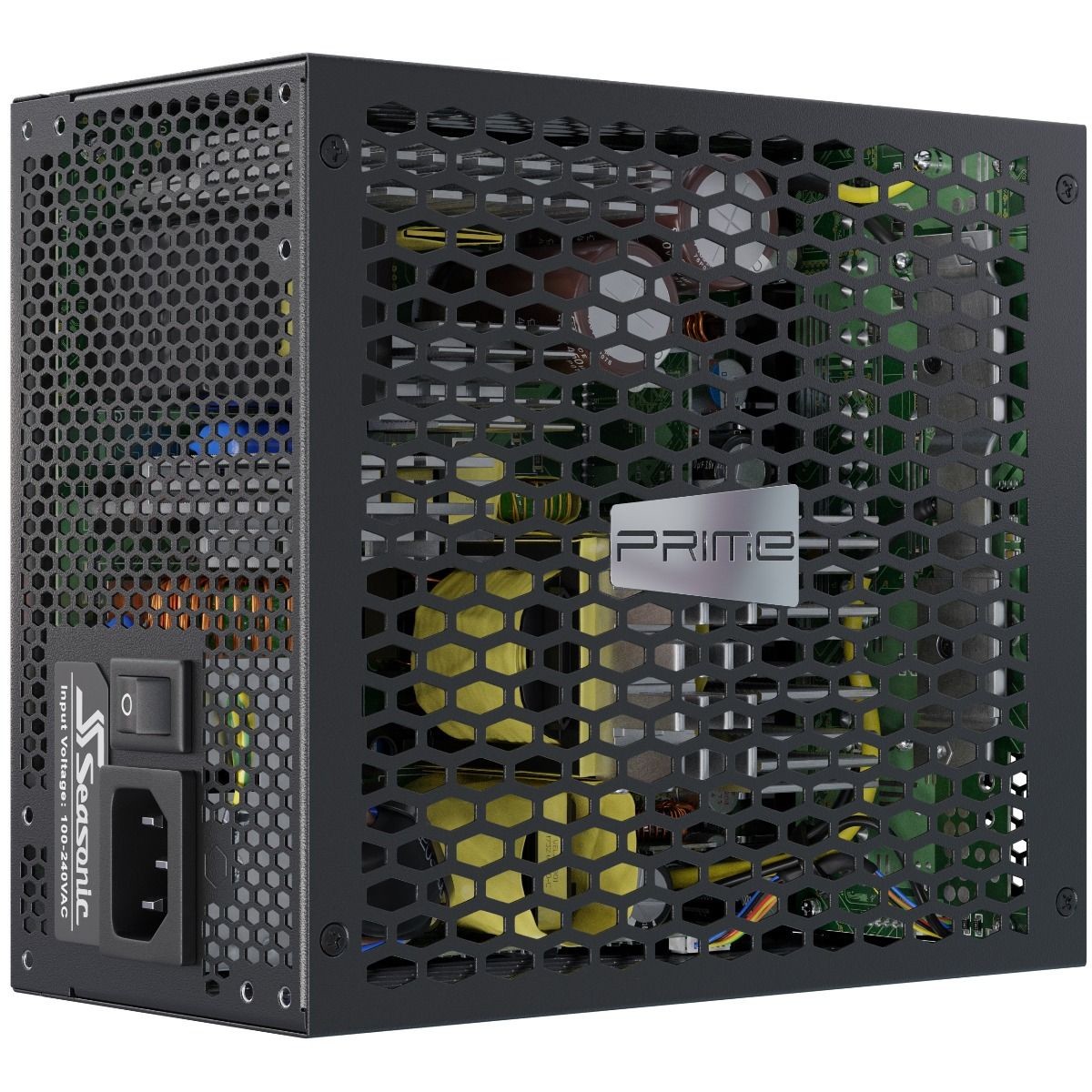

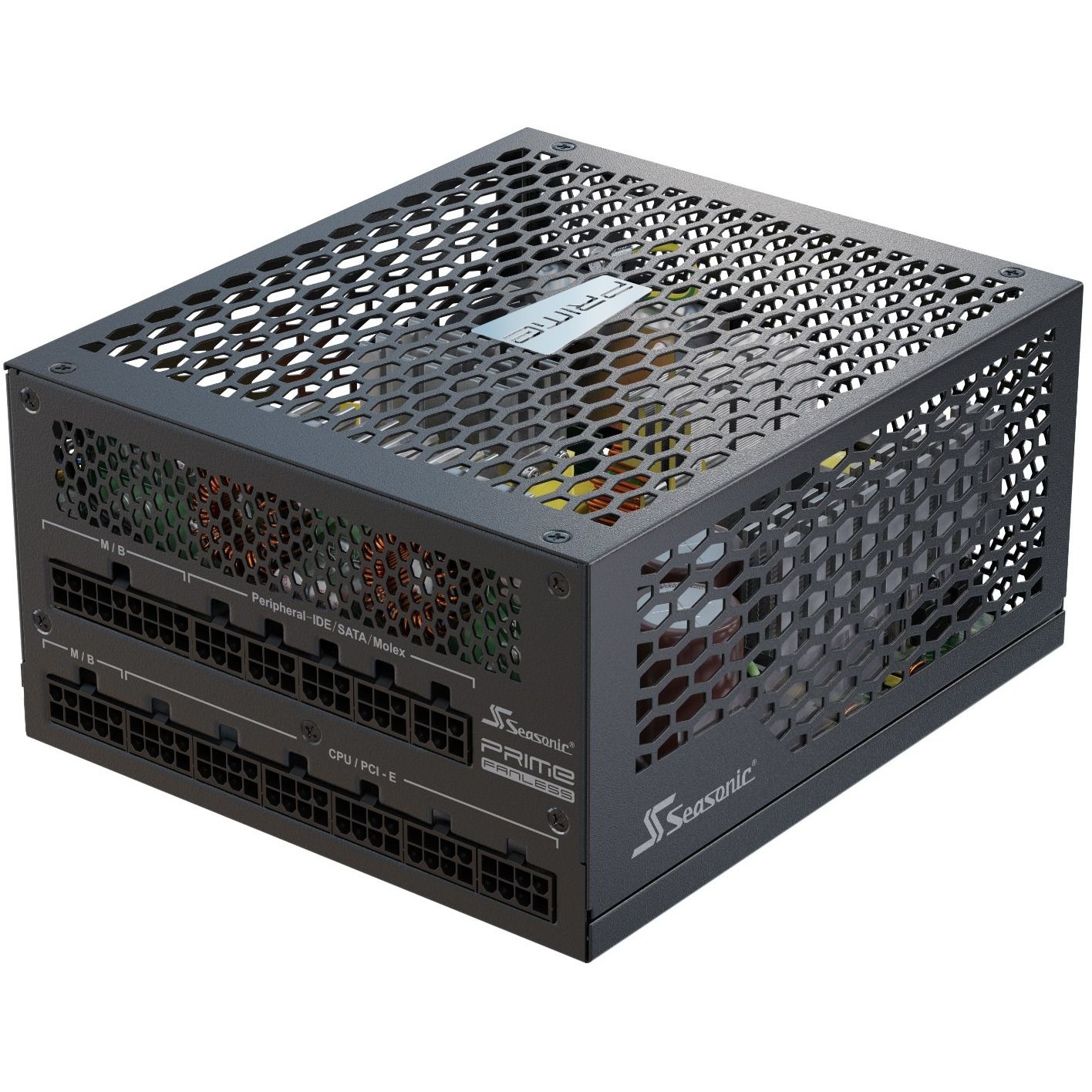

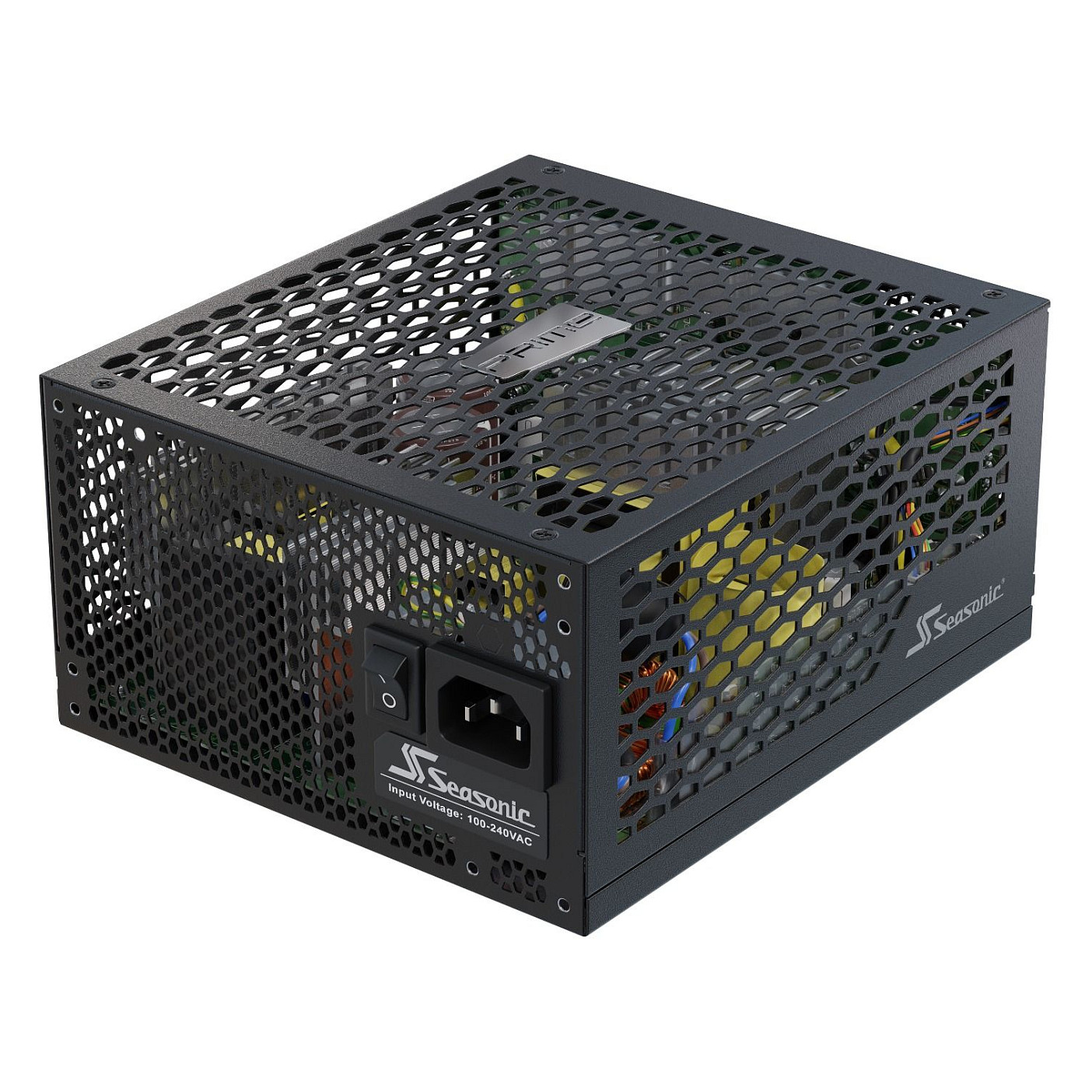

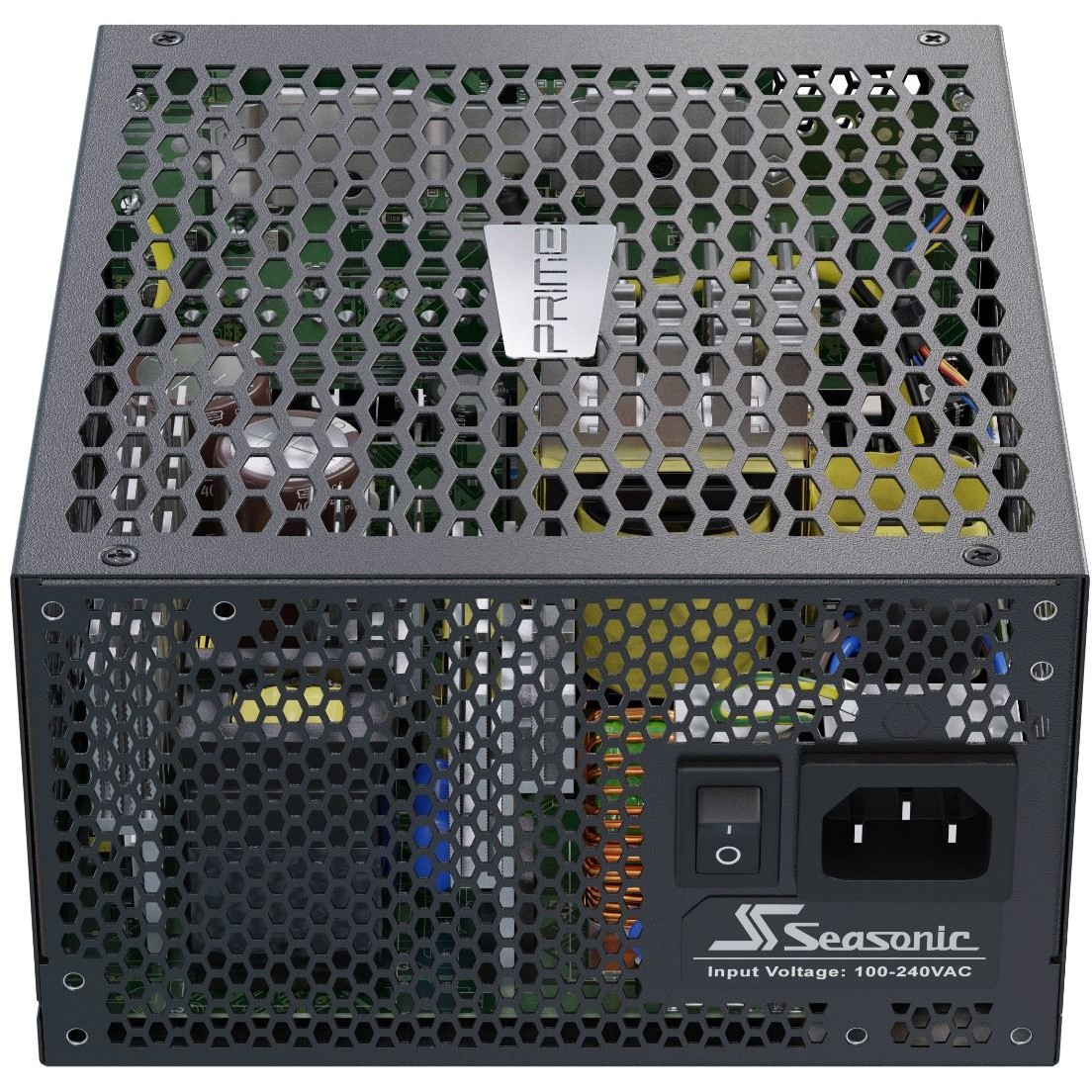

700W Seasonic PRIME TX Fanless 80+ Titanium
In Stock
€257.99
VAT (19%) included
Description
ATX 12 V Full Modular 80 PLUS Titanium Certified Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Technical Specifications
SKU
KPRIME-TX-700
Total Power
700 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
4.5 - 9.5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
696 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
58 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
94%
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage

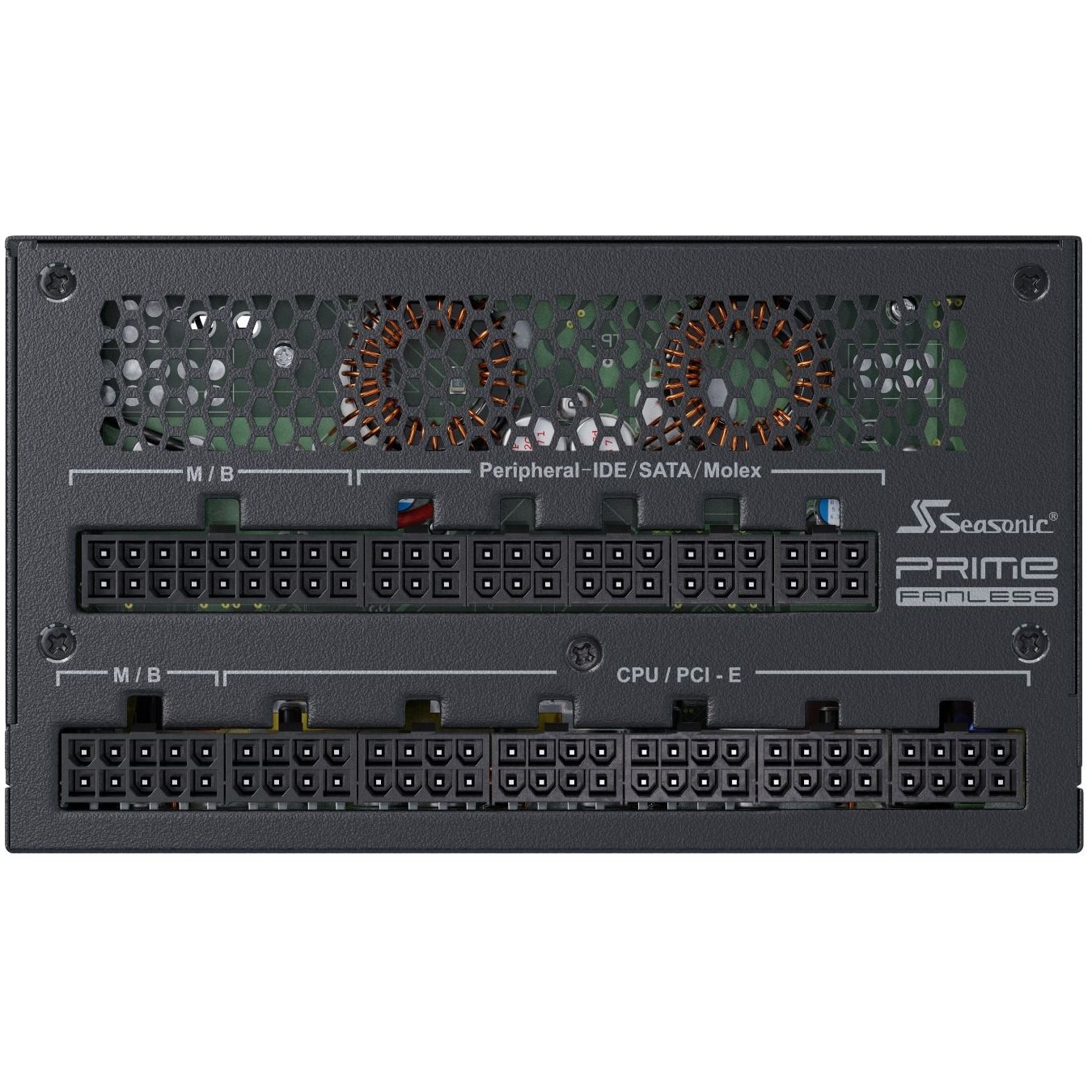

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
450, 800, 810 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
300, 470, 690 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Cable Length
75 cm
Cpu Power Cable Length
65 cm
Cpu Power Connectors (8-Pin)
2
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Titanium
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Mean Time Between Failures (Mtbf)
150000 h
Product Colour
Black
Cooling Type
Passive
Operating Temperature (T-T)
0 - 45 °C
Compliance Certificates
RoHS
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Width
150 mm
Depth
170 mm
Height
86 mm
Package Type
Box
Sustainability Certificates
ENERGY STAR
Harmonized System (Hs) Code
84733020
