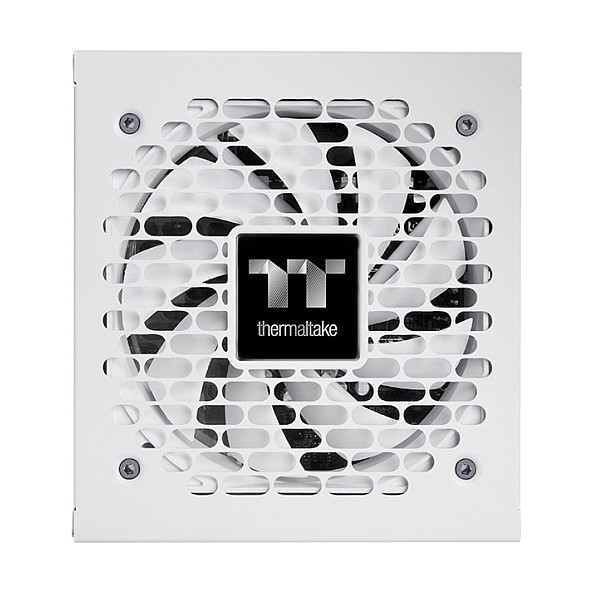

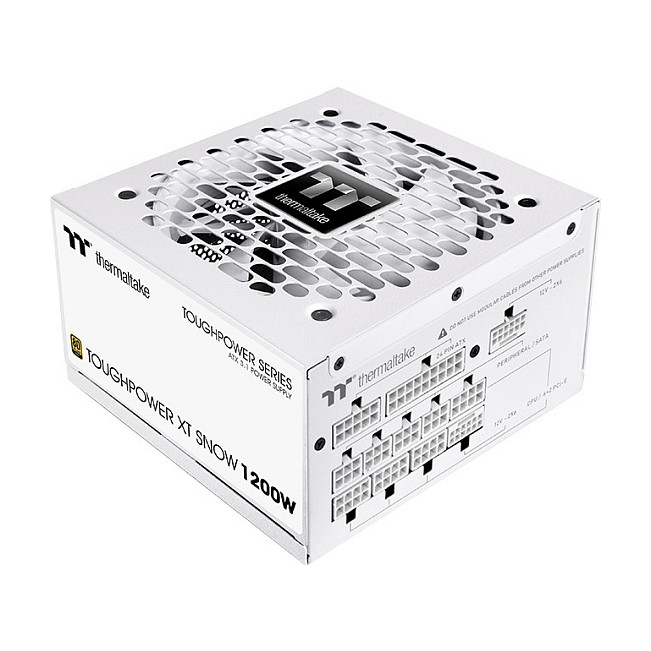

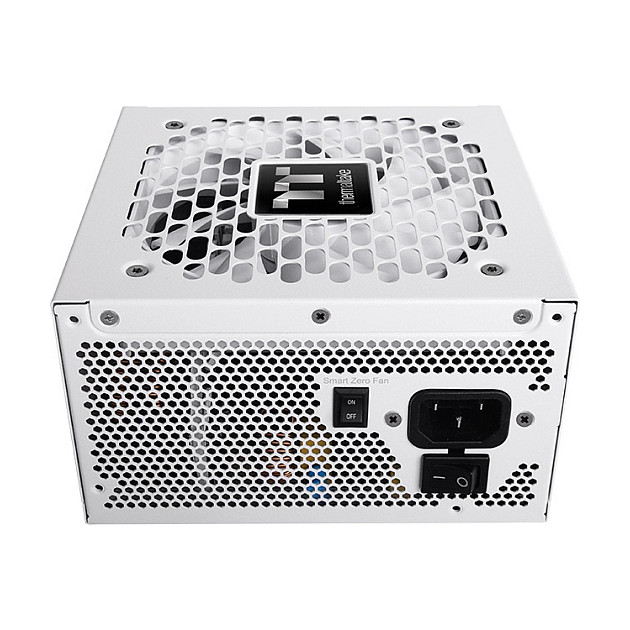

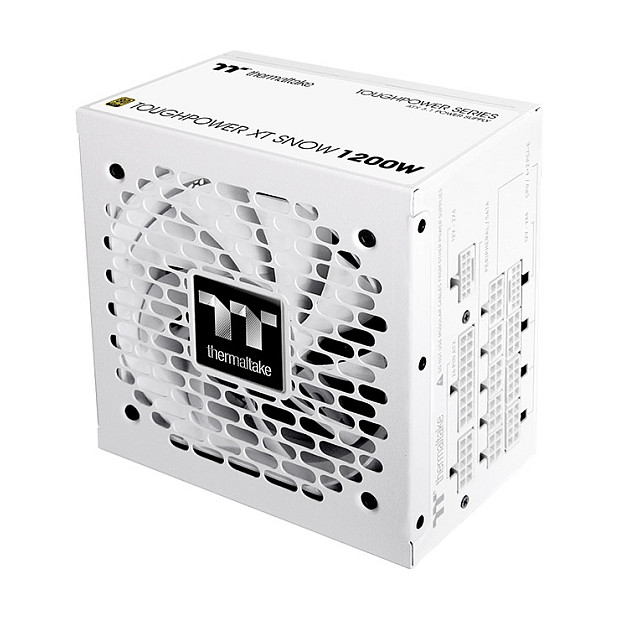

Thermaltake
Toughpower XT Snow 1200W
In Stock
€142.99
VAT (19%) included
Description
1200 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Gold Active 12 cm White
Technical Specifications
SKU
KPS-TPX-1200FNFAGE-W
Total Power
1200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15 - 10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Power Good Signal Delay Range
100 - 250 ms
Power Protection Features
Over current, Over voltage, Under voltage, Over power, Short circuit, Overheating
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 450 mm

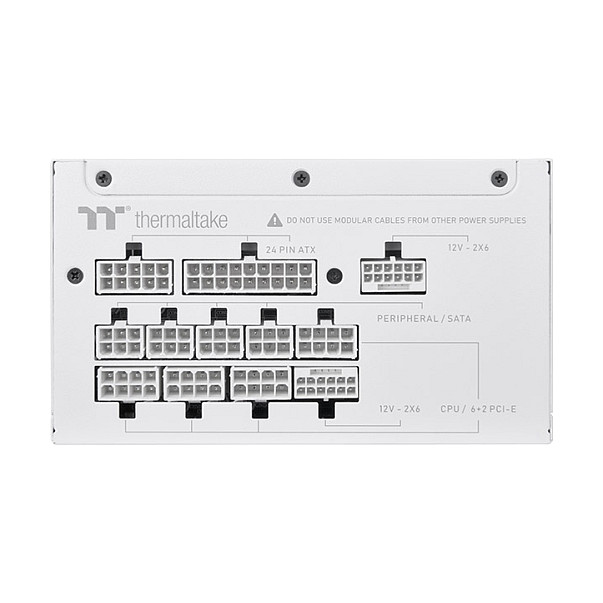

Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
150, 450 mm
Pci Express Power Connectors (6+2 Pin)
5
Pci Express Power Connectors (12+4 Pin)
2
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Hydraulic
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
White
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
5 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Compliance Certificates
cTUVus, CE, UKCA, ICES, CB, Low Voltage Directive (LVD), Federal Communications Commission (FCC), RCM, BIS, BSMI, CCC
Width
150 mm
Depth
140 mm
Height
86 mm
