Sea Sonic

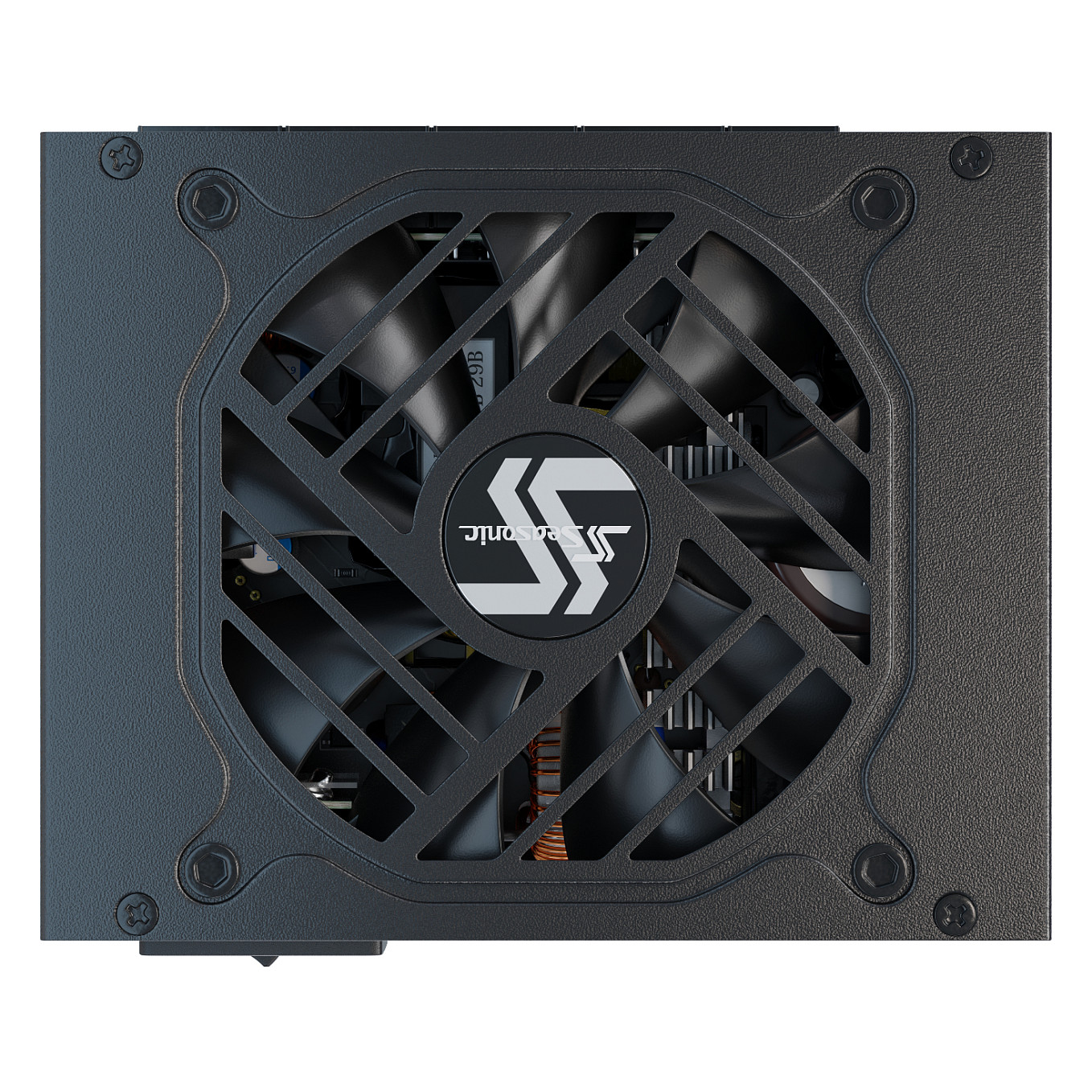

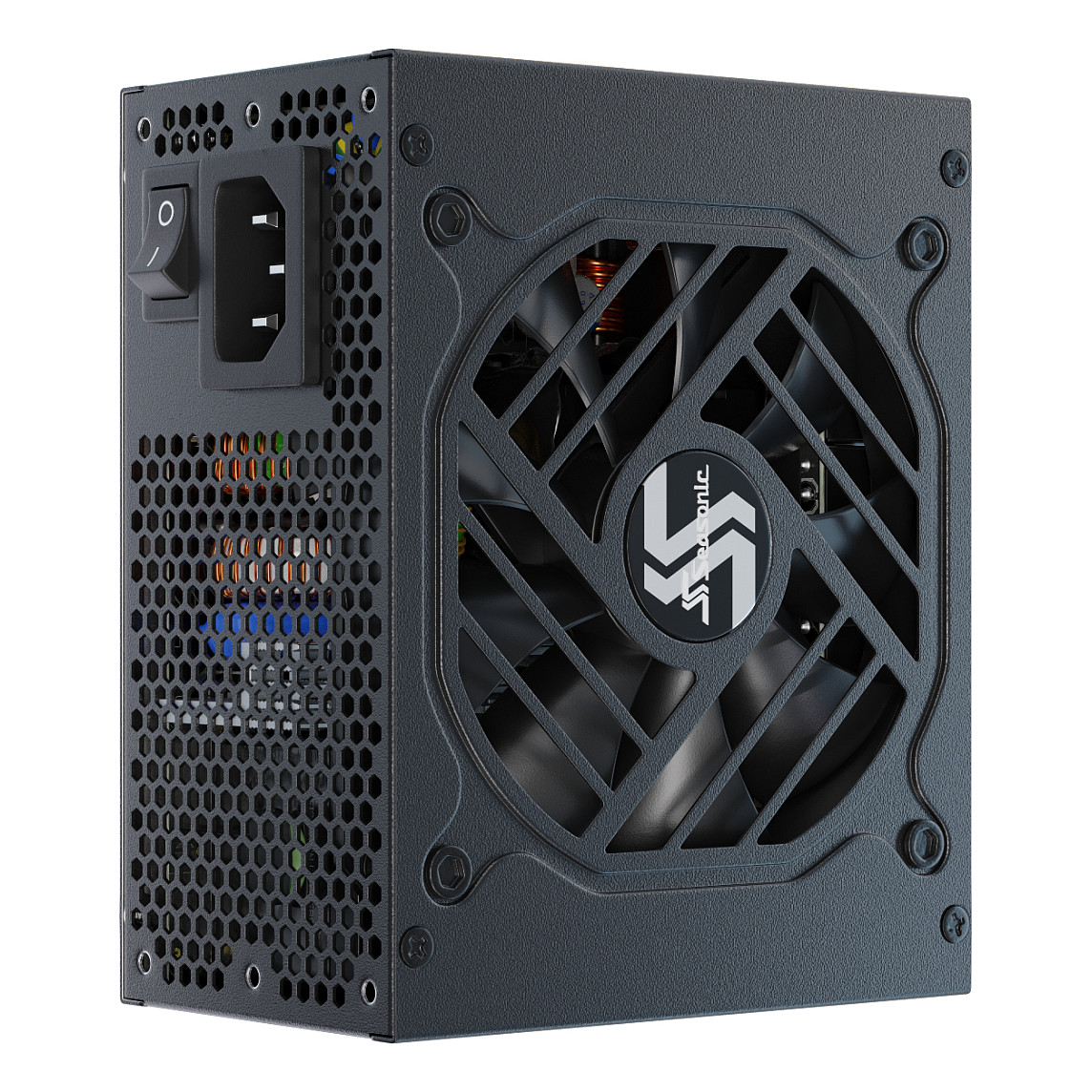

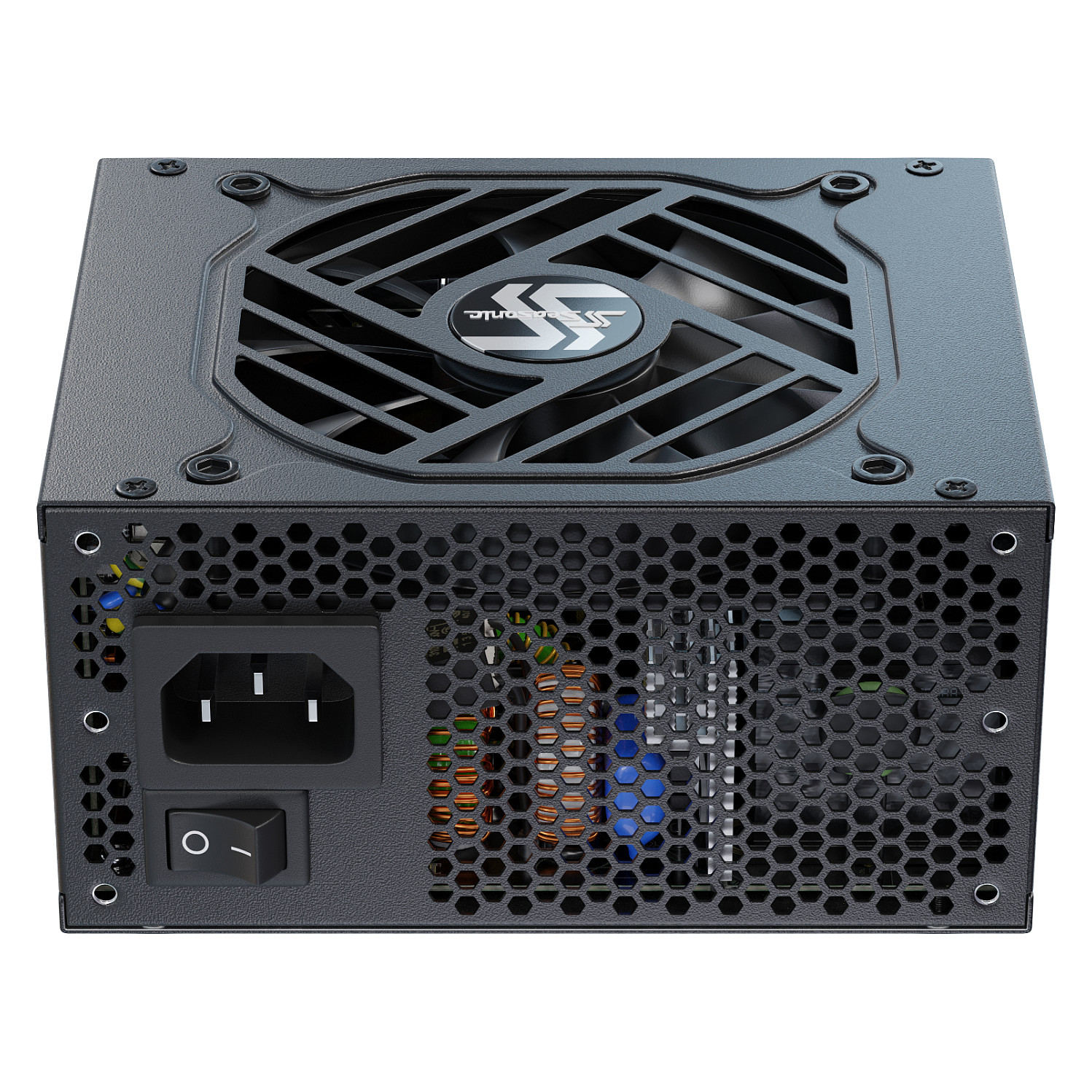

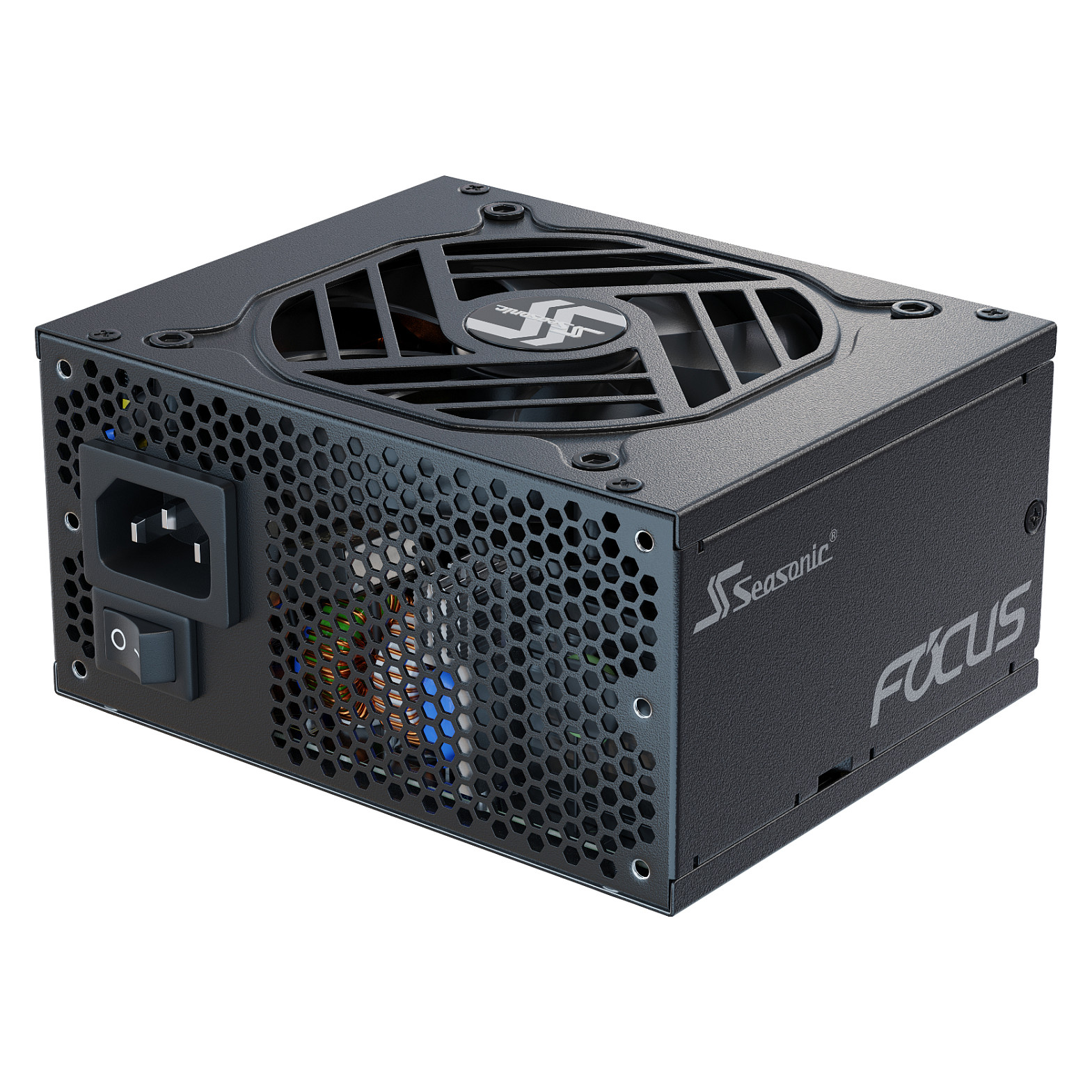

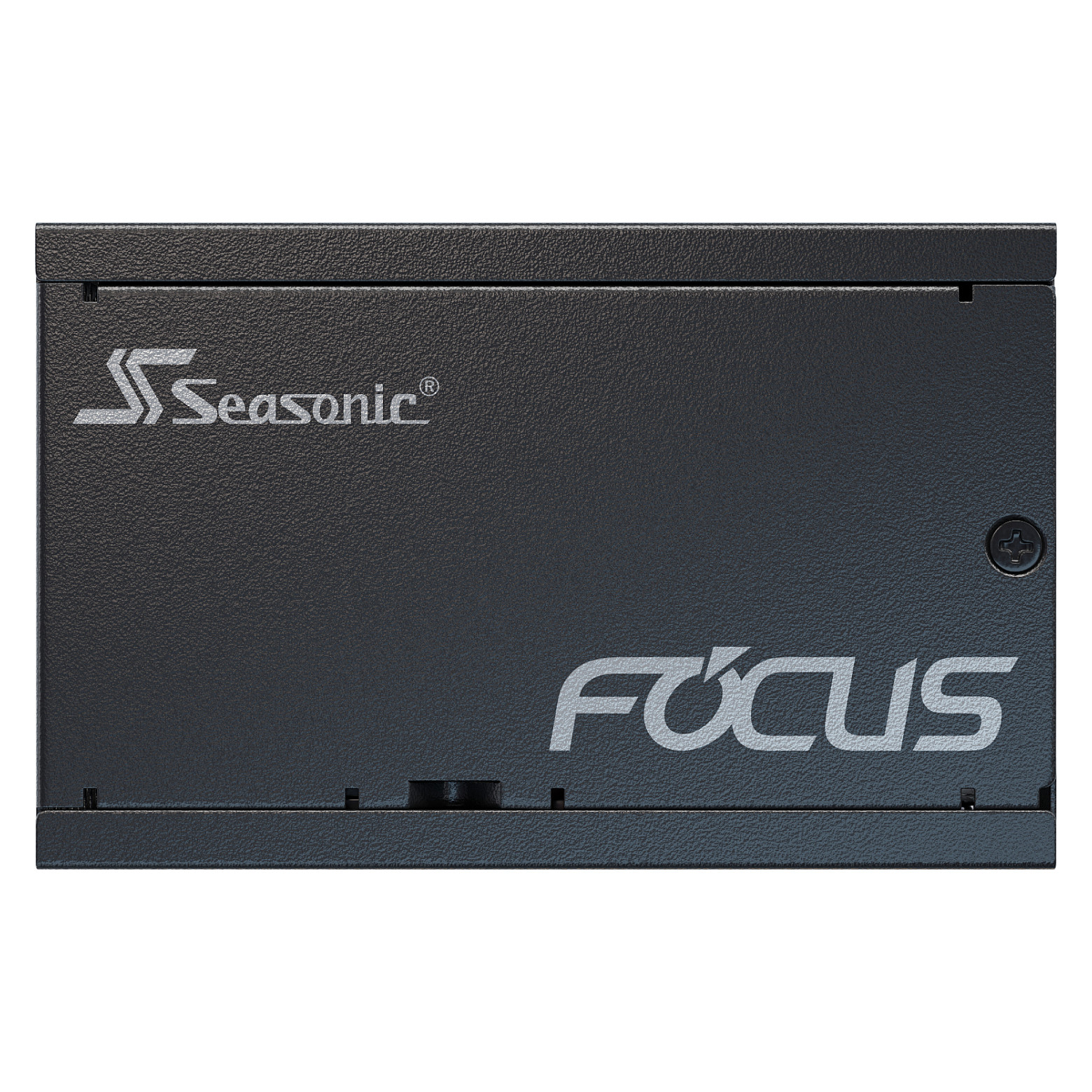

750W Seasonic FOCUS SGX 80+Gold
In Stock
€149.99
VAT (19%) included
Description
High Efficiency, 80 PLUS® Gold Certified Fully Modular Cabling Design Compact Size SFX to ATX Expandability 92 mm Fluid Dynamic Bearing (FDB) Fan Seasonic Hybrid Silent Fan Control Highly Reliable Japanese 105 °C Aluminum Electrolytic Capacitors Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3%] Cable-free Connection Design
Technical Specifications
SKU
KFOCUS-SGX-750
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Maximum Input Current (@110V)
10 A
Maximum Input Current (@220V)
5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
744 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
600 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
470, 700 mm
Cpu Power Cable Length
40 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 50 °C
Width
125 mm
Depth
100 mm
Height
63.5 mm
Package Type
Box
Harmonized System (Hs) Code
84733020
