Chieftec

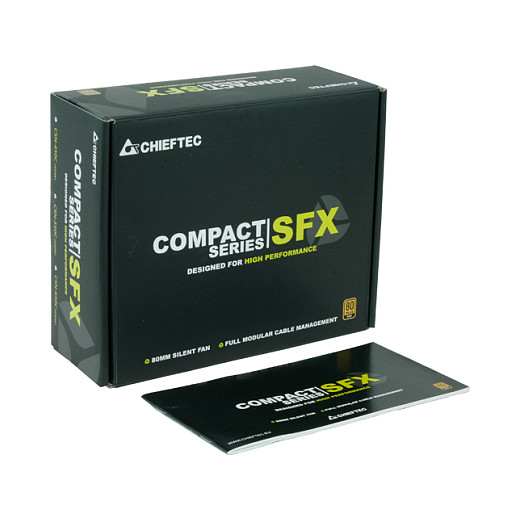

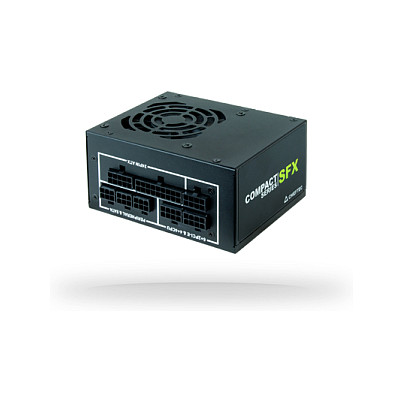

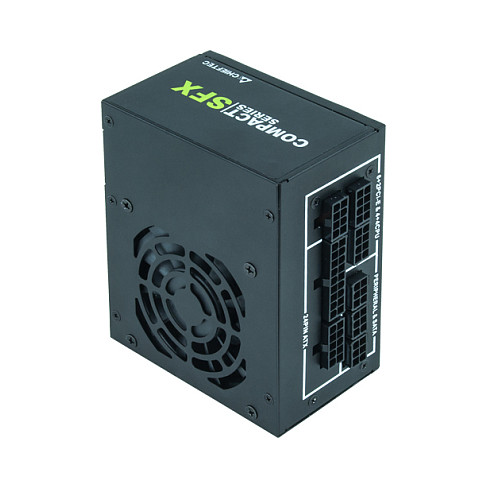

SFX 650W Chieftec Compact Serie CSN-650C
In Stock
€97.99
VAT (19%) included
Description
650 W 100 - 240 V 47 - 63 Hz Motherboard power connector: 20+4 pin ATX PC SFX 80 PLUS Gold 8 cm Black
Technical Specifications
SKU
KCSN-650C
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
6 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
90 W
Combined Power (+5V)
90 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V1)
54 A
Max Output Current (+5V)
15 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
90%
Power Protection Features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (6+2 Pin)
2
Floppy Drive Power Connector
1

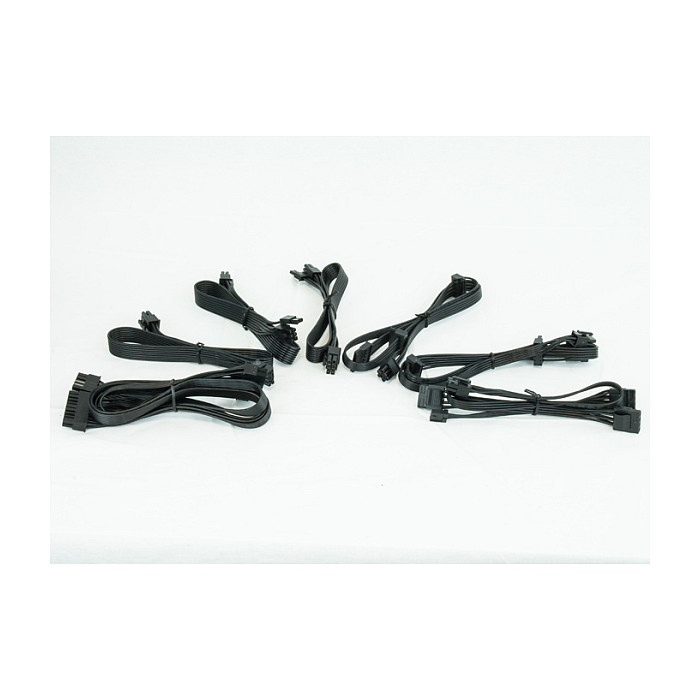

Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Atx Version
2.3
Product Colour
Black
Fan Diameter
8 cm
Number Of Fans
1 fan(s)
Compliance Certificates
RoHS
Width
125 mm
Depth
100 mm
Height
64 mm
Harmonized System (Hs) Code
84733020
