Chieftec

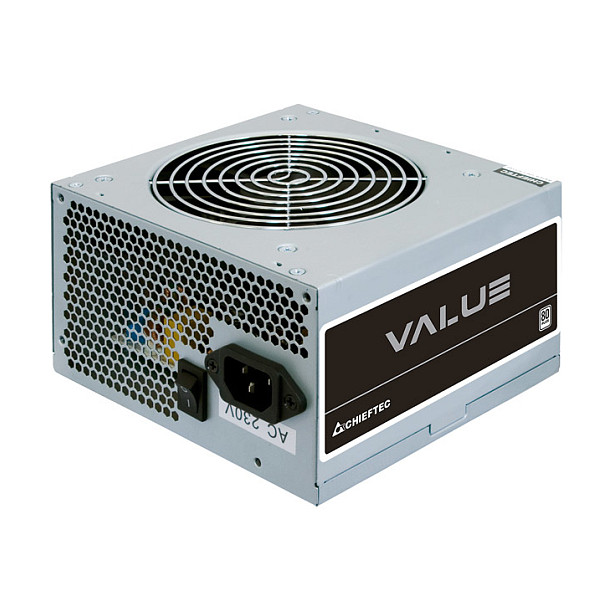

500W Chieftec VALUE SERIES APB-500B8 Bulk
In Stock
€41.99
VAT (19%) included
Description
500 W 230 V 50 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Active 12 cm Silver
Technical Specifications
SKU
KAPB-500B8
Total Power
500 W
Ac Input Voltage
230 V
Ac Input Frequency
50 Hz
Input Current
4 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
130 W
Combined Power (+5V)
130 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V1)
24 A
Max Output Current (+12V2)
21 A
Max Output Current (+5V)
19 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
80%
Power Protection Features
Over voltage, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
3
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Silver
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Compliance Certificates
RoHS
Certification
CE, CB, TÜV, EAC
Width
150 mm
Depth
140 mm
Height
87 mm
Harmonized System (Hs) Code
84733020
