FSP

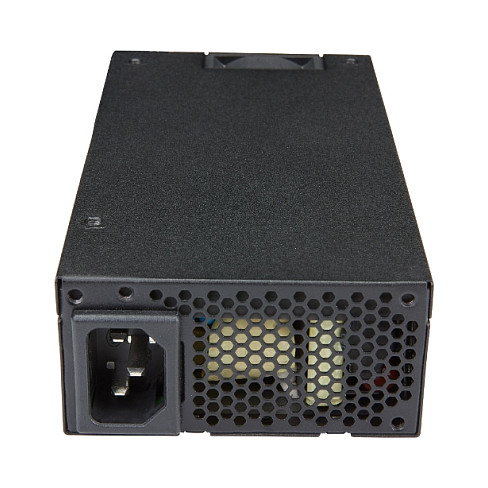

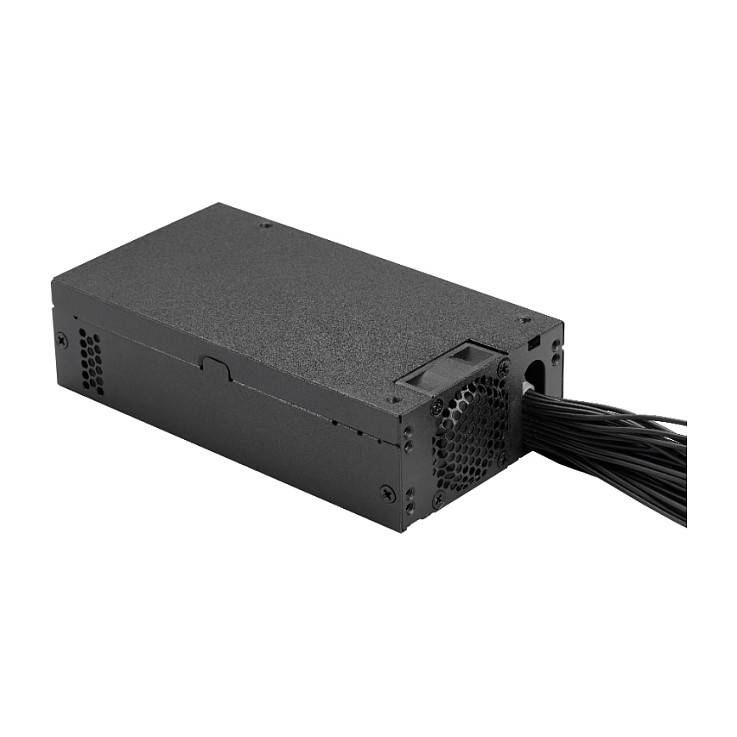

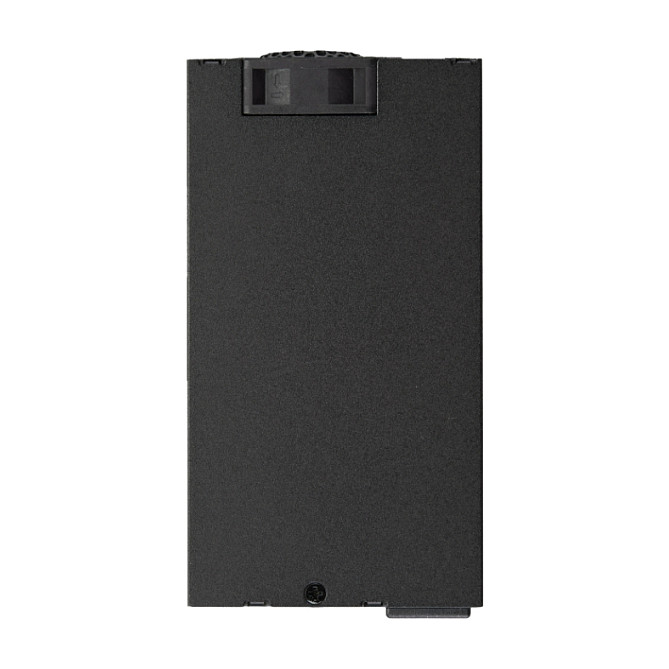

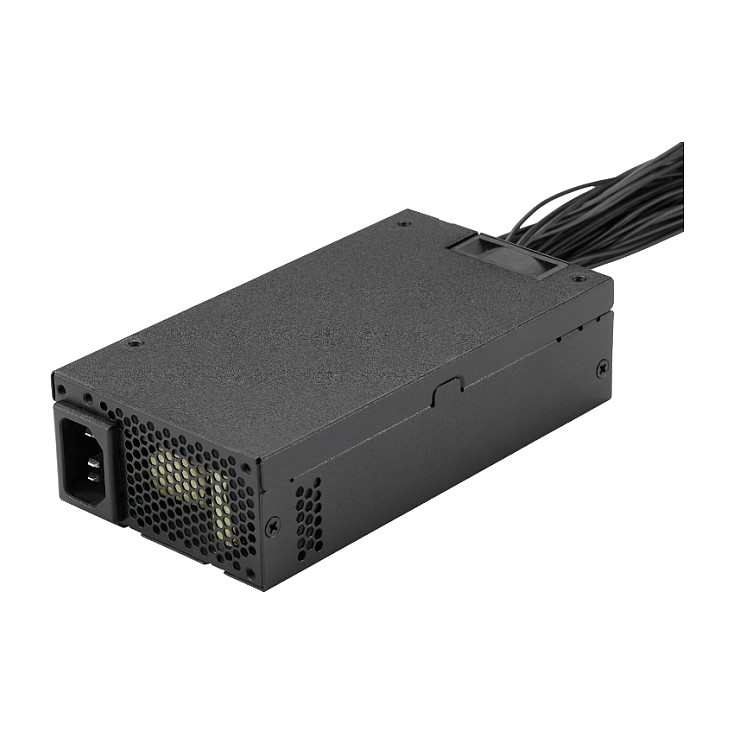

Flex ATX 500W FSP FLEXGURU 500
In Stock
€109.99
VAT (19%) included
Description
Complies with ATX12V V3.1 / Flex ATX V2.1 (650W) Complies with ATX12V V2.52 / Flex ATX V1.23 (500W) Compliant with UL/EN/IEC international safety standards Efficiency ≧ 90% at typical load(650W≧ 92% at typical load) 80 PLUS Gold Certification(650W Platinum Certification) Intelligent fan speed control Quiet and long-lasting 40mm ball bearing fan Black cables for the need of enthusiasts Powerful single +12V rail design Main Japanese electrolytic capacitors
Technical Specifications
SKU
KPPA5008401
Total Power
500 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
8-4 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
90 W
Combined Power (+5V)
90 W
Max Output Current (+3.3V)
14 A
Max Output Current (+12V)
41 A
Max Output Current (+5V)
16 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit
Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
4
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
2
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Gold
Purpose
NAS/storage server
Power Supply Unit (Psu) Form Factor
1U
Bearing Technology
Ball bearing
Product Colour
Black
Cooling Type
Active
Fan Diameter
4 cm
Number Of Fans
1 fan(s)
Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
40.5 mm
Depth
150 mm
Height
81.5 mm
Warranty Period
5 year(s)
