Be Quiet!

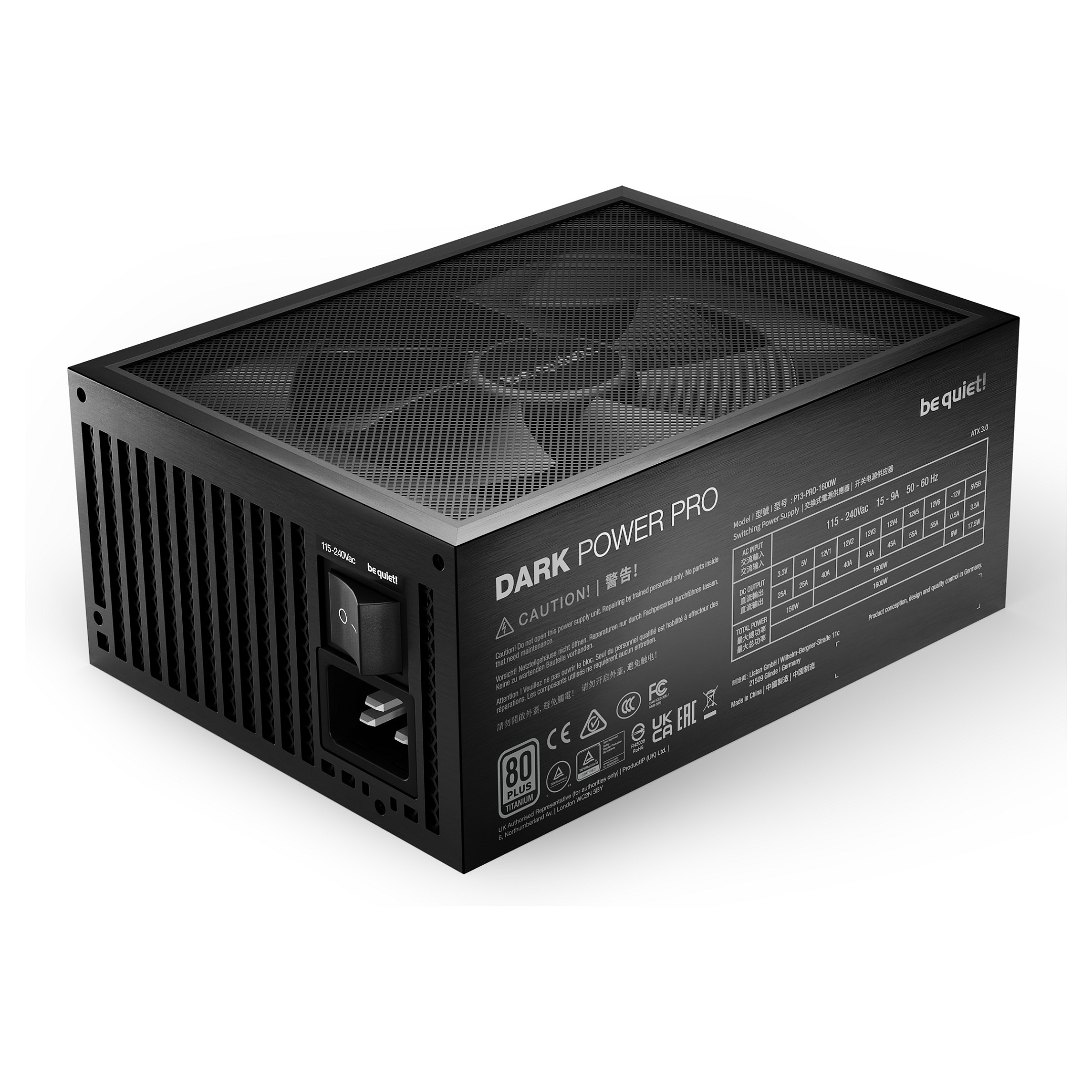

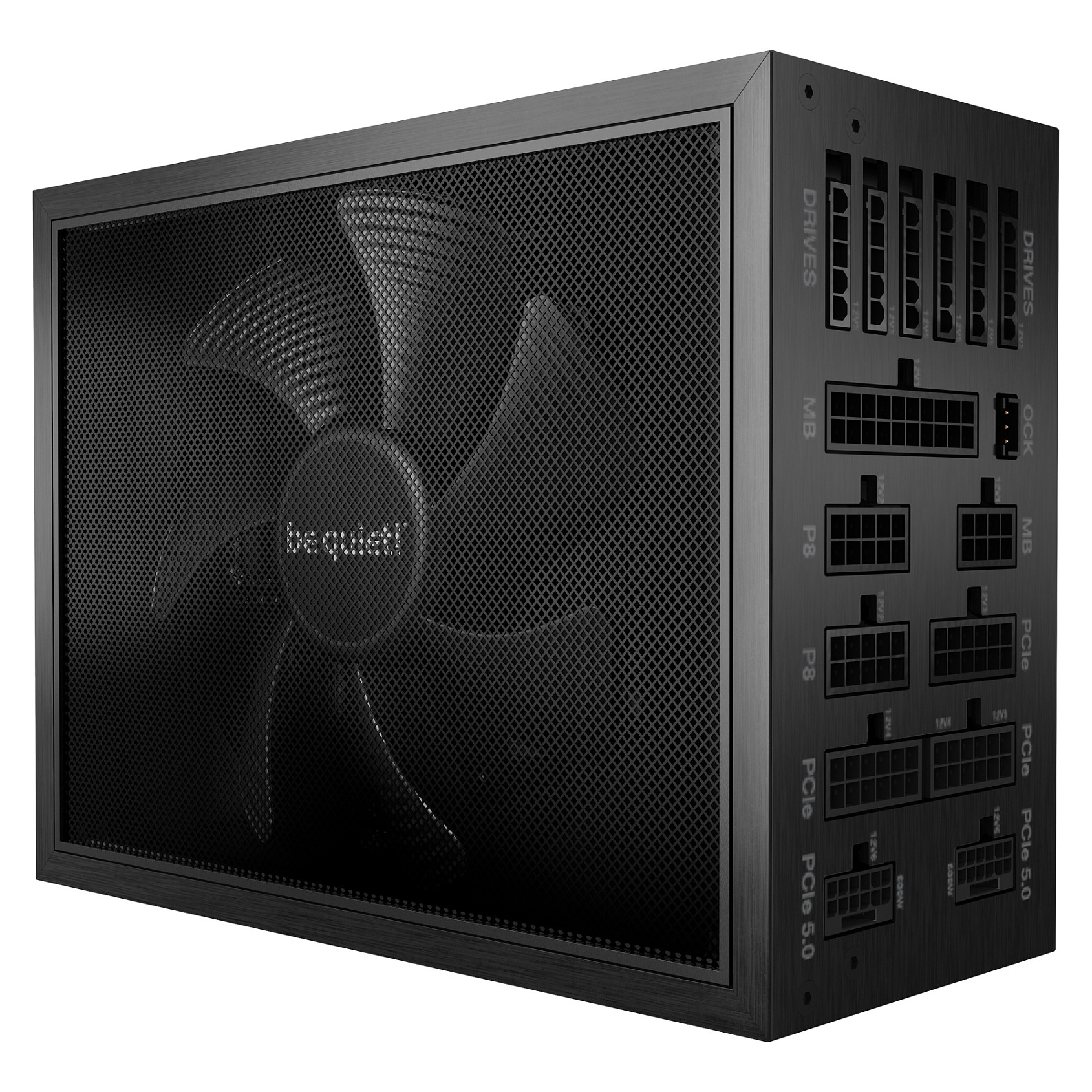

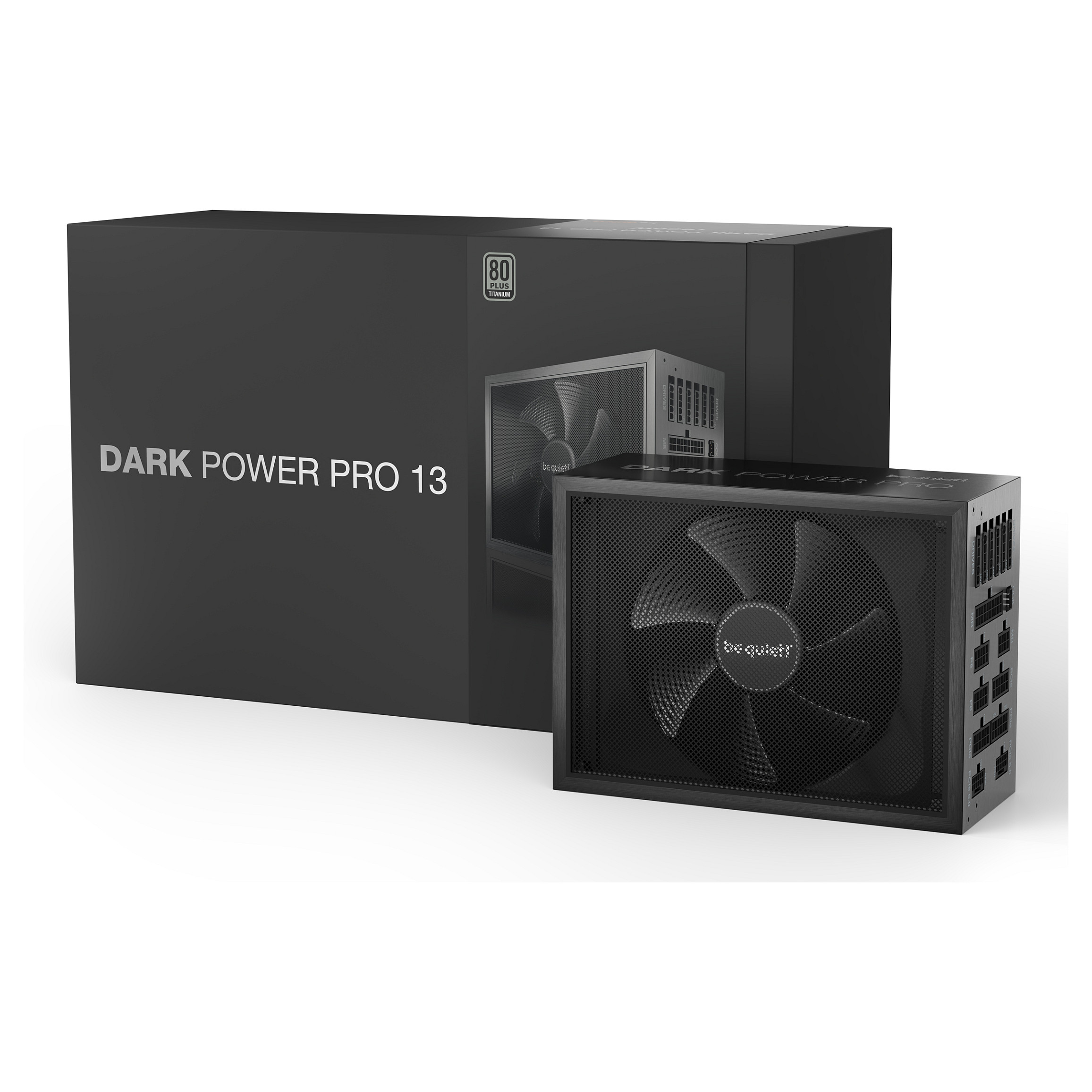

1600W be quiet! Dark Power PRO 13 | 80+ Titanium ATX 3.1
In Stock
€400.99
VAT (19%) included
Description
80 PLUS Titanium efficiency (up to 94.5%) ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads Full mesh PSU front with funnel-shaped air inlet Overclocking key switches between six 12V rails and one massive 12V rail Japanese 105°C capacitors ensure highest stability and reliability 2 PCIe 5.1 12V-2x6 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs Aluminum case and modular individually sleeved cables for magnificent appearance
Technical Specifications
SKU
KBN332
Total Power
1600 W
Peak Power
1700 W
Ac Input Voltage
115 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
15 - 9 A
Power Factor
0.99
Combined Power (+3.3V)
150 W
Combined Power (+12V)
1600 W
Combined Power (+5V)
150 W
Combined Power (-12V)
6 W
Combined Power (+5Vsb)
17.5 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
40 A
Max Output Current (+12V2)
40 A
Max Output Current (+12V3)
45 A
Max Output Current (+12V4)
45 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3.5 A
Hold Time
18 ms
Efficiency
94.5%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
16
Number Of Pata Power Connectors
5
Sata Power Cable Length
500, 600, 750, 800, 900, 950, 1050 mm
Peripheral (Molex) Power Cable Length
600, 750, 900, 1050 mm
Pci Express Power Connectors (6+2 Pin)
6
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
70 cm

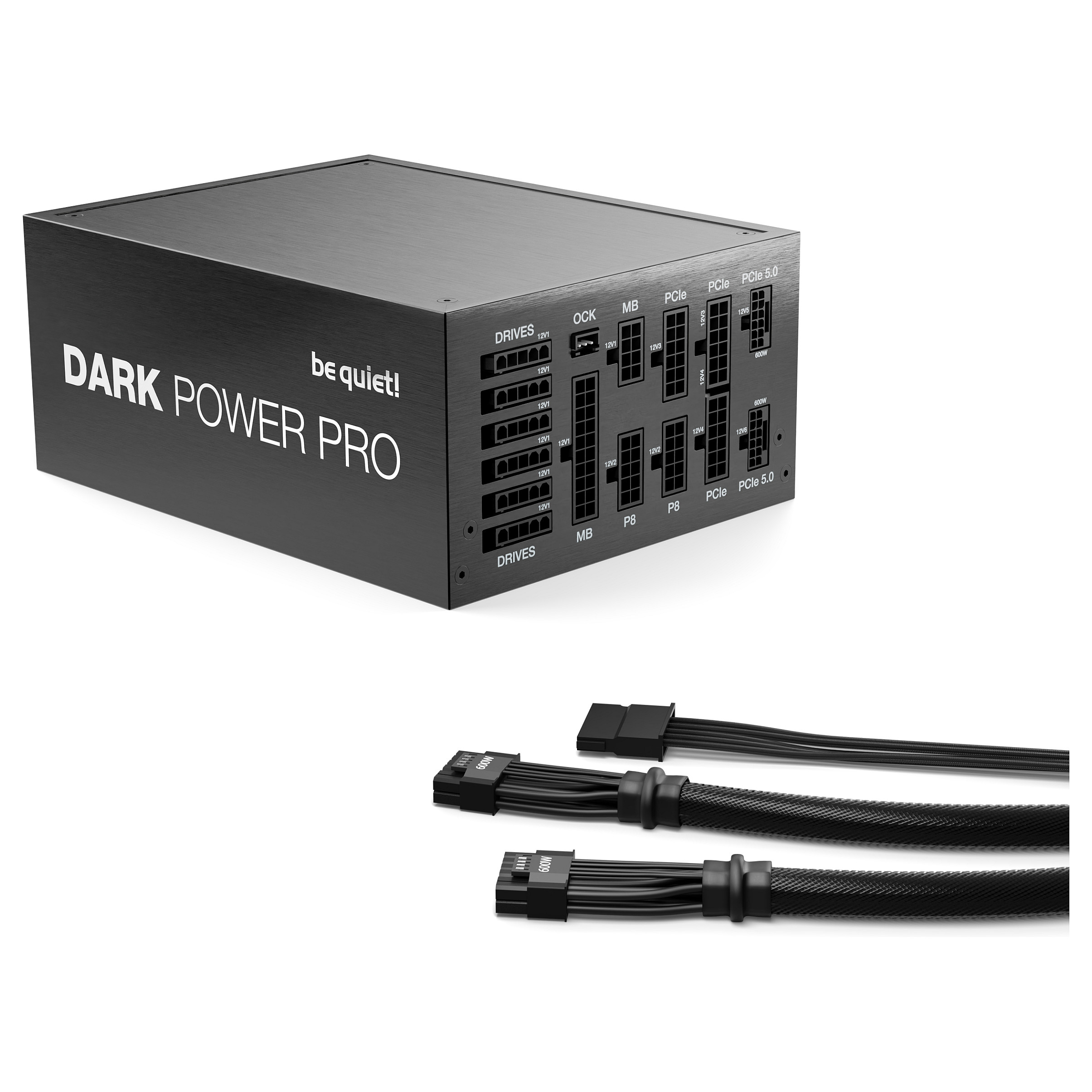

Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Titanium
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
31.1 dB
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active

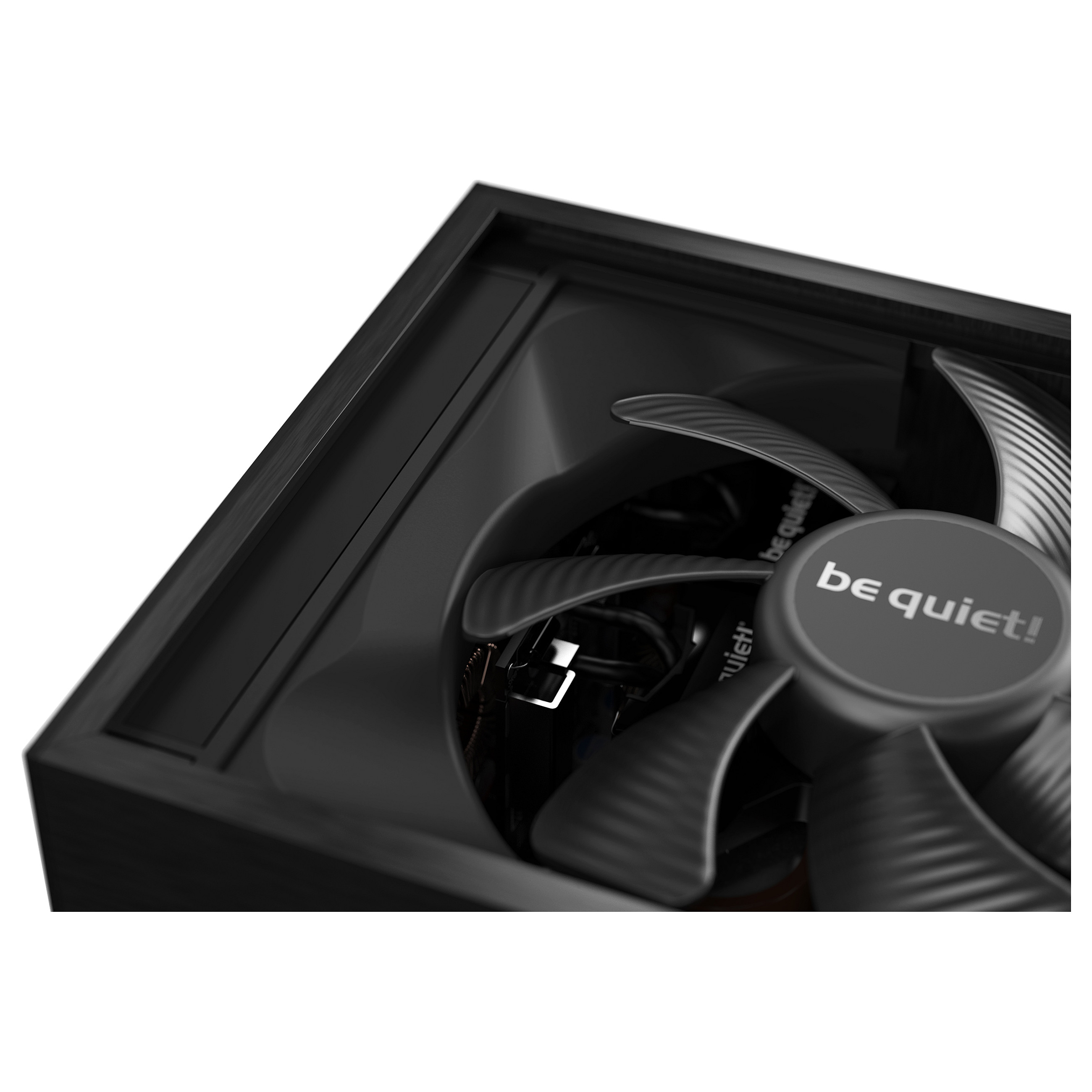

Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)

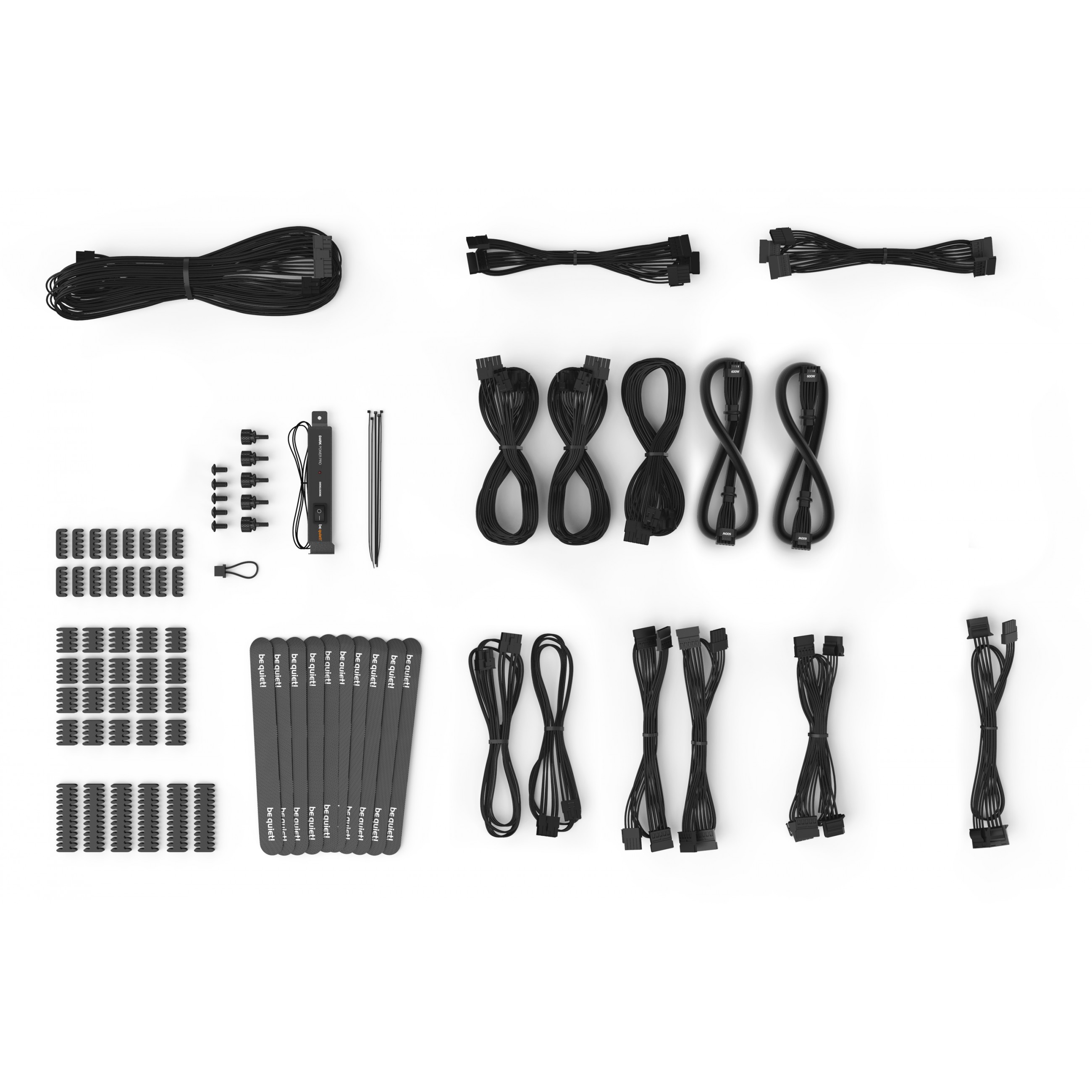

Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Width
150 mm
Depth
200 mm
Height
86 mm
Weight
2.44 kg
Package Width
253 mm
Package Depth
417 mm
Package Height
152 mm
Package Weight
6.9 kg
Sustainability Certificates
ENERGY STAR, ErP, Triman
Shipping (Inner) Case Length
44 cm
Shipping (Inner) Case Width
32.5 cm
Shipping (Inner) Case Height
28.3 cm
Shipping (Inner) Case Net Weight
14.6 kg
Products Per Shipping (Inner) Case
2 pc(s)
Warranty Period
10 year(s)
