Sea Sonic

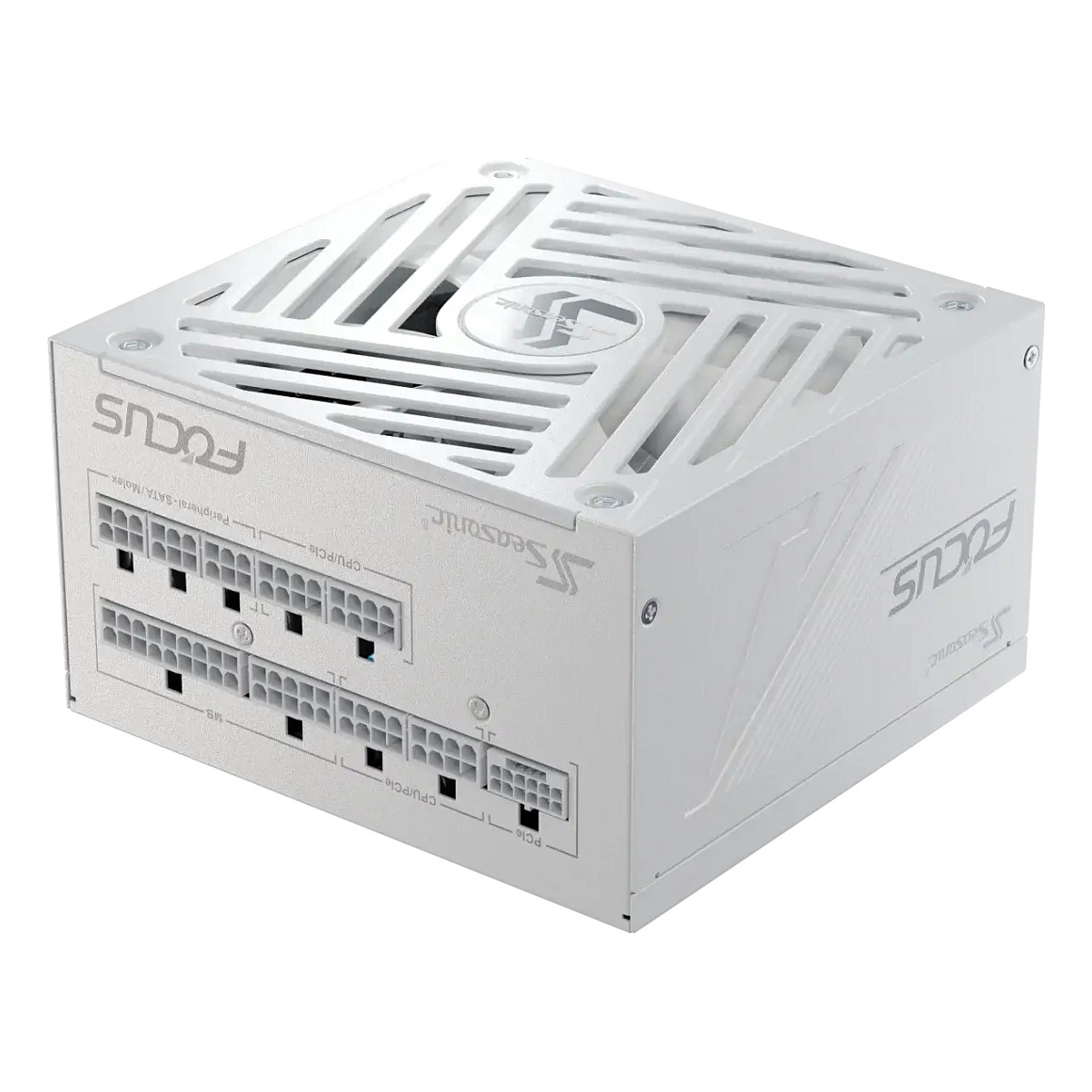

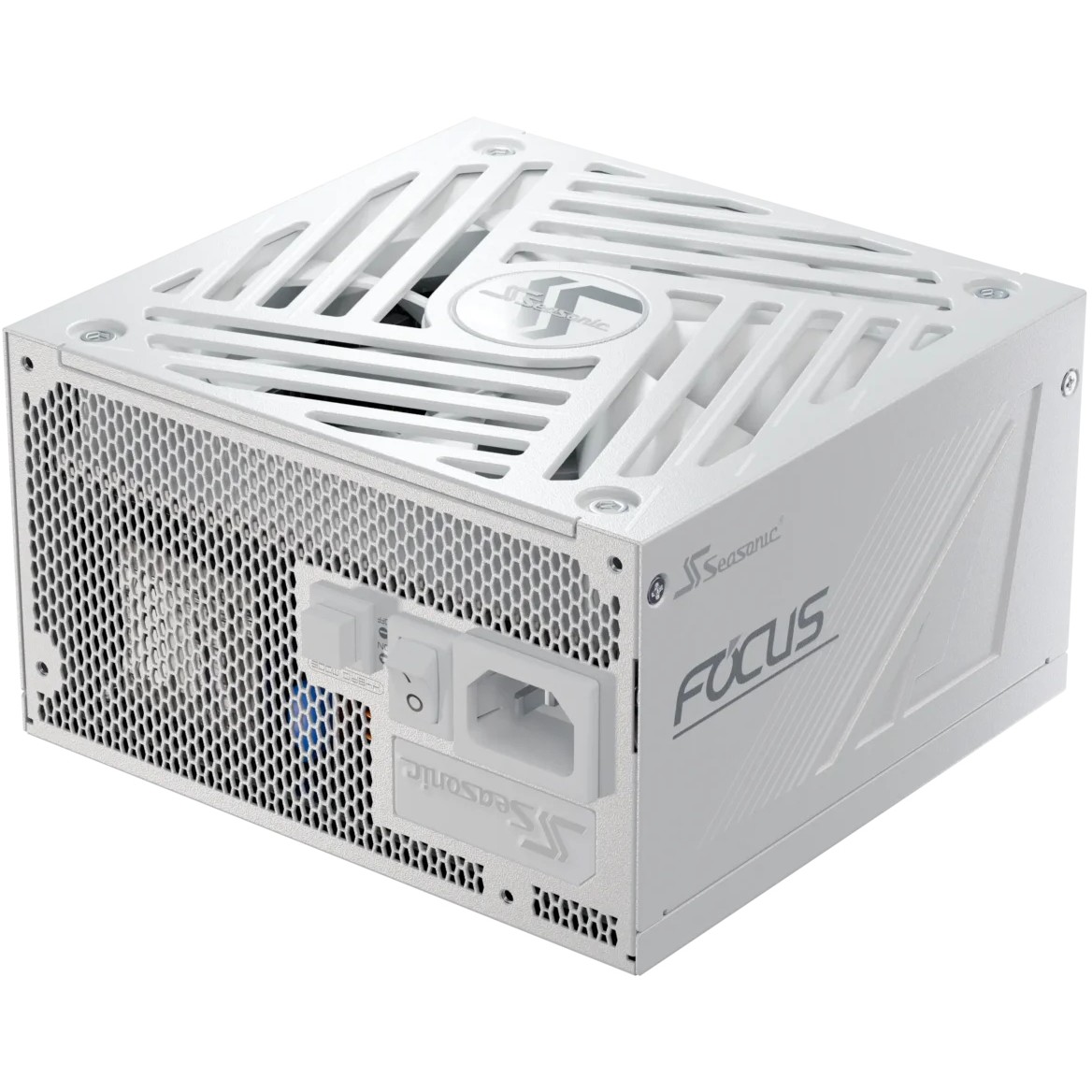

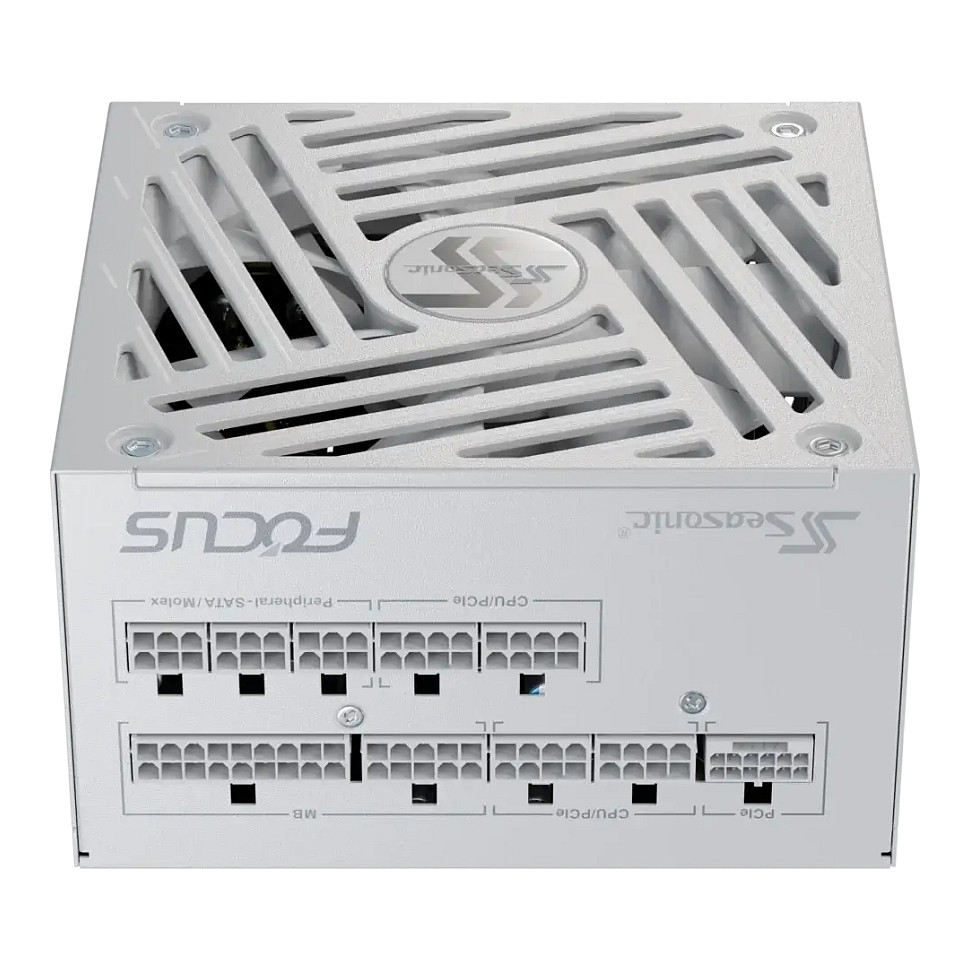

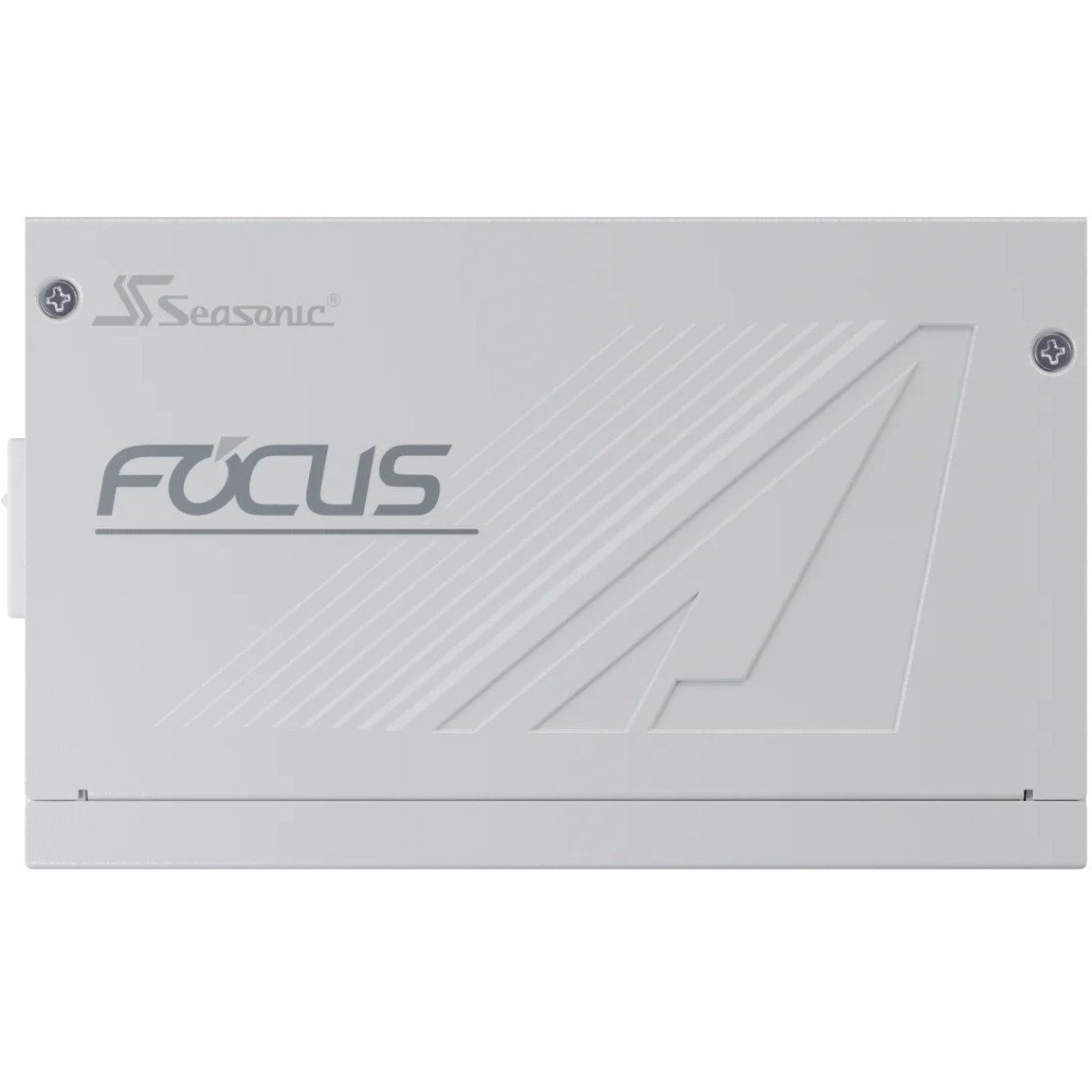

750W Seasonic FOCUS-GX-750-V4-WHITE ATX 3.1 80+ Gold
In Stock
€115.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold Active 13.5 cm White
Technical Specifications
SKU
KFOCUS-GX-750-V4-WHITE
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
744 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

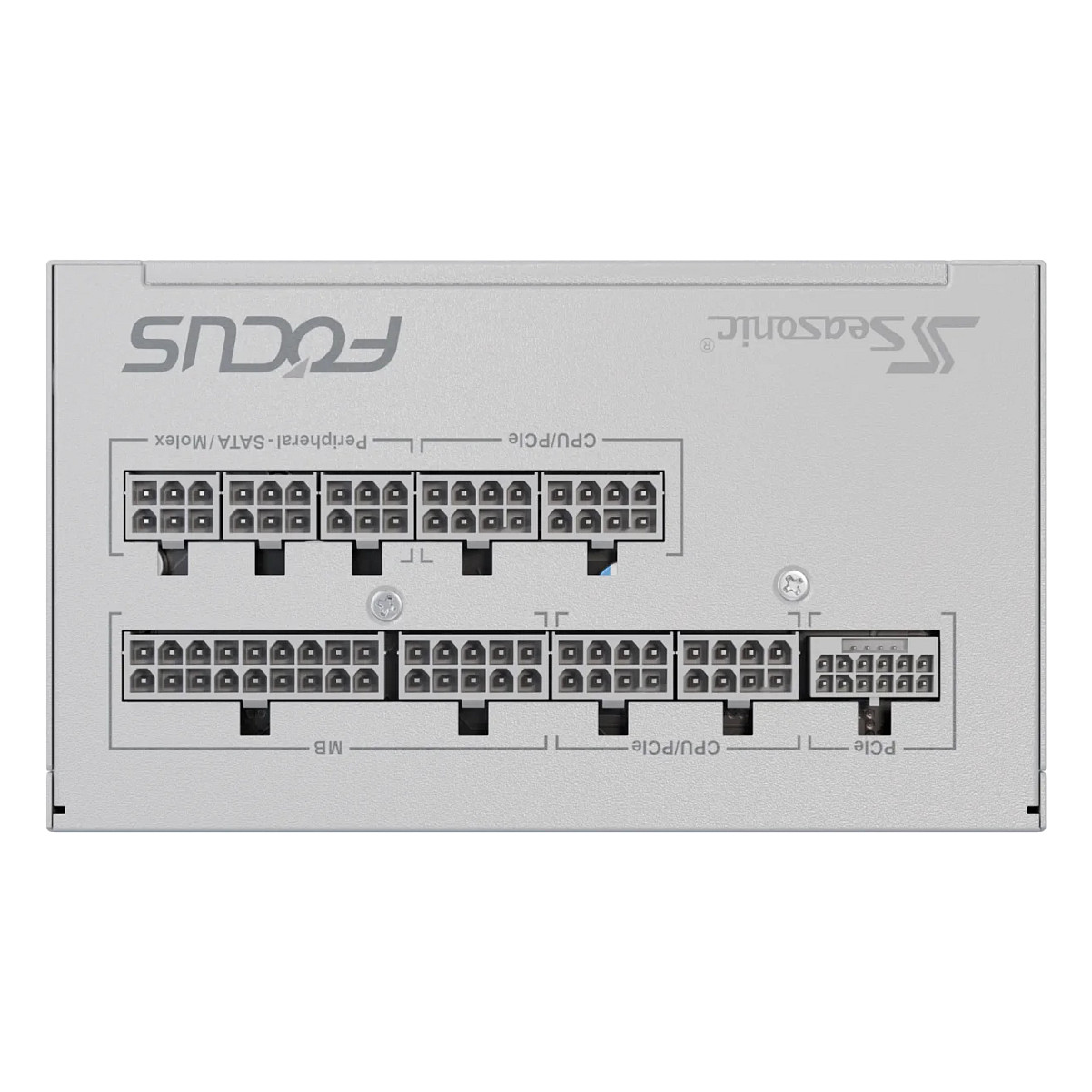

Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
61 cm
Sata Power Cable Length
950 mm
Peripheral (Molex) Power Cable Length
690 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12+4 Pin) Cable Length
700 mm
Pci Express Power Cable Length
75 cm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
White
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 50 °C
Compliance Certificates
BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus
Certification
BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Width
150 mm
Depth
140 mm
Height
86 mm
Sustainability Certificates
ENERGY STAR, ErP
