Sea Sonic

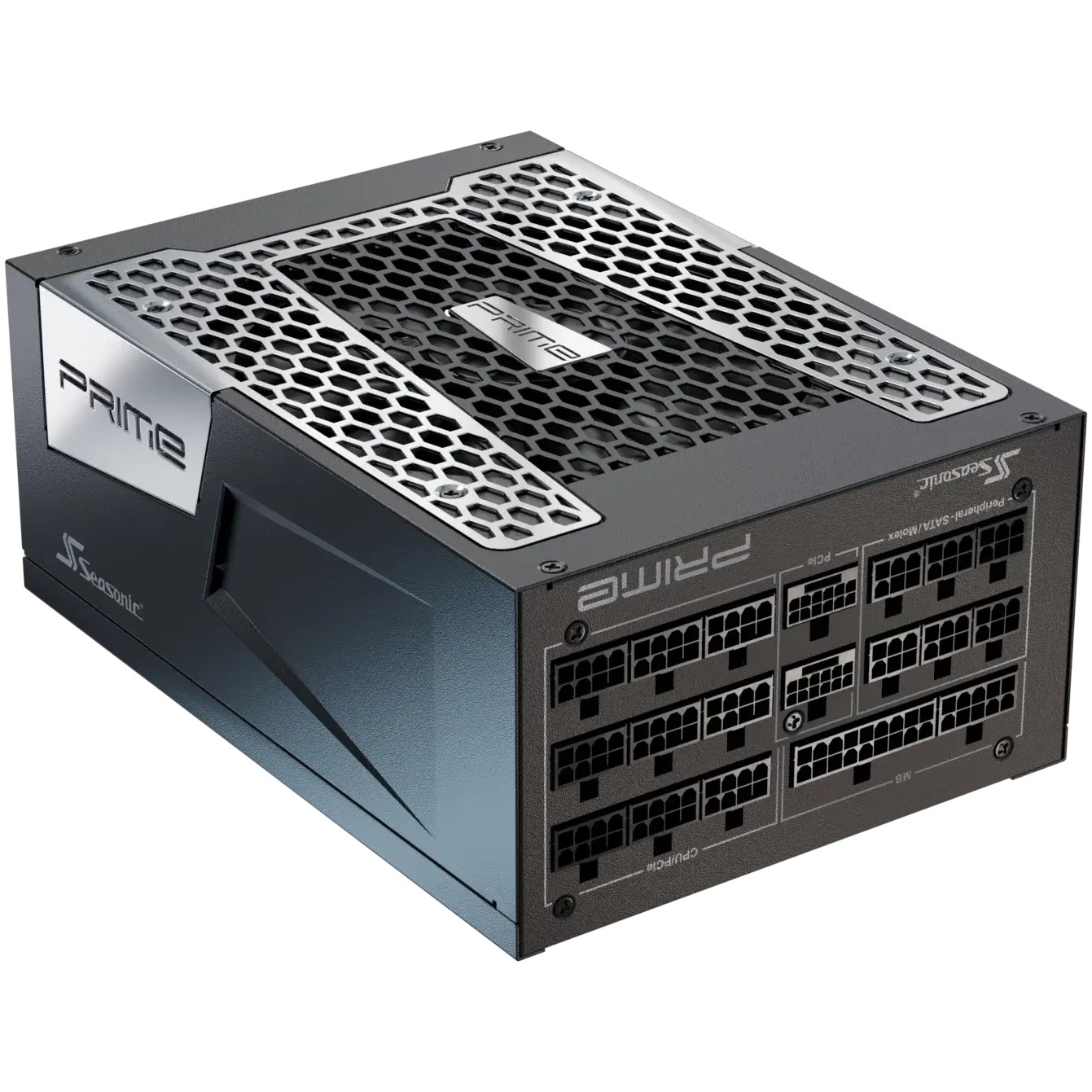

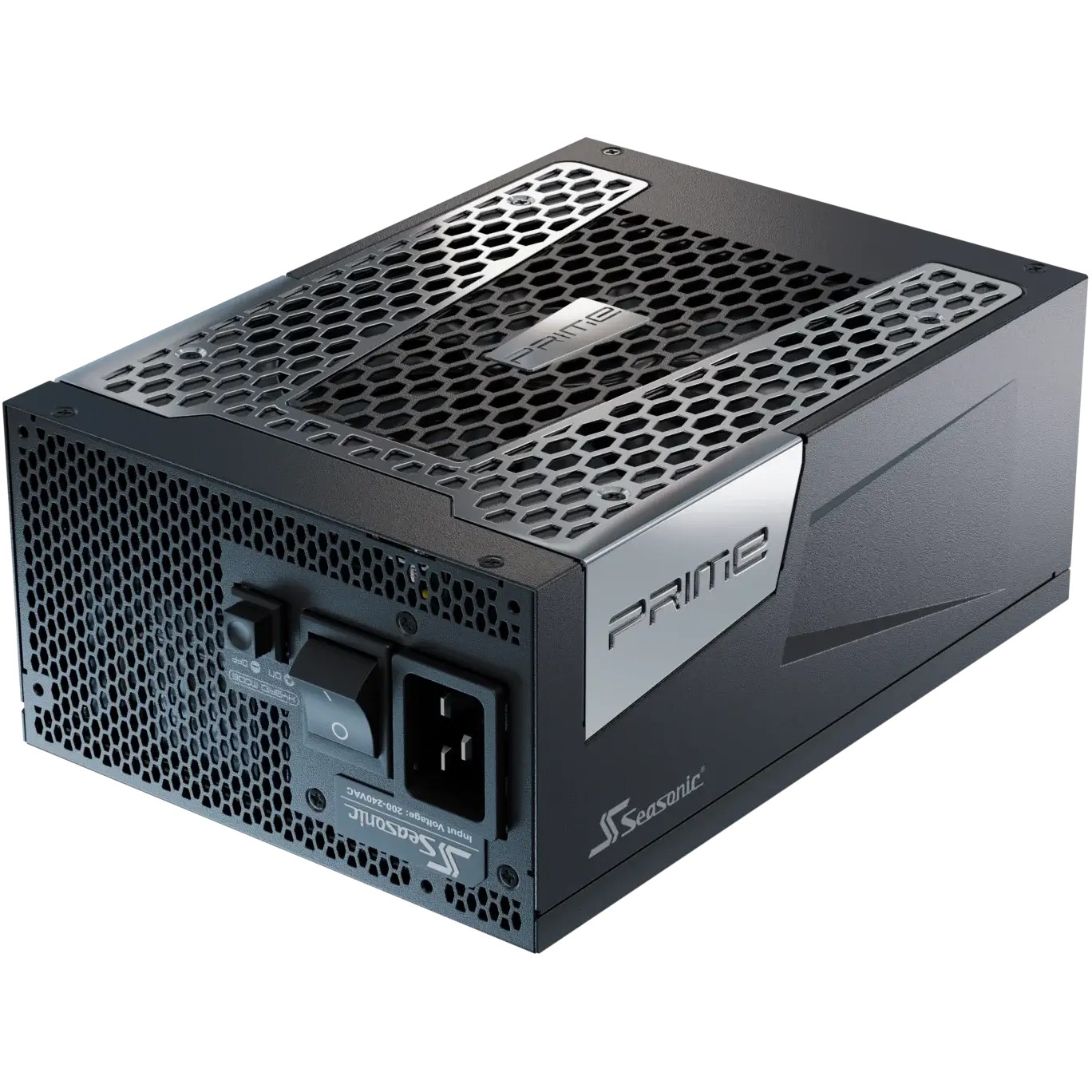

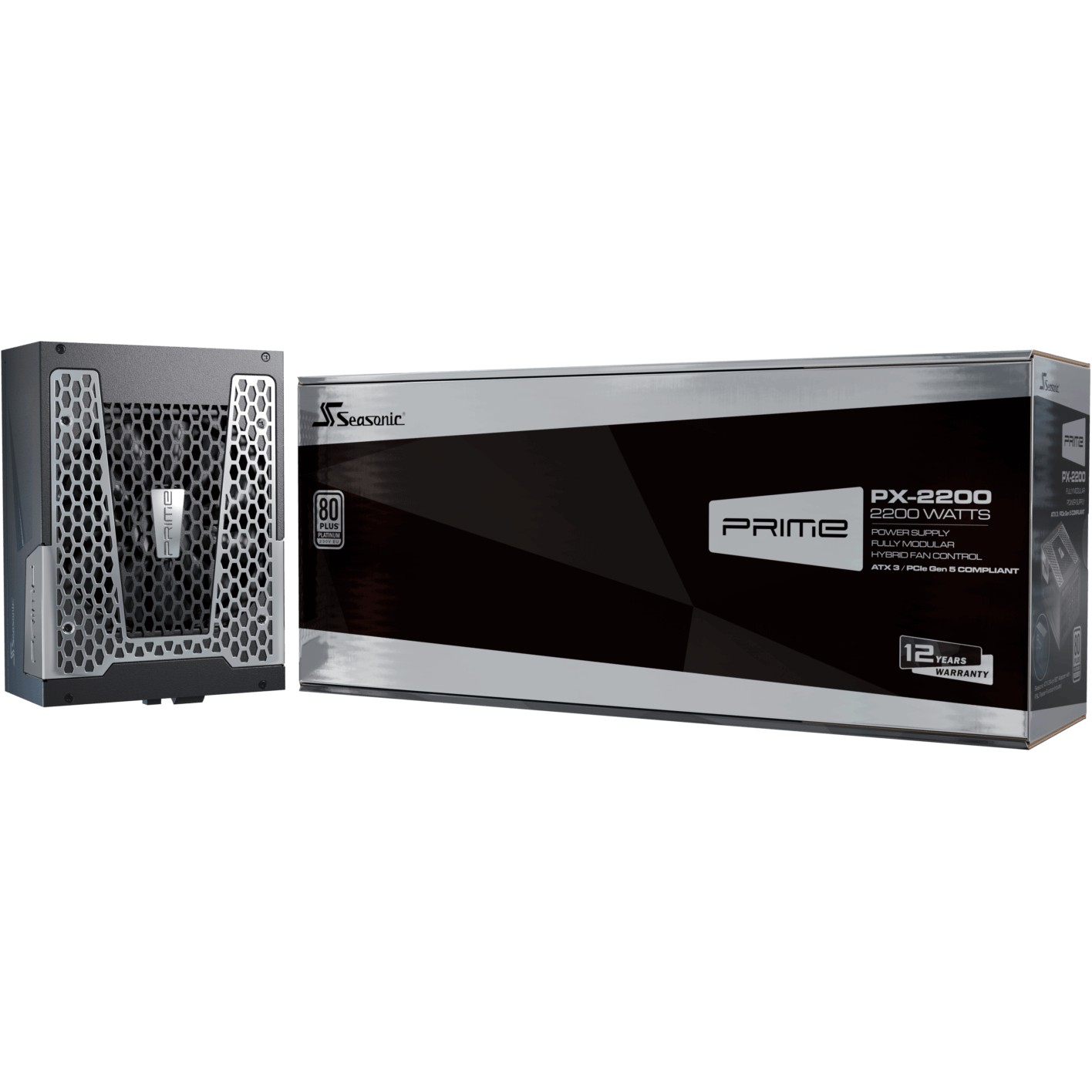

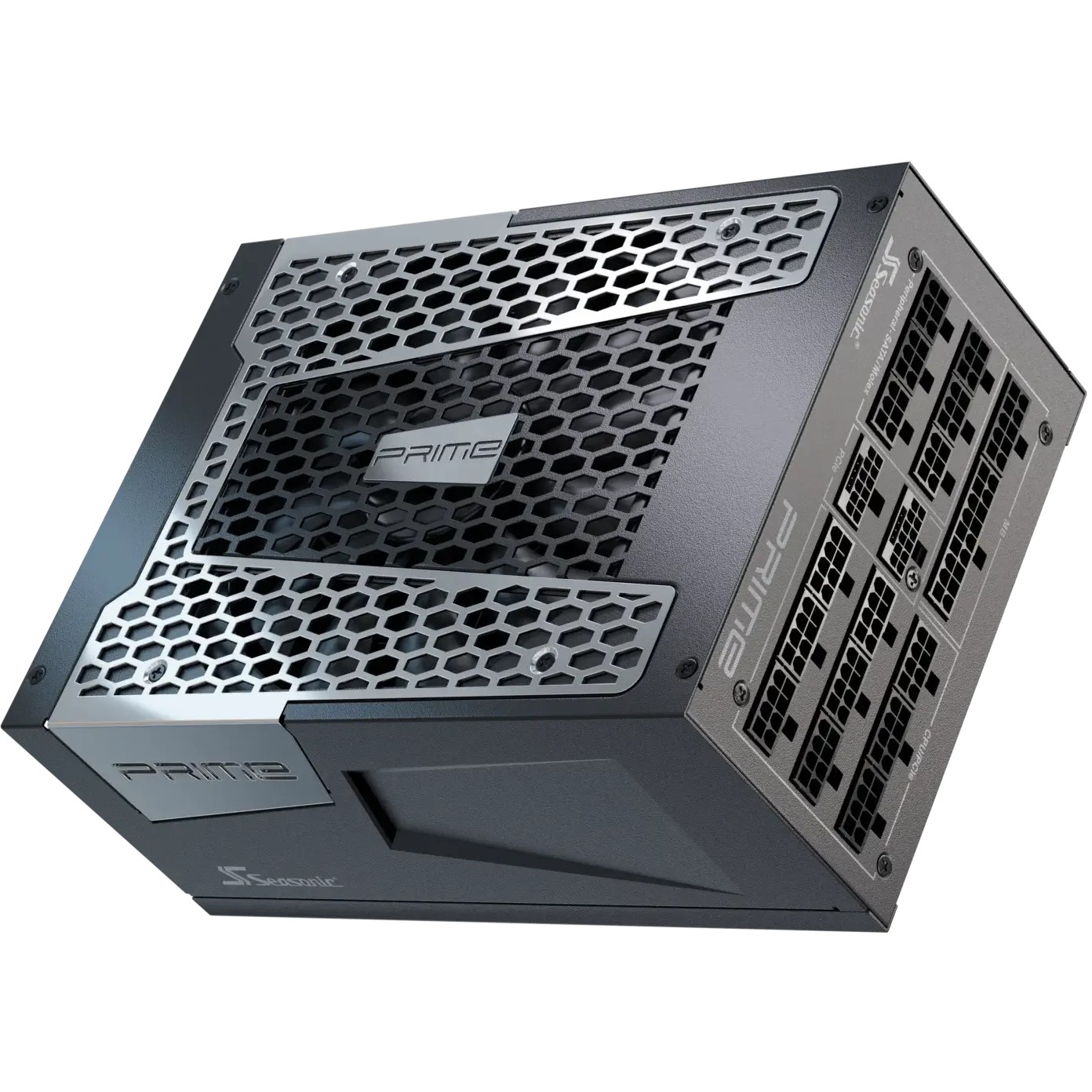

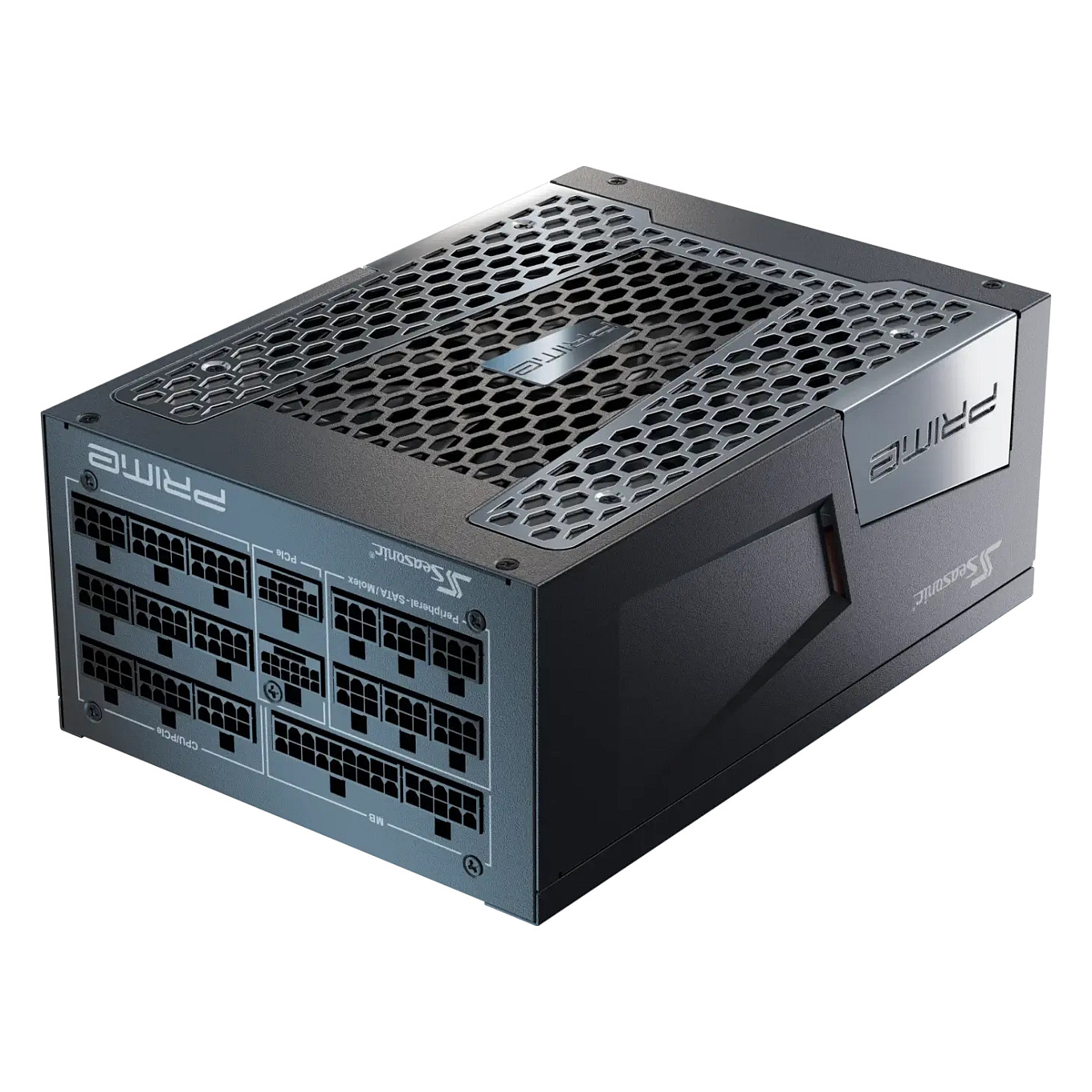

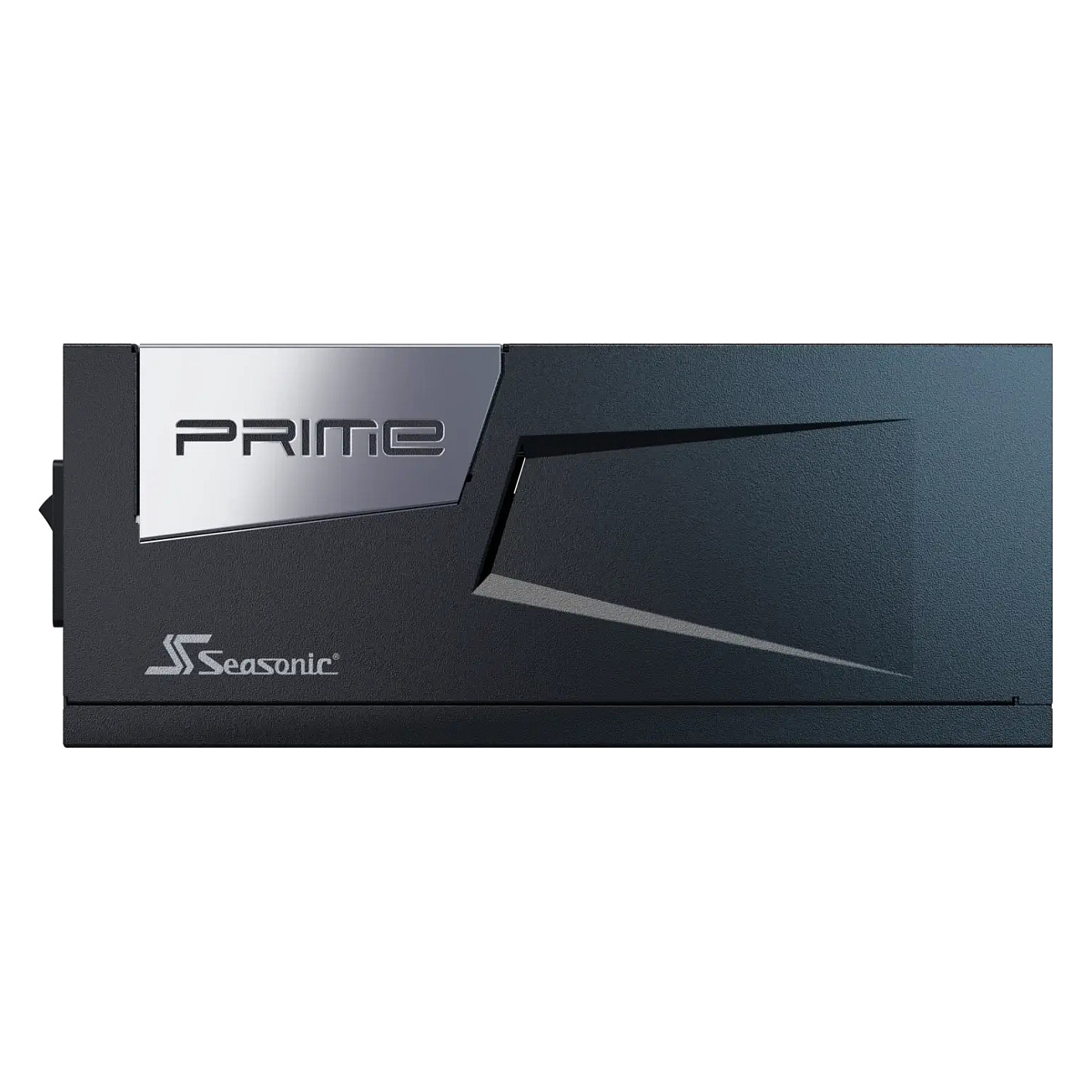

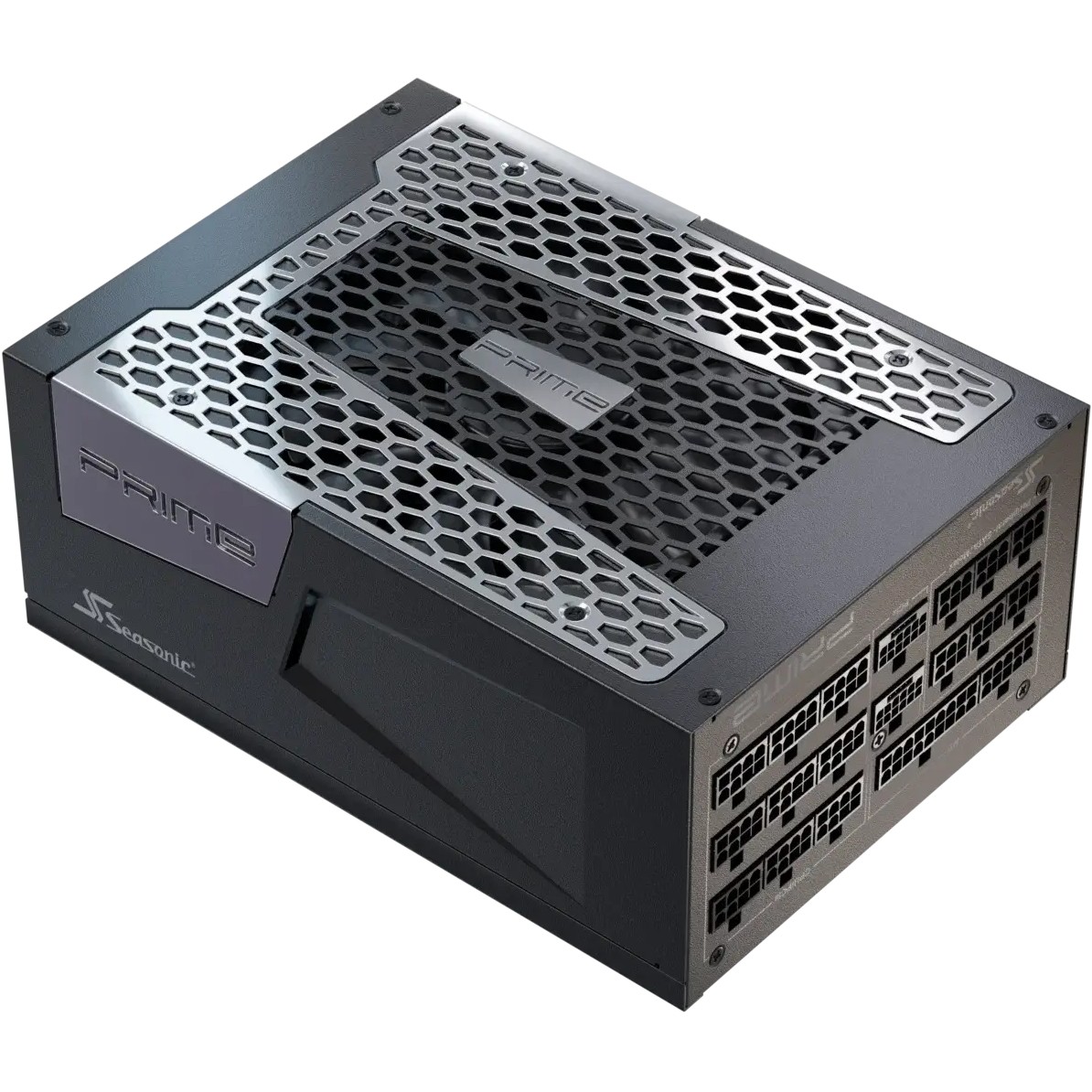

2200W Seasonic Prime PX-2200 ATX30 Modular Platin
In Stock
€525.99
VAT (19%) included
Description
2200 W 115 - 240 V Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Platinum Active 13.5 cm Black
Technical Specifications
SKU
KPRIME-PX-2200-ATX30
Total Power
2200 W
Ac Input Voltage
115 - 240 V
Input Current
15 A
Combined Power (+3.3V)
125 W
Combined Power (+12V)
2200 W
Combined Power (+5V)
125 W
Combined Power (-12V)
6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V)
183.3 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3 A

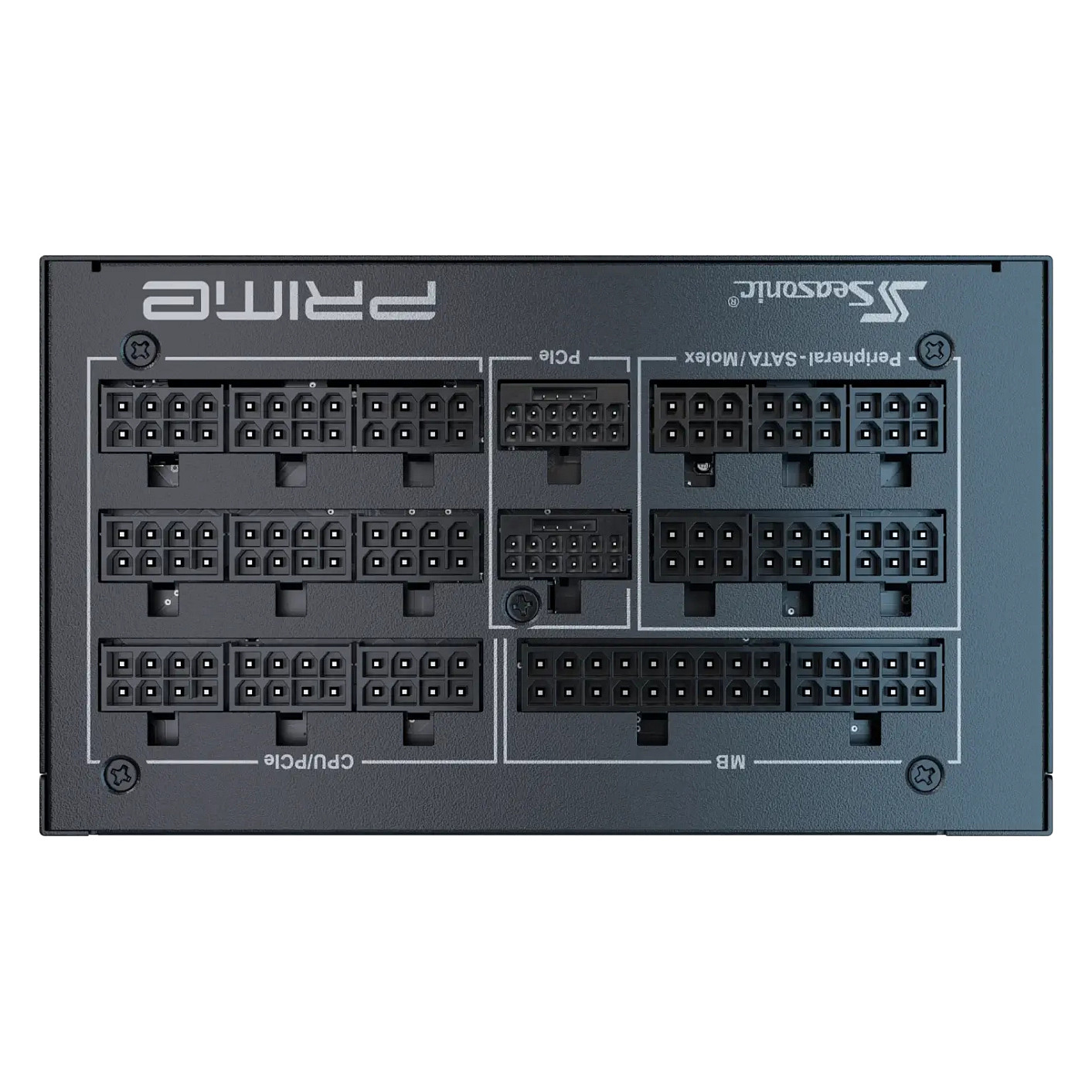

Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
10
Sata Power Cable Length
450, 470, 550, 570, 760, 860, 950 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
470, 690 mm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.0
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
150000 h
Product Colour
Black
Cooling Type
Active

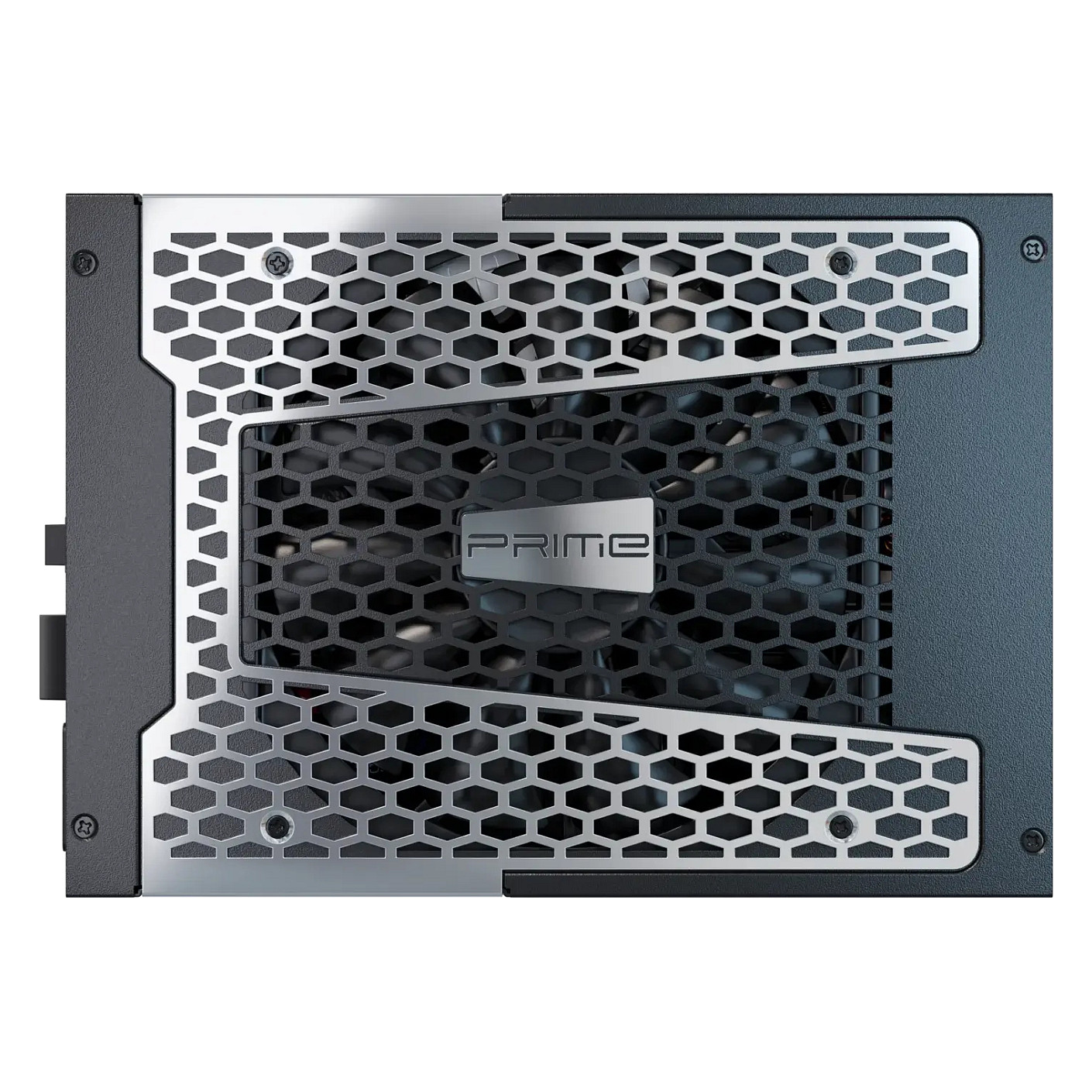

Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 50 °C
Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
CCC, CE, REACH, RoHS, WEEE
Width
150 mm
Depth
210 mm
Height
86 mm
Package Type
Box
