Thermaltake

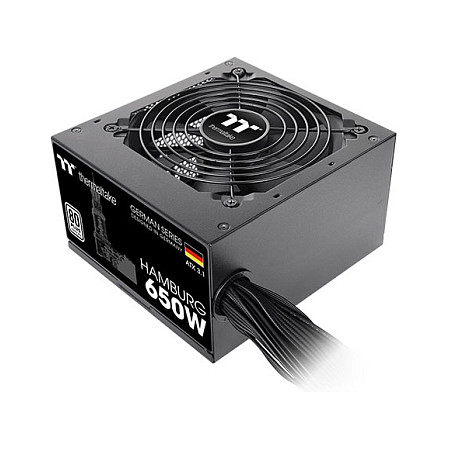

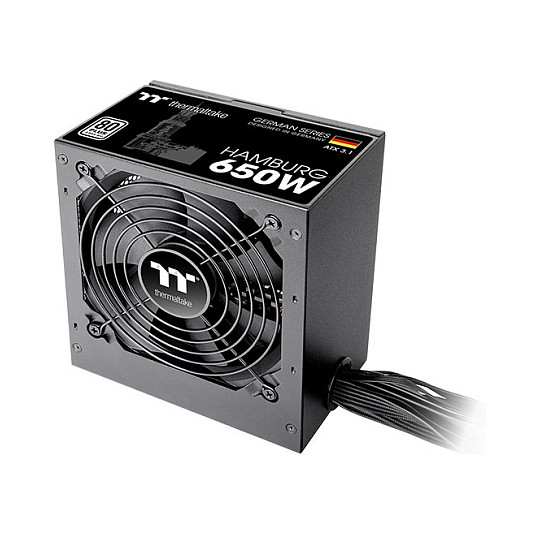

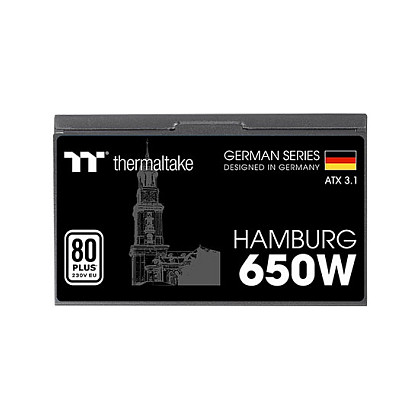

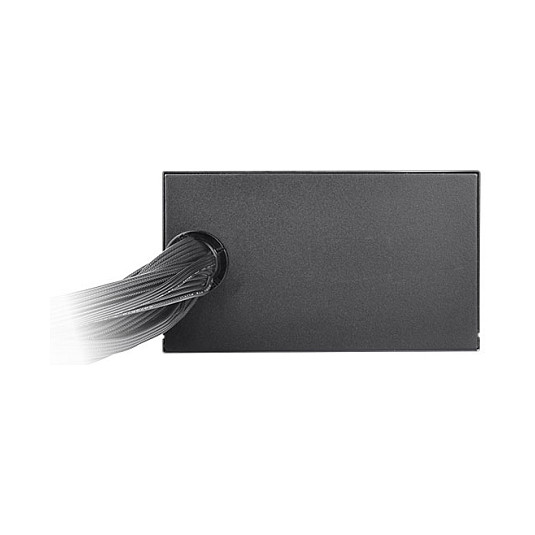

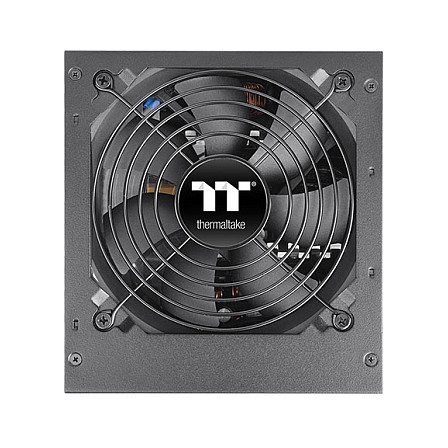

650W Thermaltake Hamburg ATX3.1 80+
In Stock
€56.99
VAT (19%) included
Description
650 W 200 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Active 12 cm Black
Technical Specifications
SKU
KW0650RE
Total Power
650 W
Peak Power
650 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
6 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
650 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V)
54.2 A
Max Output Current (+5V)
18 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
150 ms
Power Protection Features
Over current, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
500, 650, 800, 950 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
500, 650, 800, 950 mm
Pci Express Power Connectors (6+2 Pin)
2
Cpu P4 Connector (4-Pin)
2
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
5 - 40 °C
Storage Temperature (T-T)
-40 - 55 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
10 - 95%
Compliance Certificates
CB, CE, Low Voltage Directive (LVD), RCM, UKCA
Width
150 mm
Depth
86 mm
Height
140 mm
